Medium-duty oil seal designed for reliable sealing applications. Provides essential contamination protection with single sealing lip for effective lubricant retention in industrial environments. Manufactured with premium Nitrile Rubber (NBR) and reinforced garter spring for superior durability and performance. Compatible with granulators and shredders requiring 150mm shaft sealing, ensuring optimal protection and extended operational life.

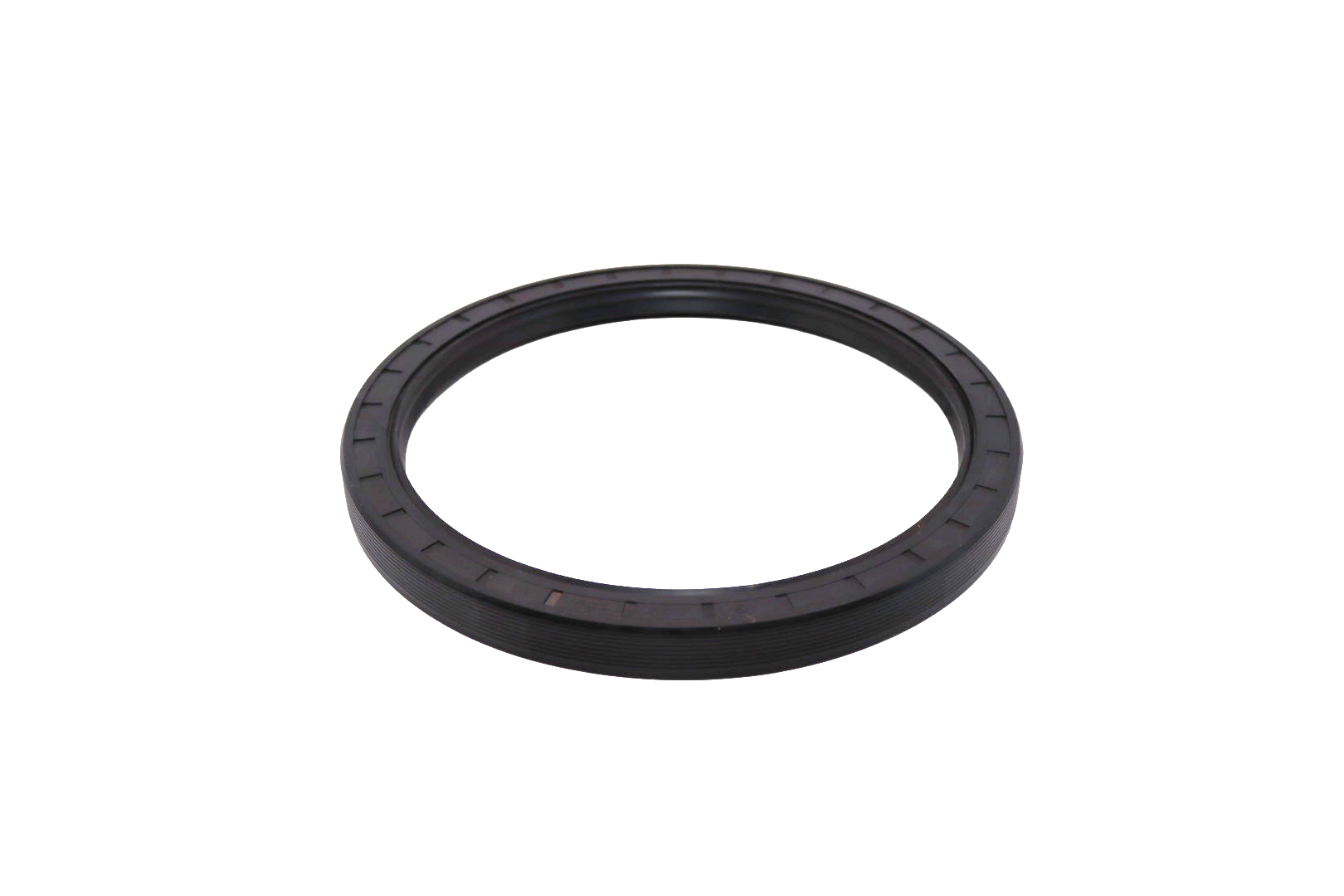

The 150 x 180 x 15 Seal serves as the critical sealing component in medium-duty industrial machinery, working in perfect harmony with rotating shafts and housings to achieve reliable contamination protection and lubricant retention. This precision-manufactured seal demonstrates exceptional engineering through advanced elastomer compounds and specialized manufacturing processes.
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 8 × 1 in |
Technical Specifications:
SKU: 80004040
Material: Nitrile Rubber (NBR) with metal case
Operating Temperature: -40°C to +100°C (-40°F to +212°F)
Seal Type: TC (Type C) radial shaft seal
Pressure Rating: Up to 0.05 MPa
Speed Rating: Up to 25 m/s
Media Compatibility: Mineral oils, water, lubricating grease
Spring: Carbon steel garter spring
Key Features:
Single Lip Design: Primary sealing lip provides effective protection against contaminants
Medium-Duty Construction: 150mm shaft diameter x 180mm housing bore x 15mm width dimensions
Superior Chemical Resistance: Premium NBR material maintains integrity against oils and lubricants
Garter Spring Reinforcement: Internal spring ensures consistent lip contact pressure
Efficient Installation: Designed for straightforward press-fit mounting procedures
Manufacturing Excellence:
Applications: Perfect for granulators, shredders, plastic processing equipment, and industrial machinery requiring reliable sealing against oil, grease, and environmental contaminants in plastic recycling and material processing environments.
