Extremely quiet. Allows even medium-sized plastic blow molded products to be ground.
Virtus Equipment’s Tangential Soundproof Granulators are compact, sound-dampened granulation systems designed to provide efficient and quiet size reduction of plastic waste. With an aggressive tangential infeed, a curved back wall, and soundproofed housing, these granulators deliver high throughput and uniform granulate quality while minimizing noise — making them ideal for beside-the-press recycling, in-plant operations, and integrated recycling systems.
Shredder Process
These granulators can process a wide variety of plastic materials, including:
Their tangential design ensures effective feeding and cutting of challenging parts with consistent output.
Virtus Equipment’s Tangential Soundproof Granulators combine quiet operation, compact design, and advanced infeed technology to deliver dependable and efficient granulation performance. Their aggressive material handling, large screening area, and easy maintenance access make them ideal for facilities that require consistent output quality with minimal disruption and service time.
Virtus Equipment supplies Tangential Soundproof Granulators throughout the United States, with technical consultation, configuration support, installation assistance, and aftermarket services tailored to plastics recycling operations. Our nationwide support network ensures fast response times, reliable performance, and long-term machine uptime for production facilities and recycling centers across the country.

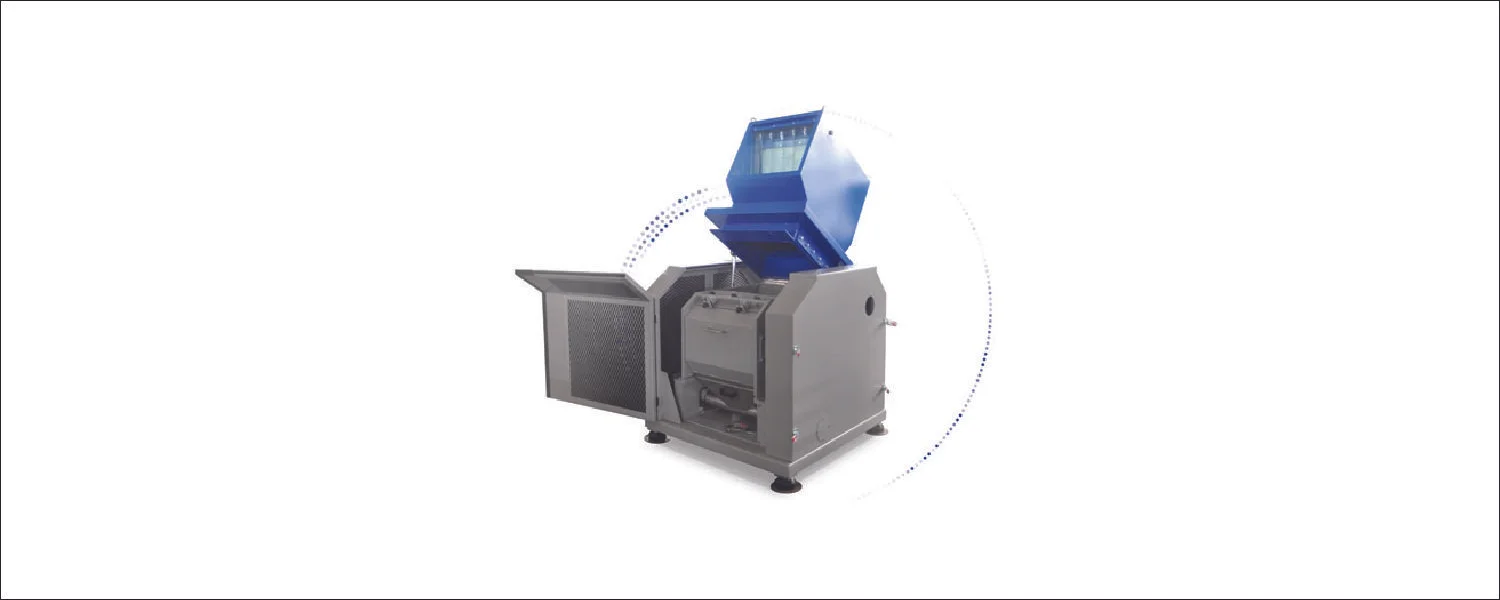

Virtus Equipment's C-Series Tangential Compact Soundproofed Granulators feature a compact soundproofed enclosure and sound dampening hoppers. Our granulators are available in two rotor diameters, 250 mm and 400 mm in widths from 300 mm to 1000 mm. While the smaller machines feature an open F-type rotor, the granulators rely on a heavier S-type rotor. In addition the curved back wall of the cutting chamber ensures aggressive ingestion while also avoiding blockages. Furthermore, the rigid design makes them dependable units and includes advanced standard features such as replaceable wear plates. As on all Virtus Equipment granulators, the rotor and stator knives are adjusted outside of the machine to reduce downtime for maintenance.
Virtus Tangential Soundproof Granulators are commonly used in:
These systems excel in environments where both performance and noise control matter.
Voluminous Part Recycling
Tangential Cutting Chamber
Easy Chamber Accessibility
| C Series Tangential | C 25-300 | C 25-450 | C 25-600 | C 40-600 | C 40-1000 | |
|---|---|---|---|---|---|---|
| Specifications | ||||||
| Material Throughput | lbs/hr | 0 - 400 | 0 - 500 | 0 - 600 | 0 - 800 | 0 - 1200 |
| Rotor Diameter | mm | 250 | 250 | 250 | 400 | 400 |
| Rotor Width | mm | 300 | 450 | 600 | 600 | 1000 |
| Drive Capacity | kW | 7.5 | 11 | 18.5 | 22 | 30 |
| Rotor Knives | rows | 3 | 3 | 3 | 3 | 3 |
| Stator Knives | rows | 2 | 2 | 2 | 2 | 2 |
| Screen Size | mm | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
| Effective Working Area | mm x mm | 250 x 300 | 250 x 450 | 250 x 600 | 400 x 600 | 400 x 1000 |
| Weight (approx.) | kg | 1200 | 1400 | 1850 | 3300 | 4000 |
| Dimensions | ||||||
| A | mm | 1350 | 1600 | 1750 | 1550 | 1950 |
| B | mm | 1880 | 1880 | 1880 | 2180 | 2180 |
| C | mm | 1380 | 1380 | 1380 | 1540 | 1540 |
| D | mm | 300 | 450 | 600 | 590 | 990 |
| E | mm | 370 | 370 | 370 | 490 | 490 |
| F | mm | 1220 | 1220 | 1220 | 1460 | 1460 |
Tangential compact soundproof granulators are designed for inline recycles in plastics blow molding and injection molding applications. They efficiently process voluminous parts such as bottles, canisters, crates, and molding sprues while maintaining low noise and high performance.
Virtus Equipment’s C-Series granulators feature a compact, soundproofed enclosure with sound-dampening hoppers, replaceable wear plates, and external knife adjustment for quick maintenance. Their curved cutting chamber ensures smooth material flow and prevents blockages, making them highly reliable and efficient.
These granulators feature acoustically insulated enclosures and vibration-dampening components, significantly reducing operational noise without compromising on grinding performance — ideal for clean and quiet work environments.
Yes. The low feeding height and compact footprint of Virtus Equipment’s Tangential Soundproof Granulators make them perfect for inline recycling. They can be integrated easily with conveyors or used for manual feeding, depending on your production setup.
For detailed specifications, pricing, or expert guidance, contact Virtus Equipment at (239) 219-1800 or visit our contact page to request a fast, free quote.
