Central granulators for the most demanding plastic size reduction applications
Virtus Equipment’s Heavy-Duty Industrial Granulators are robust plastics size-reduction systems engineered for high-throughput granulation of thick, bulky, and industrial plastics. Designed to deliver consistent granulate quality and reliable performance, these granulators combine heavy construction with advanced cutting technology, making them ideal for recycling facilities and manufacturing plants handling demanding materials.
Shredder Process
These granulators are capable of processing a wide range of plastics, including:
Their powerful design ensures reliable granulation even with tough or difficult materials.
Virtus Equipment’s Heavy-Duty Industrial Granulators provide powerful size reduction and robust reliability for industrial recycling applications. With features like external knife adjustment, oversized bearings, and flexible rotor choices, they offer maintenance convenience, adaptability to material types, and long-term performance – making them a strong choice for facilities focused on productivity and quality granulate output.
Virtus Equipment supplies Heavy-Duty Industrial Granulators throughout the United States, with technical consultation, configuration guidance, installation support, and aftermarket service tailored to plastics recycling and processing operations. Our nationwide support network ensures responsive maintenance, optimized machine performance, and long-term operational reliability for facilities across the country.

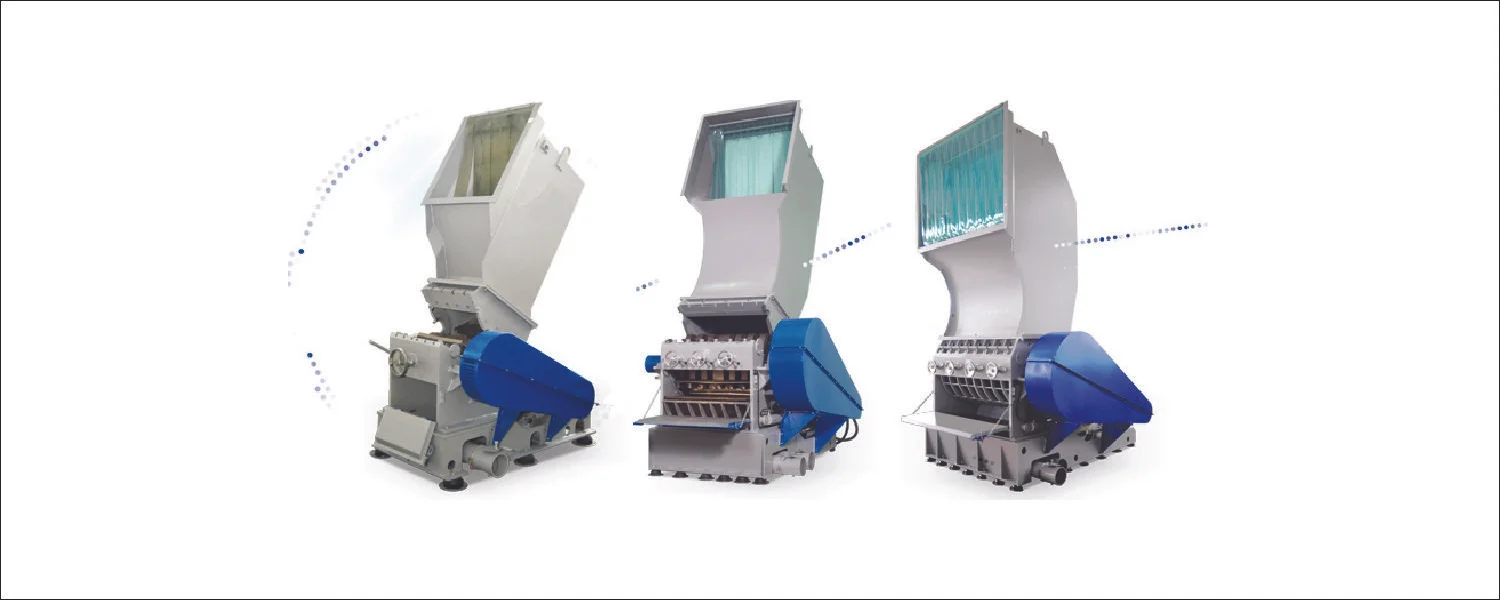

Virtus Equipment H-Series heavy duty granulators offer a wide range of rotor designs and hoppers. Our central granulators can be customized to meet the most demanding plastics size reduction applications. These central granulators have completely welded heavy steel construction designed to withstand the most demanding and universal applications. Rotor bearings, knife mounts, and rotor shaft are oversized to meet the demands of industrial recycling. Virtus Equipment grinders standard V-cut creates a high-quality regrind with a very low percentage of output material fines. In addition the removable deflector wedge acts as a third stator blade and allows the grinder to be quickly adjusted to different uses. Other standard features include easily replaceable wear plates in the cutting chamber as well as outboard bearings reducing the risk of contamination.
Virtus Heavy-Duty Industrial Granulators are commonly used in:
These granulators support operations that require high-quality regrind and dependable performance.

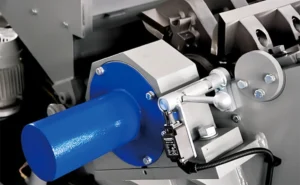

Heavy-duty Outboard Bearings
Removable Deflector Wedge
The easily removable deflector wedge houses a third stator knife. It allows easy and fast adjustments to the granulator's aggressivity.

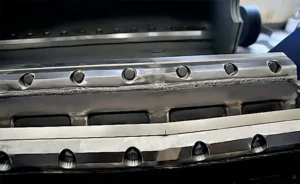

V-cut Rotor Technology
| H Series | H 35-50 | H 50-60 | H 50-100 | |
|---|---|---|---|---|
| Specifications | ||||
| Material Throughput | lbs/hr | 0 - 1000 | 0 - 1800 | 0 - 2500 |
| Rotor Diameter | mm | 350 | 500 | 500 |
| Rotor Width | mm | 500 | 600 | 1000 |
| Drive Capacity | kW | 22 | 55 | 75 |
| Rotor Knives | pcs | 3 or 5 | 3 or 5 | 3 or 5 |
| Stator Knives | rows | 2 or 3 | 2 or 3 | 2 or 3 |
| Screen Size | mm | >6 | >6 | >6 |
| Effective Working Area | mm x mm | 460 x 516 | 636 x 590 | 985 x 590 |
| Weight (approx.) | kg | 1800 | 3100 | 4200 |
| Dimensions | ||||
| A | mm | 1820 | 2105 | 2255 |
| B | mm | 1600 | 1850 | 2000 |
| C | mm | 740 | 800 | 900 |
| D | mm | 1650 | 1765 | 1840 |
| E | mm | 520 | 635 | 985 |
| F | mm | 775 | 945 | 1350 |
| G | mm | 1280 | 1560 | 1945 |
| H Series | H 60-80 | H 60-160 | H 70-100 | |
|---|---|---|---|---|
| Specifications | ||||
| Material Throughput | lbs/hr | 0 - 2500 | 0 - 5000 | 0 - 3000 |
| Rotor Diameter | mm | 600 | 600 | 700 |
| Rotor Width | mm | 800 | 1600 | 1000 |
| Drive Capacity | kW | 75 | 132 | 132 |
| Rotor Knives | pcs | 3, 5 or 7 | 3, 5 or 7 | 3, 5 or 7 |
| Stator Knives | rows | 2 or 3 | 2 or 3 | 2 or 3 |
| Screen Size | mm | >6 | >6 | >8 |
| Effective Working Area | mm x mm | 790 x 695 | 1500 x 695 | 900 x 800 |
| Weight (approx.) | kg | 4500 | 6950 | 7100 |
| Dimensions | ||||
| A | mm | 2350 | 2535 | 2815 |
| B | mm | 2100 | 2390 | 2500 |
| C | mm | 1000 | 1000 | 1100 |
| D | mm | 1940 | 1940 | 2250 |
| E | mm | 788 | 1560 | 985 |
| F | mm | 1125 | 1980 | 1290 |
| G | mm | 1840 | 2360 | 2060 |
| H Series | H 80-120 | H 80-160 | H 80-200 | |
|---|---|---|---|---|
| Specifications | ||||
| Material Throughput | lbs/hr | 0 - 4000 | 0 - 5000 | 0 - 6000 |
| Rotor Diameter | mm | 800 | 800 | 800 |
| Rotor Width | mm | 1200 | 1600 | 2000 |
| Drive Capacity | kW | 132 | 160 | 2 x 160 |
| Rotor Knives | pcs | 5, 7 or 9 | 5, 7 or 9 | 5, 7 or 9 |
| Stator Knives | rows | 2 or 3 | 2 or 3 | 2 or 3 |
| Screen Size | mm | >8 | >8 | >8 |
| Effective Working Area | mm x mm | 1150 x 915 | 1570 x 915 | 1960 x 915 |
| Weight (approx.) | kg | 10400 | 12500 | 13500 |
| Dimensions | ||||
| A | mm | 3100 | 3175 | 3175 |
| B | mm | 2800 | 2800 | 2800 |
| C | mm | 1200 | 1400 | 1600 |
| D | mm | 2250 | 2600 | 3055 |
| E | mm | 1150 | 1570 | 1965 |
| F | mm | 1535 | 1970 | 2250 |
| G | mm | 2400 | 2860 | 3465 |
| H Series | H 110-120 | H 110-240 | |
|---|---|---|---|
| Specifications | |||
| Material Throughput | lbs/hr | 0 - 7500 | 0 - 15000 |
| Rotor Diameter | mm | 1100 | 1100 |
| Rotor Width | mm | 1200 | 2400 |
| Drive Capacity | kW | 200 | 2 x 200 |
| Rotor Knives | pcs | 7, 9 or 11 | 7, 9 or 11 |
| Stator Knives | rows | 2 or 3 | 2 or 3 |
| Screen Size | mm | >8 | >8 |
| Effective Working Area | mm x mm | 1150 x 1210 | 1960 x 1210 |
| Weight (approx.) | kg | 14000 | 22000 |
| Dimensions | |||
| A | mm | 3115 | 3115 |
| B | mm | 3000 | 3000 |
| C | mm | 1400 | 1400 |
| D | mm | 3030 | 3030 |
| E | mm | 1150 | 2300 |
| F | mm | 1680 | 2760 |
| G | mm | 2440 | 3830 |
Heavy-duty granulators for plastics are powerful machines designed to handle demanding size reduction applications involving thick-walled and high-volume plastic components. Virtus Equipment’s H-Series industrial granulators offer superior cutting performance, durability, and efficiency for large-scale recycling and production operations.
Virtus Equipment’s heavy-duty granulators are ideal for centralized plastic recycling systems, processing thick-walled parts, profiles, pipes, and sheets in one step. They can also serve as secondary grinders following a shredder, boosting throughput and granule consistency in industrial recycling lines.
The H-Series granulators feature welded heavy steel construction, oversized rotor shafts and bearings, and multiple rotor designs to withstand the toughest industrial conditions. They include advanced features like V-cut technology, replaceable wear plates, and outboard bearings for cleaner, longer-lasting performance.
Yes. For abrasive, contaminated, or highly filled materials, Virtus Equipment provides special wear protection options, including hard-facing of rotors, wear-resistant steel components, and reinforced housings to maximize lifespan and reliability.
You can contact Virtus Equipment at (239) 219-1800 or visit our contact page to request a fast, free quote or discuss your specific industrial plastic recycling needs with our experts.
