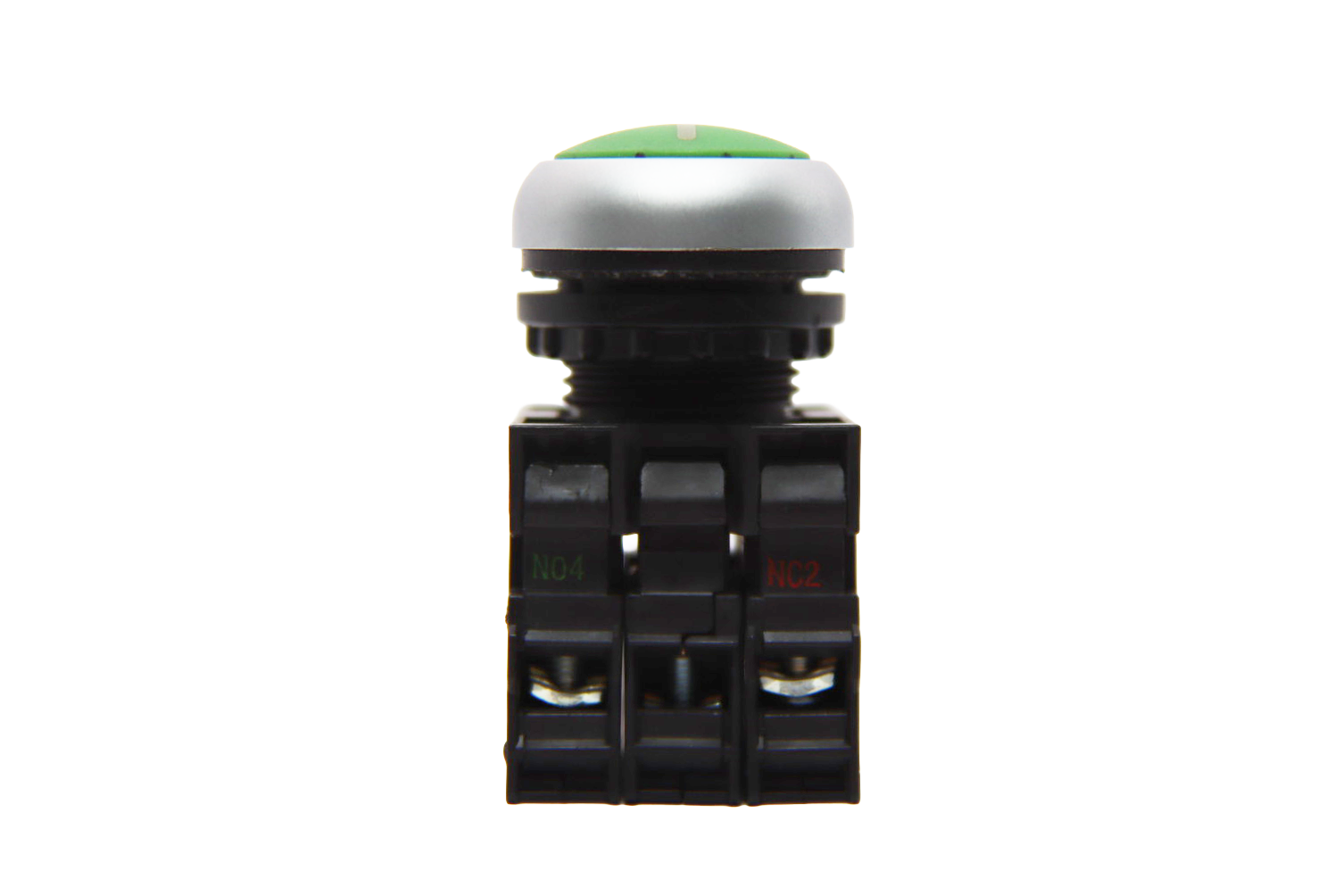

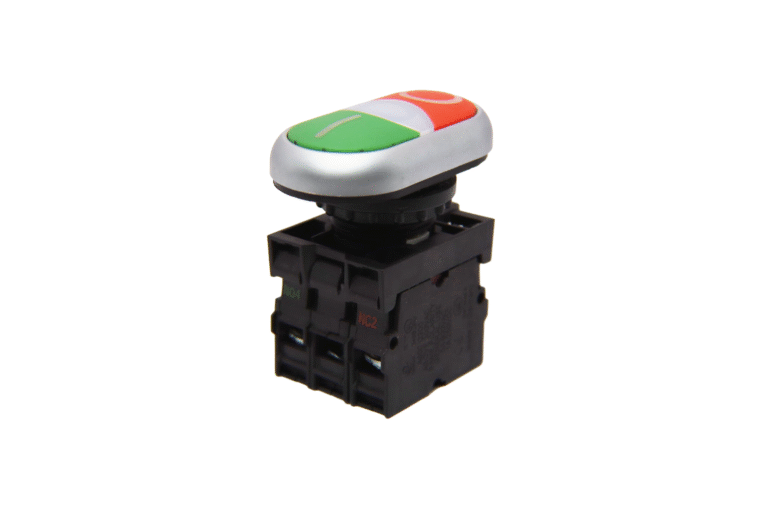

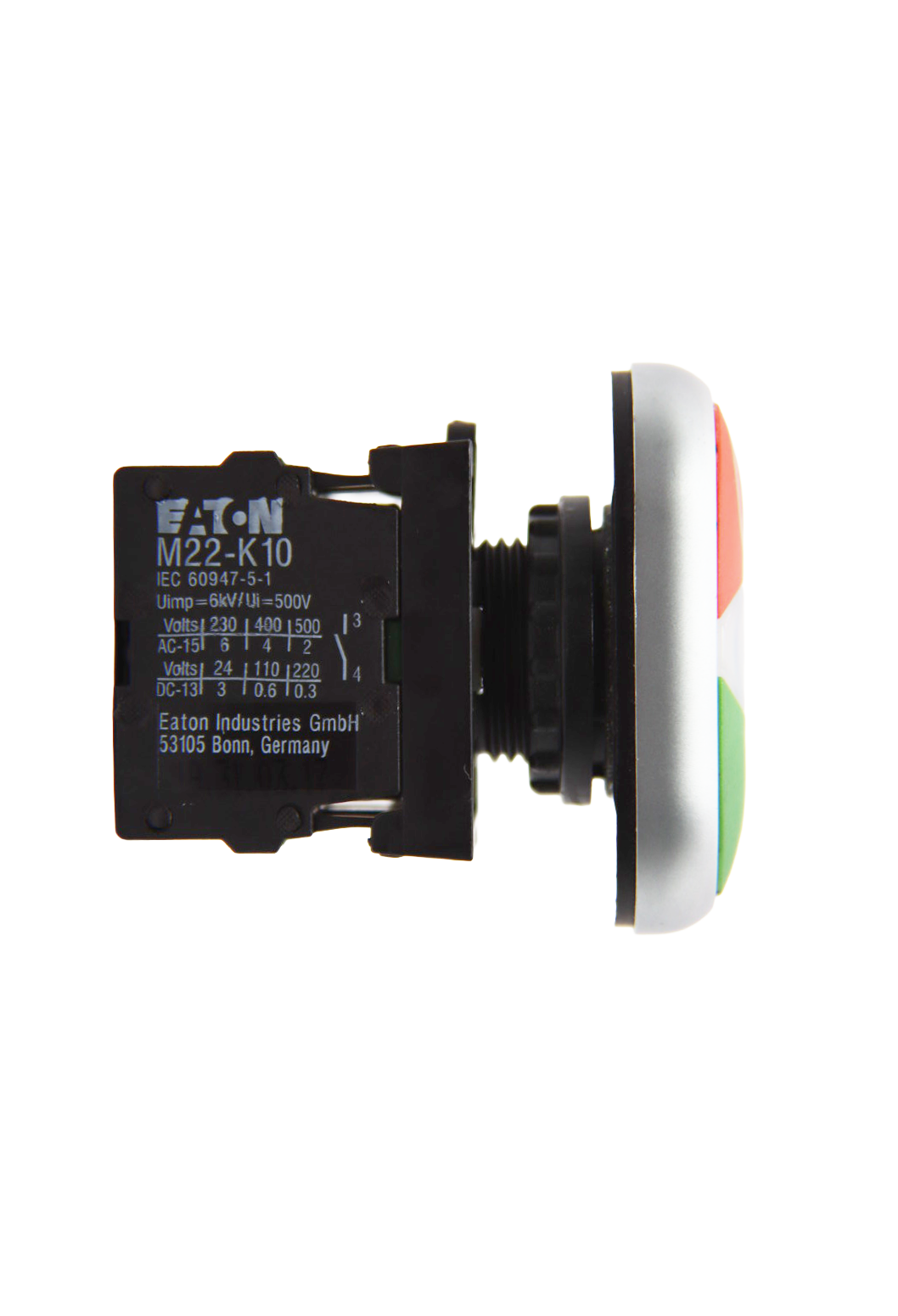

M22-DDL-GR-X1/X0 Red/Green Button

Industrial dual-color illuminated pushbutton engineered for control panels on Virtus Equipment and ZERMA America shredders and granulators. Features M22-DDL configuration with integrated red and green LED indication for clear operational status display. Designed with dual-color capability showing running (green) and stopped (red) states in a single compact button. Essential control component for start/stop functions with visual status feedback. Provides reliable pushbutton operation in demanding material processing environments with 22mm panel mounting and long LED life.

SKU 80031027 Category Tags , , , , , , , , , , , , , , , , , , ,

Description

The M22-DDL-GR-X1/X0 Red/Green Button is a premium dual-color illuminated control device specifically designed for Virtus Equipment and ZERMA America material processing systems. This industrial-grade illuminated pushbutton combines control actuation with dual-color LED status indication, providing clear visual feedback of equipment operational state while enabling start/stop control in demanding industrial applications.

Additional information

Weight 1 lbs
Dimensions 3 × 2 × 3 in
Technical Specifications:
SKU: 80031027
Part Number: M22-DDL-GR-X1/X0
Type: Dual-color illuminated pushbutton
Series: M22 industrial control components
LED Colors: Red and Green dual indication
Mounting Size: 22mm panel cutout (standard)
Contact Configuration: X1/X0 configuration (specific contacts vary by model)
LED Voltage: Multiple voltage options available (AC or DC - specify when ordering)
LED Type: Long-life solid-state LEDs
Lens: Clear or colored protective lens
Mounting: Panel mount (flush or extended)
Protection Rating: IP65 or IP67 front panel protection (typical)
Operating Environment: Industrial control panel applications
Key Features:
Dual-Color LED Indication: Integrated red and green LEDs provide clear visual status in a single compact button
M22 Standard Size: 22mm mounting cutout follows industry standard for control panel design
DDL Configuration: Dual LED design with X1/X0 contact configuration for versatile control applications
High-Brightness LEDs: Clearly visible illumination even in bright ambient lighting conditions
Flush Mounting Design: Panel-mounted configuration with protective lens
Long LED Life: Solid-state LED technology ensures extended operational life with minimal maintenance
Industrial Contact Rating: Reliable contacts suitable for control circuit and PLC input applications
Multiple Voltage Options: LED illumination available for various control voltages (AC or DC)
Clear Lens Design: Transparent or colored lens allows LED light transmission for status indication
Compact Integration: Combines pushbutton control and status indication in single device
Standard Panel Cutout: Compatible with 22mm mounting holes in control panels
Applications: Essential control and indication component for granulators, shredders, and material processing equipment used in plastic recycling, manufacturing scrap recovery, and waste processing operations. Critical for providing combined start/stop control with visual status indication showing equipment running state (green) and stopped state (red) in a single compact device. Ideal for recycling facilities, injection molding plants, extrusion operations, blow molding facilities, and manufacturing environments requiring clear operator interface with visual status feedback. Perfect for applications including main equipment start/stop control with run indication, operator station interfaces requiring status visibility, remote control panels showing equipment state, and automated systems providing visual confirmation of operational status. Suitable for control panels where space efficiency demands combining control actuation and status indication in a single button, reducing panel real estate while improving operator awareness of equipment operating conditions.
