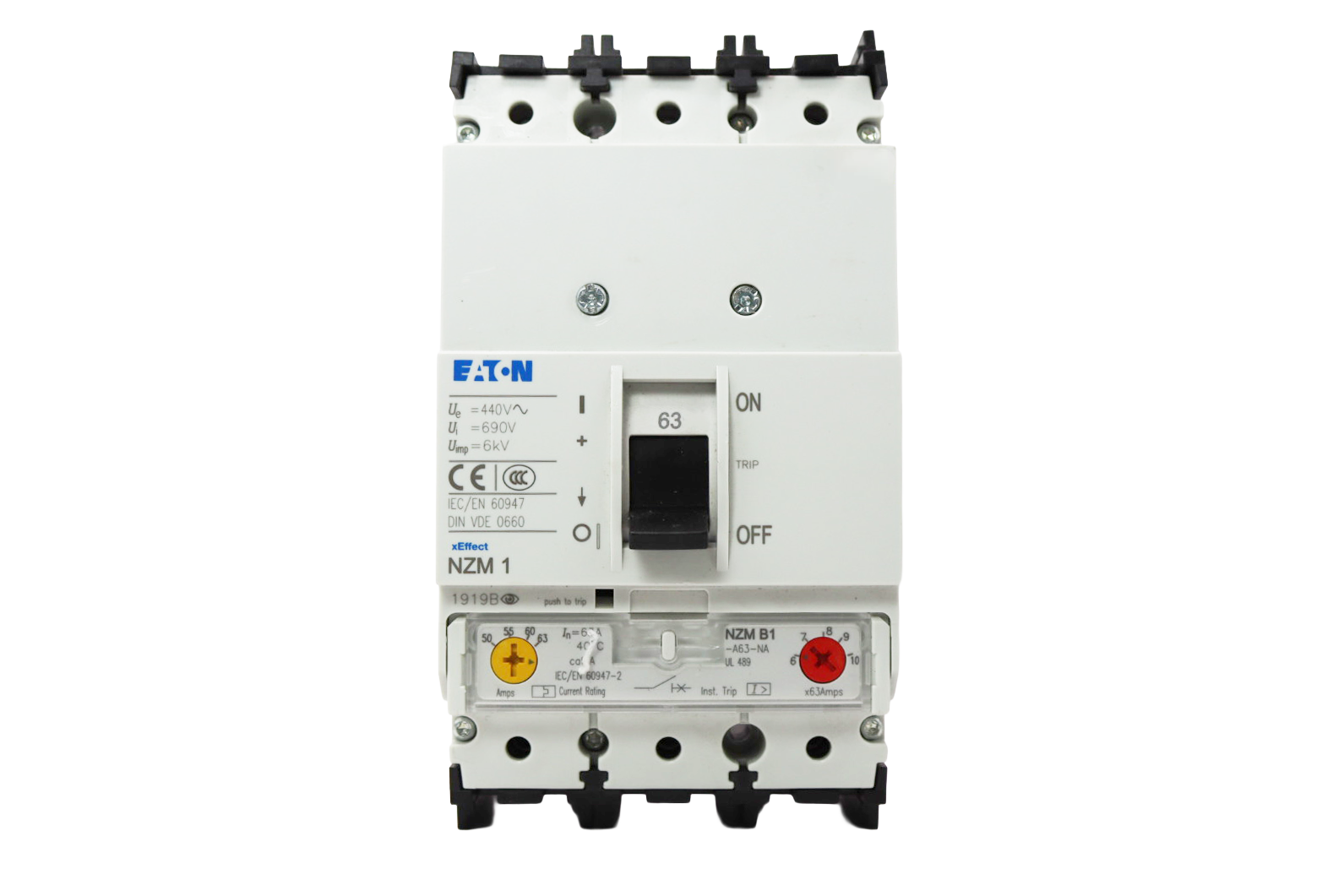

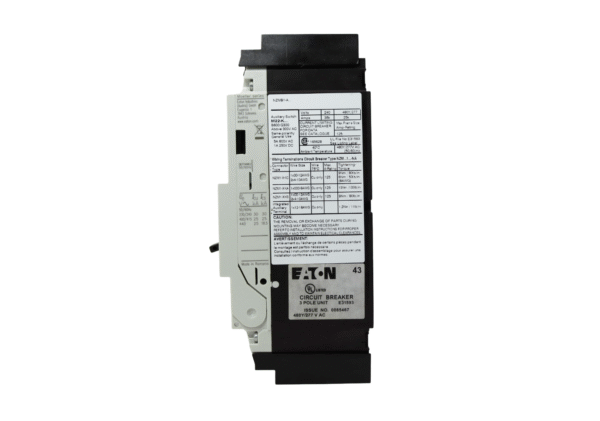

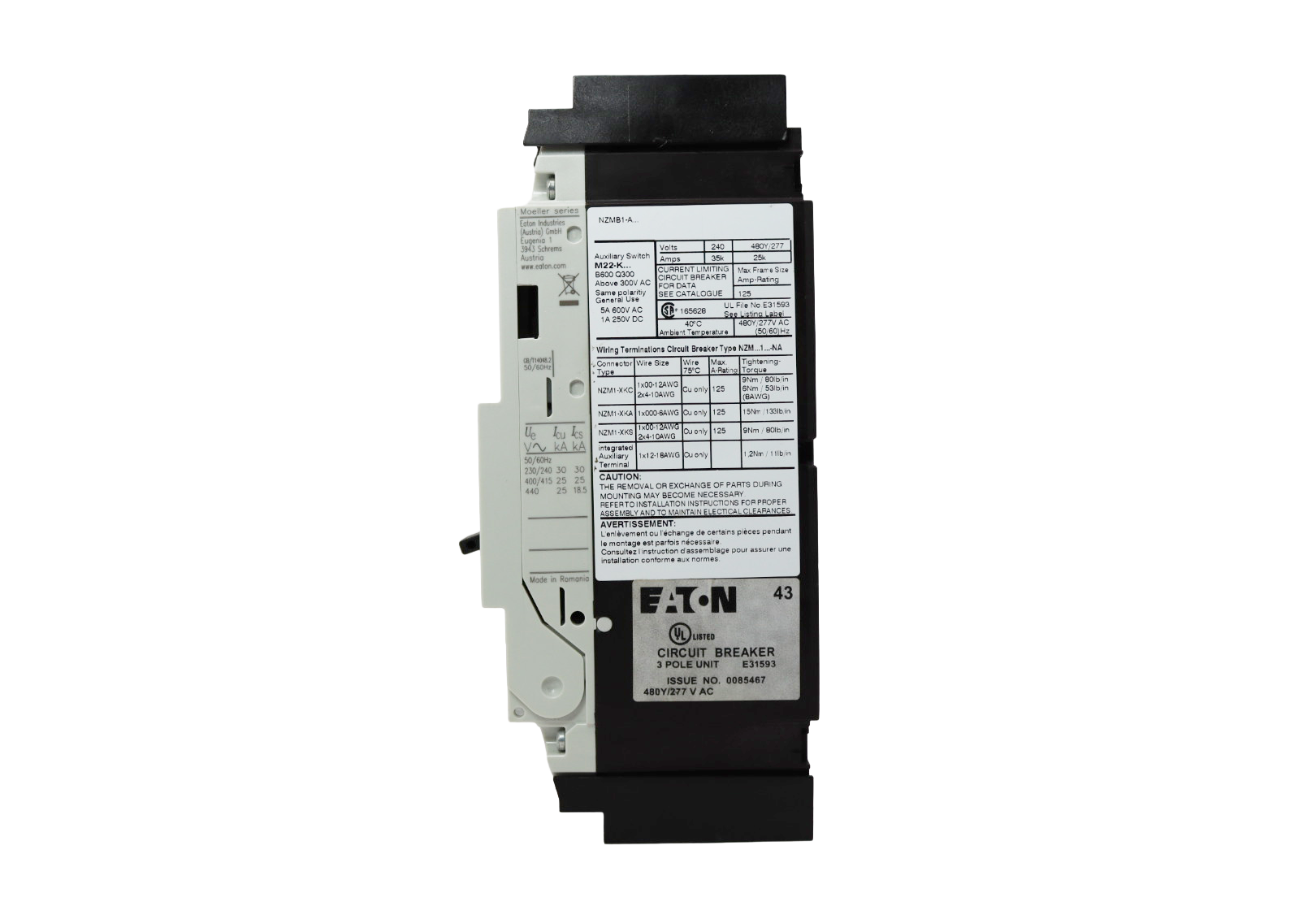

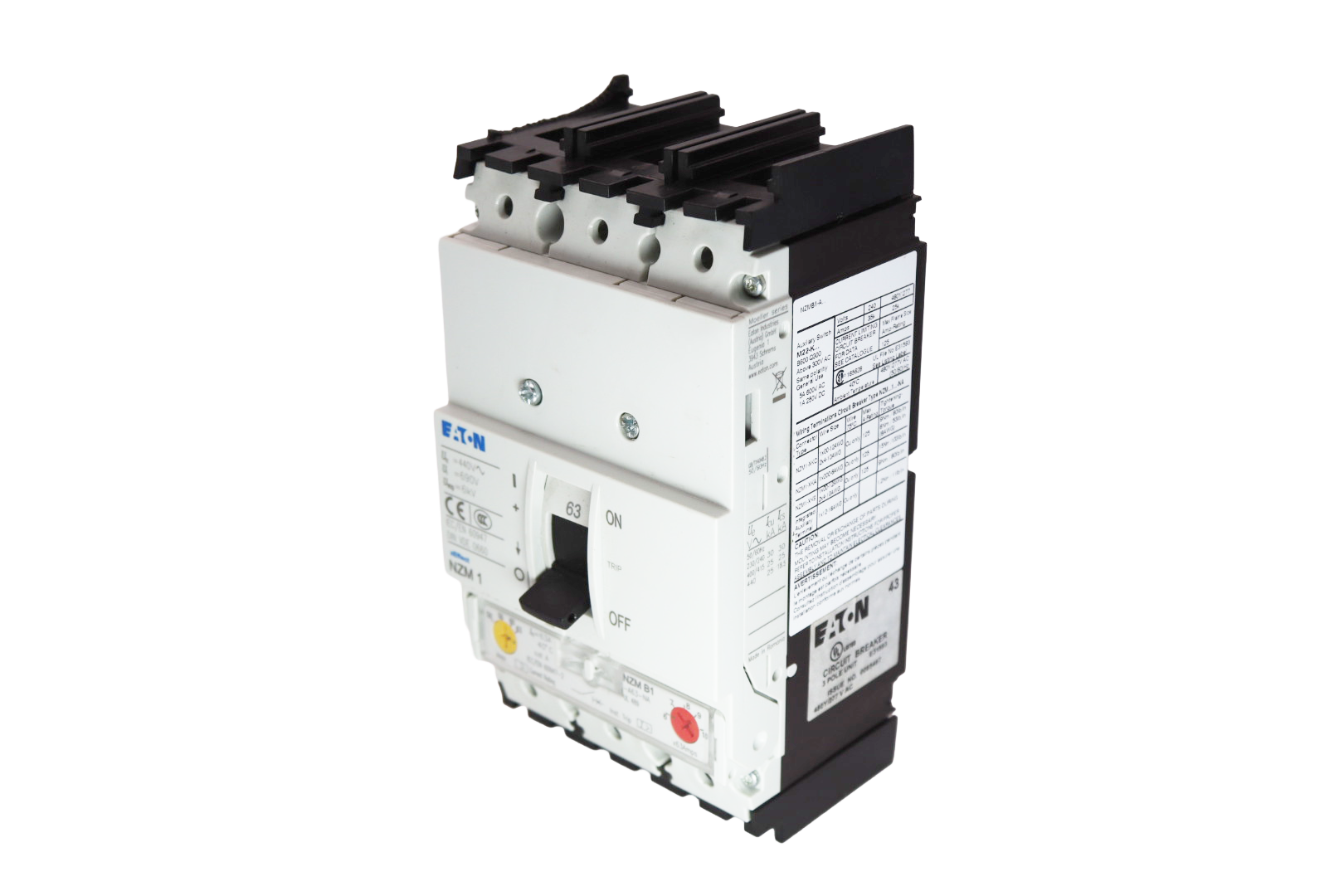

NZMB1-A63 Circuit Breaker

Heavy-duty 63A molded case circuit breaker designed for distribution protection in Virtus Equipment and ZERMA America industrial systems. Features thermal-magnetic trip technology and high interrupting capacity for reliable circuit protection. Built to industrial standards with robust construction for demanding electrical applications in material processing equipment.

Login to see price

SKU 80031919 Category Tags , , , , , , , ,

Description

The NZMB1-A63 Circuit Breaker is a high-performance molded case circuit breaker engineered for reliable electrical protection in Virtus Equipment and ZERMA America industrial systems. This 63A circuit breaker provides comprehensive overcurrent protection with thermal-magnetic trip technology, ensuring safe operation of electrical circuits in demanding industrial environments.

Additional information

Weight 3 lbs
Dimensions 8 × 4 × 4 in
Technical Specifications:
SKU: 80031919
Current Rating: 63A
Frame Type: NZM1
Poles: 3-pole
Voltage Rating: 480V AC
Interrupting Capacity: 25 kAIC
Trip Type: Thermal-magnetic
Standards Compliance: UL/CSA, IEC
Key Features:
63A Current Rating: Suitable for medium to heavy-duty electrical circuit protection
Thermal-Magnetic Trip: Combines thermal and magnetic protection for comprehensive overcurrent detection
High Interrupting Capacity: 25 kAIC rating provides reliable fault current interruption
3-Pole Configuration: Complete three-phase circuit protection with balanced operation
Industrial Construction: NZM1 frame design built for harsh industrial environments
Manual Operation: Rocker lever operation for easy switching and maintenance
Trip Indication: Clear indication of trip status and position
UL/CSA Listed: Meets North American safety standards for industrial applications
Applications: Ideal for main distribution panels, motor control centers, and feeder protection in industrial shredding and granulation systems. Perfect for Virtus Equipment and ZERMA America installations requiring reliable circuit protection and electrical safety.
