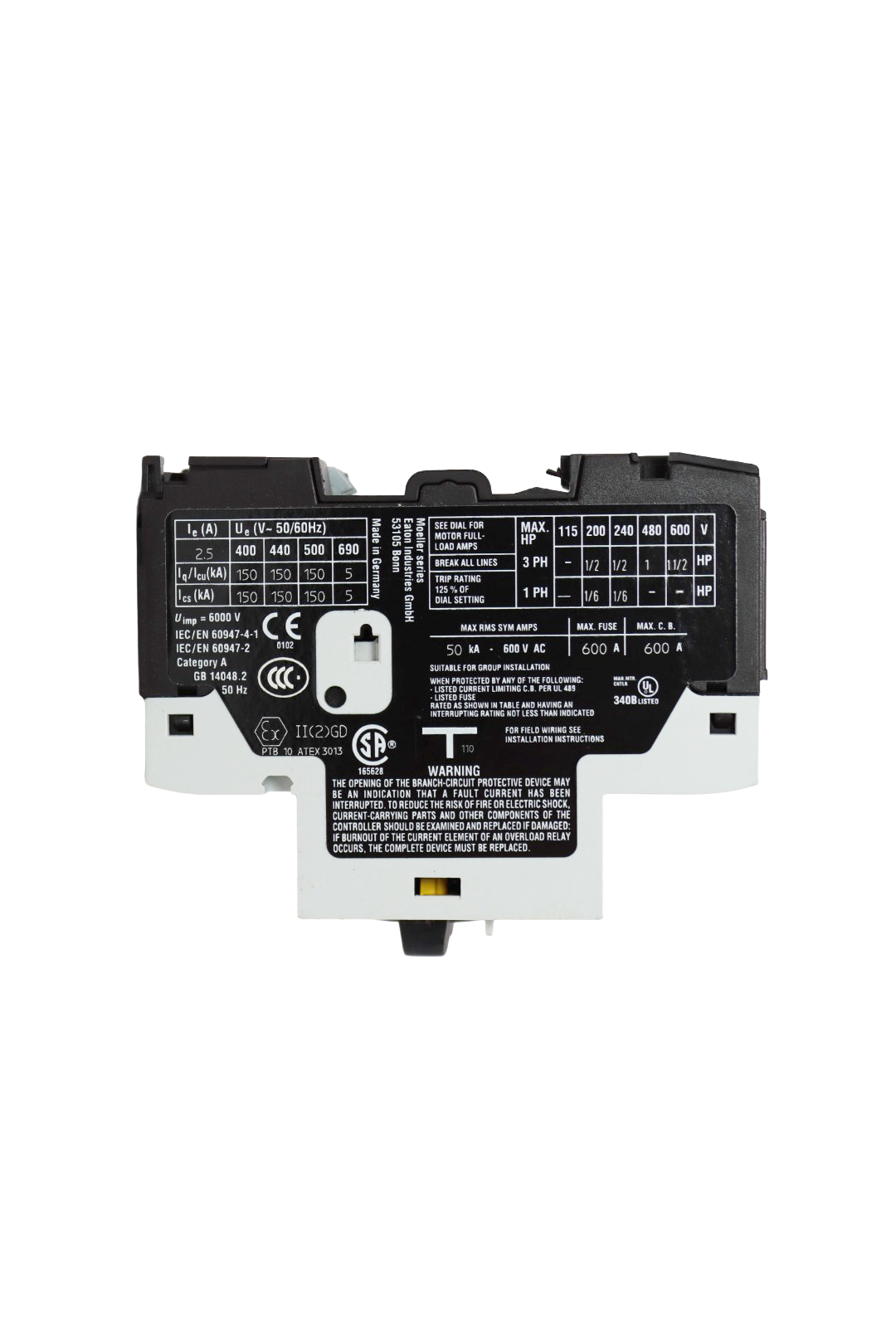

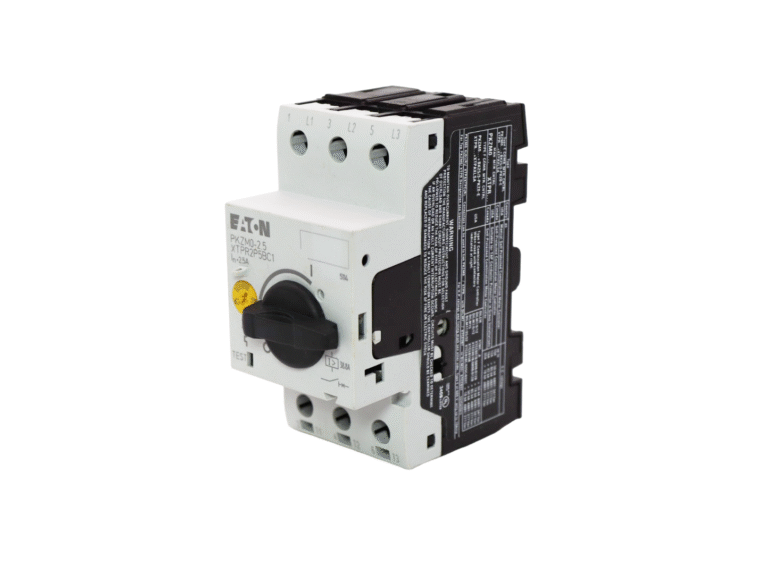

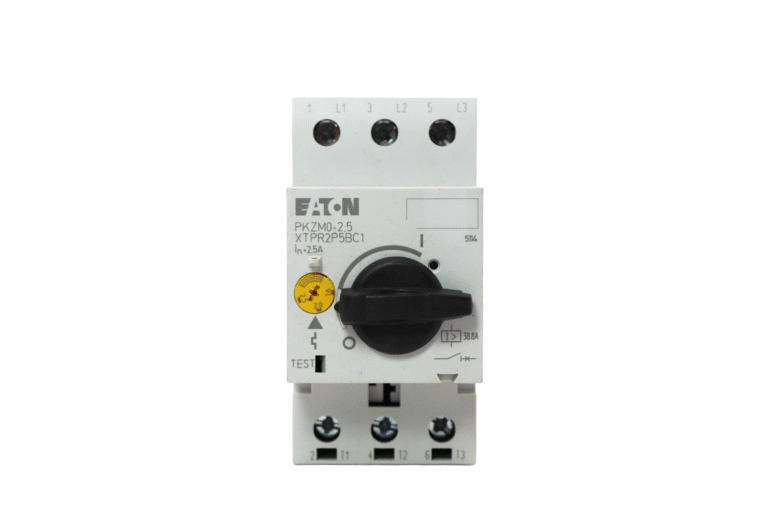

PKZM0-2.5 Circuit Breaker

Industrial motor protective circuit breaker designed for Virtus Equipment and ZERMA America shredder and granulator motor protection. Features 3-pole configuration with 1.6-2.5A current rating and thermomagnetic release system. Provides comprehensive motor protection including overload, short-circuit, and phase failure protection. Engineered for medium-power applications in industrial material processing equipment with manual operation, screw terminals, and IP20 protection rating for reliable motor control and safety in demanding environments.

SKU 80004420 Category Tags , , , , , , , , , , , , , , , , , , ,

Description

The PKZM0-2.5 Motor Protective Circuit Breaker represents advanced electrical protection technology specifically designed for Virtus Equipment and ZERMA America material processing systems. This precision-engineered motor protection component ensures optimal electrical safety and performance by providing comprehensive protection for medium-power motors in shredders and granulators, delivering reliable operation in demanding industrial applications where robust motor protection is critical for equipment safety and operational continuity.

Additional information

Weight 1 lbs
Dimensions 4 × 2 × 4 in
Technical Specifications:
SKU: 80004420
Model: PKZM0-2.5
Type: 3-pole motor protective circuit breaker
Current Rating: 1.6 - 2.5A (adjustable)
Rated Operating Voltage: Up to 690V AC
Rated Power: 0.75kW at 400V (AC-3)
Power Loss: 5.16W
Short-Circuit Breaking Capacity: 150kA at 400V
Release System: Thermomagnetic with phase failure sensitivity
Protection Rating: IP20
Dimensions: 93mm (H) x 45mm (W) x 76mm (D)
Connection Type: Screw terminals
Mounting: DIN rail snap-on and screw mounting
Operating Temperature: -25?C to +55?C
Temperature Compensation: -5?C to +40?C
Standards Compliance: IEC/EN 60947-4-1, UL 60947-4-1
Dimensional Tolerance: ±0.1mm for precise fitment
Key Features:
Medium-Power Current Rating: Enhanced 1.6-2.5A current range suitable for medium-duty motor applications
3-Pole Motor Protection: Complete three-phase motor protection with adjustable overload and instantaneous short-circuit release
Thermomagnetic Release System: Advanced release mechanism provides both thermal overload and magnetic short-circuit protection
Phase Failure Sensitivity: Detects and protects against dangerous phase failure conditions that can damage motors
Enhanced Power Capacity: Rated for 0.75kW motor applications at 400V for medium industrial capability
Manual Reset Operation: Rotary knob design with clear switch position display for easy operation and status indication
High Breaking Capacity: 150kA short-circuit breaking capacity at 400V for superior protection performance
Industrial Construction: Robust design built for continuous operation in demanding material processing environments
Universal Voltage Rating: Rated for up to 690V operation for versatile industrial applications
Compact Design: Space-efficient 45mm width for control panel integration
Applications: Essential for motor protection in medium-power applications within Virtus Equipment and ZERMA America shredders and granulators. Critical for protecting electrical motors from overload, short-circuit, and phase failure conditions that can cause costly equipment damage and downtime. Ideal for recycling facilities, manufacturing plants, and waste management operations requiring reliable motor protection for medium-duty material processing equipment. Perfect for applications where enhanced motor protection is essential for equipment safety, operational reliability, and maintenance cost reduction. Suitable for medium-duty motors in industrial automation, control panels, and electrical distribution systems requiring precise overcurrent protection and isolation capabilities for motors up to 0.75kW in demanding processing environments.
