Description

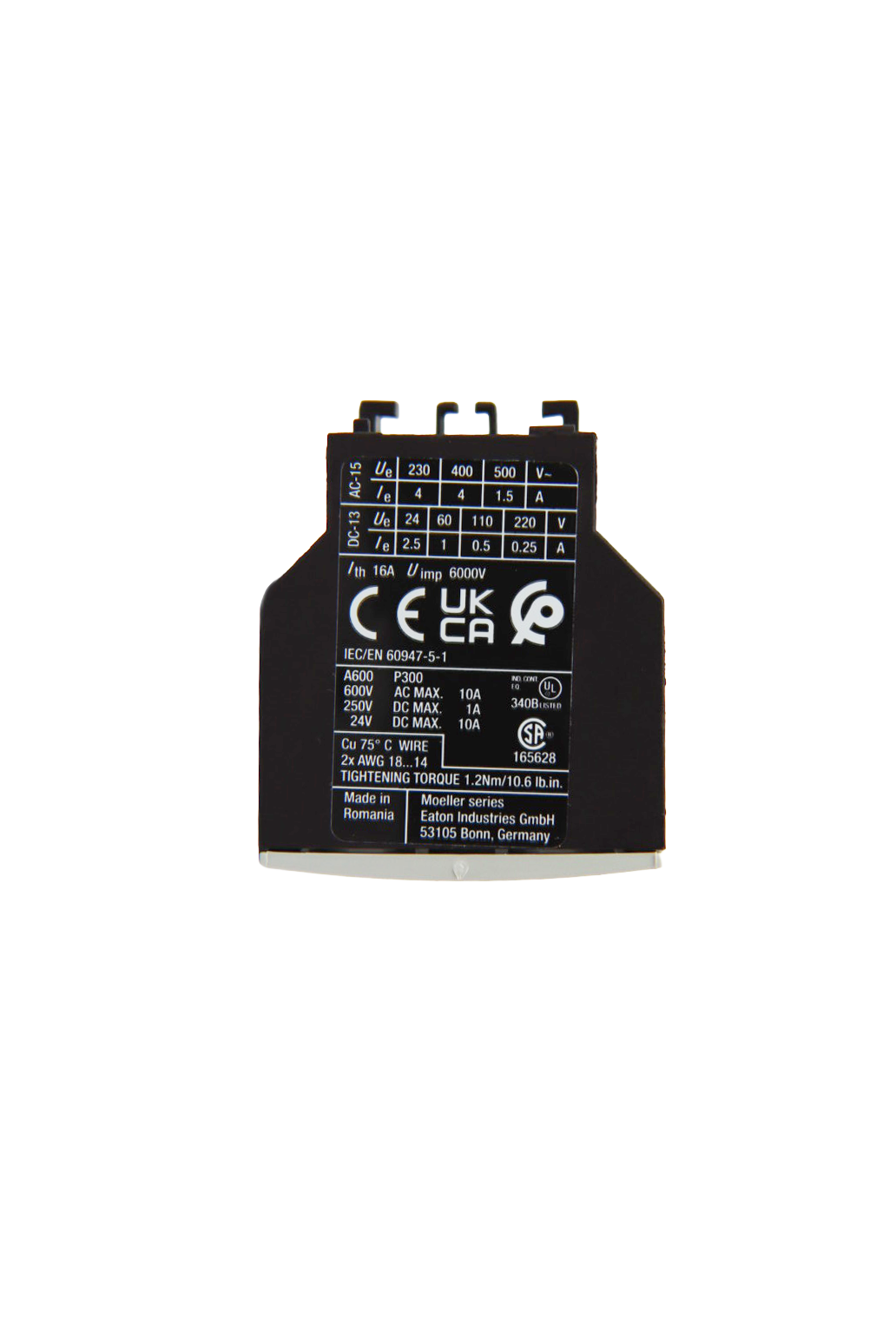

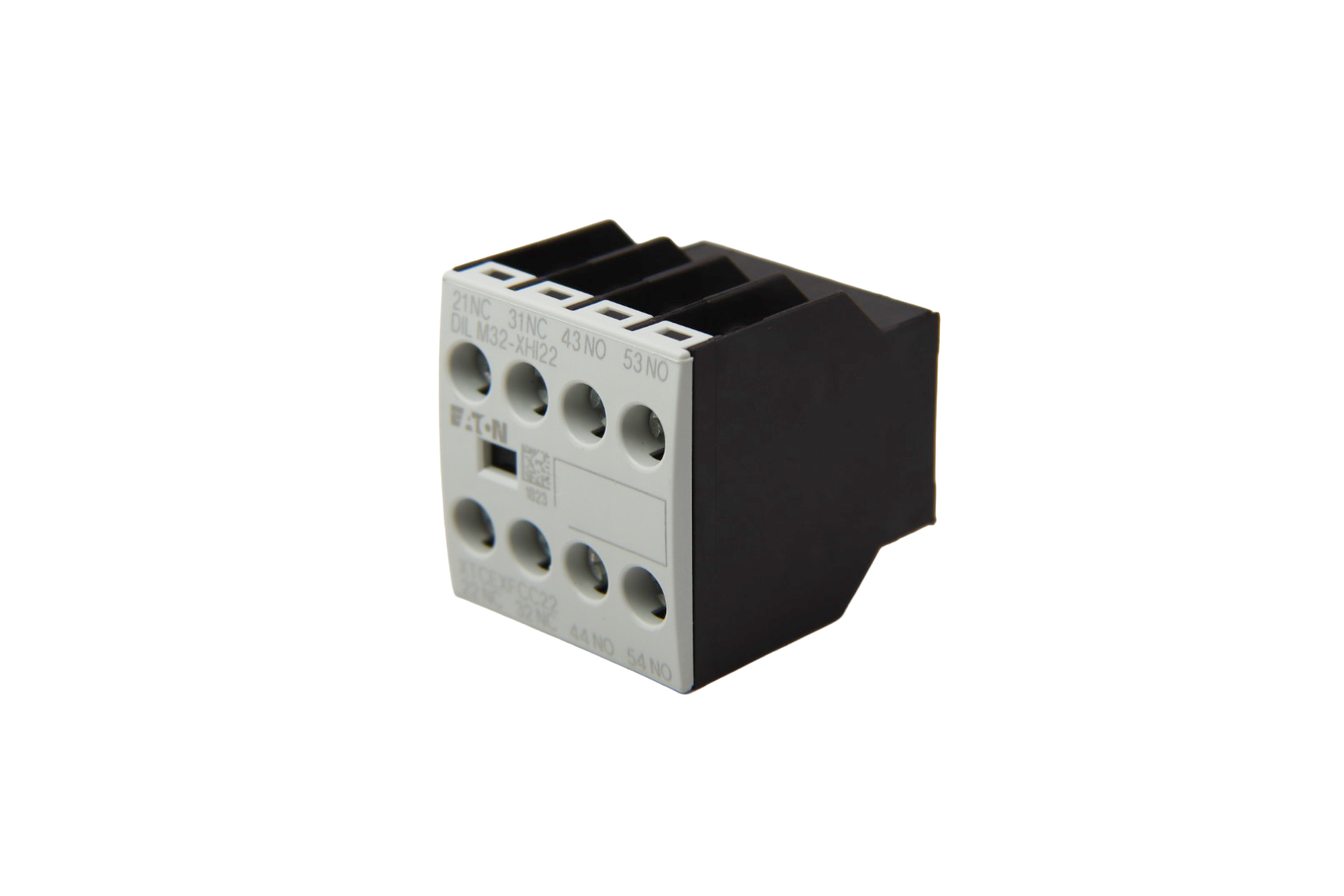

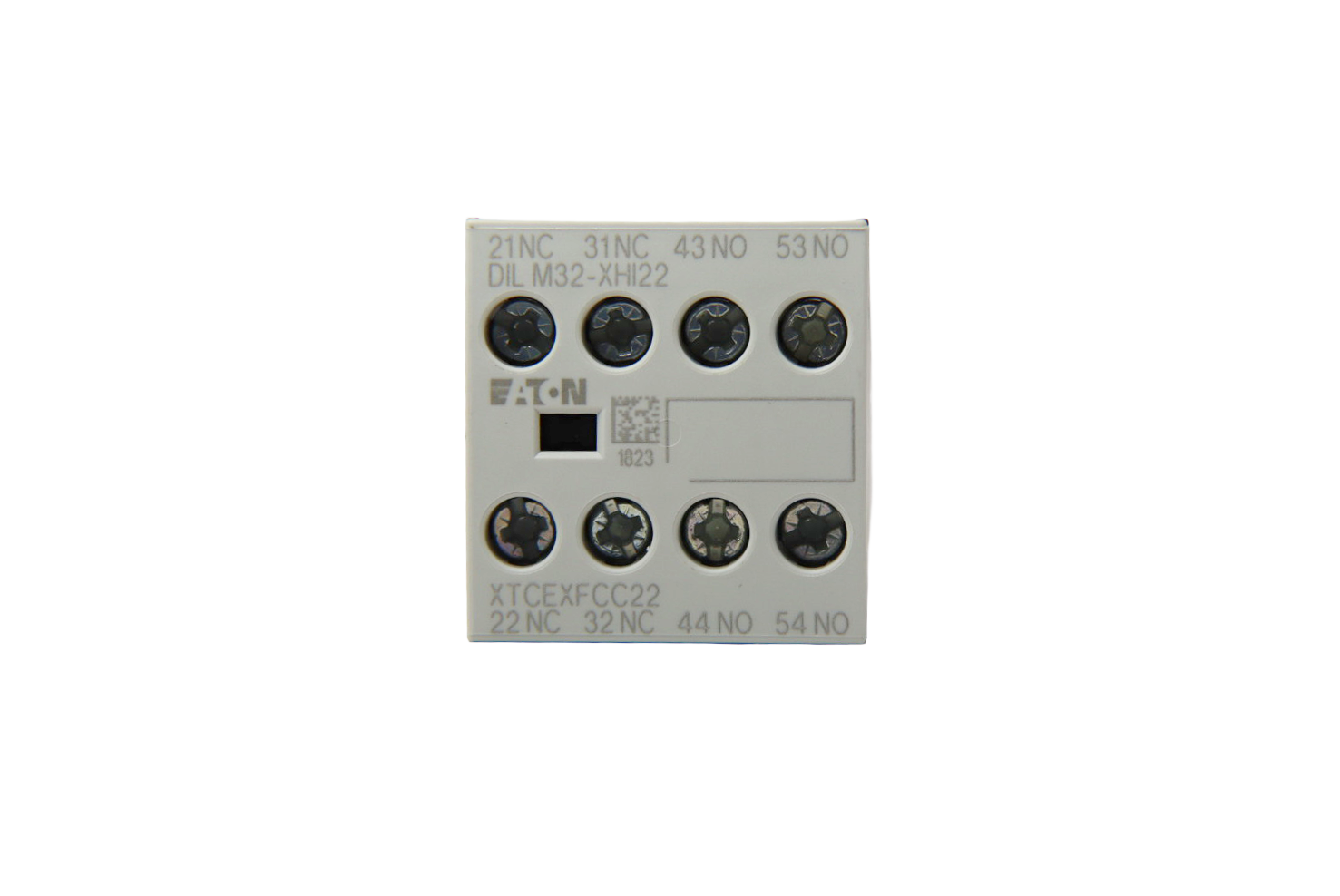

The DILM32-XHI22 Auxiliary Contact is a specialized add-on module specifically designed for Virtus Equipment and ZERMA America material processing systems equipped with DILM32 series power contactors. This industrial-grade auxiliary contact block enhances DILM32 contactors by adding side-mounted auxiliary contacts for control circuit switching, interlocking functions, alarm signaling, and status indication, providing expanded control capability without requiring additional panel space in demanding industrial applications.
Technical Specifications:
SKU: 80031596
Part Number: DILM32-XHI22
Type: Side-mounted auxiliary contact block for DILM32 contactors
Compatibility: DILM32 series contactors (32A frame size)
Contact Configuration: 2 NO + 2 NC (two normally open, two normally closed)
Contact Rating: Suitable for control circuits and PLC inputs (typically 10A at 250VAC)
Mounting: Side-mounted snap-on installation to DILM32 contactor
Mechanical Life: Matches DILM32 contactor endurance (millions of operations)
Electrical Life: Extended auxiliary contact life under control circuit loads
Operating Environment: Industrial control panel applications
Standards Compliance: IEC 60947-5-1, UL 508
Key Features:
DILM32 Series Compatibility: Specifically designed as side-mounted auxiliary contact block for DILM32 size contactors
XHI22 Configuration: Provides two normally open and two normally closed auxiliary contacts (2 NO + 2 NC)
Snap-On Installation: Easy mounting directly onto side of DILM32 contactor without tools or additional wiring accessories
Mechanically Linked Operation: Auxiliary contacts operate synchronously with main contactor for reliable status indication
Space-Efficient Design: Side-mounting configuration adds switching capacity without increasing panel footprint
Industrial Contact Rating: Auxiliary contacts suitable for control circuits, pilot lights, and PLC inputs
High Mechanical Endurance: Designed for millions of operations matching DILM32 contactor life expectancy
Positive Contact Action: Mechanical linkage ensures definite switching action synchronized with power contacts
Multiple Block Capability: Multiple auxiliary blocks can be added to single contactor for expanded functionality
Compact Integration: Integrated design maintains organized panel layout and simplified wiring
Applications: Essential accessory component for granulators, shredders, and material processing equipment used in plastic recycling, manufacturing scrap recovery, and waste processing operations where DILM32 power contactors control mid-size motors requiring additional control contacts. Critical for adding auxiliary switching capacity including motor running indication to control panels and PLCs, alarm signaling when contactors energize or fail, interlocking circuits preventing conflicting motor operations, status feedback for SCADA systems, and control circuit coordination without separate relays. Ideal for recycling facilities, injection molding plants, extrusion operations, blow molding facilities, and manufacturing environments with DILM32 contactors requiring enhanced control functionality for motors up to approximately 15kW. Perfect for applications requiring contactor status monitoring with both normally open and normally closed contacts, permissive interlocking between multiple motors, remote indication of equipment running status, safety circuit coordination requiring auxiliary contacts, alarm panel signaling, and PLC input feedback for automated control verification. Suitable for main equipment contactors where auxiliary contacts enable system integration, star-delta starters requiring interlocking between contactors, reversing motor applications needing mechanical interlocks, forward-reverse control requiring contact interlocking, and automated sequences where contactor auxiliary contacts provide control logic signals, reducing external relay requirements and simplifying control panel wiring in material processing systems with mid-range motor control applications.
