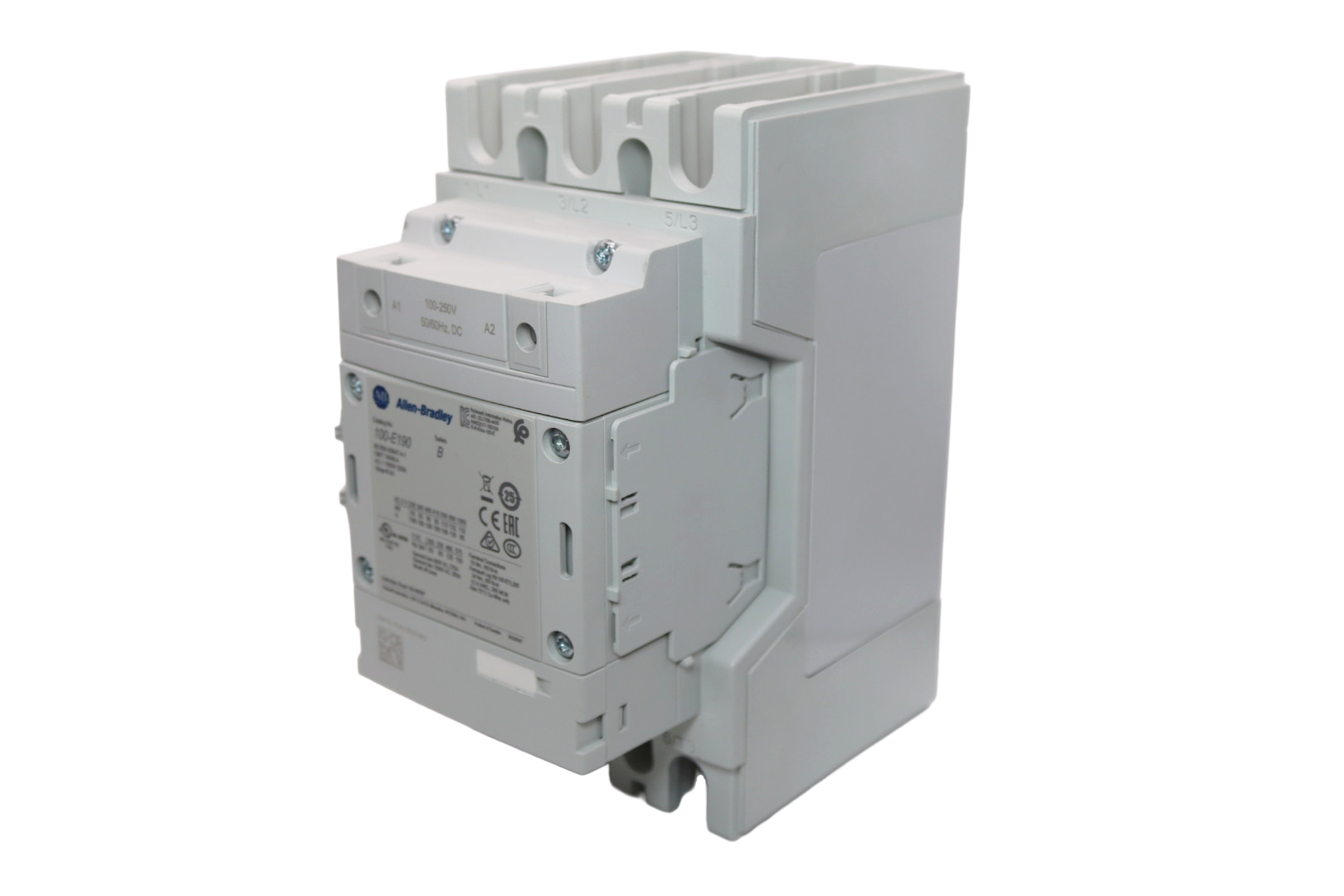

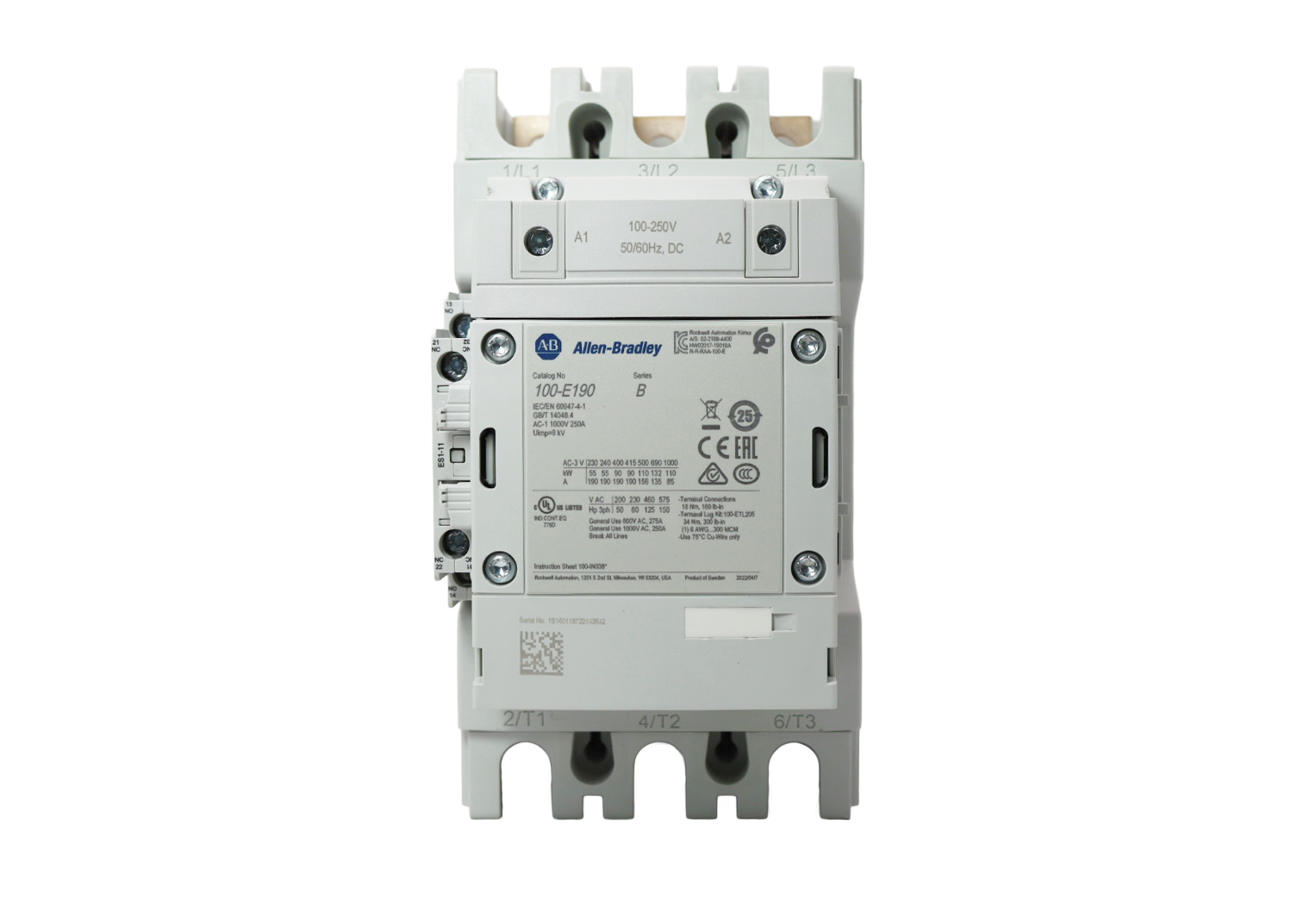

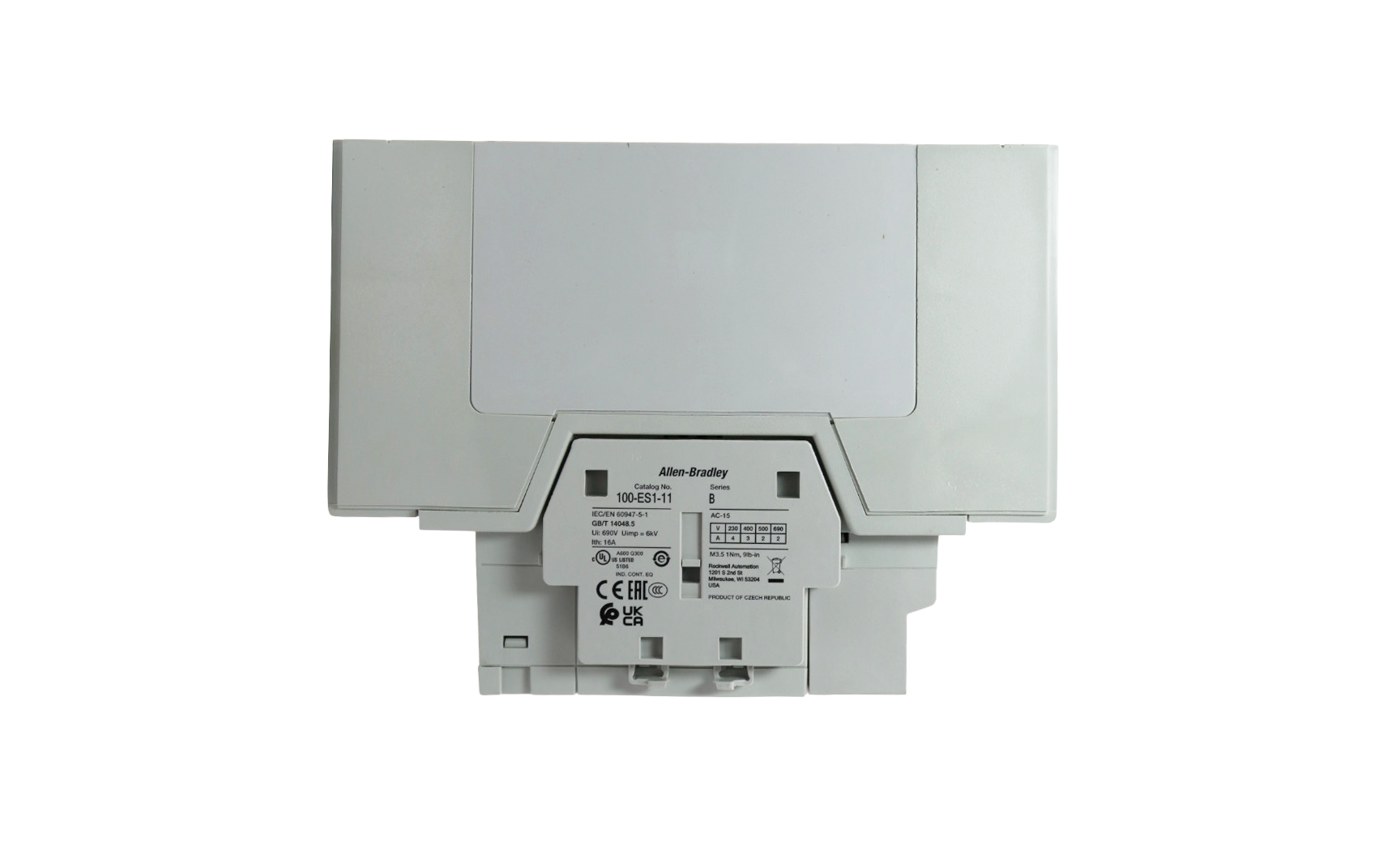

190A AC110V 100-E190KD11 Power Contactor

Heavy-duty 190-amp AC power contactor designed for high-current 110V control applications in Virtus Equipment and ZERMA America industrial machinery. This professional-grade Allen-Bradley contactor provides exceptional switching capability for large motors and high-power loads. Features robust construction, three-pole configuration, and advanced contact technology for demanding material processing environments.

SKU 80032842 Category Tags , , , , , , , , ,

Description

The 190A AC110V 100-E190KD11 Power Contactor is a high-capacity electrical switching device engineered for heavy-duty industrial applications requiring reliable control of high-current electrical loads in Virtus Equipment and ZERMA America material processing systems. This Allen-Bradley Series 100 contactor represents the pinnacle of switching technology, designed to handle the most demanding motor starting and load control applications in industrial shredding, granulation, and material handling operations.

Additional information

Weight 8 lbs
Dimensions 11 × 7 × 10 in
Technical Specifications:
SKU: 80032842
Model: 100-E190KD11
Current Rating: 190 amps AC1
Coil Voltage: 110V AC
Poles: 3-pole
AC3 Motor Rating: 90kW at 400V
Mechanical Life: 5 million operations
Electrical Life: 500,000 operations (AC3)
Contact Material: Silver cadmium oxide
Operating Temperature: -25?C to +60?C
Mounting: Screw mounting required
Key Features:
190-Amp High Current Rating: Capable of controlling large motors and heavy electrical loads
110V AC Coil Control: Standard industrial control voltage for system integration
Three-Pole Heavy-Duty Design: Robust construction for high-power applications
Advanced Contact Technology: Superior arc interruption and contact longevity
Extended Service Life: Engineered for maximum operational reliability
Thermal Overload Protection: Integrated protection against overheating
Flexible Auxiliary Contacts: Multiple auxiliary contact configurations available
Industrial-Grade Construction: Built to withstand harsh operating conditions
Applications: Critical for controlling main drive motors, high-power shredding systems, large granulator drives, and heavy-duty material handling equipment. Perfect for applications requiring maximum switching capability with reliable 110V control integration in demanding industrial processing operations.
