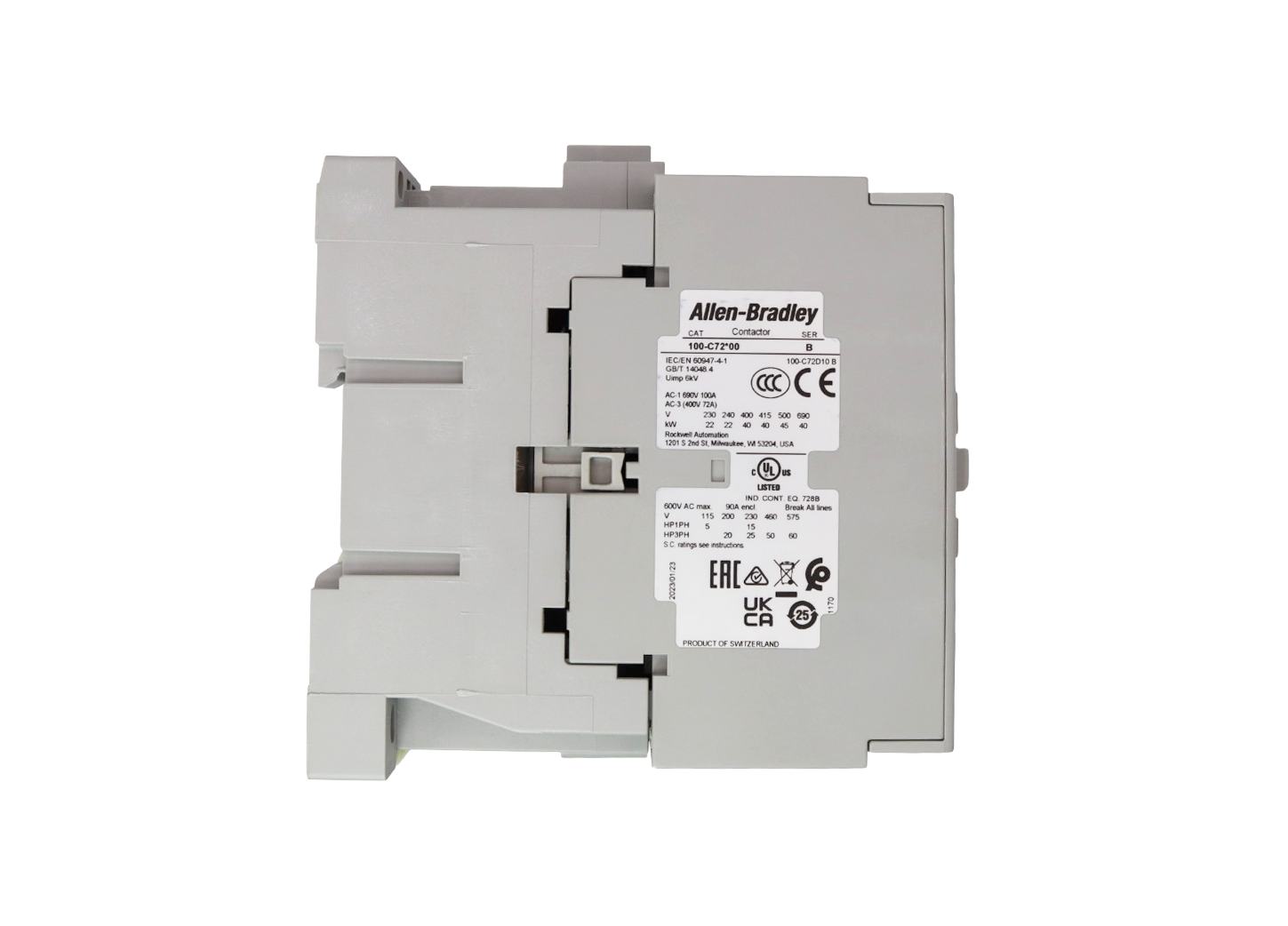

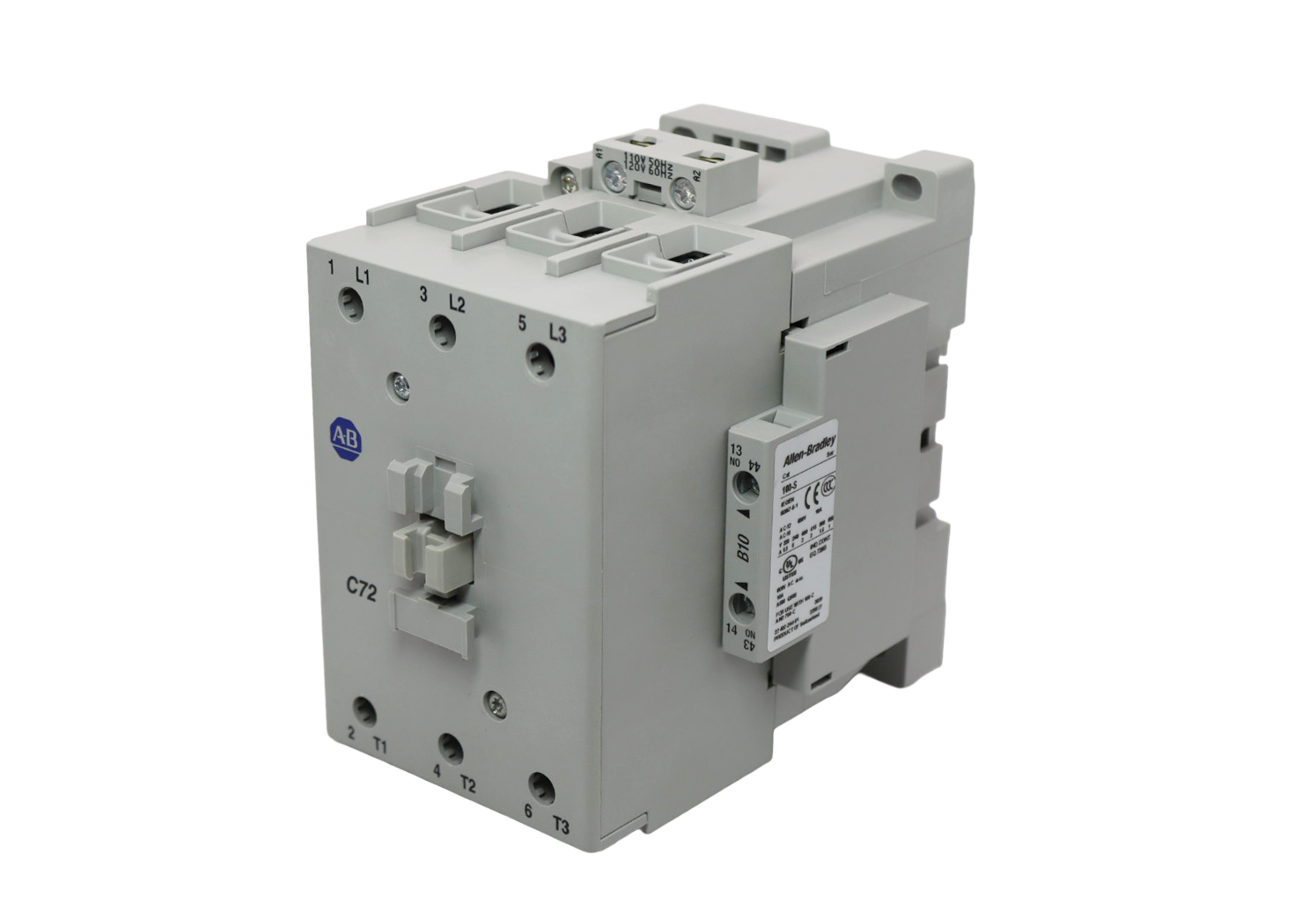

72A AC110V 100-C72D10 Power Contactor

Heavy-duty 72-amp AC power contactor designed for 110V control applications in Virtus Equipment and ZERMA America industrial machinery. This professional-grade Allen-Bradley contactor provides reliable motor starting and load switching for demanding material processing applications. Features electronically controlled operation, three-pole configuration, and extended service life for continuous industrial operation.

SKU 80032840 Category Tags , , , , , , , ,

Description

The 72A AC110V 100-C72D10 Power Contactor is a high-performance electrical switching device engineered specifically for heavy-duty motor control applications in Virtus Equipment and ZERMA America material processing systems. This Allen-Bradley Series 100 contactor delivers exceptional reliability and performance for controlling motors, heaters, and other high-current loads in demanding industrial environments where dependable switching operation is critical for system performance.

Additional information

Weight 4 lbs
Dimensions 6 × 4 × 6 in
Technical Specifications:
SKU: 80032840
Model: 100-C72D10
Current Rating: 72 amps AC1
Coil Voltage: 110V AC
Poles: 3-pole
AC3 Motor Rating: 37kW at 400V
Mechanical Life: 10 million operations
Electrical Life: 1 million operations (AC3)
Contact Material: Silver alloy
Operating Temperature: -25?C to +60?C
Mounting: DIN rail or screw mounting
Key Features:
72-Amp Current Rating: Suitable for medium to high-power motor applications
110V AC Coil Operation: Standard industrial control voltage for easy integration
Three-Pole Configuration: Complete three-phase power control capability
IEC Rated Design: Meets international electrical standards for industrial applications
Extended Electrical Life: Engineered for millions of switching operations
Compact Form Factor: Space-efficient design reduces panel requirements
Auxiliary Contact Options: Available auxiliary contacts for control circuits
Surge Protection: Built-in arc suppression for safe switching operation
Applications: Perfect for controlling medium-power motors, conveyor systems, pump motors, and auxiliary equipment in shredders, granulators, and material handling systems. Ideal for applications requiring reliable 72-amp switching capability with 110V control circuits.
