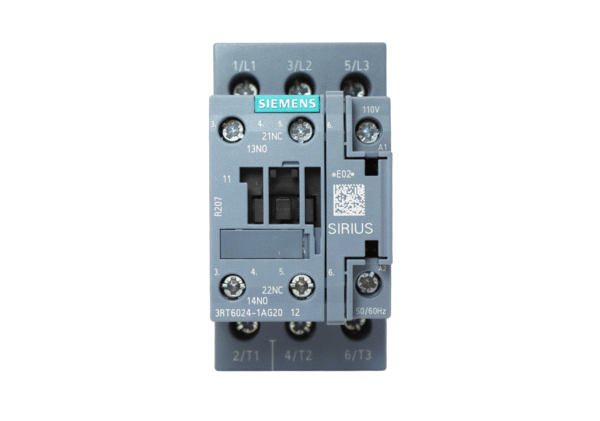

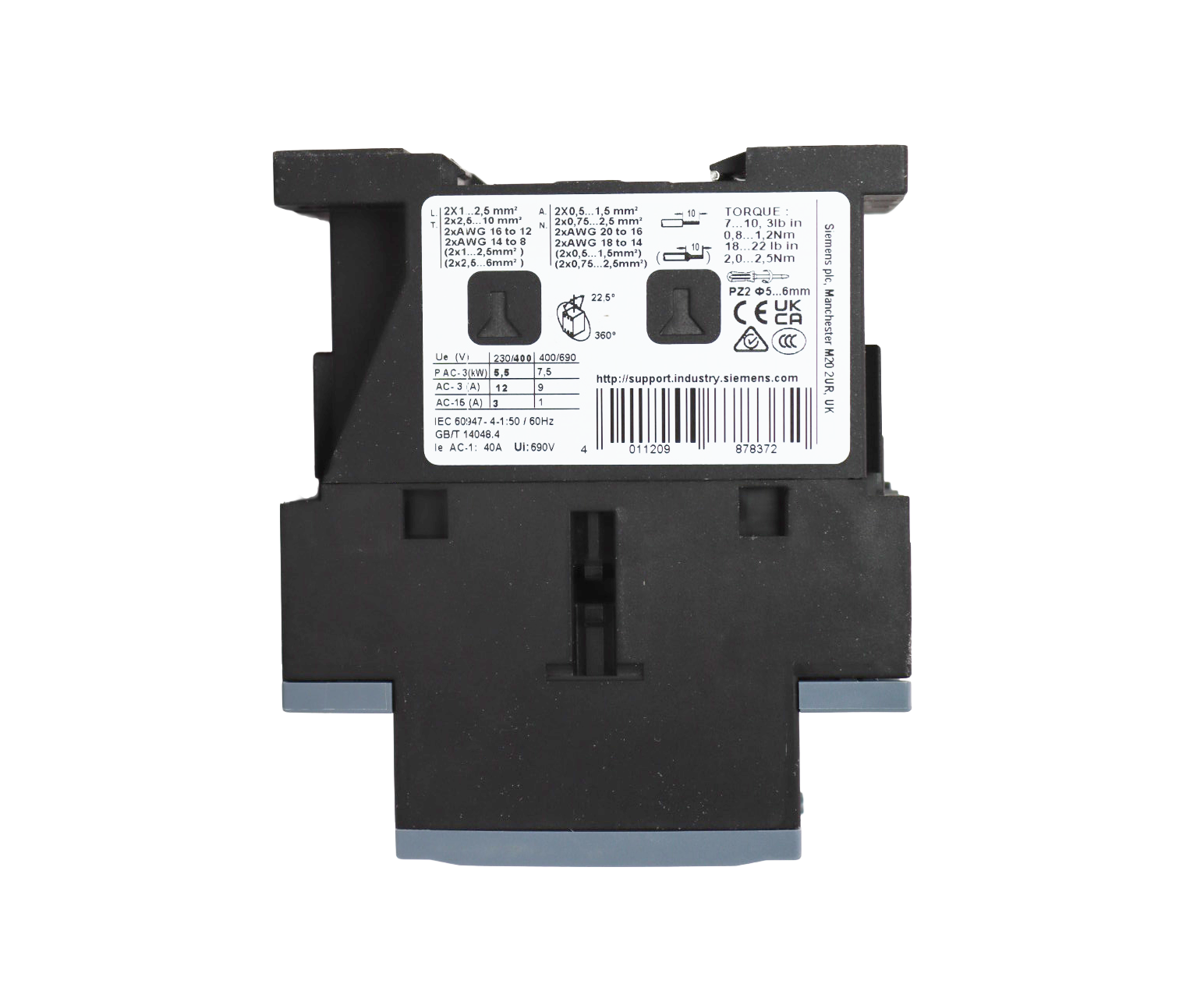

3RT6024-1AG20

Siemens SIRIUS 12A contactor with 110V AC coil designed for reliable motor control in Virtus Equipment and ZERMA America industrial systems. Features compact design with superior electrical performance and extended service life. Engineered for continuous operation in demanding industrial environments with easy installation and maintenance.

Login to see price

SKU 80031970 Category Tags , , , , , , , ,

Description

The 3RT6024-1AG20 is a precision-engineered Siemens SIRIUS contactor designed for reliable motor control applications in Virtus Equipment and ZERMA America material processing systems. This 12A contactor combines compact design with industrial-grade construction to deliver consistent performance in demanding industrial environments.

Additional information

Weight 1 lbs
Dimensions 4 × 3 × 5 in
Technical Specifications:
SKU: 80031970
Current Rating: 12A
Coil Voltage: 110V AC 50/60Hz
Poles: 3-pole
Motor Rating: 5.5kW at 400V
Frame Size: S0
Standards Compliance: IEC 60947, UL/CSA
Mounting: DIN rail or panel mount
Key Features:
Siemens SIRIUS Technology: Advanced German engineering ensures superior reliability and performance
12A Current Rating: Ideal for small to medium motor control applications
110V AC Coil: Standard industrial control voltage for easy integration
3-Pole Configuration: Complete three-phase motor control with balanced switching
Compact Design: Space-efficient construction maximizes panel density
High Endurance: Designed for frequent switching operations and extended service life
Easy Installation: Standard mounting and connection configuration
Auxiliary Contact Ready: Compatible with auxiliary contact blocks for enhanced functionality
Applications: Perfect for controlling small to medium motors in auxiliary equipment, conveyor systems, and process controls. Ideal for Virtus Equipment and ZERMA America systems requiring reliable motor control with standard industrial voltages.
