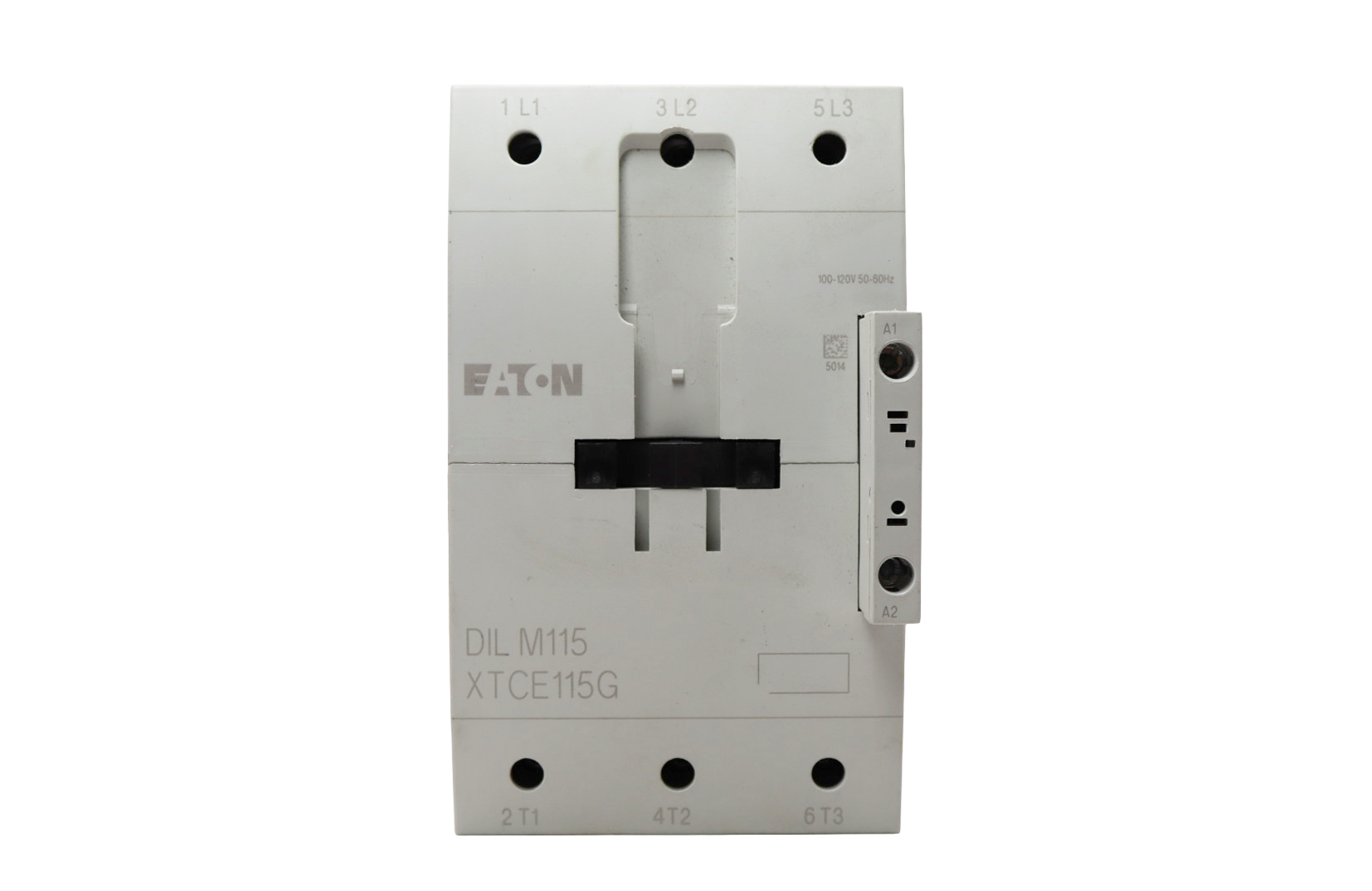

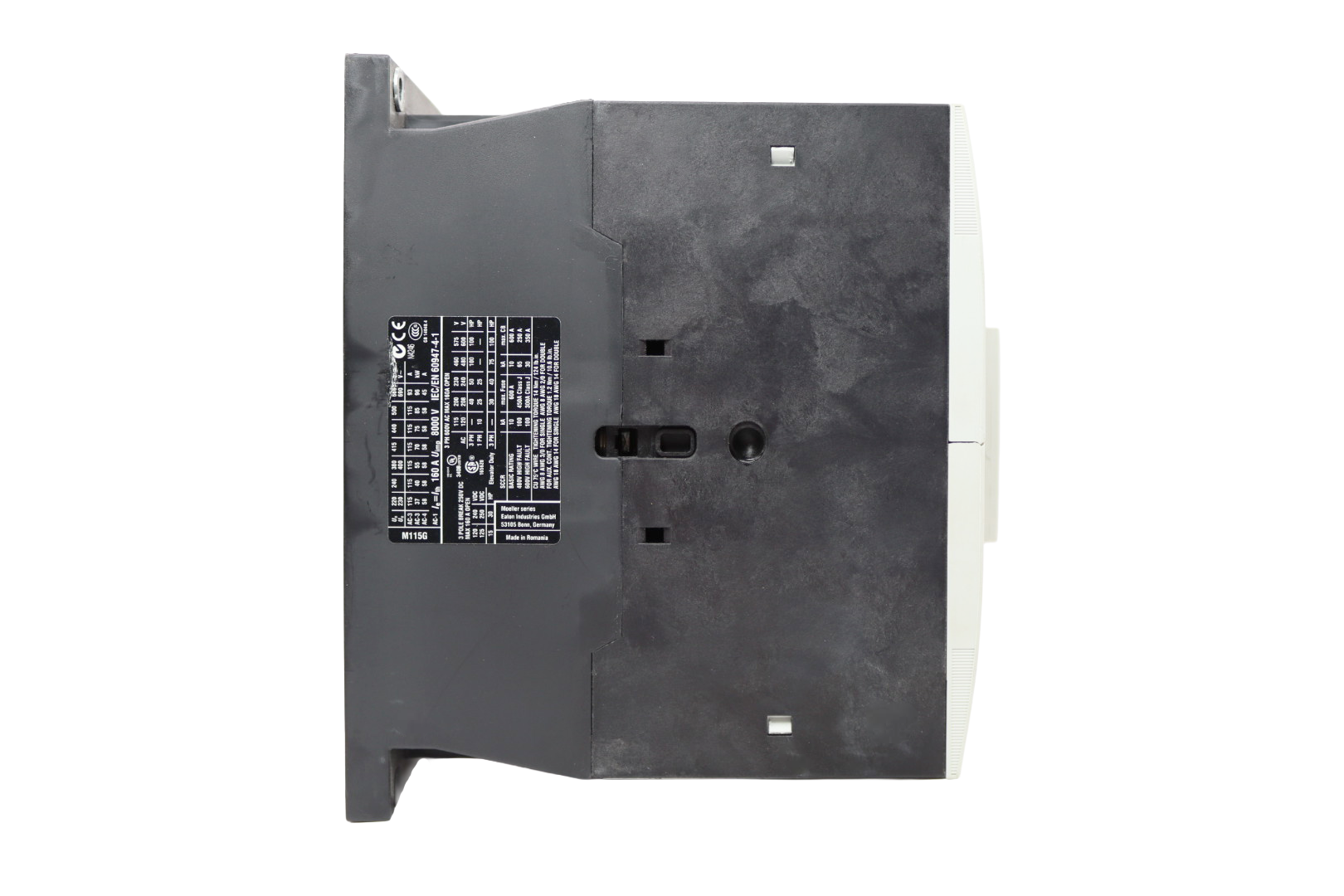

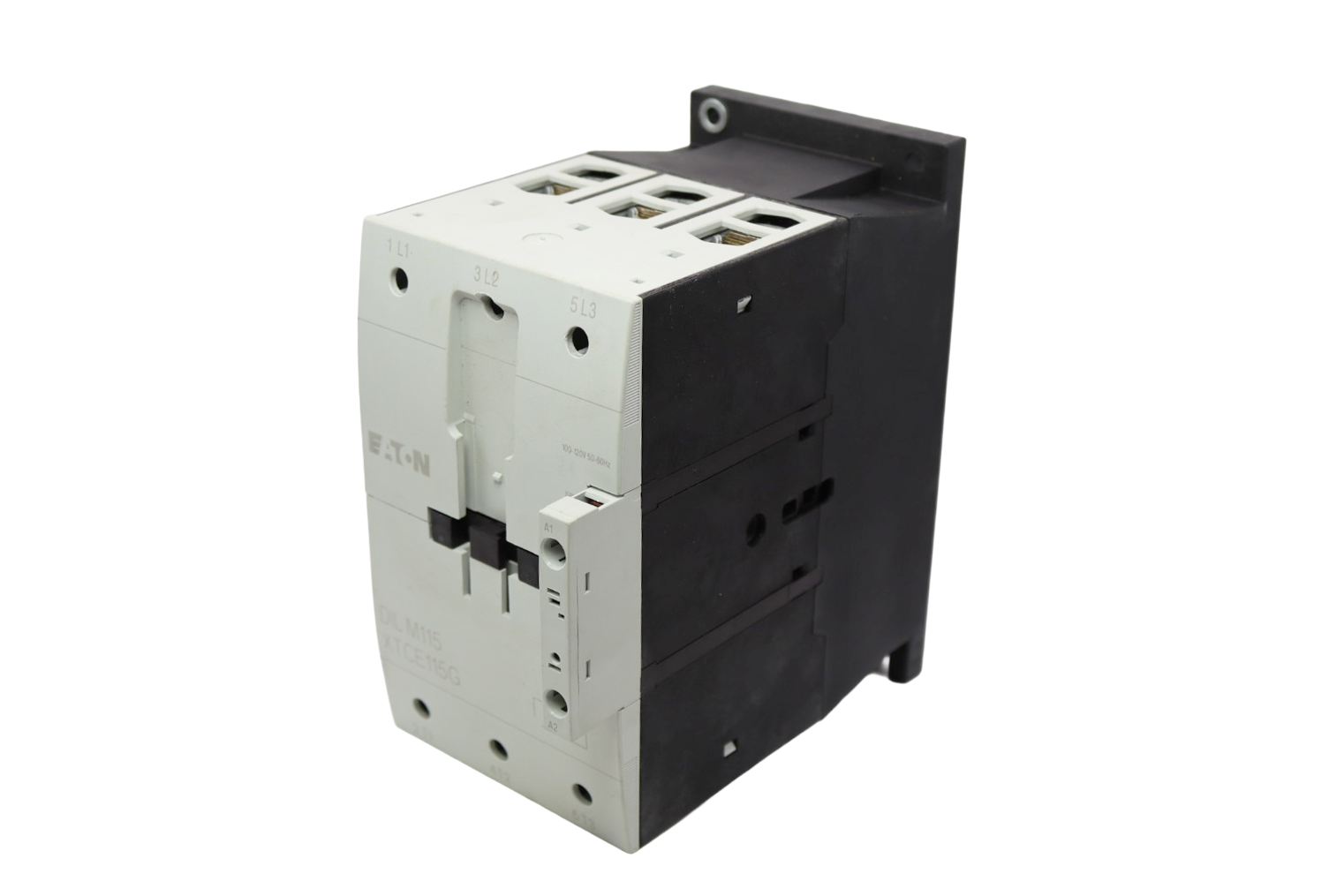

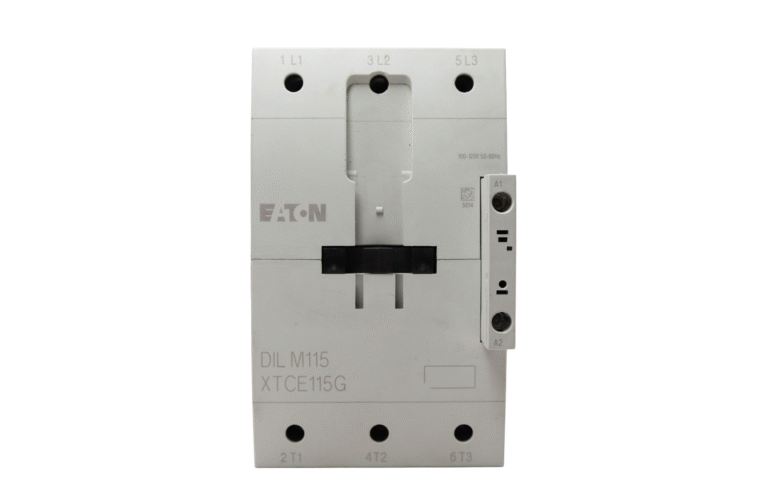

DIL M115 XTCE 1156 Power Contactor

High-performance 115A power contactor designed for heavy-duty industrial applications in Virtus Equipment and ZERMA America shredding and granulation systems. This Eaton XT IEC series contactor features robust 3-pole construction with integrated auxiliary contacts, providing reliable motor control and switching operations. Engineered for continuous operation in demanding industrial environments with superior electrical performance and extended service life.

Login to see price

SKU 80031683 Category Tags , , , , , , , ,

Description

The DIL M115 XTCE 1156 Power Contactor is a critical electrical component designed specifically for industrial material processing equipment from Virtus Equipment and ZERMA America. This heavy-duty contactor provides reliable motor control and power switching for high-performance shredders and granulators operating in demanding industrial environments.

Additional information

Weight 6 lbs
Dimensions 7 × 4 × 7 in
Technical Specifications:
SKU: 80031683
Current Rating: 115A
Poles: 3-pole
Frame Size: G
Motor Rating: Up to 100 HP at 460V, 50 HP at 230V
Operating Voltage: Various AC/DC coil options available
Mounting: DIN rail or panel mount
Auxiliary Contacts: Integrated NO/NC contacts
Standards Compliance: IEC 60947, UL Listed
Key Features:
Industrial-Grade Construction: Built to IEC 60947 standards for maximum reliability in harsh industrial conditions
High Current Rating: 115A capacity handles heavy motor loads with consistent performance
3-Pole Configuration: Provides complete three-phase motor control with balanced switching
Integrated Auxiliary Contacts: Built-in auxiliary contacts for control circuit applications
Frame G Design: Compact yet robust construction optimized for industrial panel mounting
Multiple Coil Voltages: Available in various AC and DC coil voltage configurations
Superior Contact Technology: Silver alloy contacts ensure reliable switching and extended electrical life
Applications: Perfect for controlling motors in plastic recycling equipment, wood processing machinery, and waste management systems. Ideal for Virtus Equipment and ZERMA America shredders and granulators requiring reliable electrical switching and motor control.
