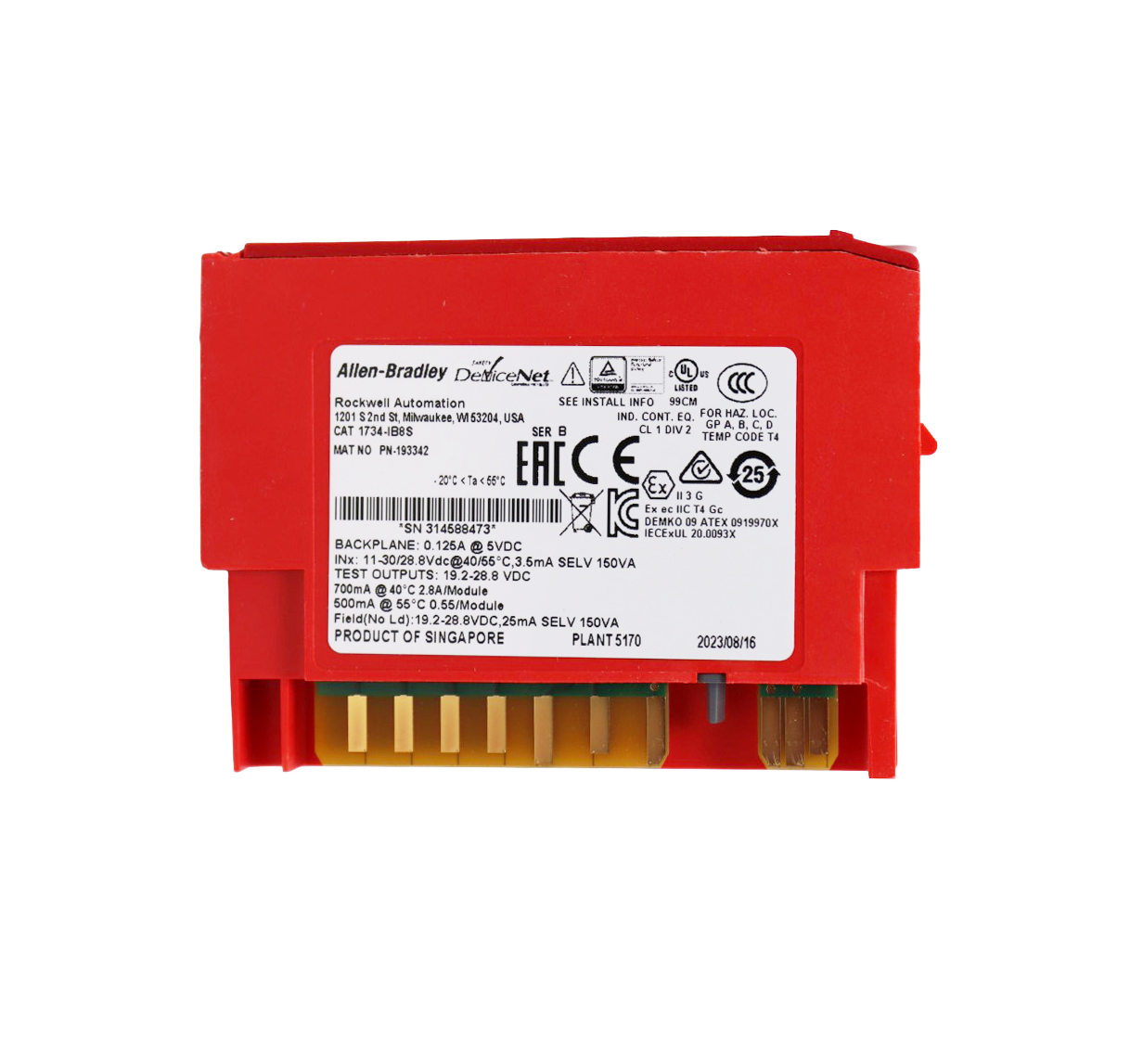

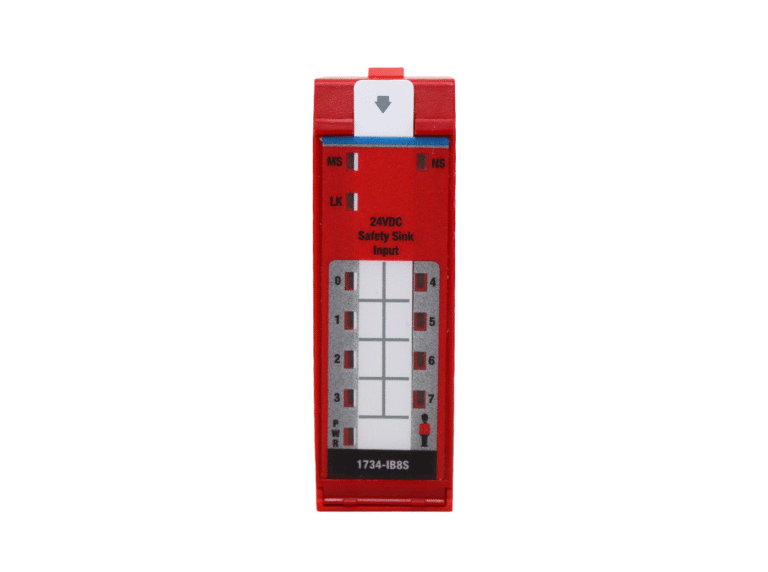

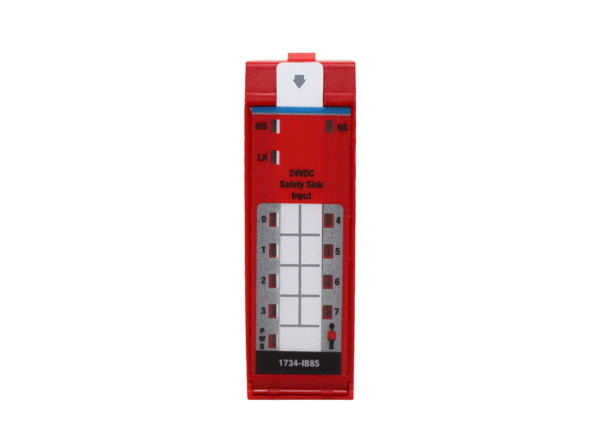

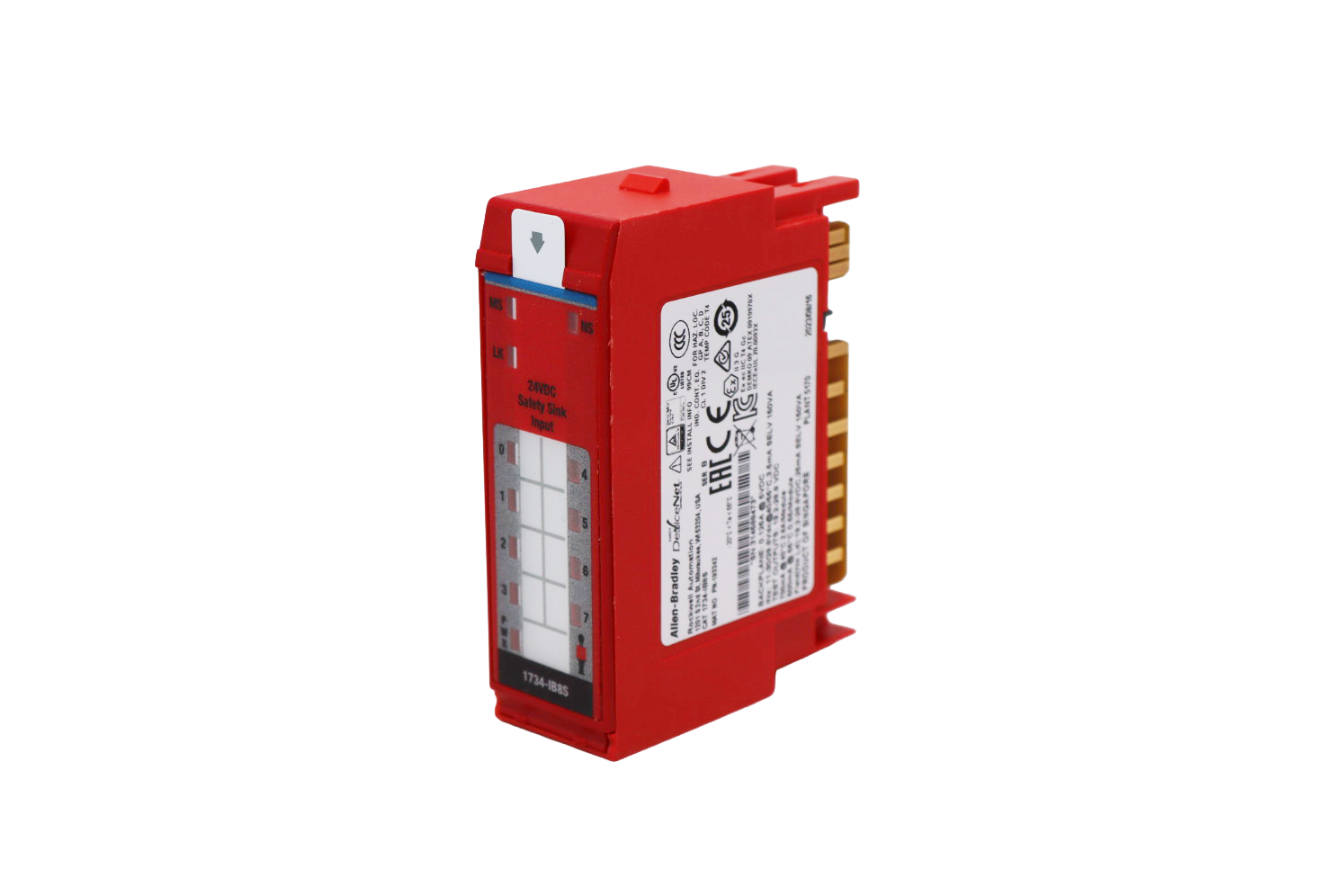

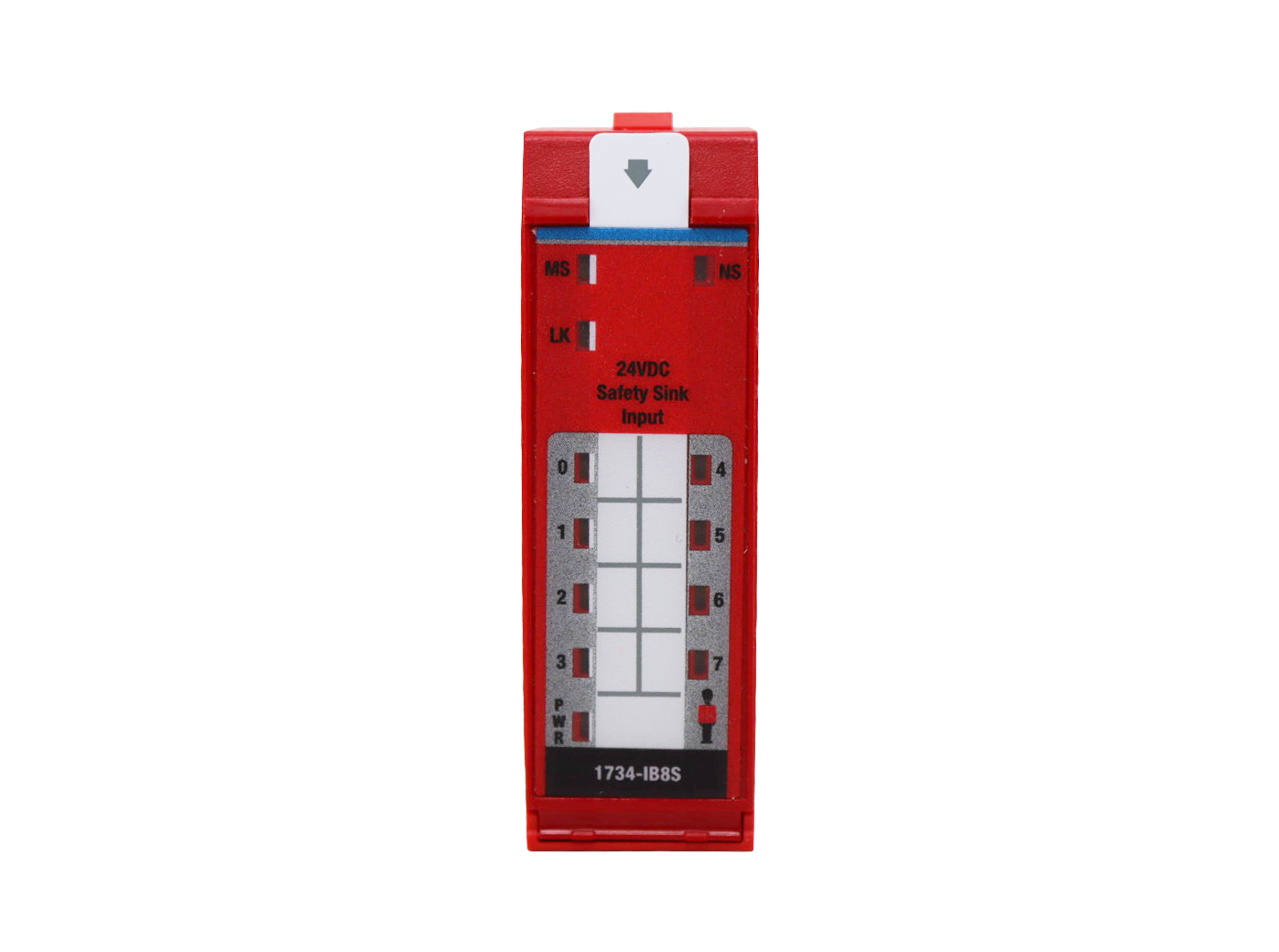

AB Safety Module I8 1734-IB8S

Advanced safety input module designed for Allen-Bradley GuardLogix safety systems in industrial automation. Features 8 safety-rated sinking input channels with integrated pulse testing for critical safety applications. Compatible with Virtus Equipment and ZERMA America shredder and granulator safety systems requiring SIL 3/PLe certified protection for personnel and equipment safety.

SKU 80032857 Category Tags , , , , , , , ,

Description

The AB Safety Module I8 1734-IB8S represents cutting-edge safety technology for industrial material processing equipment. Specifically engineered for Allen-Bradley GuardLogix and SmartGuard systems, this POINT Guard I/O module provides essential safety input monitoring for Virtus Equipment and ZERMA America shredders and granulators where personnel protection and equipment safety are paramount.

Additional information

Weight 1 lbs
Dimensions 4 × 2 × 3 in
Technical Specifications:
SKU: 80032857
Manufacturer Part: 1734-IB8S
Input Channels: 8 safety-rated current sinking inputs
Supply Voltage: 24V DC (11V-28.8V DC operating range)
Input Current: 3.3-5.0 mA on-state
Response Time: 16.2 ms maximum (on to off)
Safety Rating: SIL 3/PLe certified
Mounting: DIN rail mount on POINT I/O rack
Operating Temperature: 0?C to +60?C
Key Features:
Advanced Safety Technology: SIL 3/PLe certified for the highest safety integrity levels
Integrated Pulse Testing: Built-in pulse test outputs verify input device functionality
Eight Safety Inputs: Current sinking safety inputs for emergency stops, light curtains, and safety switches
Hot-Swappable Design: Allows replacement during operation without system shutdown
Diagnostic Capabilities: Comprehensive fault detection and status indication
Applications: Critical for safety systems in material processing equipment, monitoring emergency stops, safety gates, light curtains, and other safety devices in shredder and granulator installations. Essential for compliance with industrial safety standards in recycling and manufacturing facilities.
