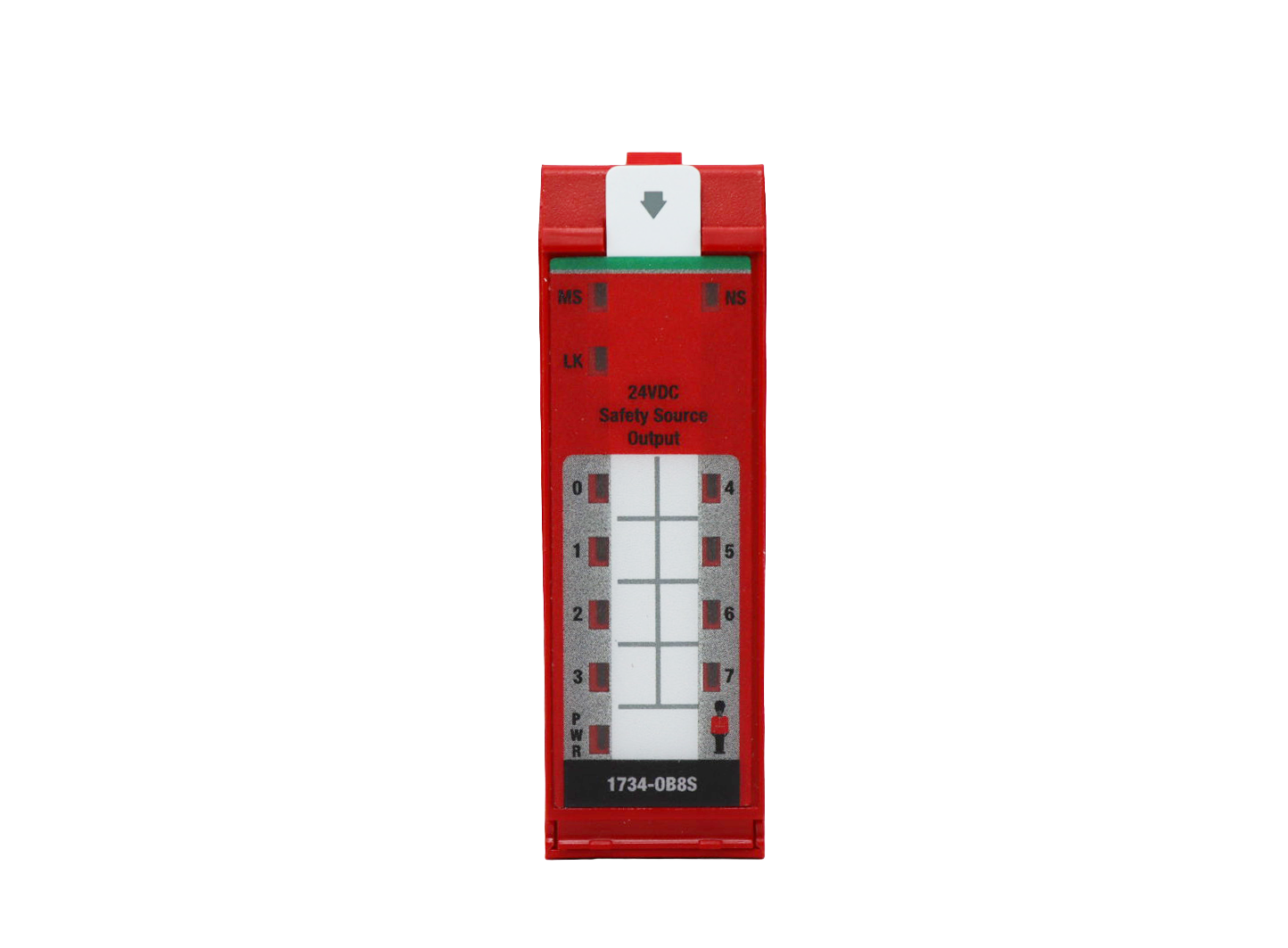

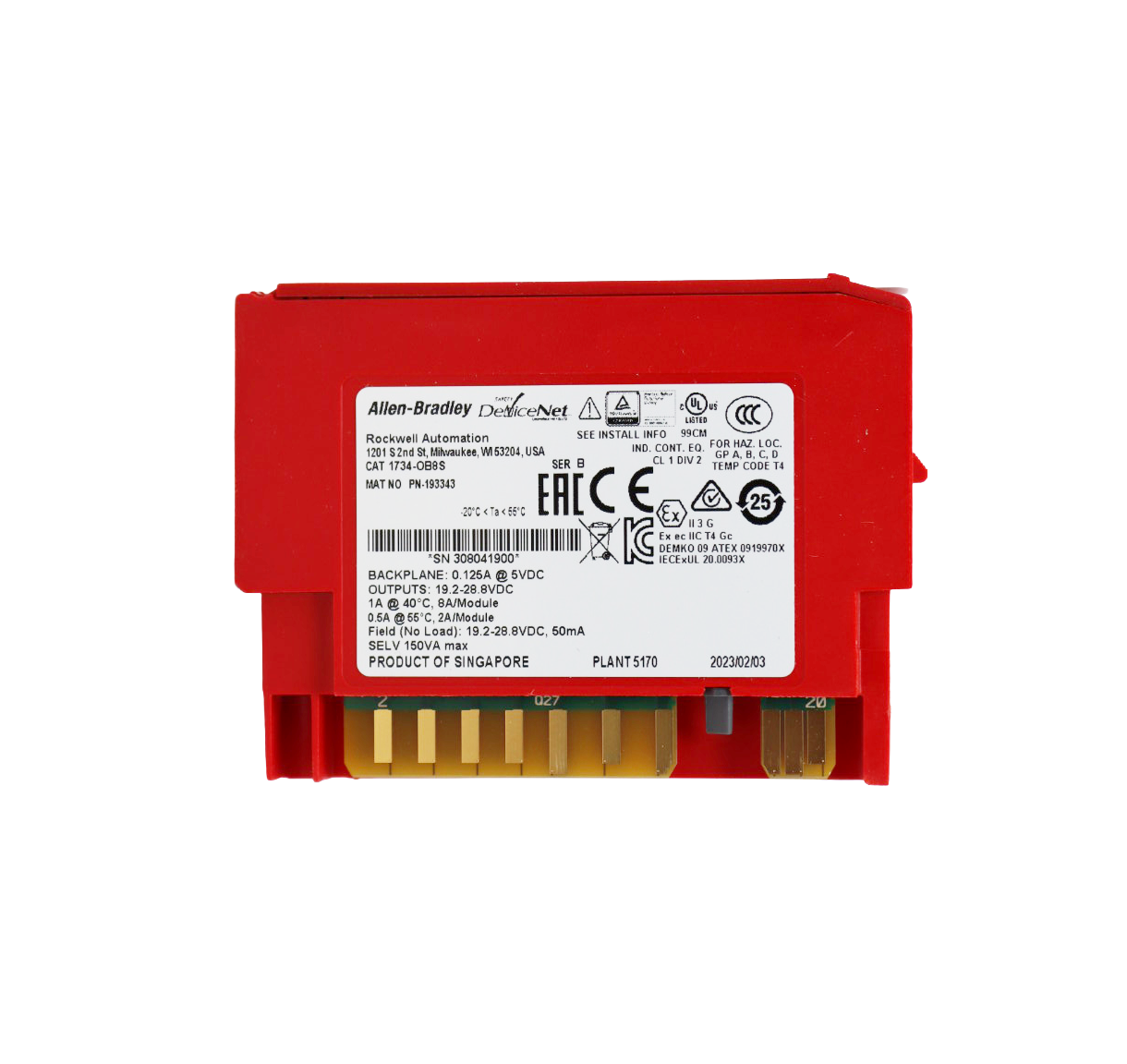

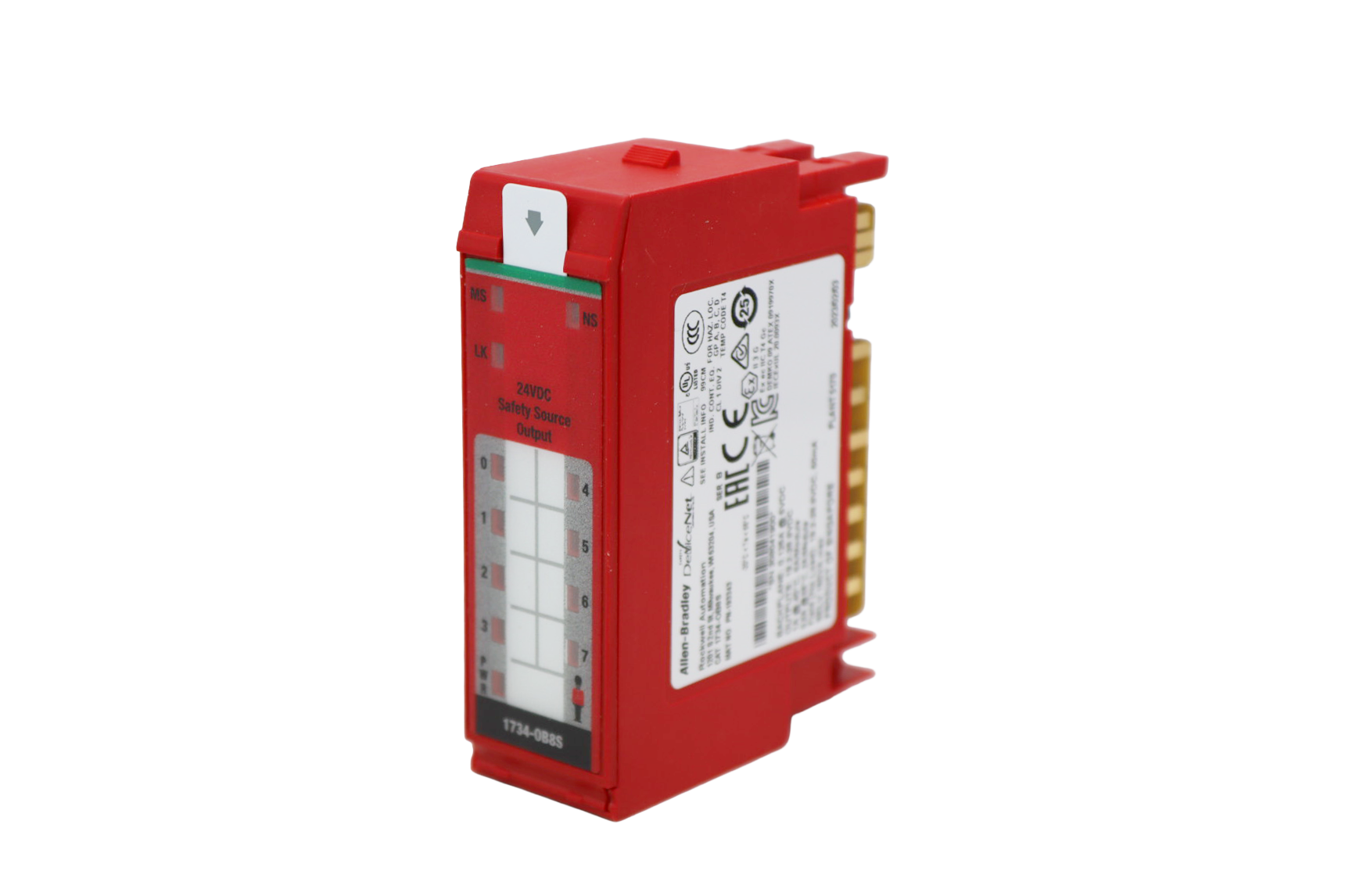

AB Safety Module O8 1734-OB8S

High-performance safety output module for Allen-Bradley GuardLogix systems providing 8 safety-rated output channels for industrial automation. Features current sourcing outputs with comprehensive diagnostics for controlling safety devices in material processing equipment. Compatible with Virtus Equipment and ZERMA America safety systems requiring certified safety output control.

SKU 80032858 Category Tags , , , , , , , ,

Description

The AB Safety Module O8 1734-OB8S delivers superior safety output control for critical industrial applications. Engineered for Allen-Bradley GuardLogix and SmartGuard systems, this POINT Guard I/O module provides reliable safety output control for Virtus Equipment and ZERMA America shredders and granulators where safe equipment shutdown and controlled stopping are essential.

Additional information

Weight 1 lbs
Dimensions 4 × 2 × 3 in
Technical Specifications:
SKU: 80032858
Manufacturer Part: 1734-OB8S
Output Channels: 8 safety-rated current sourcing outputs
Supply Voltage: 24V DC
Output Current: 2A maximum per channel
Safety Rating: SIL 3/PLe certified
Mounting: DIN rail mount on POINT I/O rack
Operating Temperature: 0?C to +60?C
Protection: Short circuit and overload protected
Key Features:
Certified Safety Performance: SIL 3/PLe certified for critical safety applications
Eight Safety Outputs: Current sourcing outputs for controlling safety contactors and braking systems
Comprehensive Diagnostics: Advanced fault detection with detailed status reporting
Integrated Protection: Built-in short circuit and overload protection
Flexible Configuration: Programmable output functions for diverse safety applications
Applications: Essential for controlling safety contactors, brake systems, and other safety actuators in material processing equipment. Ideal for emergency shutdown systems in shredder and granulator installations requiring certified safety control.
