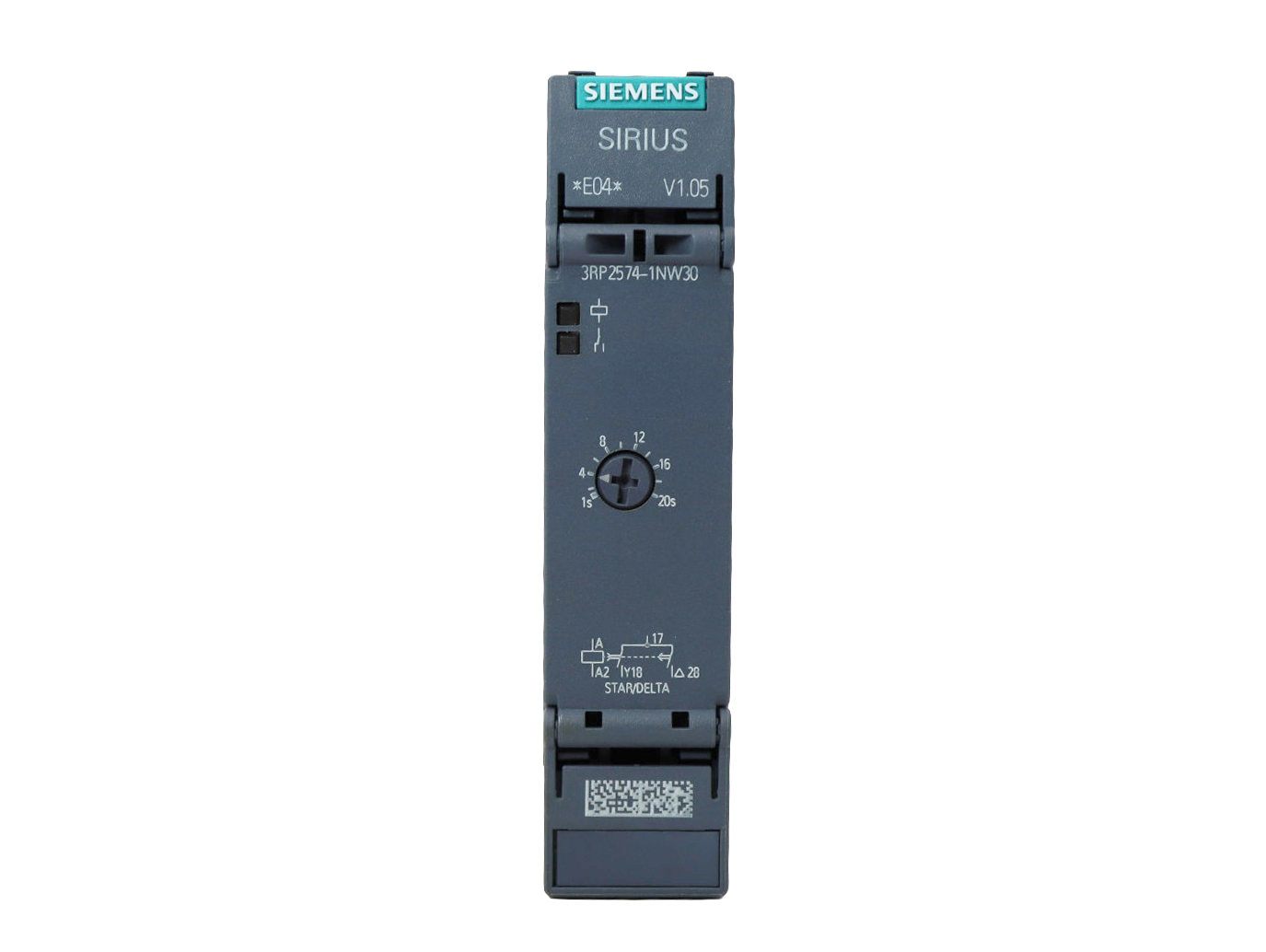

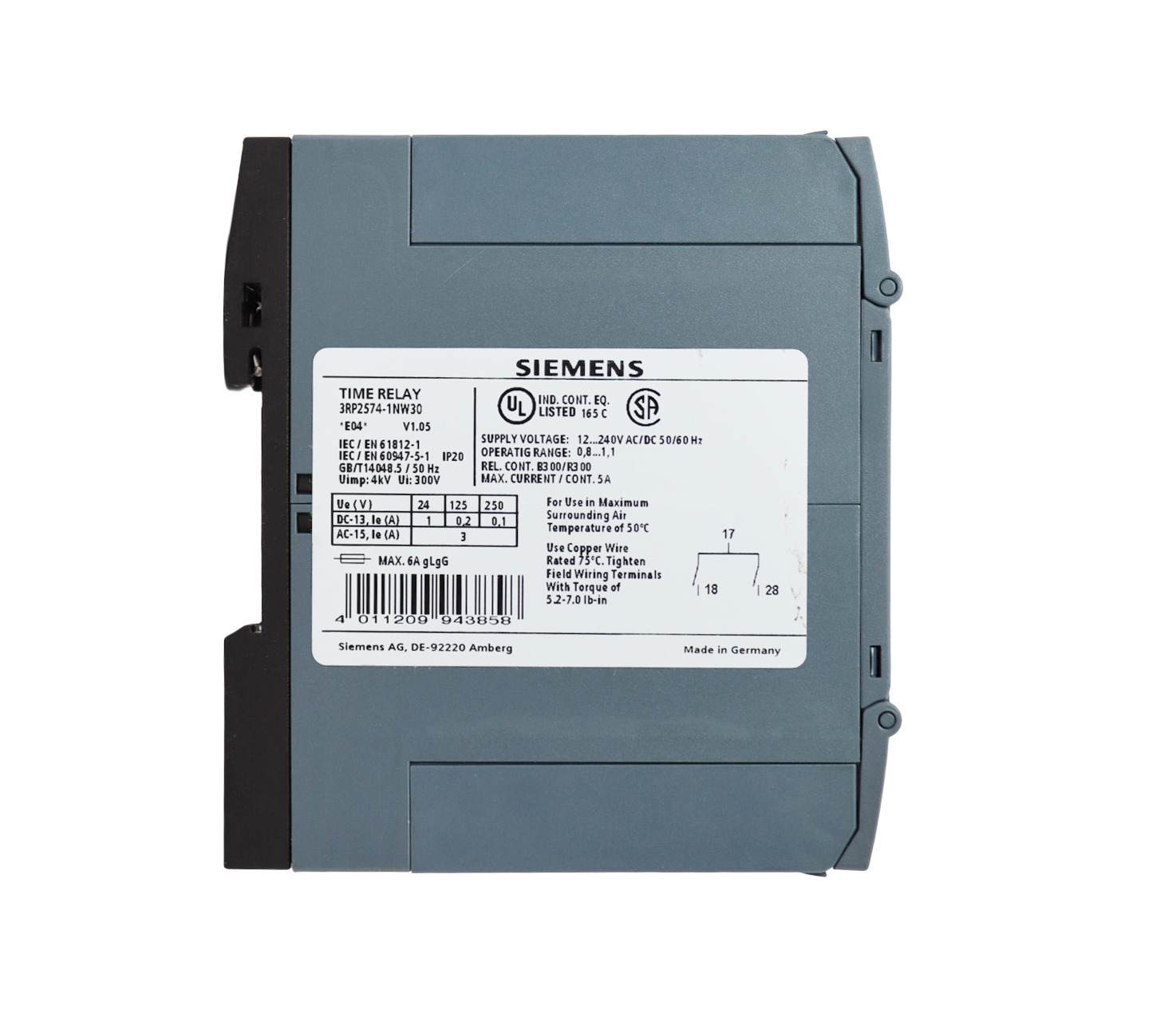

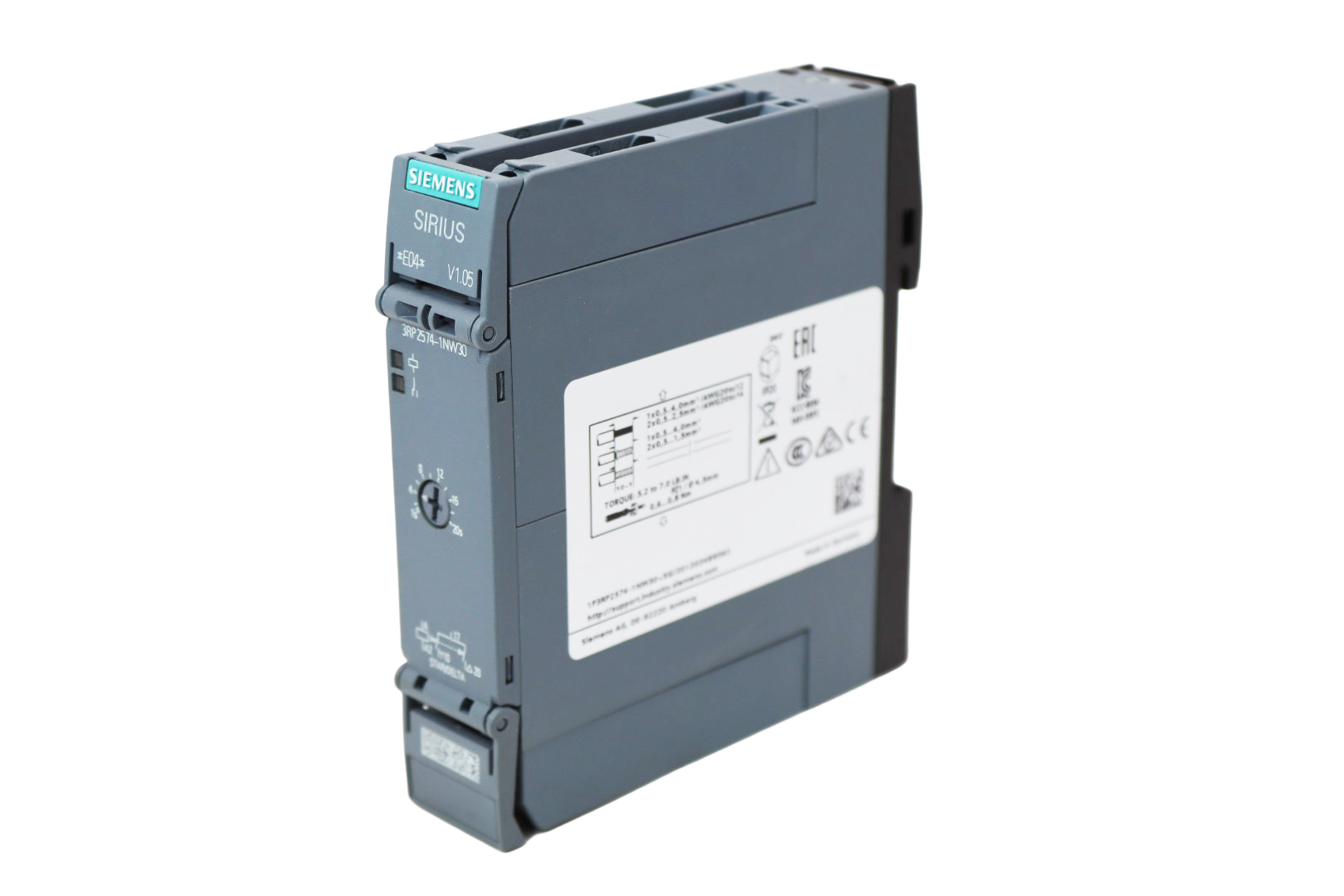

3RP2574-1NW30 Timing Relay

Precision timing relay engineered for time-controlled applications in Virtus Equipment and ZERMA America industrial machinery. This versatile Siemens timing relay provides accurate time delay functions for automated sequences, equipment protection, and process control. Features multiple timing functions, wide voltage range operation, and reliable switching contacts for demanding material processing environments.

SKU 80032292 Category Tags , , , , , , , ,

Description

The 3RP2574-1NW30 Timing Relay is a high-precision electronic timing device designed specifically for time-controlled automation applications in Virtus Equipment and ZERMA America material processing systems. This advanced Siemens timing relay provides accurate and repeatable time delays essential for equipment sequencing, safety interlocks, and process optimization in industrial shredding and granulation operations.

Additional information

Weight 1 lbs
Dimensions 5 × 5 × 2 in
Technical Specifications:
SKU: 80032292
Model: 3RP2574-1NW30
Supply Voltage: 24-240V AC/DC universal
Timing Range: 0.05s to 100 hours (depending on range setting)
Timing Functions: Multiple selectable functions
Contact Rating: 250V AC, 8A resistive load
Contact Configuration: DPDT (2 Form C)
Repeat Accuracy: ?0.1% of setting
Operating Temperature: -25?C to +55?C
Mounting: 11-pin relay base (standard)
Protection Rating: IP40 (front panel)
Key Features:
Multi-Function Timer: Multiple timing functions including on-delay, off-delay, and interval timing
High Precision: Accurate timing with minimal drift over temperature and time
Wide Voltage Range: Universal supply voltage for flexible system integration
LED Status Display: Clear visual indication of timing status and relay state
Potentiometer Adjustment: Precise time adjustment with lockable setting
Industrial Construction: Robust design for reliable operation in harsh environments
Plug-In Design: Standard 11-pin base for easy installation and replacement
Isolation: Electrical isolation between input, timing circuit, and output contacts
Applications: Essential for sequential equipment starting, safety timer functions, material feed timing, and process cycle control in shredders, granulators, and automated material handling systems. Perfect for controlling material feed sequences, equipment warm-up cycles, and safety delay functions in industrial processing operations.
