Description

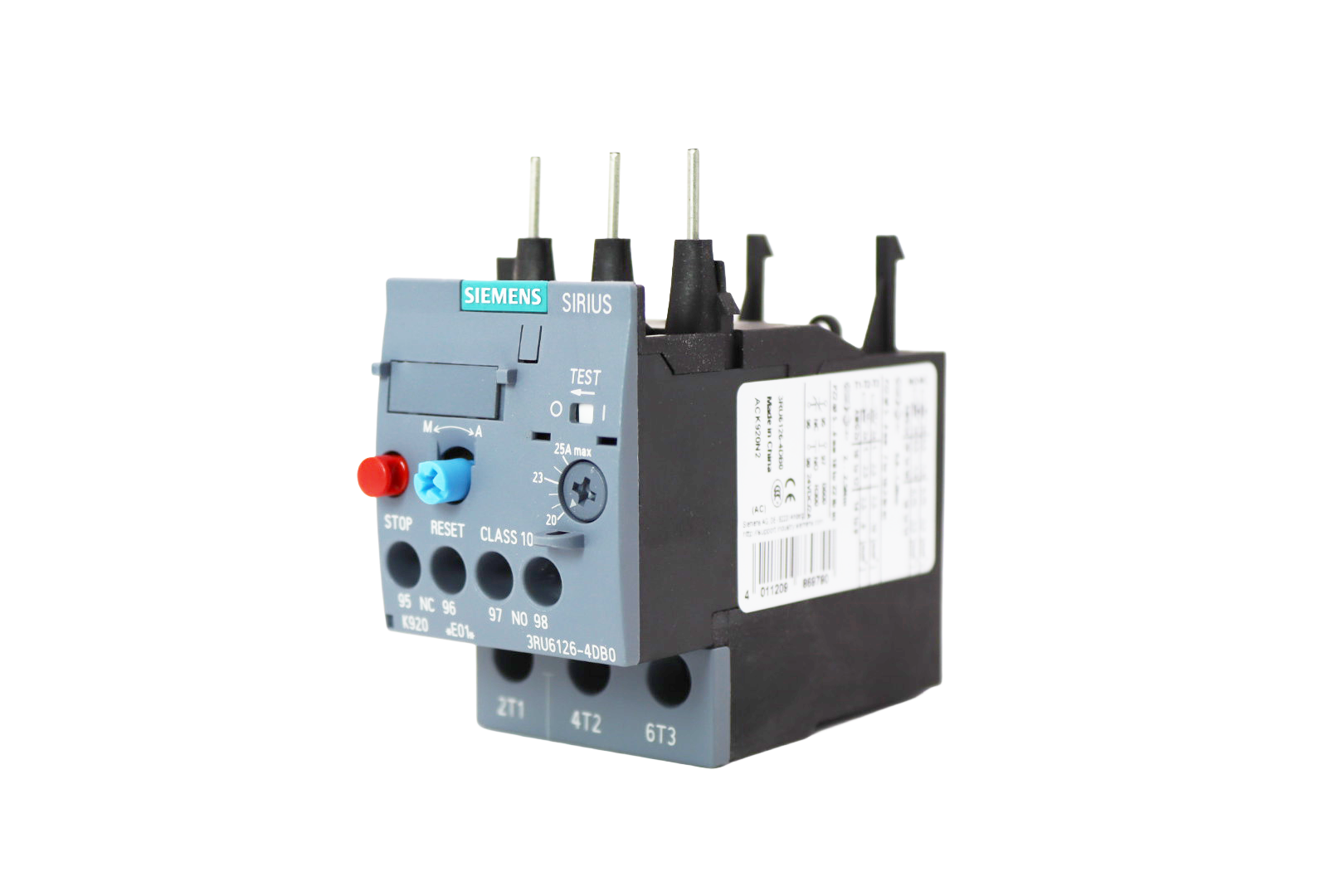

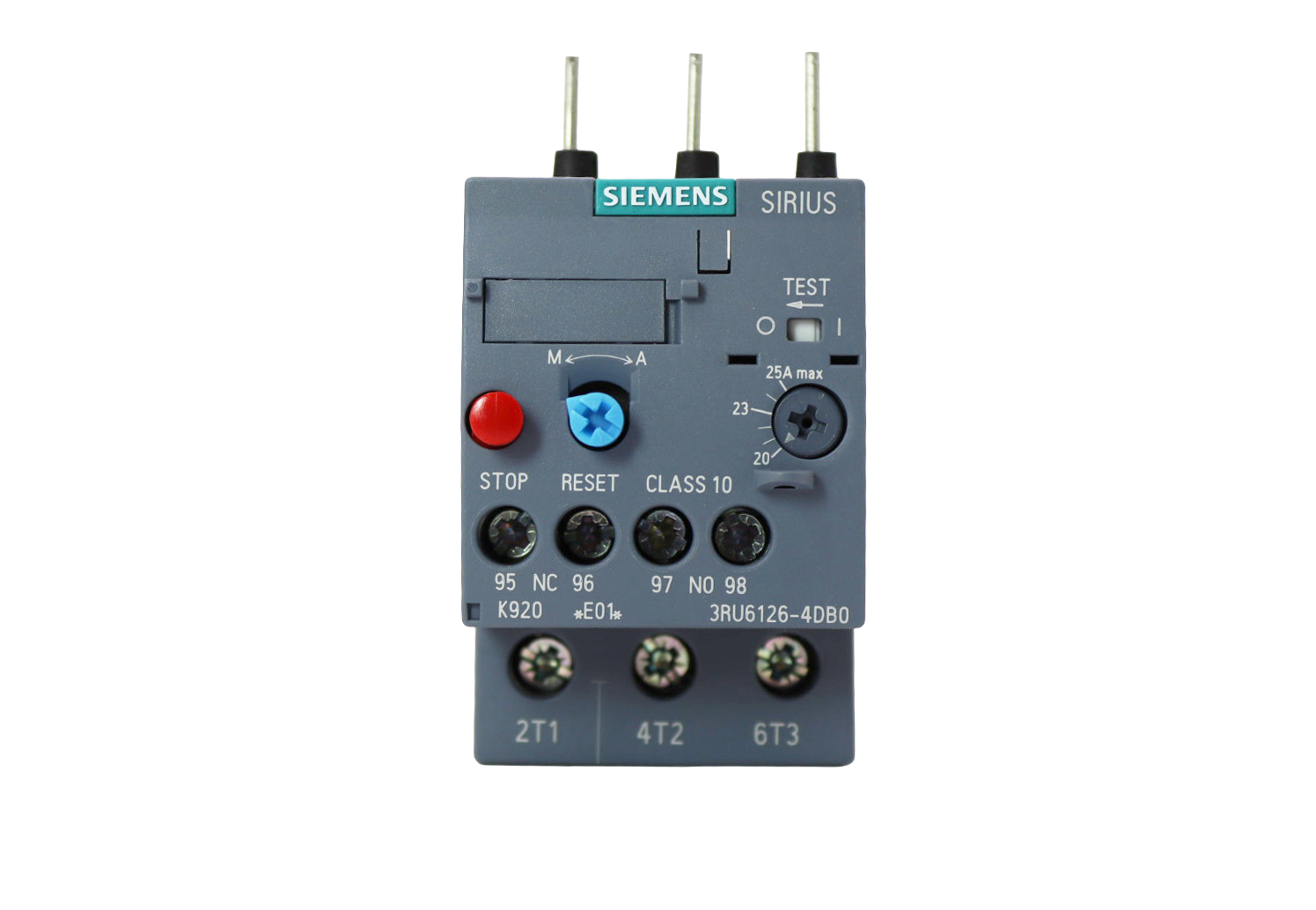

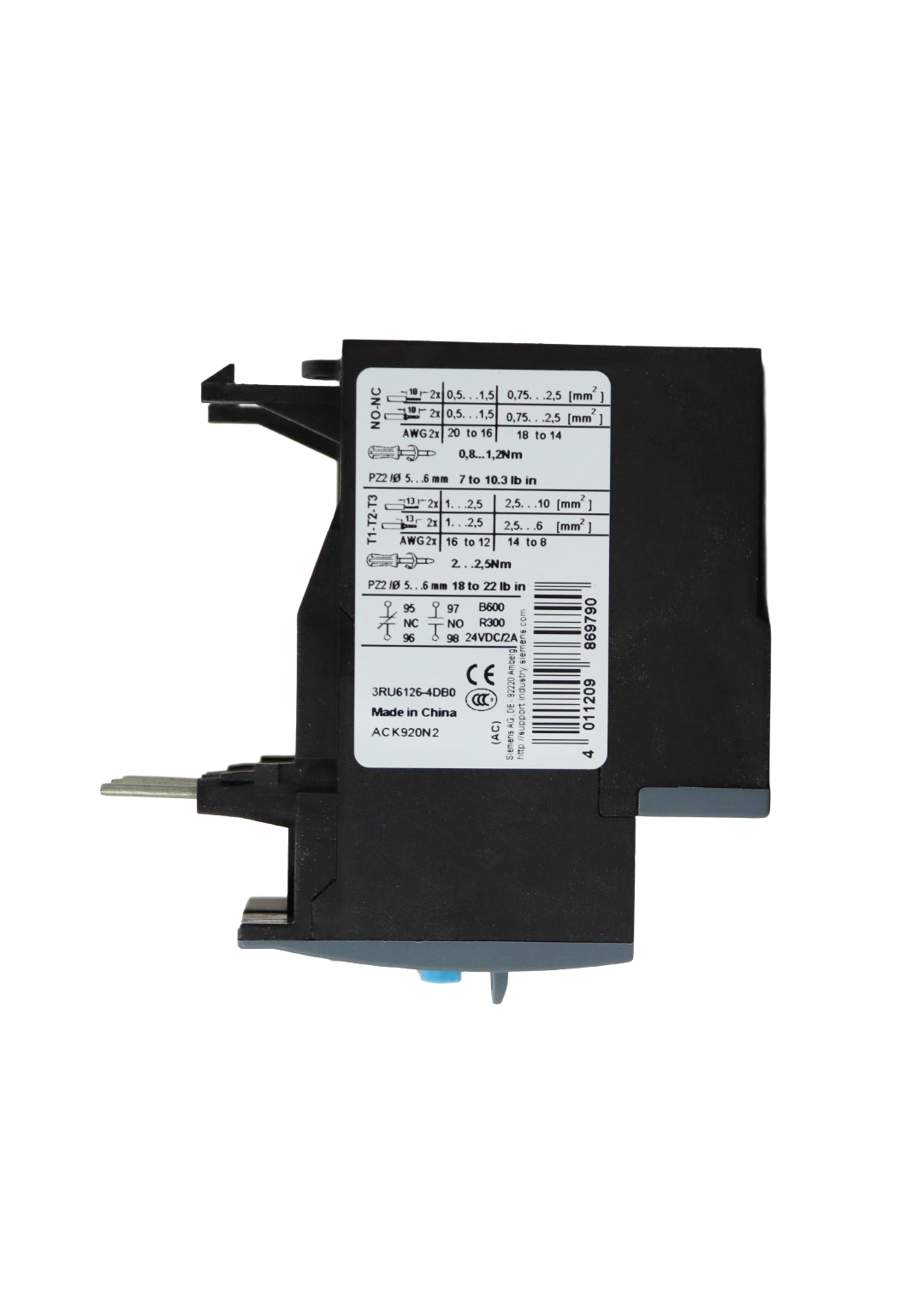

The 3RU6126-4DB0 Overload Relay is a premium motor protection component from Siemens specifically designed for Virtus Equipment and ZERMA America material processing systems. This industrial-grade electronic overload relay provides reliable motor protection by continuously monitoring current draw and disconnecting power during sustained overload conditions, ensuring motor longevity and preventing costly equipment damage in demanding industrial applications.
Technical Specifications:
SKU: 80032030
Part Number: 3RU6126-4DB0
Manufacturer: Siemens
Series: 3RU61 electronic overload relay
Type: Electronic thermal overload relay
Protection Method: Electronic current monitoring with thermal overload characteristics
Current Setting Range: 20-25A (4DB0 variant)
Trip Class: Class 10 for standard motor applications
Reset Options: Manual or automatic reset selection
Phase Protection: Three-phase motor protection with phase failure and imbalance detection
Mounting: Direct mounting to Siemens contactors or DIN rail installation
Auxiliary Contacts: Normally open and normally closed contacts available for signaling
Status Indication: LED display for operational status and trip conditions
Operating Environment: Industrial control panel applications
Temperature Compensation: Electronic temperature compensated trip characteristics
Standards Compliance: IEC 60947-4-1, UL 508
Key Features:
Siemens 3RU61 Series: Electronic thermal overload relay from trusted Siemens SIRIUS product line
Electronic Overload Protection: Advanced electronic monitoring provides precise current measurement and trip characteristics
Adjustable Trip Setting: Wide adjustment range allows precise calibration to motor full-load current rating
Current Range 4DB0: Specific current adjustment range suitable for mid-size motor applications (typical range 20-25A)
Class 10 Trip Characteristics: Standard trip profile suitable for most motor applications and starting conditions
Manual or Automatic Reset: Selectable reset mode allows customization for specific operational requirements
LED Status Indication: Clear visual indication shows operational status and trip condition for quick fault diagnosis
Auxiliary Contacts: Additional switching contacts provide alarm signaling and control circuit monitoring capability
Phase Failure Protection: Detects loss of phase condition preventing motor damage from single-phasing
Temperature Compensation: Electronic compensation maintains accurate protection across ambient temperature variations
Modular Mounting: Direct mounting to Siemens contactors or DIN rail installation
Applications: Critical motor protection component for granulators, shredders, and material processing equipment used in plastic recycling, manufacturing scrap recovery, and waste processing operations where Siemens control components are utilized. Essential for protecting motors from damage caused by mechanical overload, bearing failures, locked rotor conditions, single-phasing, voltage imbalance, and inadequate cooling. Ideal for recycling facilities, injection molding plants, extrusion operations, blow molding facilities, and manufacturing environments where motor reliability is critical for production continuity and Siemens control systems are standard. Perfect for applications including main drive motor protection with electronic precision, feed system motors requiring accurate overload detection, conveyor drives, hydraulic pump motors, cooling fan motors, and auxiliary equipment motors requiring thermal overload protection in the 20-25A current range. Suitable for use with Siemens SIRIUS contactors in control circuits requiring electronic thermal overload protection with alarm contacts for remote monitoring and integration with PLCs or SCADA systems. Works in conjunction with circuit breakers to provide comprehensive motor circuit protection against both sustained overload and short circuit conditions in automated material processing equipment utilizing Siemens industrial control components.
