Description

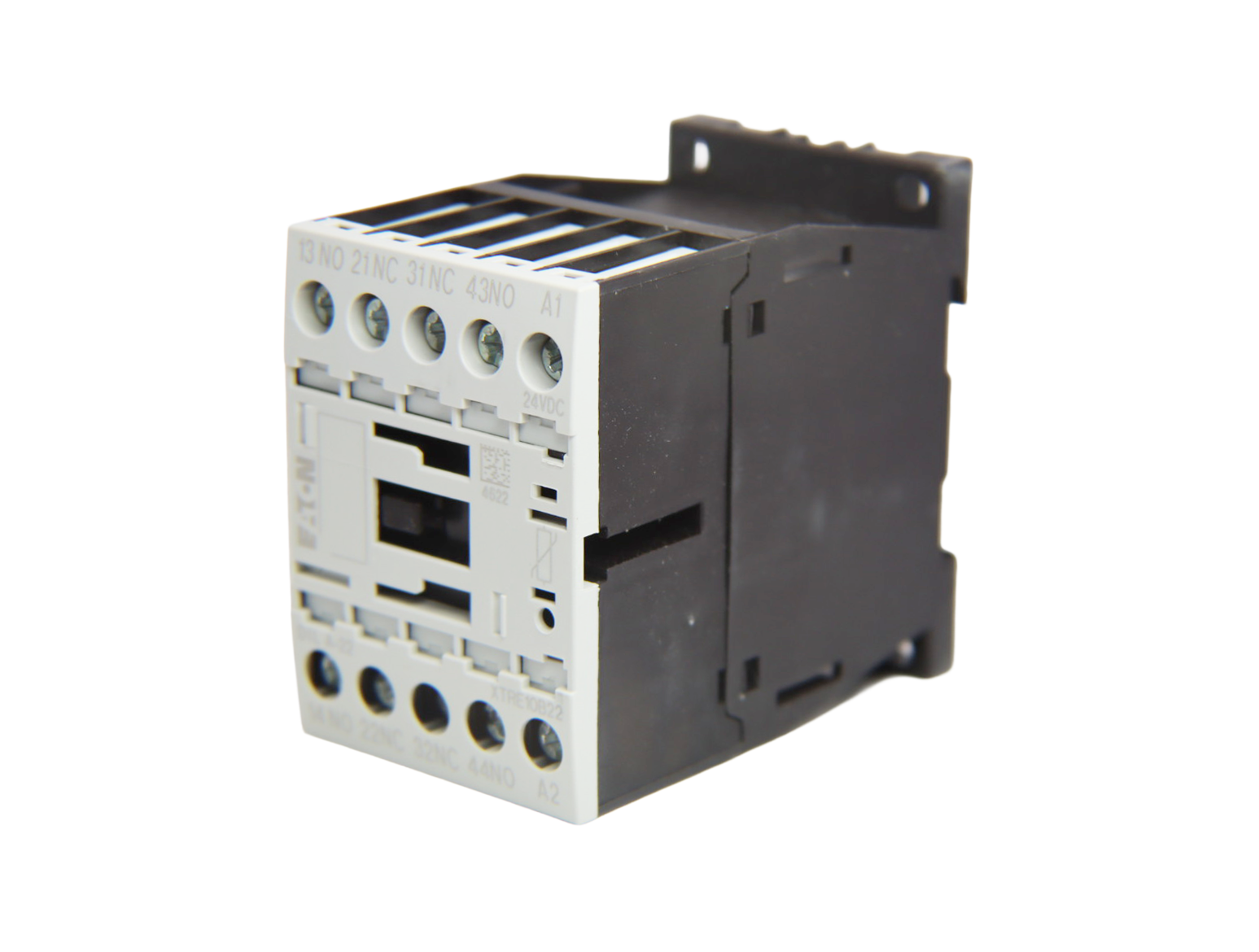

The DIL A22 Relay is a versatile control switching device specifically designed for Virtus Equipment and ZERMA America material processing systems. This industrial-grade auxiliary relay provides reliable switching for control circuits and automation applications, making it ideal for expanding control capabilities and coordinating equipment operations in demanding industrial environments.
Technical Specifications:
SKU: 80030609
Part Number: DIL A22
Type: Industrial control relay (auxiliary relay)

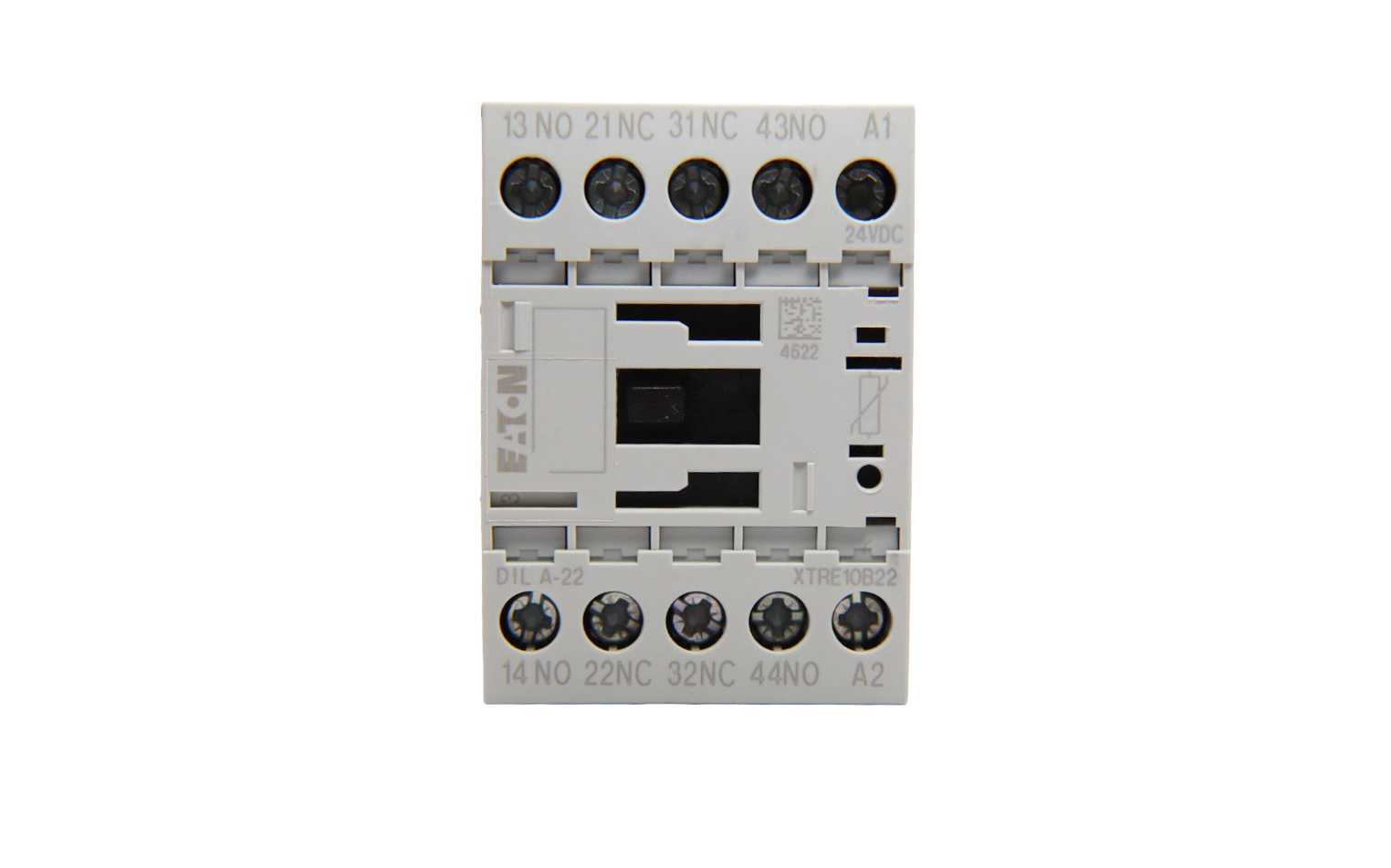

Contact Configuration: 2 NO + 2 NC (two normally open, two normally closed)
Coil Voltage: Multiple voltage options available (AC or DC - specify when ordering)
Contact Rating: Suitable for control circuits, pilot lights, and auxiliary loads
Mounting: DIN rail installation (35mm rail)
Operating Range: Wide voltage tolerance for coil operation
Mechanical Life: Millions of operations
Electrical Life: Extended contact life under rated load conditions
Operating Environment: Industrial control panel applications
Standards Compliance: IEC 60947-5-1, UL 508
Key Features:
Versatile Contact Configuration: DIL A22 provides two normally open and two normally closed contacts for flexible control applications
Multiple Coil Voltage Options: Available with various AC or DC coil voltages for control system compatibility
High Contact Rating: Industrial-rated contacts handle control circuit, indicator light, and auxiliary device switching
Mechanical Indicator: Manual test button and position indicator enable circuit verification and troubleshooting
Long Electrical Life: Premium contact materials ensure extended operational reliability with minimal maintenance
Fast Switching Response: Quick actuation and release times suitable for rapid control sequences
DIN Rail Mounting: Standard mounting configuration simplifies installation in control panels
Compact Footprint: Space-efficient design allows high-density control panel layouts
Coil Protection: Built-in suppression protects control circuits from coil de-energization voltage spikes
Modular Construction: Compatible mounting with contactors and other control devices for organized panel design
Wide Operating Range: Tolerates voltage fluctuations common in industrial environments
Applications: Essential control component for granulators, shredders, and material processing equipment used in plastic recycling, manufacturing scrap recovery, and waste processing operations. Critical for control circuit applications including PLC output expansion, equipment interlocking, control signal distribution, pilot light operation, alarm circuit switching, and safety circuit coordination. Ideal for recycling facilities, injection molding plants, extrusion operations, blow molding facilities, and manufacturing environments requiring reliable auxiliary relay switching in control systems. Perfect for applications including emergency stop circuit distribution, equipment status indication, multi-contact control functions, remote start/stop control, sequential operation control, and alarm signaling systems. Suitable for expanding control capabilities, duplicating signals for multiple outputs, isolating control circuits, and coordinating complex equipment sequences in automated material processing systems.
