Description

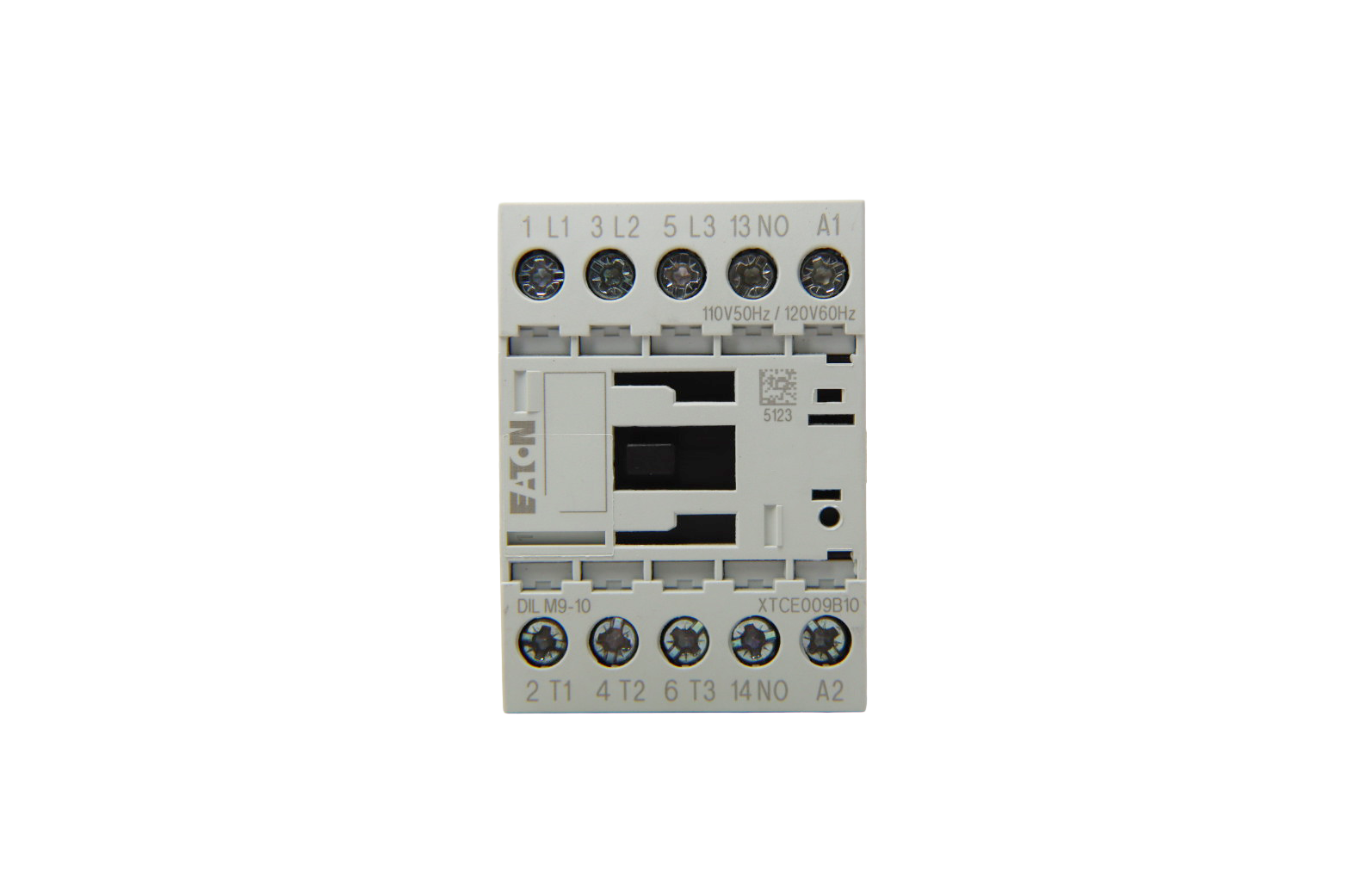

The DIL M9-10 AC110V Control Relay is a compact power contactor specifically designed for Virtus Equipment and ZERMA America material processing systems operating with 110VAC control voltage. This industrial-grade contactor provides reliable motor control and power switching with a 9-amp contact rating and 110VAC coil, making it ideal for controlling smaller motors and auxiliary equipment in North American facilities with standard 110V control circuits in demanding industrial environments.

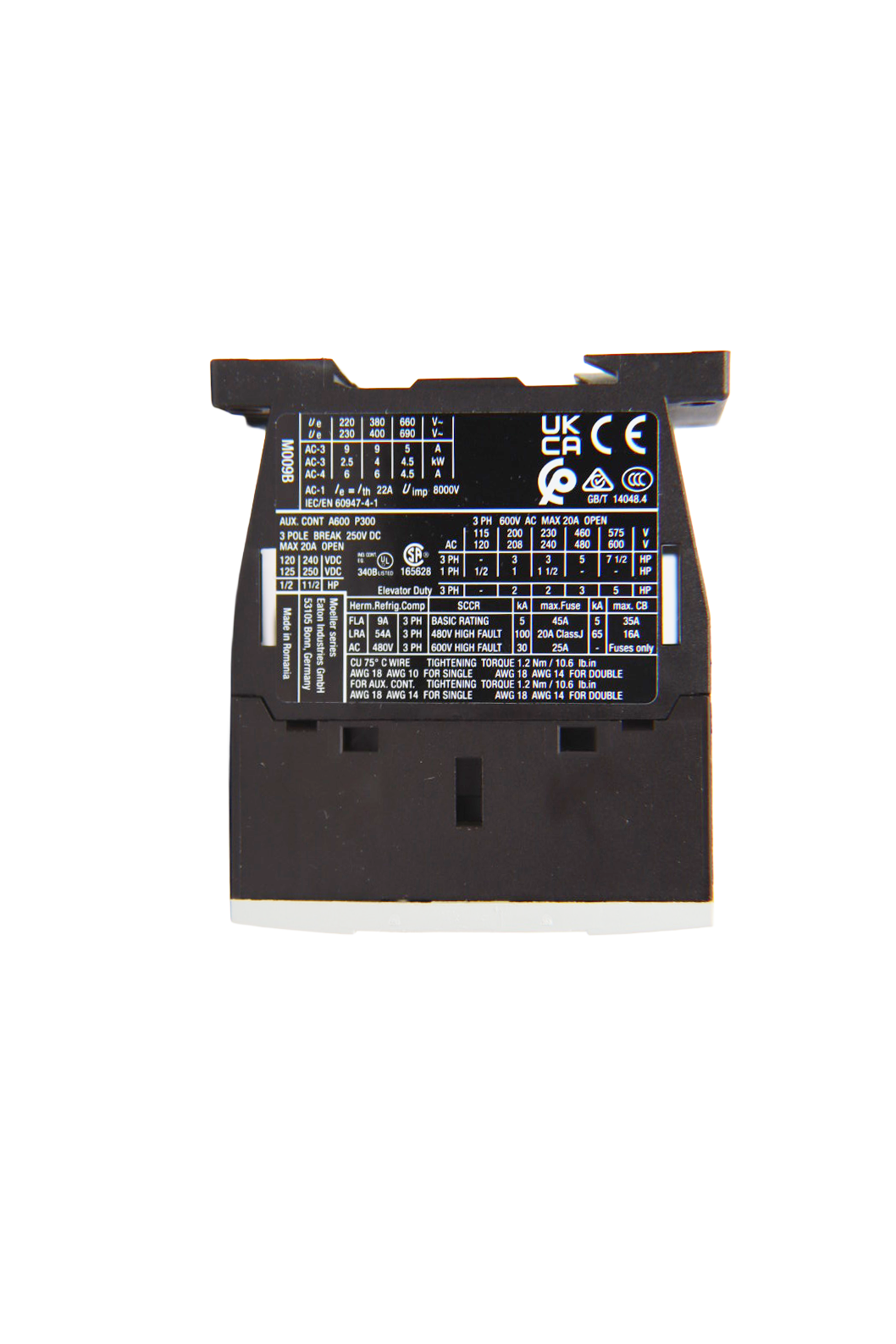

Technical Specifications:
SKU: 80031368
Part Number: DIL M9-10 AC110V
Type: Industrial contactor (motor control relay)
Coil Voltage: 110VAC (50/60Hz)
Current Rating: 9 Amperes main contacts
Motor Power Rating: Up to approximately 4kW at 400VAC three-phase (AC-3 duty), 2HP at 230VAC
Main Contact Configuration: 3-pole normally open (3 NO)
Auxiliary Contacts: 1 NO integrated (expandable with add-on blocks)
Utilization Category: AC-3 for motor control, AC-1 for resistive loads
Coil Power Consumption: Low power consumption typical of industrial contactors
Mounting: DIN rail installation (35mm rail)
Mechanical Life: Millions of operations
Electrical Life: Extended contact life under rated motor loads
Operating Environment: Industrial control panel applications
Standards Compliance: IEC 60947-4-1, UL 508
Key Features:
110VAC Coil Operation: Designed for North American industrial control voltage standards and compatibility with 110V control transformers
9-Amp Power Contacts: Suitable for direct motor control up to approximately 4kW at 400VAC three-phase or 2HP at 230VAC single-phase
Three-Pole Main Contacts: Three normally open power contacts for three-phase motor control applications
Auxiliary Contact Configuration: Integrated auxiliary contacts (1 NO) for control circuit signaling and interlocking functions
AC-3 Rated Contacts: Certified for motor duty applications with high switching reliability under inductive loads
Mechanical Indicator: Manual test function and position indicator enable circuit verification and troubleshooting
Long Electrical Life: Silver alloy contacts ensure extended operational reliability under motor starting loads
DIN Rail Mounting: Standard mounting configuration simplifies installation in control panels
Compact Design: Space-efficient footprint suitable for smaller motor control applications
Coil Surge Protection: Built-in suppression protects control circuits from voltage spikes during coil switching
Modular Construction: Can be fitted with additional auxiliary contact blocks for expanded functionality
Applications: Essential motor control component for granulators, shredders, and material processing equipment used in plastic recycling, manufacturing scrap recovery, and waste processing operations in North American facilities with 110VAC control systems. Critical for direct control of smaller motors including feed system drives, conveyor motors, cooling fans, hydraulic pump motors, and auxiliary equipment up to 4kW rating where 110V control voltage is standard. Ideal for recycling facilities, injection molding plants, extrusion operations, blow molding facilities, and manufacturing environments requiring reliable compact motor control with 110VAC coil operation compatible with North American electrical standards. Perfect for applications including conveyor motor starting, auxiliary drive control, cooling system operation, material handling equipment, and automated equipment sequencing where control transformers provide 110VAC control power. Suitable for integration with PLCs and control systems using 110V output modules for remote motor control, equipment automation, sequential motor starting, and coordinated operation of multiple smaller motors in material processing systems with North American voltage standards.
