Description

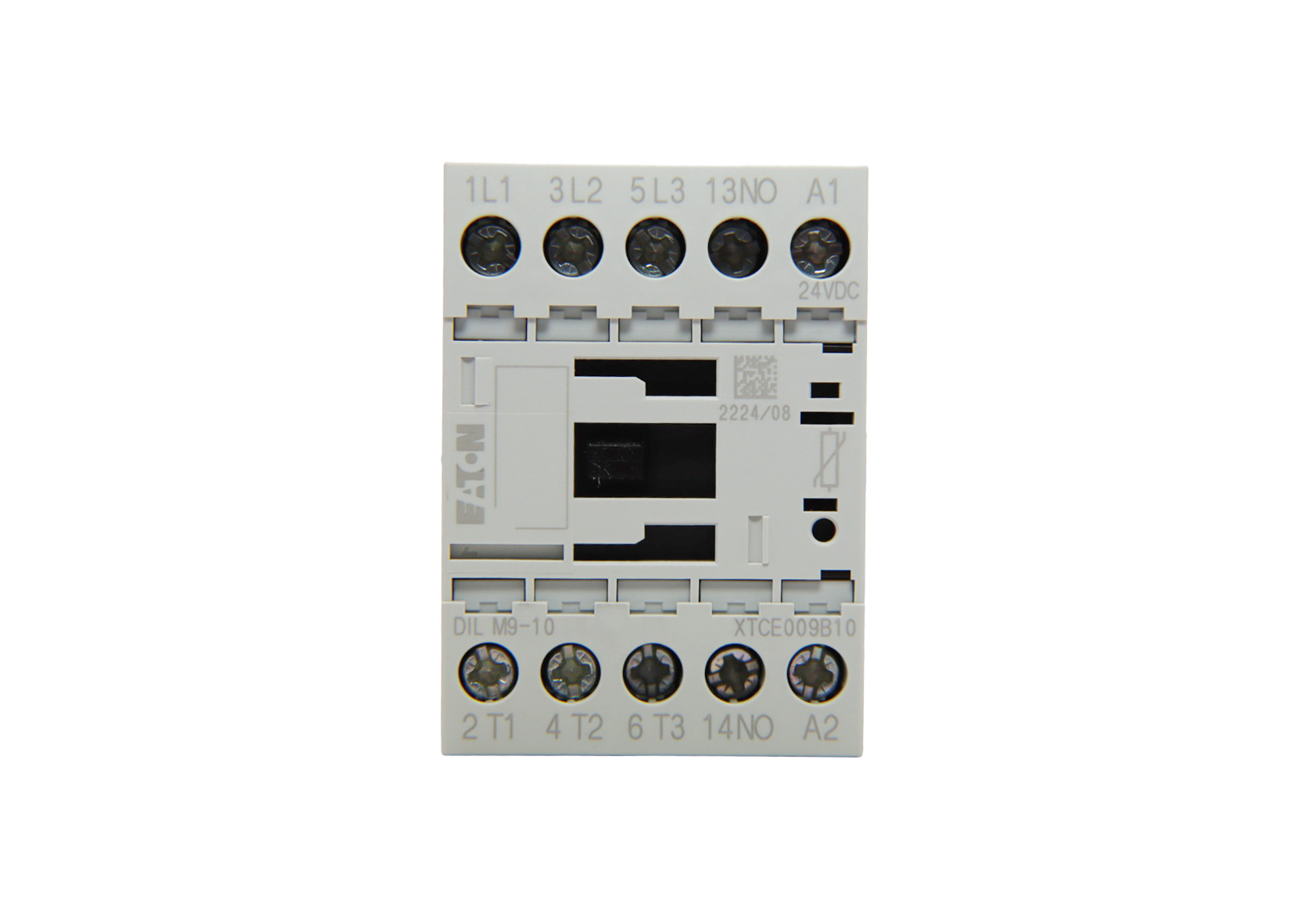

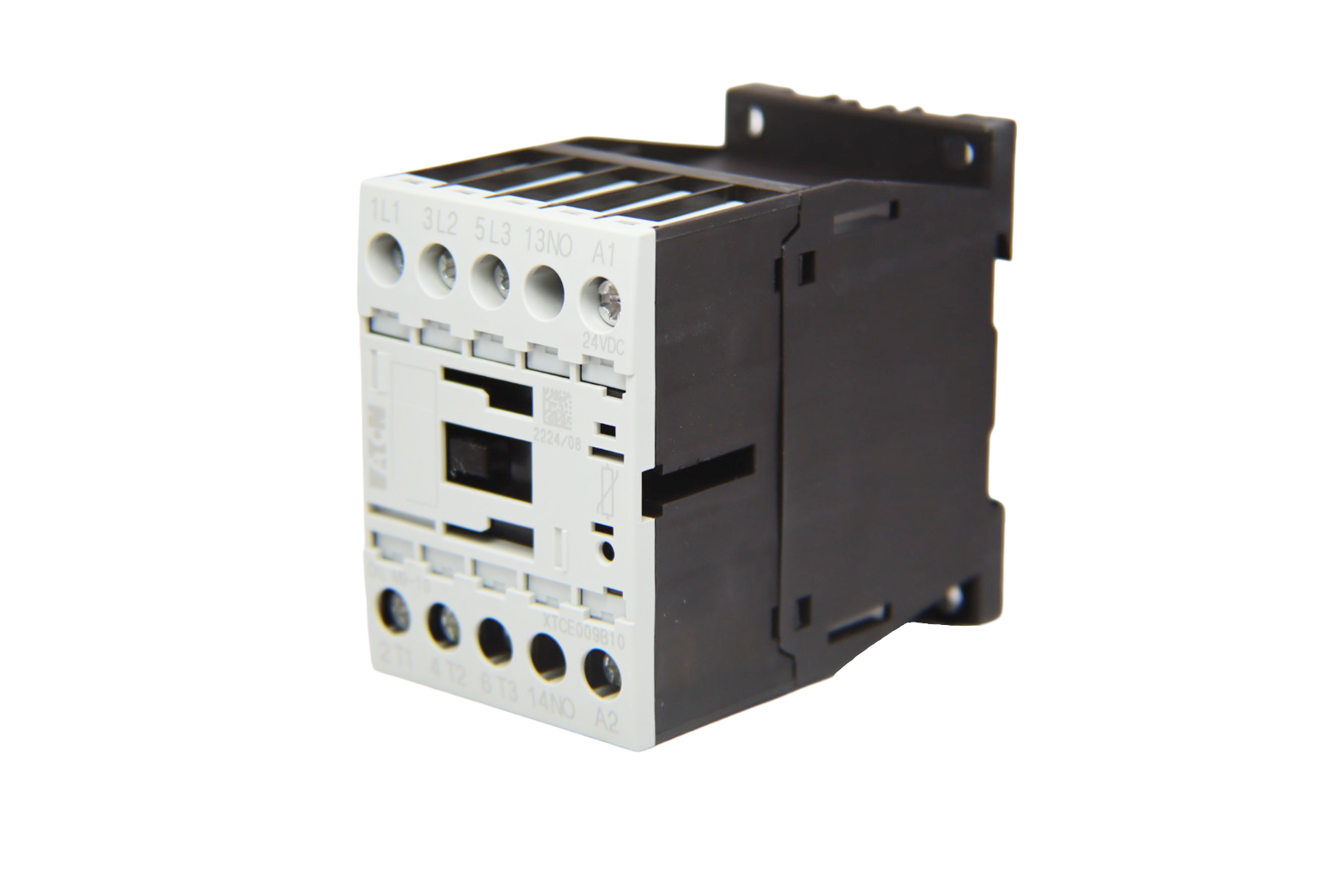

The DIL M9-10 Relay is a compact power contactor specifically designed for Virtus Equipment and ZERMA America material processing systems. This industrial-grade contactor provides reliable motor control and power switching with a 9-amp contact rating, making it ideal for controlling smaller motors, auxiliary equipment, and power distribution in demanding industrial environments.
Technical Specifications:
SKU: 80030611
Part Number: DIL M9-10
Type: Industrial contactor (motor control relay)
Current Rating: 9 Amperes main contacts
Motor Power Rating: Up to approximately 4kW at 400VAC three-phase (AC-3 duty)
Main Contact Configuration: 3-pole normally open (3 NO)
Auxiliary Contacts: 1 NO integrated (expandable with add-on blocks)
Coil Voltage: Multiple voltage options available (AC or DC - specify when ordering)
Utilization Category: AC-3 for motor control, AC-1 for resistive loads
Mounting: DIN rail installation (35mm rail)
Mechanical Life: Millions of operations
Electrical Life: Extended contact life under rated motor loads
Operating Environment: Industrial control panel applications
Standards Compliance: IEC 60947-4-1, UL 508
Key Features:
9-Amp Power Contacts: Suitable for direct motor control up to approximately 4kW at 400VAC three-phase
Three-Pole Main Contacts: Three normally open power contacts for three-phase motor control applications
Auxiliary Contact Configuration: Integrated auxiliary contacts (1 NO) for control circuit signaling and interlocking
Multiple Coil Voltage Options: Available with various AC or DC coil voltages for control system compatibility
AC-3 Rated Contacts: Certified for motor duty applications with high switching reliability
Mechanical Indicator: Manual test function and position indicator enable circuit verification and troubleshooting
Long Electrical Life: Silver alloy contacts ensure extended operational reliability under motor starting loads
DIN Rail Mounting: Standard mounting configuration simplifies installation in control panels
Compact Design: Space-efficient footprint suitable for smaller motor control applications
Coil Surge Protection: Built-in suppression protects control circuits from voltage spikes during coil switching
Modular Construction: Can be fitted with additional auxiliary contact blocks for expanded functionality
Applications: Essential motor control component for granulators, shredders, and material processing equipment used in plastic recycling, manufacturing scrap recovery, and waste processing operations. Critical for direct control of smaller motors including feed system drives, conveyor motors, cooling fans, hydraulic pump motors, and auxiliary equipment up to 4kW rating. Ideal for recycling facilities, injection molding plants, extrusion operations, blow molding facilities, and manufacturing environments requiring reliable compact motor control. Perfect for applications including conveyor motor starting, auxiliary drive control, cooling system operation, material handling equipment, and automated equipment sequencing. Suitable for integration with PLCs and control systems for remote motor control, equipment automation, sequential motor starting, and coordinated operation of multiple smaller motors in material processing systems.
