Description

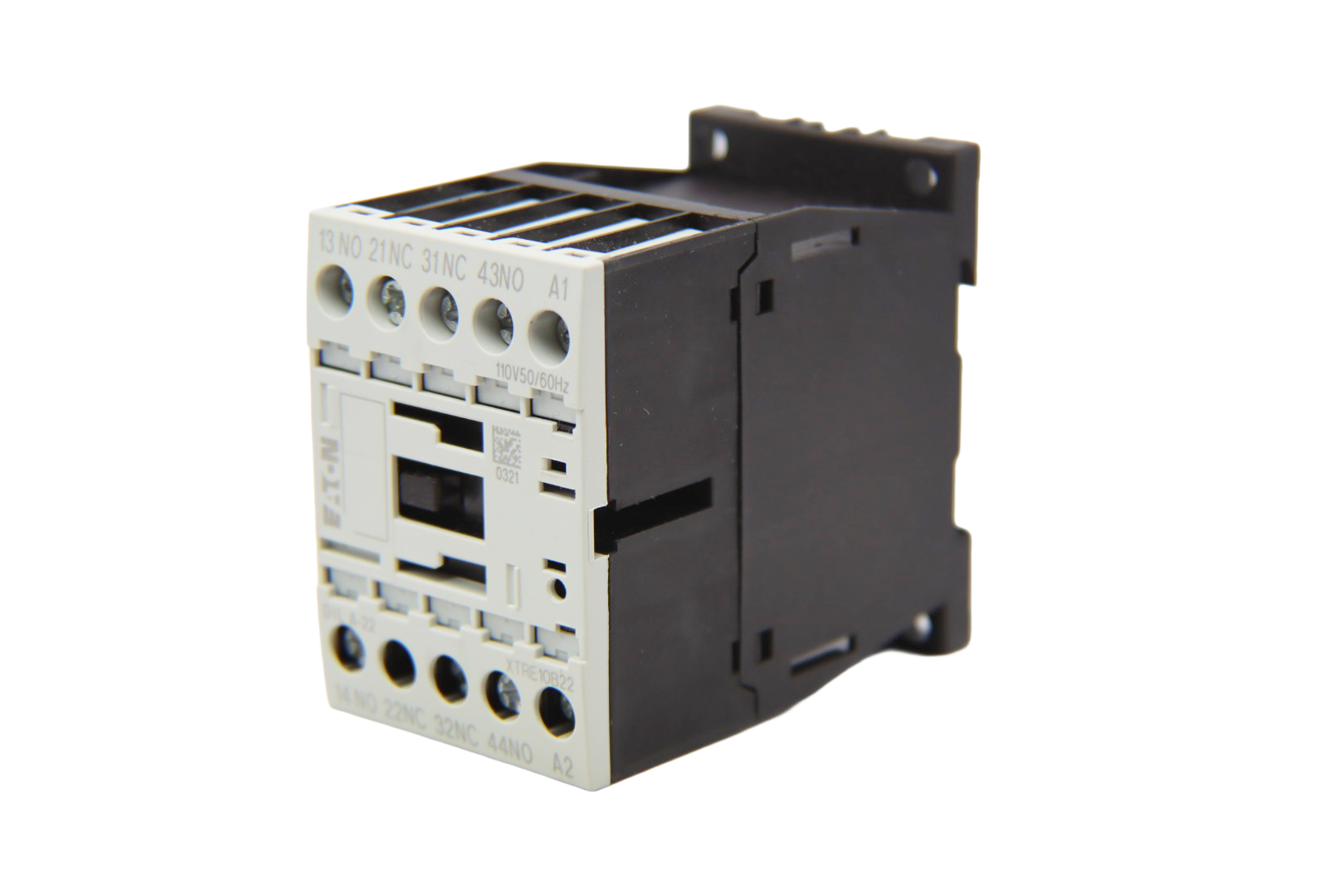

The DILA 22 XTRE 10B22A Relay is a versatile control switching device specifically designed for Virtus Equipment and ZERMA America material processing systems. This industrial-grade auxiliary relay with extended contact block provides reliable switching for control circuits and automation applications with expanded contact capacity through the XTRE 10B22A auxiliary module, making it ideal for complex control functions requiring multiple switching contacts in demanding industrial environments.
Technical Specifications:
SKU: 80031590
Part Number: DILA 22 with XTRE 10B22A auxiliary contact block
Type: Industrial control relay with extended auxiliary contacts

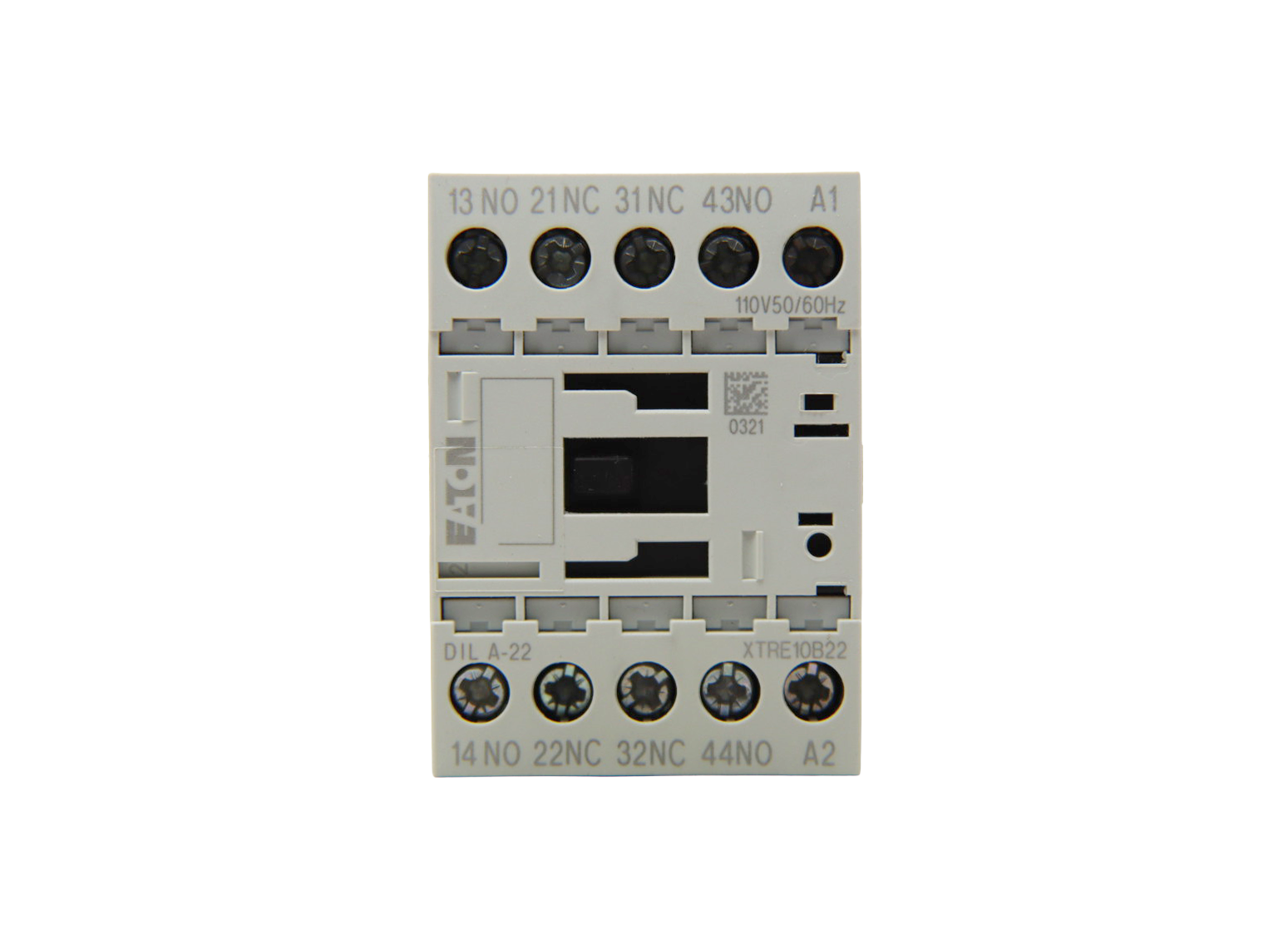

Base Relay: DILA 22 (2 NO + 2 NC base configuration)
Auxiliary Block: XTRE 10B22A expansion contacts (additional NO/NC contacts)
Total Contacts: Extended configuration with multiple normally open and normally closed contacts
Coil Voltage: Multiple voltage options available for base relay (AC or DC - specify when ordering)
Contact Rating: Suitable for control circuits, pilot lights, and auxiliary loads
Mounting: DIN rail installation (35mm rail) with integrated auxiliary block
Operating Range: Wide voltage tolerance for coil operation
Mechanical Life: Millions of operations
Electrical Life: Extended contact life under rated load conditions
Operating Environment: Industrial control panel applications

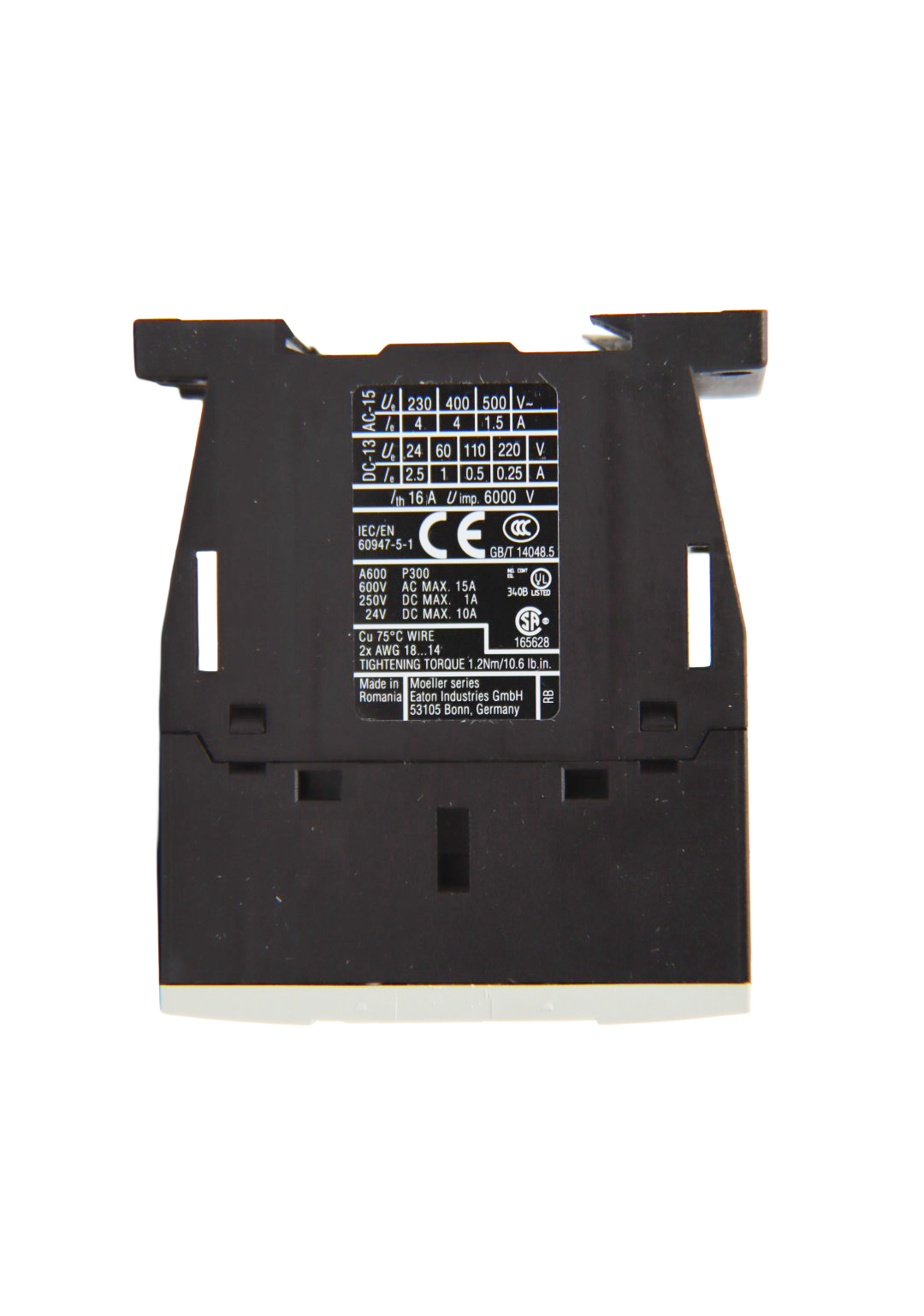

Standards Compliance: IEC 60947-5-1, UL 508
Key Features:
Extended Contact Configuration: DILA 22 base relay with XTRE 10B22A auxiliary block provides expanded contact capacity for complex applications
Multiple Contact Arrangements: Combined configuration offers numerous normally open and normally closed contacts for versatile control
Modular Design: XTRE auxiliary contact block adds switching capacity to base DILA 22 relay without separate mounting
High Contact Rating: Industrial-rated contacts handle control circuit, indicator light, and auxiliary device switching
Multiple Coil Voltage Options: Base DILA 22 available with various AC or DC coil voltages for control system compatibility
Mechanical Indicator: Manual test button and position indicator enable circuit verification and troubleshooting
Long Electrical Life: Premium contact materials ensure extended operational reliability with minimal maintenance
Fast Switching Response: Quick actuation and release times suitable for rapid control sequences
DIN Rail Mounting: Standard mounting configuration simplifies installation in control panels
Compact Footprint: Space-efficient integrated design maximizes contact density in limited panel space
Wide Operating Range: Tolerates voltage fluctuations common in industrial environments
Applications: Essential control component for granulators, shredders, and material processing equipment used in plastic recycling, manufacturing scrap recovery, and waste processing operations requiring extensive control contact capacity. Critical for complex control circuit applications including PLC output expansion with multiple contact requirements, equipment interlocking with numerous safety circuits, comprehensive control signal distribution, multi-zone pilot light operation, alarm circuit switching with redundant contacts, and safety circuit coordination requiring contact multiplication. Ideal for recycling facilities, injection molding plants, extrusion operations, blow molding facilities, and manufacturing environments requiring reliable auxiliary relay switching with expanded contact capacity in control systems. Perfect for applications including emergency stop circuit distribution to multiple zones, equipment status indication with separate contacts for local and remote displays, multi-contact control functions requiring both NO and NC contacts, remote start/stop control with status feedback, sequential operation control with interlocking verification, and comprehensive alarm signaling systems requiring contact isolation. Suitable for expanding control capabilities where single relay provides multiple isolated outputs, duplicating signals for numerous outputs without additional relays, isolating control circuits between different voltage systems, and coordinating complex equipment sequences in automated material processing systems requiring high-density contact arrangements in limited control panel space.
