Description

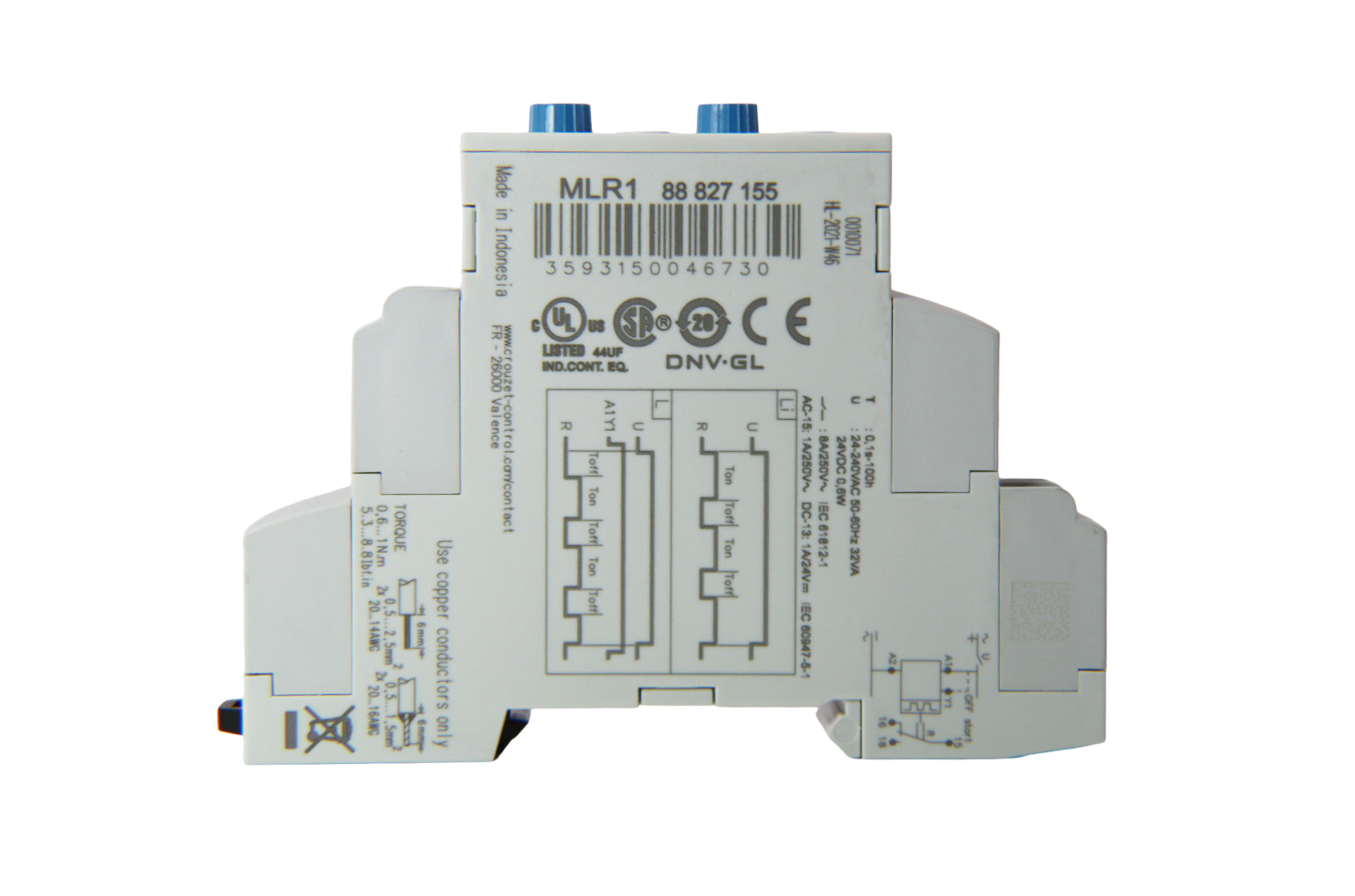

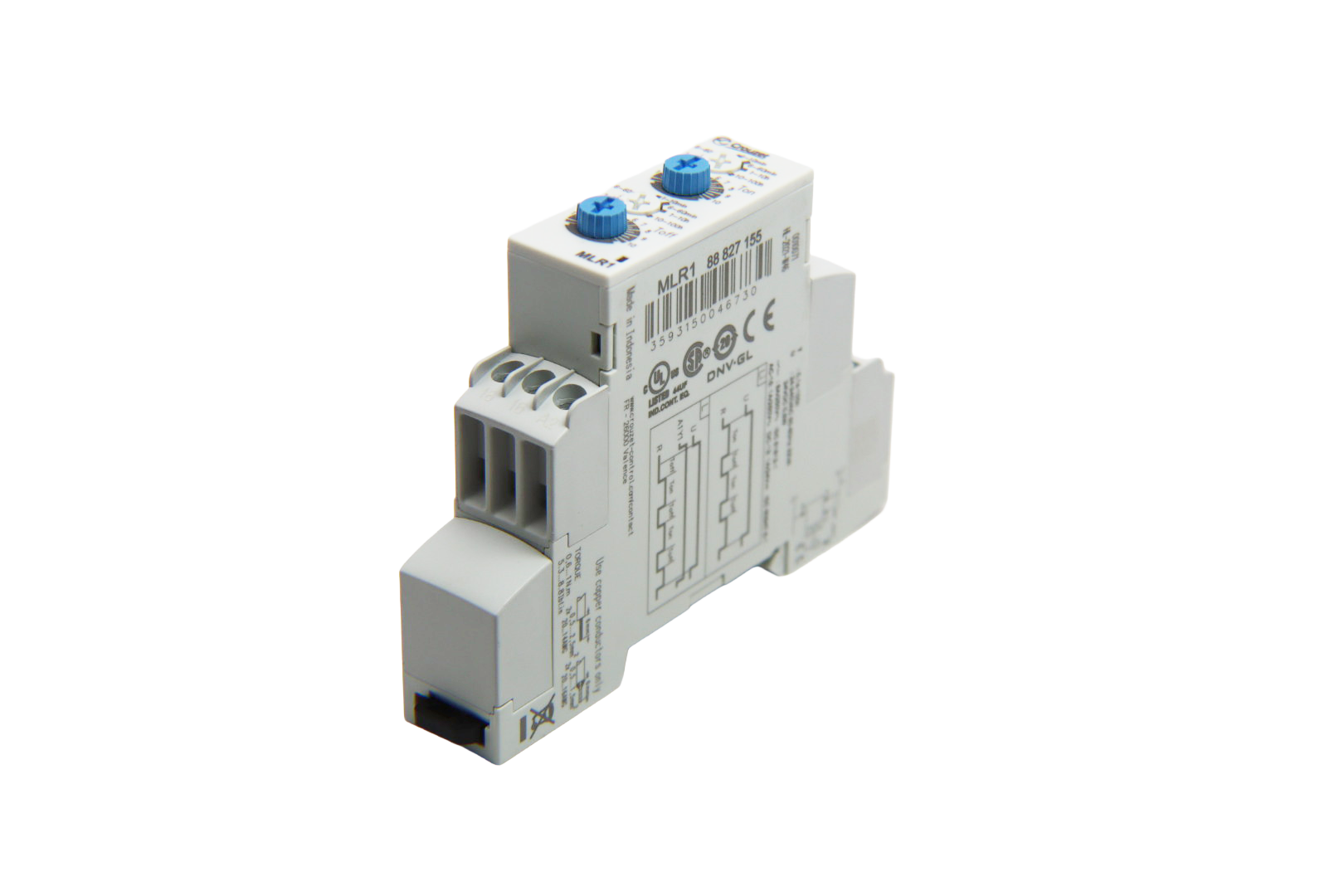

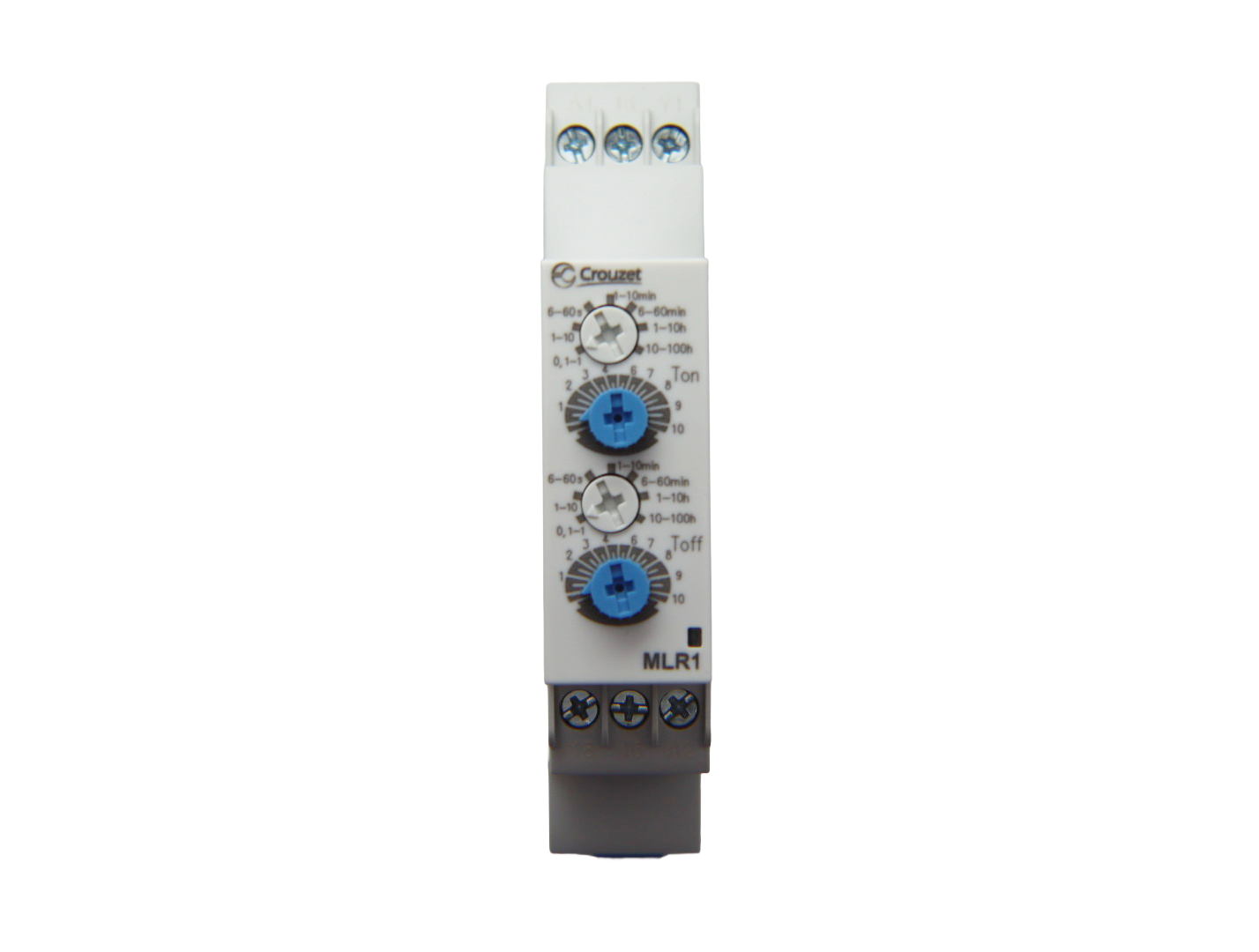

The Pulse Relay is a specialized control component specifically designed for Virtus Equipment and ZERMA America material processing systems. This industrial-grade bistable relay provides efficient latching control operation, maintaining its switched state with only momentary activation pulses rather than continuous power, making it ideal for energy-efficient control applications in demanding industrial environments.
Technical Specifications:
SKU: 80030254
Type: Industrial pulse relay (bistable/latching relay)
Operation: Pulse-activated bistable switching
Activation: Momentary pulse input (set/reset)
Power Consumption: Minimal - only during state changes
Contact Configuration: Industrial-rated switching contacts
Mounting: DIN rail installation
Status Indication: Visual relay state display
Control Voltage: Industrial control voltage compatible
Operating Environment: Industrial control panel applications
Memory Function: Maintains state during power interruptions
Key Features:
Bistable Latching Operation: Maintains switched state without continuous coil energization for energy-efficient control
Pulse Activation: Changes state with momentary pulse input, eliminating need for continuous control power
Mechanical Latching: Reliable mechanical mechanism maintains contact position during power interruptions
Low Power Consumption: Requires power only during state changes, reducing energy costs in continuous operation
Dual Pulse Input: Separate set and reset pulse inputs provide flexible control options
Industrial Contact Rating: Robust contacts handle motor control and high-current switching applications
DIN Rail Mounting: Standard mounting configuration simplifies installation in control panels
Visual Status Indication: Clear indication of relay state enables quick system monitoring
Wide Voltage Compatibility: Compatible with various control voltage systems for flexible application
Applications: Essential control component for granulators, shredders, and material processing equipment used in plastic recycling, manufacturing scrap recovery, and waste processing operations. Critical for energy-efficient control of lighting systems, equipment activation circuits, remote switching applications, and process control functions requiring maintained state with minimal power consumption. Ideal for recycling facilities, injection molding plants, extrusion operations, blow molding facilities, and manufacturing environments where reducing control circuit power consumption improves efficiency. Perfect for applications including facility lighting control with remote switching, equipment standby mode activation, process sequence control with state memory, emergency stop circuit latching, and automated system control requiring maintained switching states. Suitable for control systems where power interruption should not affect switching state and continuous coil energization must be avoided for energy efficiency or thermal management reasons.
