Advanced safety relay module designed for critical safety circuit monitoring in Virtus Equipment and ZERMA America machinery. Features dual-channel monitoring with forced-guided contacts for maximum safety assurance. Meets international safety standards with self-monitoring capabilities for emergency stop systems and safety interlocks.

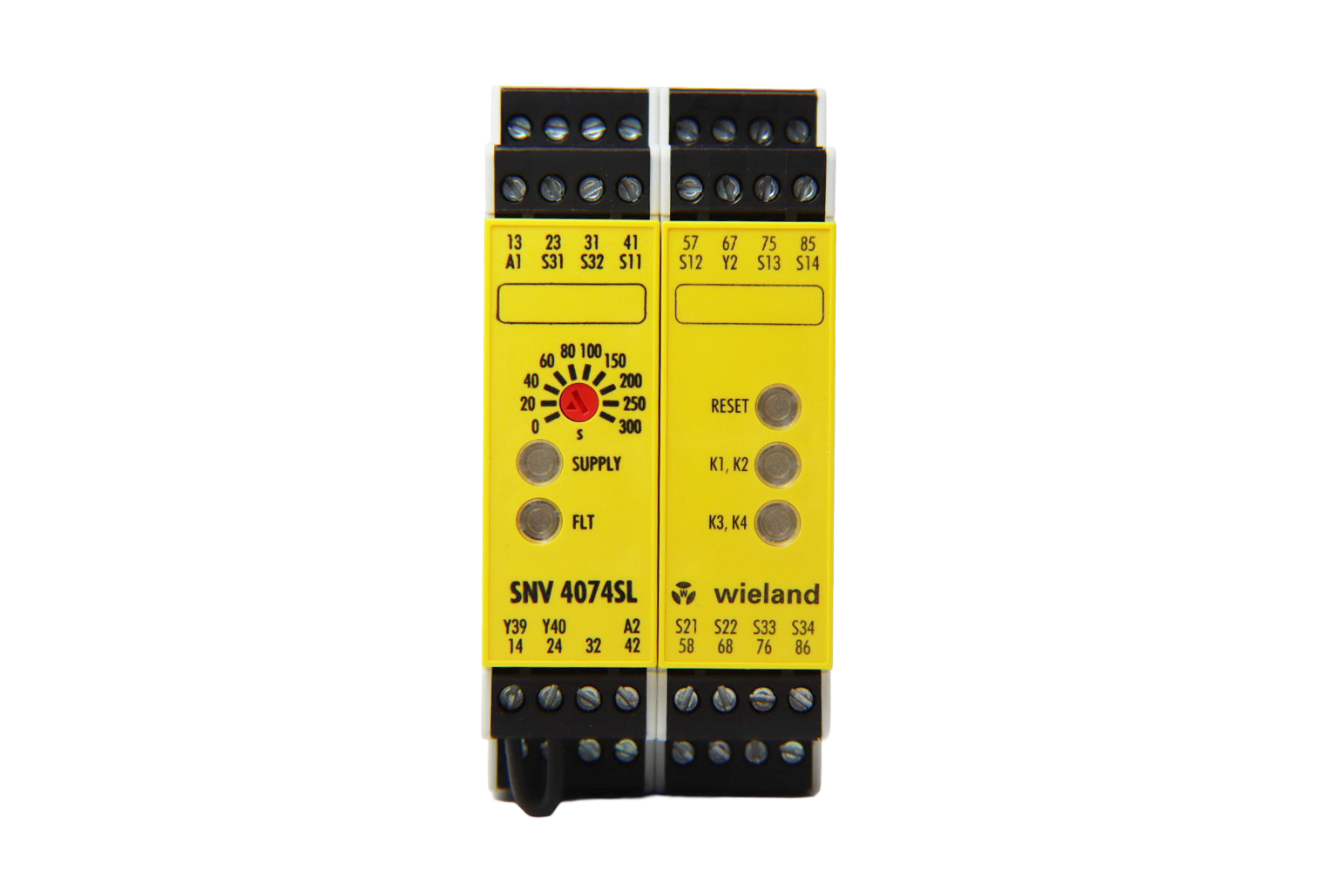

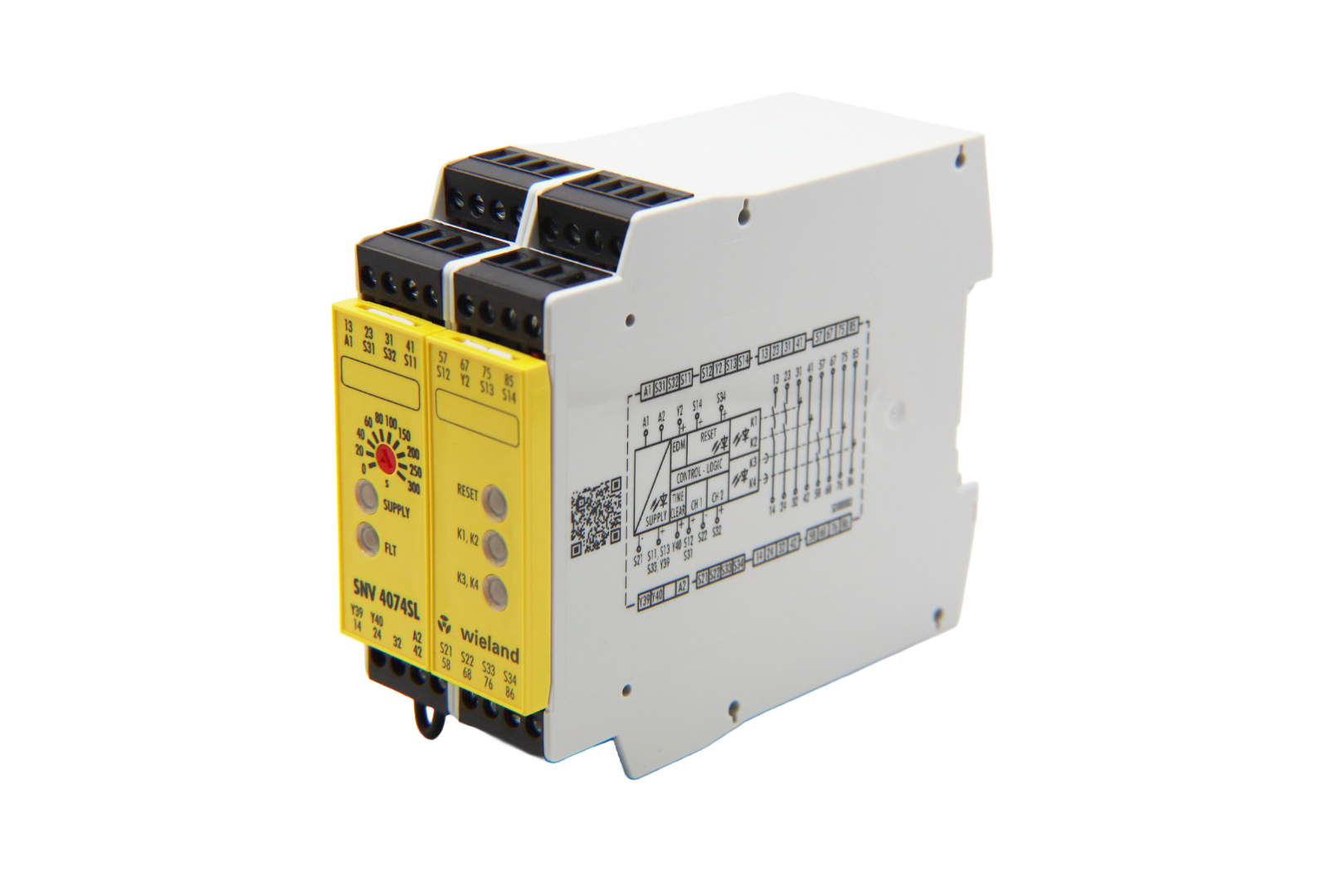

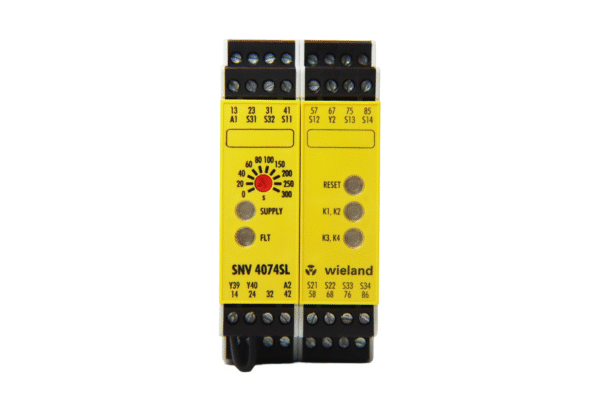

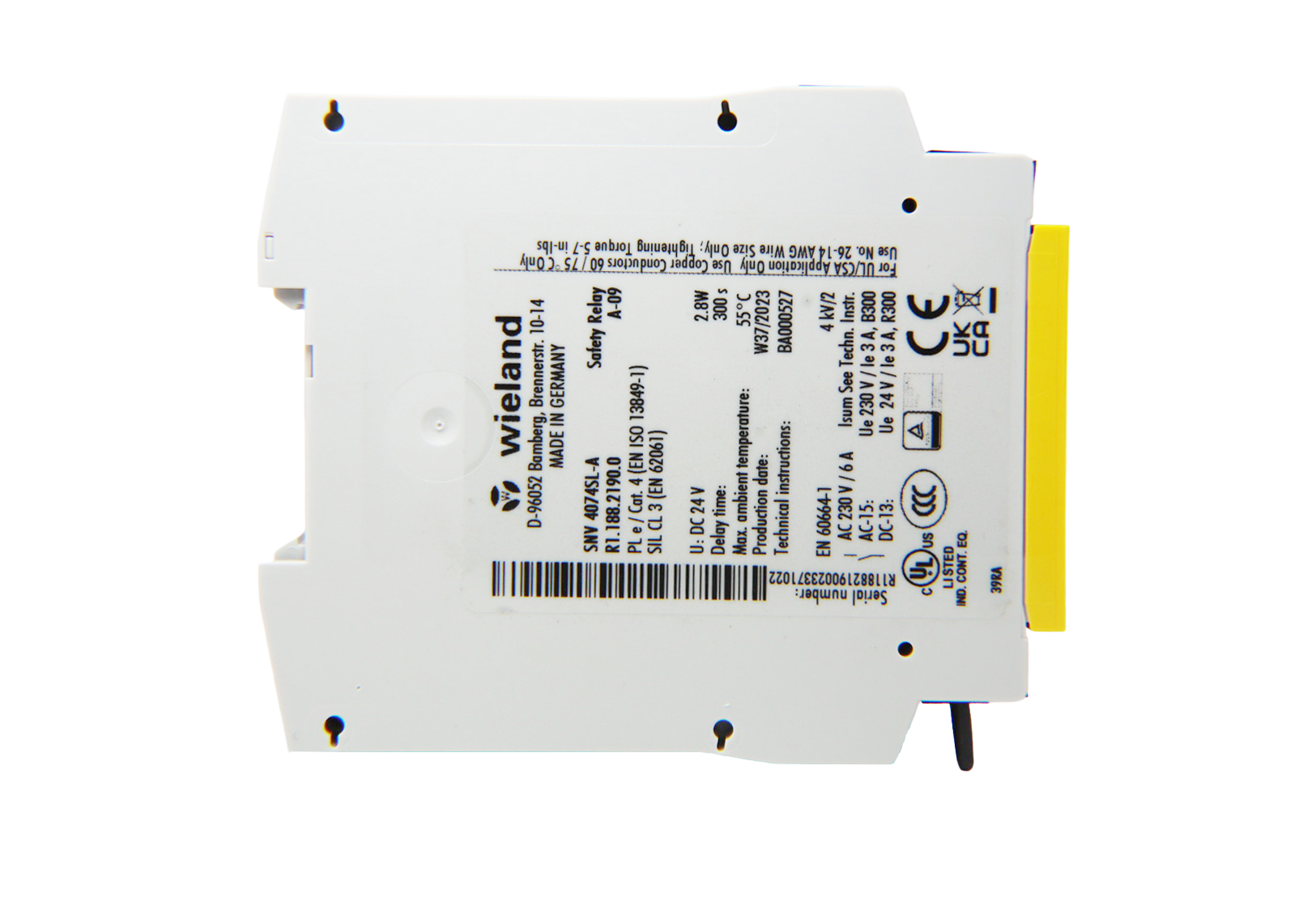

The SNV-4074SL-A Safety Relay is a sophisticated safety monitoring device engineered specifically for Virtus Equipment and ZERMA America material processing systems. This professional-grade safety relay provides critical monitoring of emergency stop circuits, safety interlocks, and guard switches, ensuring compliance with international safety regulations and protecting personnel from machinery hazards.
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 7 in |
Technical Specifications:
SKU: 80031615
Safety Rating: PLd (ISO 13849) / SIL2 (IEC 61508)
Input Voltage: 24V DC nominal
Contact Configuration: 4 NO safety outputs + 2 NC auxiliary
Contact Rating: 6A at 250V AC / 6A at 30V DC
Response Time: <15ms typical
Operating Temperature: -10°C to +55°C
Mounting: DIN rail mount (35mm)
Key Features:
Dual-Channel Monitoring: Independent monitoring circuits provide redundant safety protection
Forced-Guided Contacts: Mechanically linked contacts ensure fail-safe operation
Self-Monitoring: Continuous internal diagnostics detect relay failures
International Compliance: Meets ISO 13849 PLd and IEC 61508 SIL2 standards
LED Status Indicators: Clear visual indication of relay and circuit status
Applications: Critical safety component for emergency stop monitoring, safety interlock supervision, and guard switch monitoring on Virtus Equipment and ZERMA America processing equipment. Essential for regulatory compliance and personnel protection.
