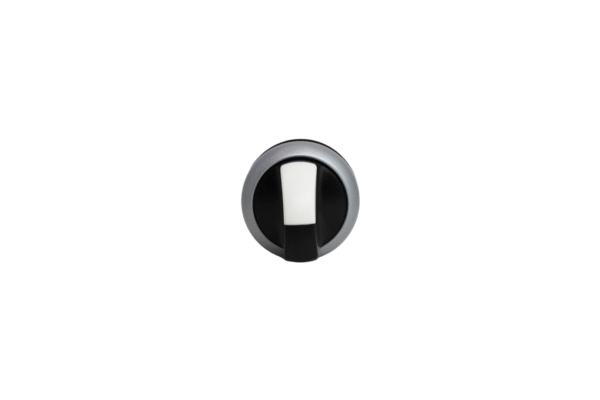

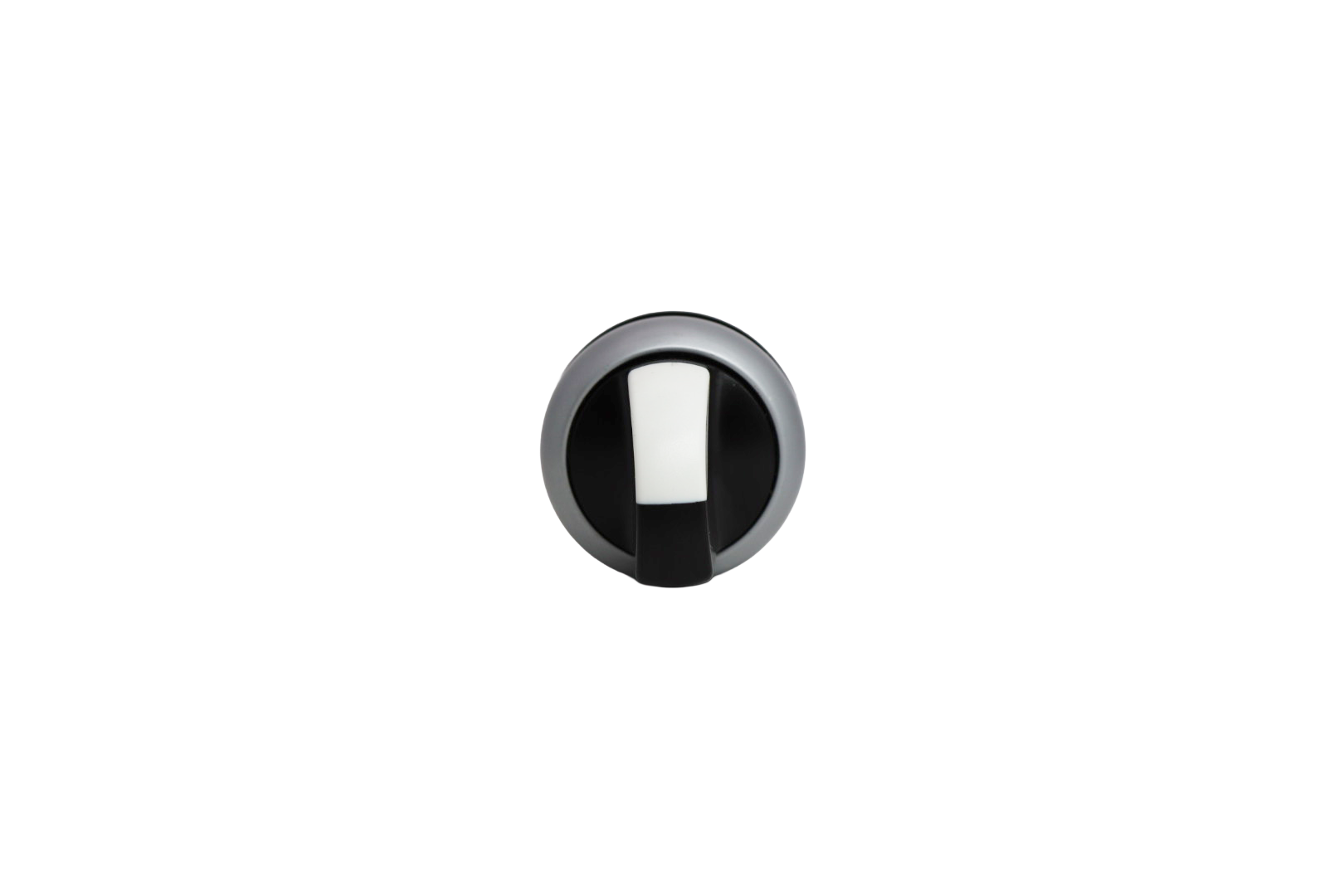

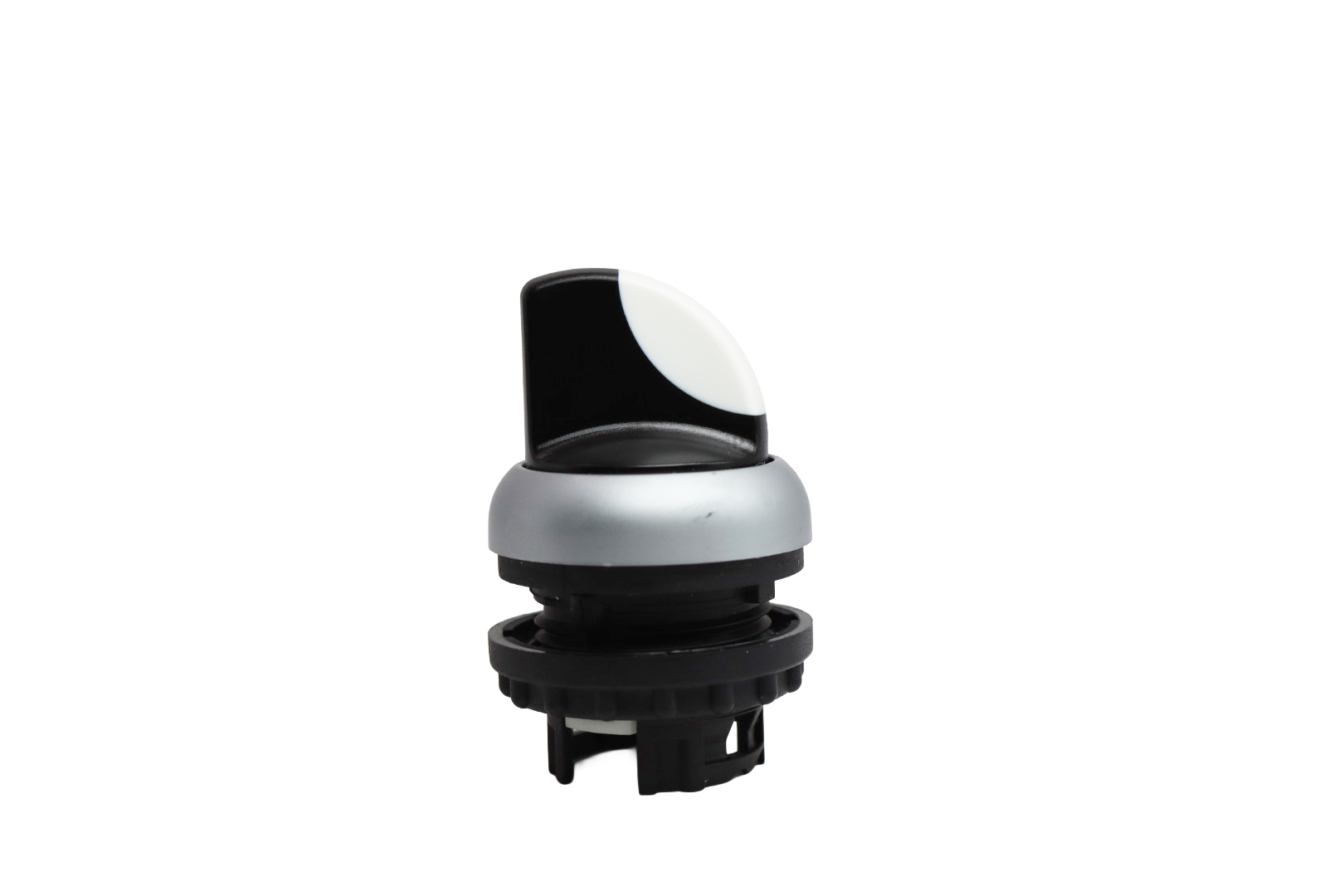

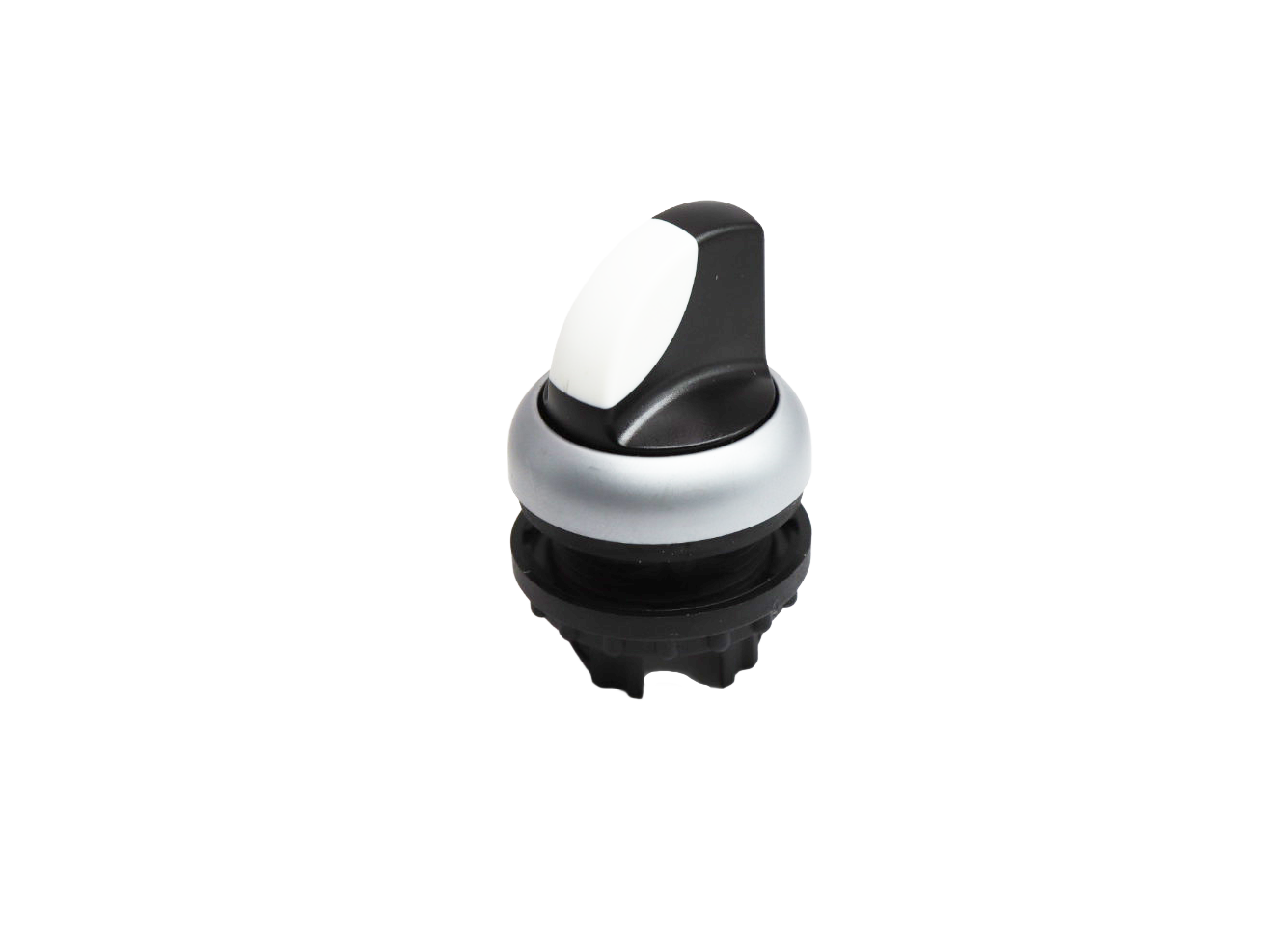

High-performance actuator selector switch engineered for industrial control systems in Virtus Equipment and ZERMA America machinery. Features durable metal construction with positive detent positions for reliable operational mode selection. Designed for demanding processing environments with excellent tactile feedback and secure position retention.
The Actuator Selector Switch is a professional-grade control component designed specifically for Virtus Equipment and ZERMA America material processing systems. This precision-manufactured selector switch provides operators with reliable mode selection capability, ensuring safe and efficient operation across multiple processing configurations.
| Weight | 1 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
Technical Specifications:
SKU: 80031212
Contact Rating: 10A at 500V AC maximum
Operating Positions: 2, 3, or 4 positions (specify when ordering)
Operating Temperature: -25°C to +70°C
Mechanical Life: 1,000,000 operations minimum
Protection Rating: IP65 with proper sealing
Mounting: Standard 22.5mm panel mount
Key Features:
Robust Metal Construction: Heavy-duty materials withstand industrial vibration and environmental stress
Positive Detent Positions: Secure mechanical positioning prevents accidental mode changes
Multiple Position Options: Available in 2, 3, or 4-position configurations for versatile control
Excellent Tactile Feedback: Clear position indication through mechanical feel
Industrial Grade Design: Built to withstand demanding processing environments
Applications: Essential for operational mode selection on Virtus Equipment and ZERMA America shredders, granulators, and material processing systems. Ideal for manual/automatic mode selection, speed control, and process parameter switching.
