Description

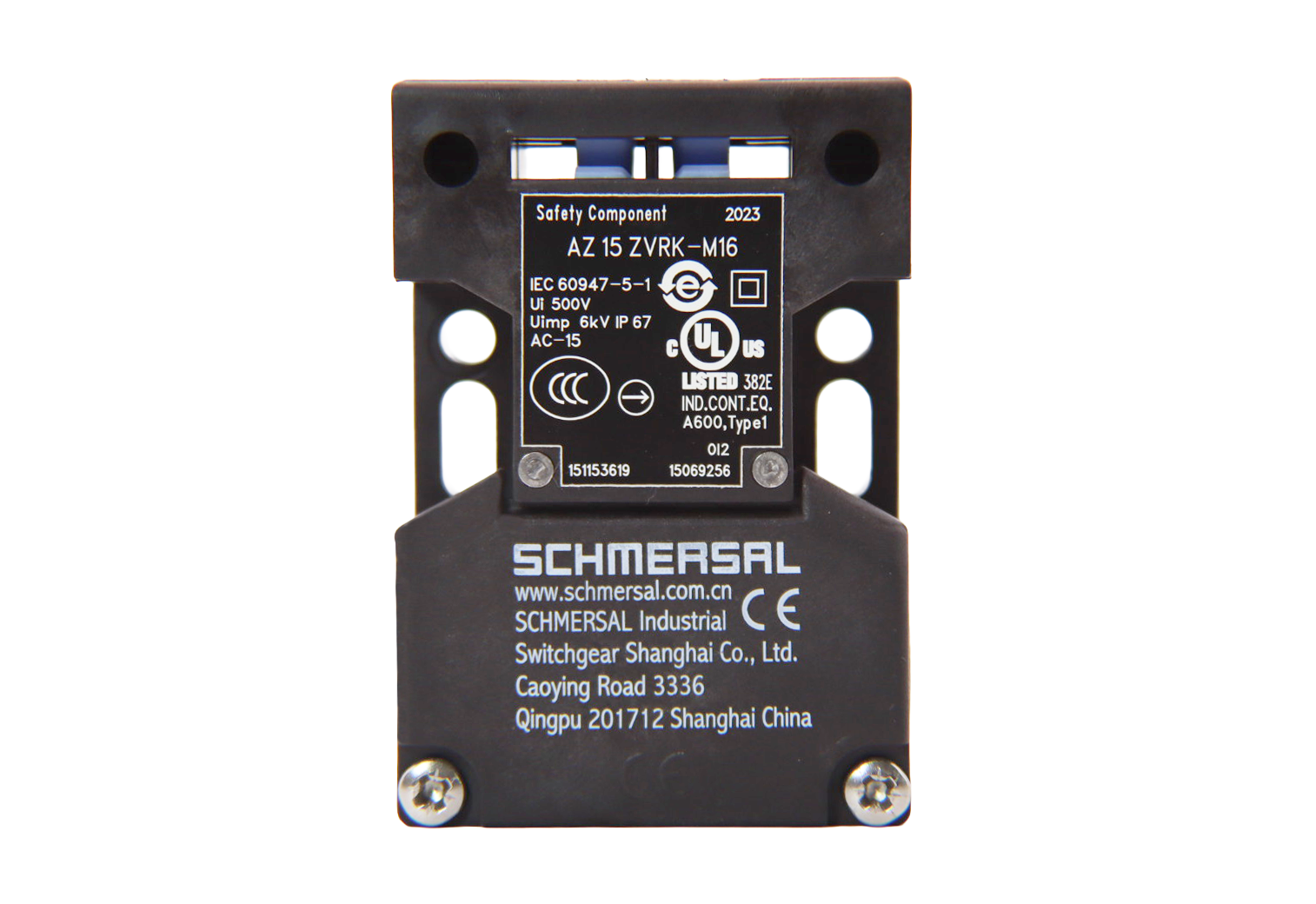

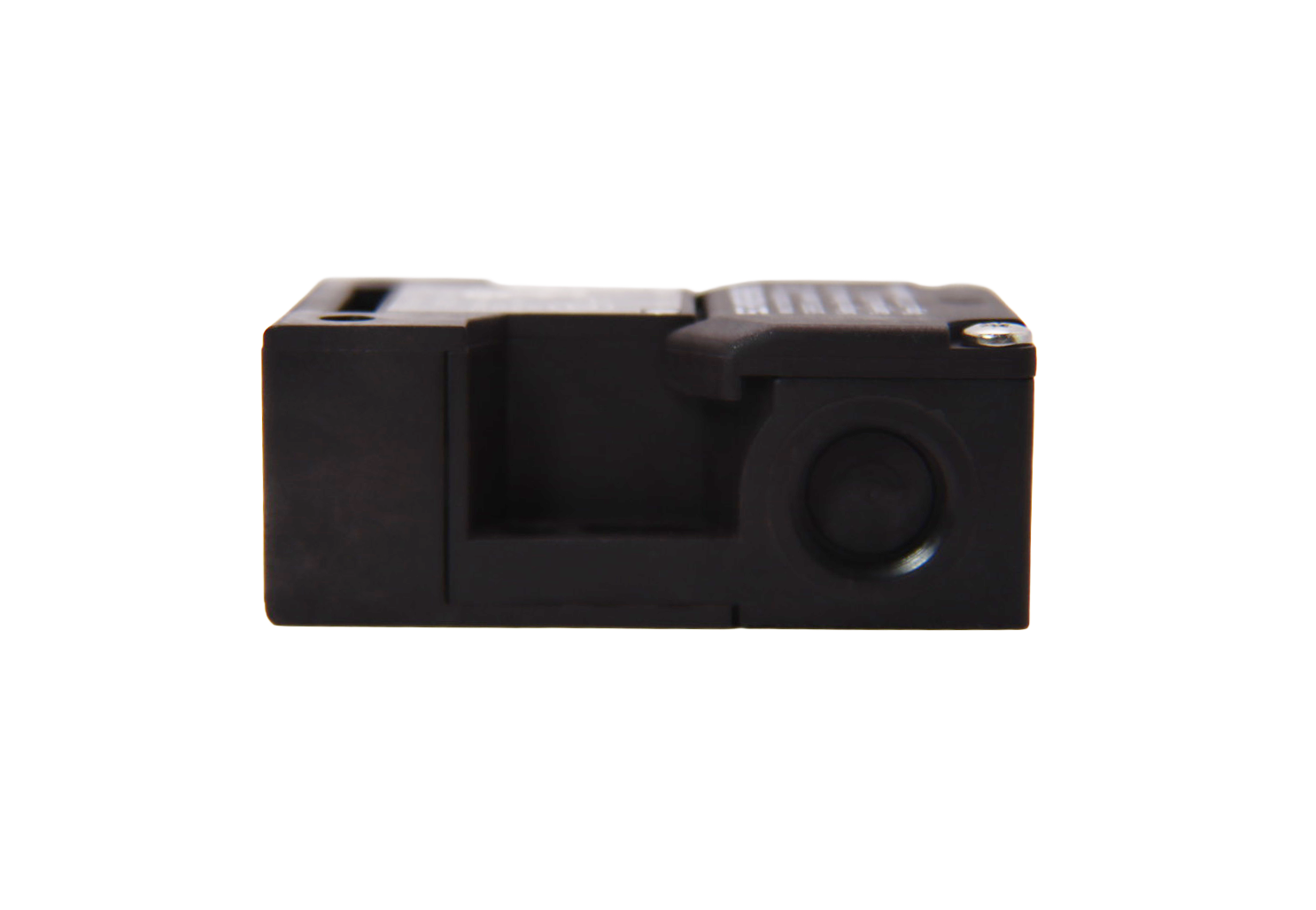

The AZ15 Safety Interlock Switch with Key represents advanced machine guarding technology specifically designed for Virtus Equipment and ZERMA America material processing systems. This industrial-grade safety device provides critical personnel protection by monitoring guard position and preventing hazardous machine operation when safety guards are open, ensuring operator safety in demanding industrial applications.
Technical Specifications:
SKU: 80005560
Manufacturer: Schmersal
Model: AZ15 ZVRK-1476
Type: Key-operated safety interlock switch
Contact Configuration: 1 NC (Normally Closed) safety contact
Contact Type: Positive-opening, mechanically-forced separation
Voltage Rating AC: 230V AC
Voltage Rating DC: 24V DC
Current Rating: 4A minimum, 10A maximum
Switching Capacity: AC-15, 230V, 4A
Insulation Voltage: 500V
Impulse Withstand Voltage: 6kV
Key Retention Force: 7 pounds (30N latching force)
Actuating Speed: 2 m/s maximum
Cable Entries: 3 x M16 x 1.5mm or M20 x 1.5mm threaded entries
Terminal Type: Screw terminals
Housing Material: Glass fiber-reinforced thermoplastic (double-insulated)
Actuator Key Material: Stainless steel
Dimensions: 52mm (W) x 75mm (H) x 30mm (D)
Protection Class: IP67 (dust-tight, water-resistant)
Operating Temperature: -30?C to +80?C
Minimum Actuating Radius: 160mm with standard key
Mechanical Life: Long-life design for extended service
Certifications: EN ISO 13849-1, EN 954-1, IEC 60947-5-1, VDE 0660, ATEX (explosion-proof certified)

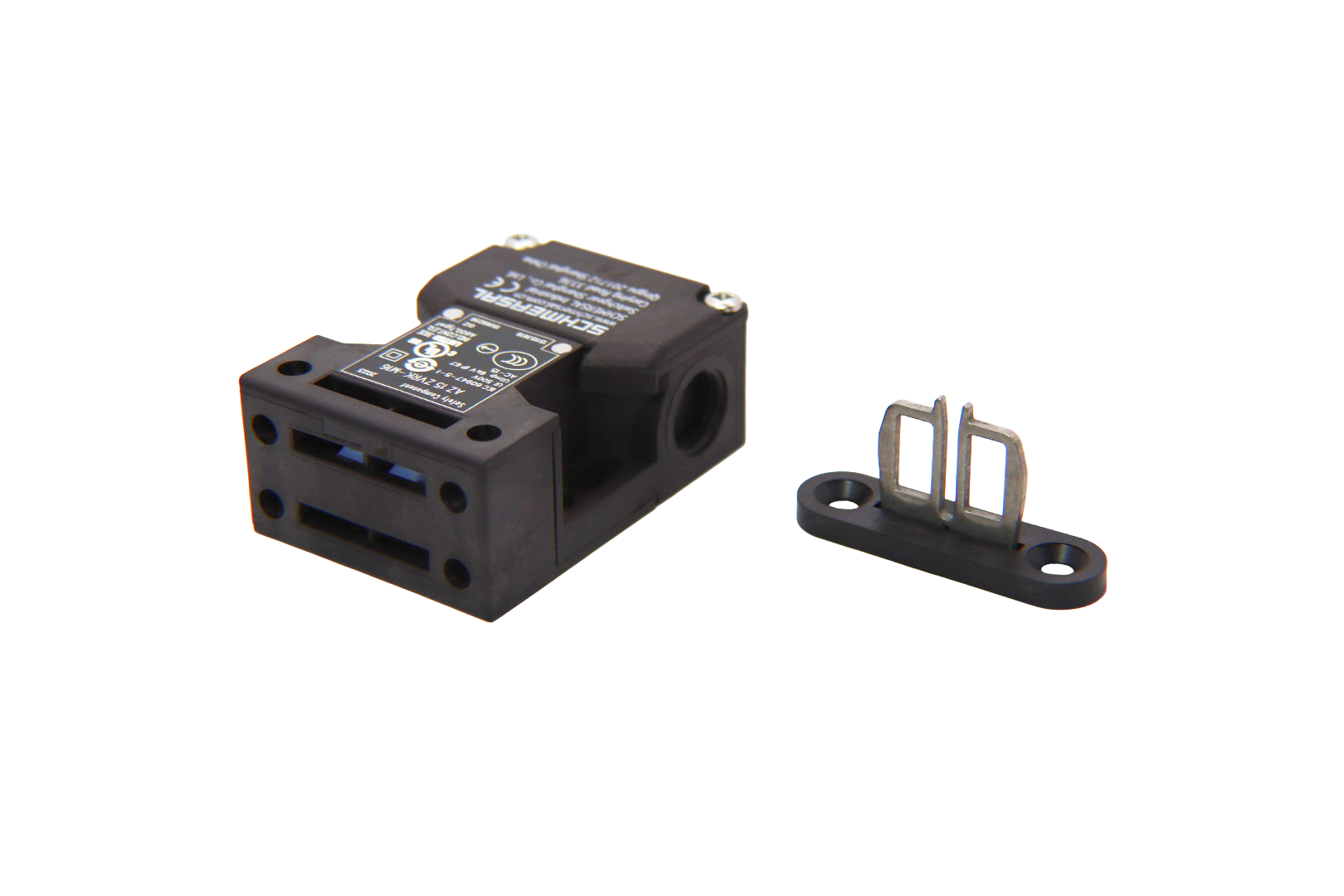

Includes: Safety switch body, actuator key, slot sealing plugs (1476)
Key Features:
Tamper-Resistant Key Design: Geometrically-unique actuator key prevents bypassing with simple tools or improvised devices
High Key Retention Force: 7-pound retention force eliminates inadvertent guard opening due to shock, vibration, or accidental contact
Positive-Opening Contacts: Mechanically-forced contact separation provides higher safety level than spring-driven switches
IP67 Watertight Rating: Dust-tight and water-resistant construction ideal for washdown environments and hostile conditions
Stainless Steel Actuator Key: High-strength key withstands mechanical abuse without damage in demanding applications
Corrosion-Resistant Housing: Glass fiber-reinforced thermoplastic enclosure tolerates chemicals and harsh environments
Wide Operating Temperature: Functions reliably from -30?C to +80?C in extreme industrial conditions
Slot Sealing Plugs Included: Model 1476 plugs protect unused actuator slots from dirt ingress with simple clip-in installation
Padlockable Design: Key can be locked out during maintenance for enhanced lockout/tagout compliance
Double-Insulated Construction: Enhanced electrical safety in industrial environments
Compact Footprint: Space-saving 52mm x 75mm x 30mm dimensions enable installation in confined spaces
Applications: Essential for machine guarding safety in Virtus Equipment and ZERMA America shredders and granulators. Critical for preventing machine operation when access guards or safety doors are open, protecting operators from rotating knives, moving parts, and hazardous materials during processing operations. Ideal for recycling facilities, manufacturing plants, and waste management operations requiring compliance with OSHA machine guarding standards and EN safety directives. Perfect for applications requiring lockout/tagout capability during maintenance, high-vibration environments where standard switches may fail, and washdown areas where IP67 protection is essential. Suitable for explosive atmosphere environments with ATEX certification, food processing facilities requiring chemical resistance, and automated systems where positive safety interlocking prevents unauthorized access to hazardous machinery zones. Enables integration into safety PLCs and control systems for comprehensive machine safety architecture meeting Performance Level requirements.
