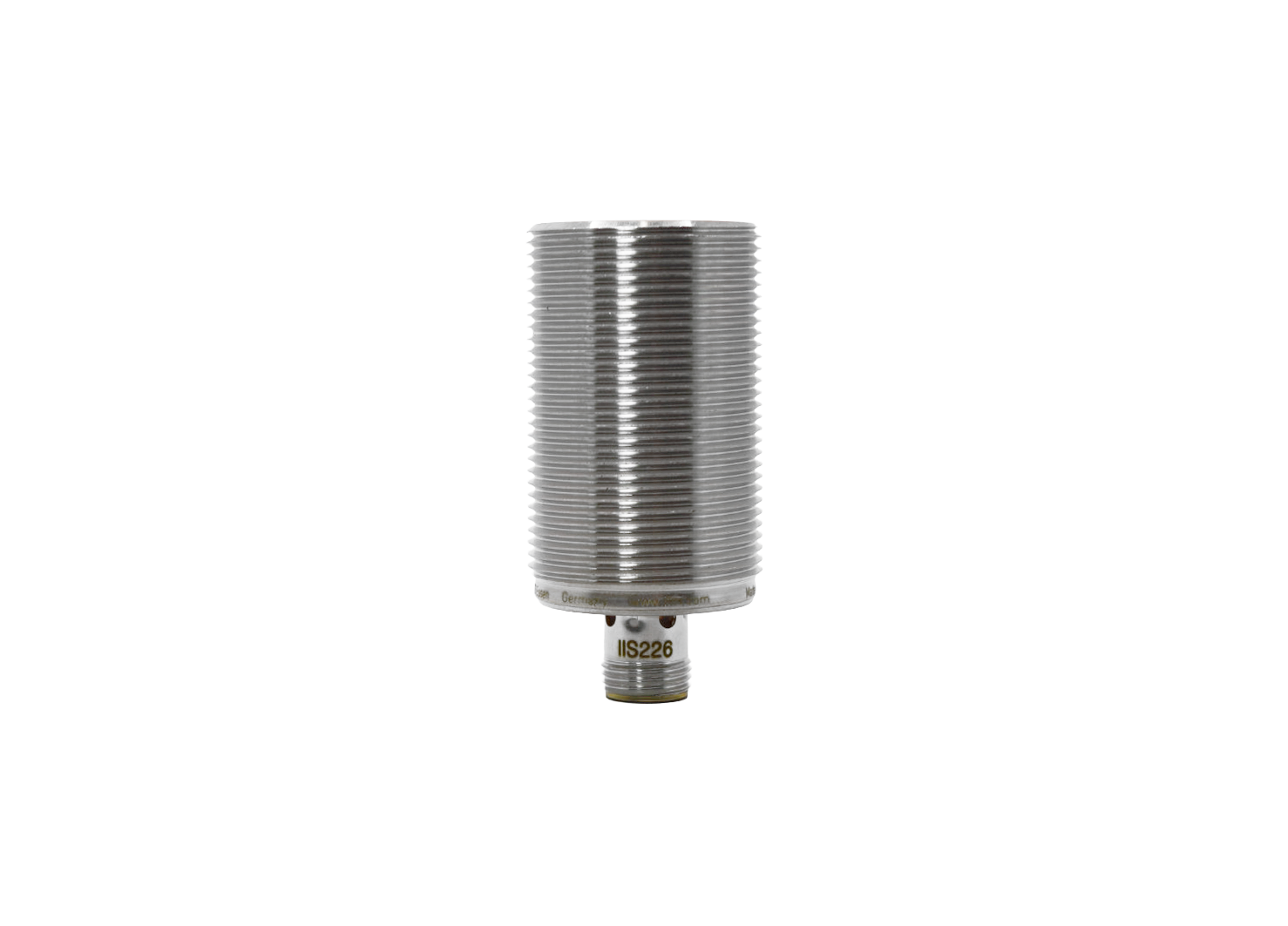

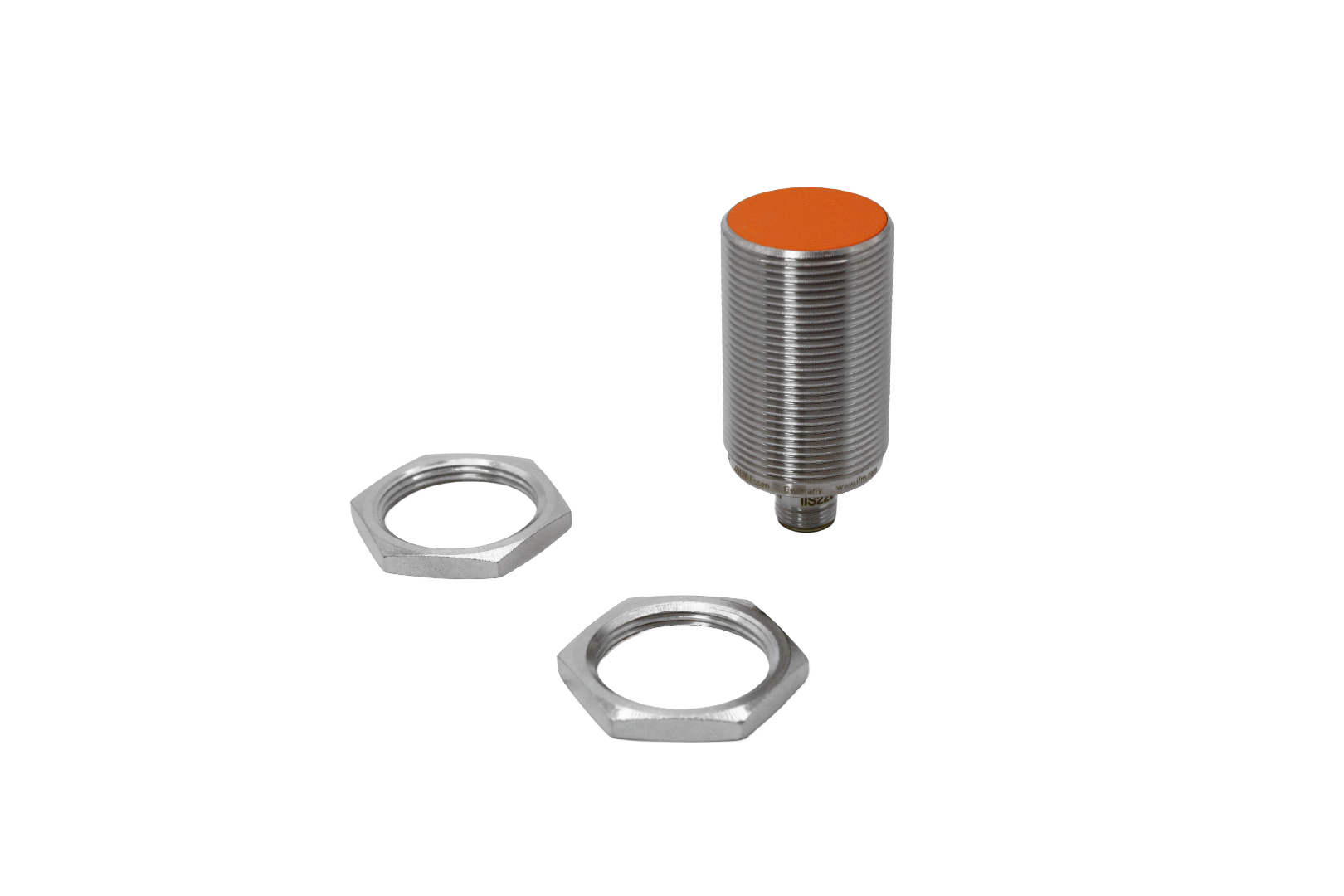

Proximity Switch IIS226 (DC24V)

High-performance inductive proximity switch designed for 24V DC applications in Virtus Equipment and ZERMA America industrial machinery. This precision IFM sensor provides reliable object detection with excellent repeatability and 15mm sensing range. Features robust M18 threaded construction with NPN output configuration for seamless integration into automated material processing control systems.

SKU 80032767 Category Tags , , , , , , , , ,

Description

The Proximity Switch IIS226 (DC24V) is a sophisticated IFM inductive proximity sensor engineered for demanding industrial applications in Virtus Equipment and ZERMA America material processing equipment. This high-performance sensor utilizes advanced inductive sensing technology to provide reliable, non-contact detection of metallic objects, making it ideal for position monitoring, part detection, and automated control applications in harsh industrial environments.

Additional information

Weight 1 lbs
Dimensions 6 × 4 × 2 in
Technical Specifications:
SKU: 80032767
Model: IIS226
Operating Voltage: 24V DC
Output Type: NPN normally open
Sensing Range: 15mm
Thread Size: M18 x 1
Current Consumption: <10mA
Switching Frequency: Up to 2kHz
Operating Temperature: -25?C to +70?C
Protection Rating: IP67
Housing Material: Nickel-plated brass
Key Features:
Inductive Sensing Technology: Non-contact detection of ferrous and non-ferrous metals
15mm Sensing Range: Optimal detection distance for most industrial applications
M18 x 1 Threading: Standard industrial mounting for easy installation
LED Status Indication: Visual feedback for operational status and detection
Short-Circuit Protection: Built-in protection against wiring faults
Reverse Polarity Protection: Prevents damage from incorrect wiring
Temperature Compensated: Stable operation across wide temperature range
Applications: Ideal for position sensing, part detection, material presence monitoring, and automated sorting applications in shredders, granulators, and conveyor systems. Perfect for detecting metal objects, monitoring equipment positions, and providing feedback for automated control systems.
NPN Output Configuration: Compatible with standard PLC input modules
