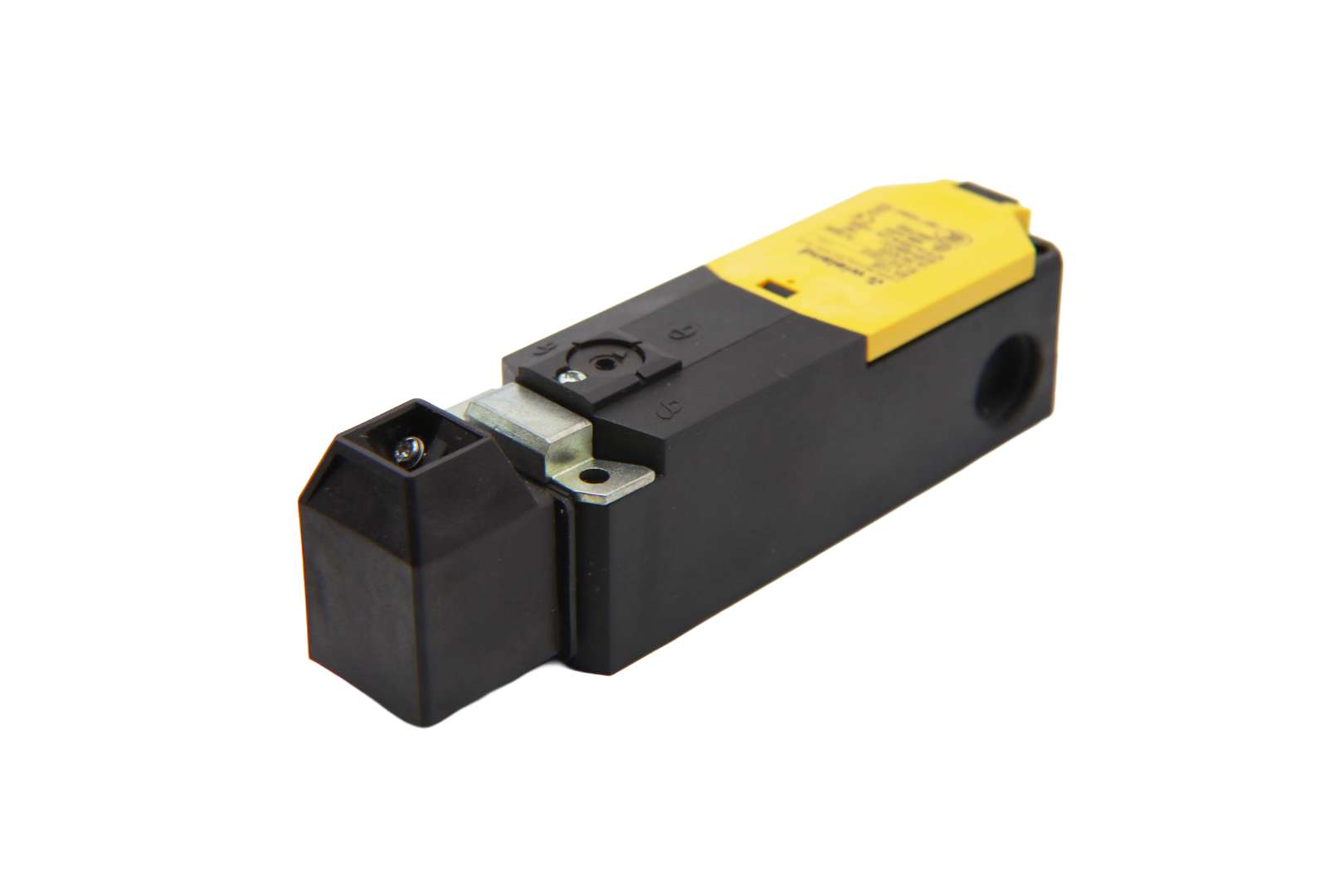

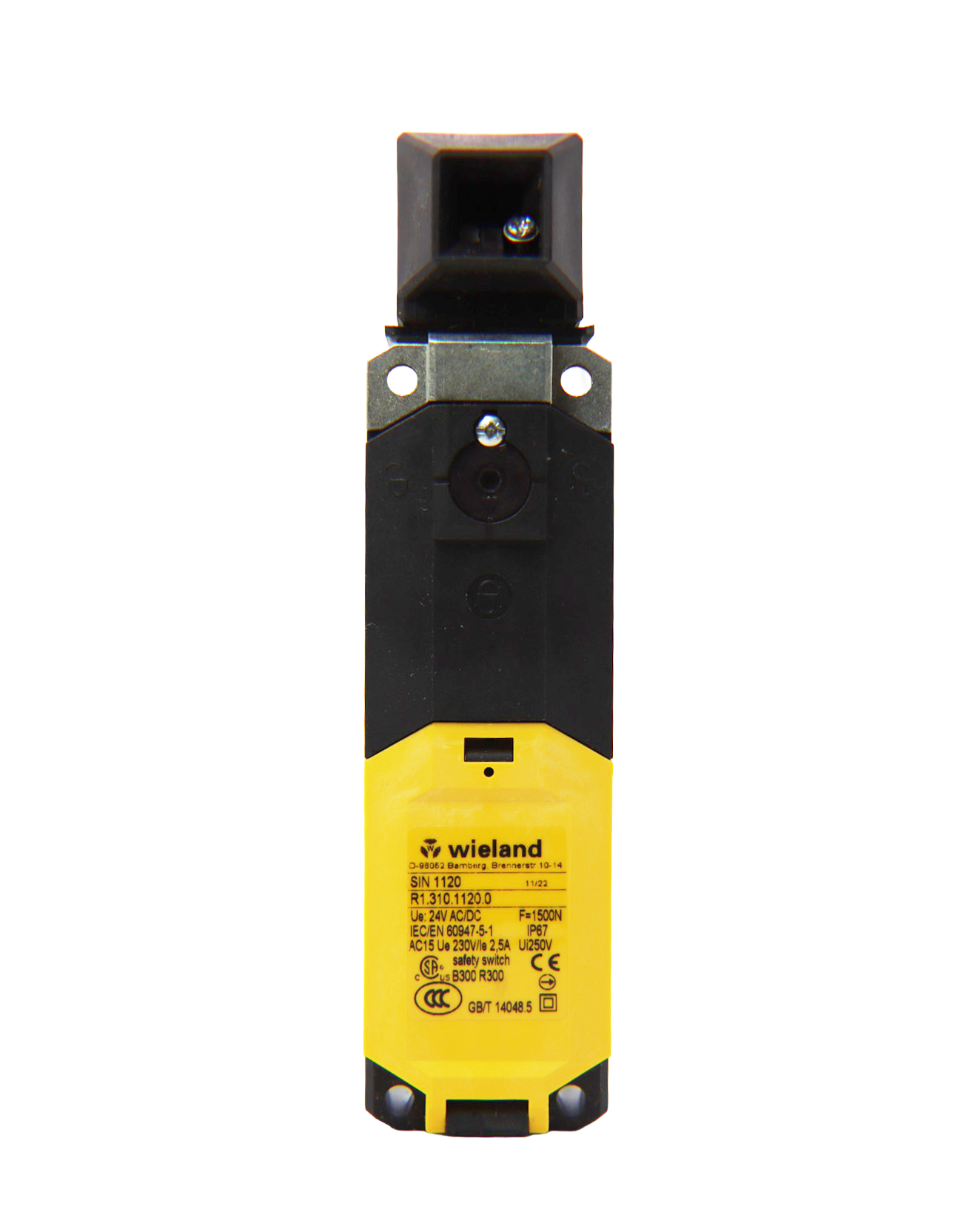

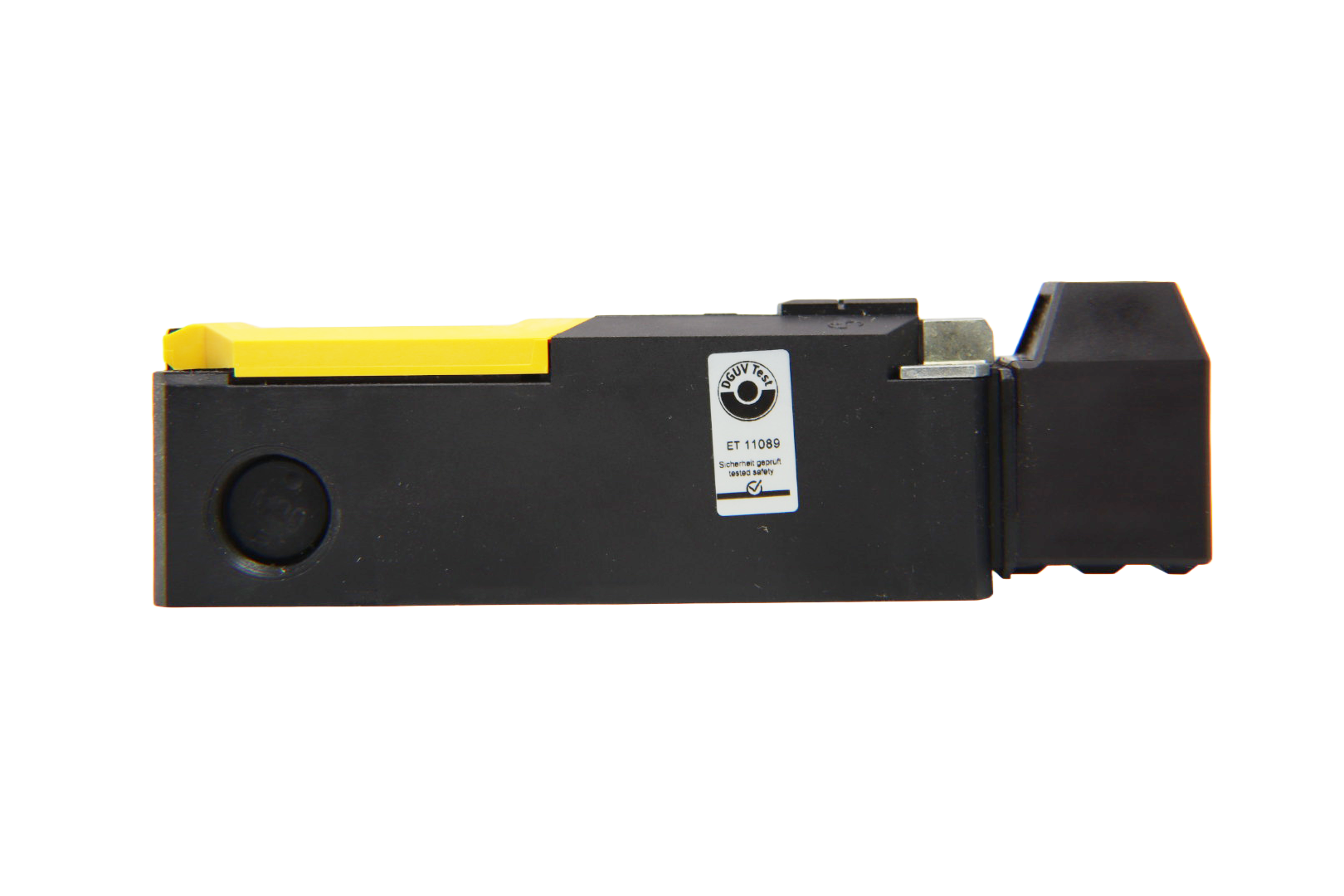

SIN 1120 Safety Switch

Heavy-duty safety interlock switch designed for guard door monitoring in Virtus Equipment and ZERMA America machinery. Features robust construction with positive mechanical action and high contact reliability. Provides secure safety monitoring for removable guards, access panels, and maintenance doors with excellent environmental protection.

SKU 80031616 Category Tags , , , , , , , , ,

Description

The SIN 1120 Safety Switch is a professional-grade interlock device engineered for critical safety applications in Virtus Equipment and ZERMA America material processing systems. This robust safety switch ensures machine shutdown when guards are opened, providing essential personnel protection during maintenance and operation.

Additional information

Weight 1 lbs
Dimensions 8 × 5 × 3 in
Technical Specifications:
Part Number: SIN 1120
SKU: 80031616
Contact Rating: 10A at 250V AC / 6A at 30V DC
Contact Configuration: 2NC + 2NO standard (other configurations available)
Actuator Travel: 4mm minimum for positive operation
Operating Force: 15N maximum
Operating Temperature: -20?C to +80?C
Protection Rating: IP67
Safety Rating: PLe (ISO 13849) / SIL3 (IEC 61508)
Key Features:
Heavy-Duty Construction: Built to withstand repeated door operations and industrial environments
Positive Mechanical Action: Reliable actuation ensures consistent safety performance
Multiple Contact Options: Various NO/NC contact configurations available
High Contact Reliability: Gold-plated contacts prevent oxidation and ensure long life
Tamper Resistant Design: Secure mounting prevents unauthorized bypassing
Applications: Essential for safety monitoring of access doors, guard panels, and maintenance covers on Virtus Equipment and ZERMA America shredders, granulators, and processing equipment. Critical for regulatory compliance and operator safety.
