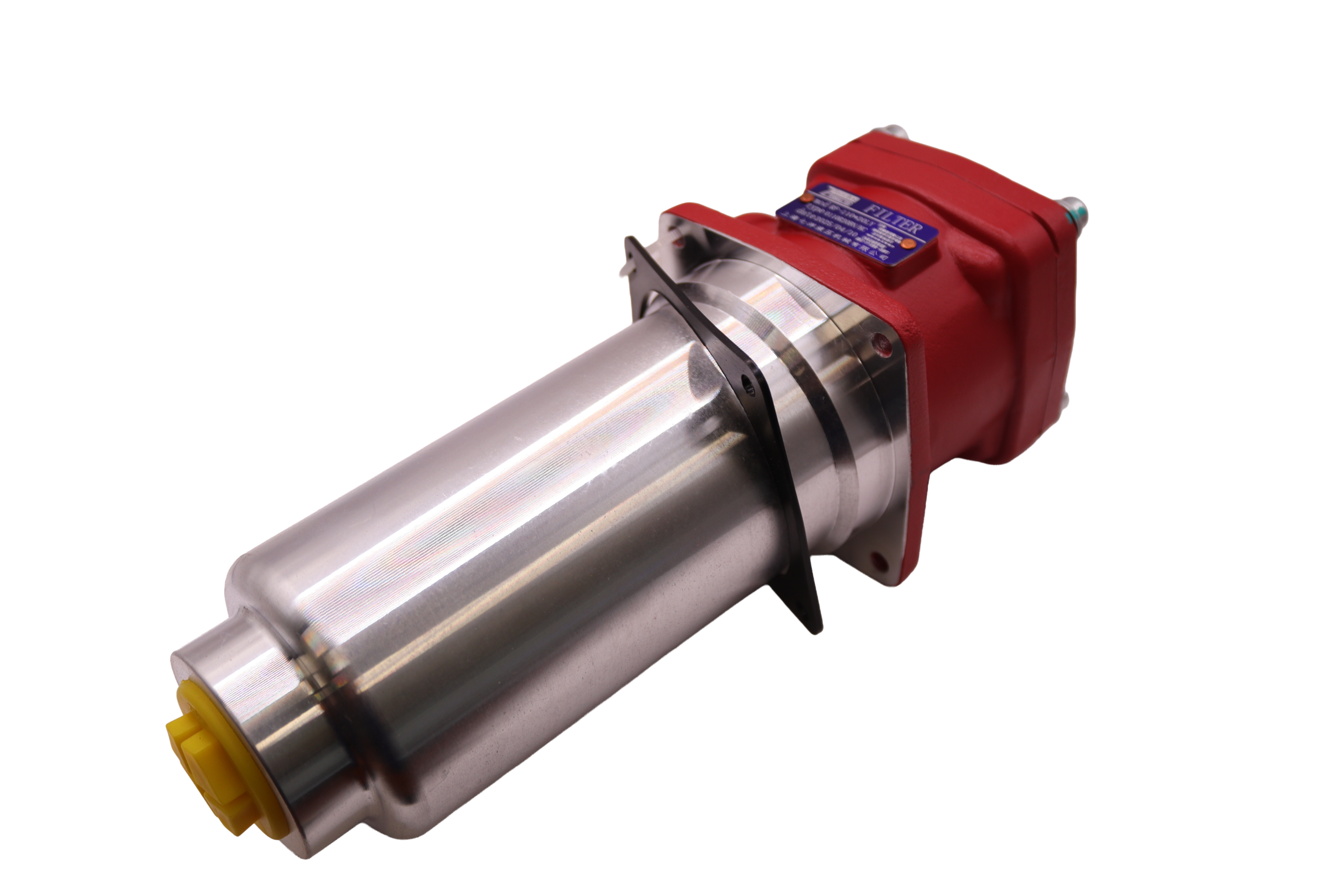

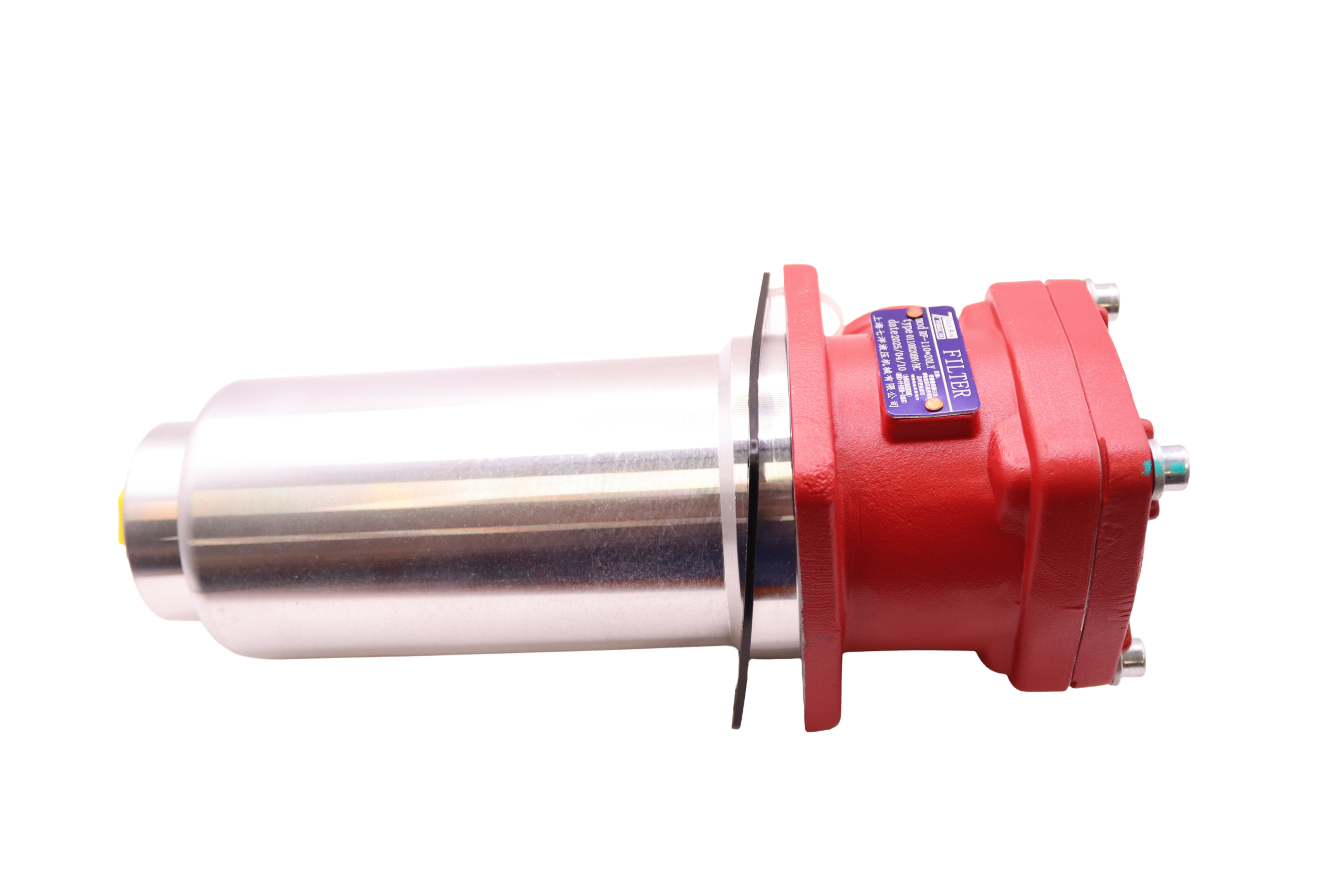

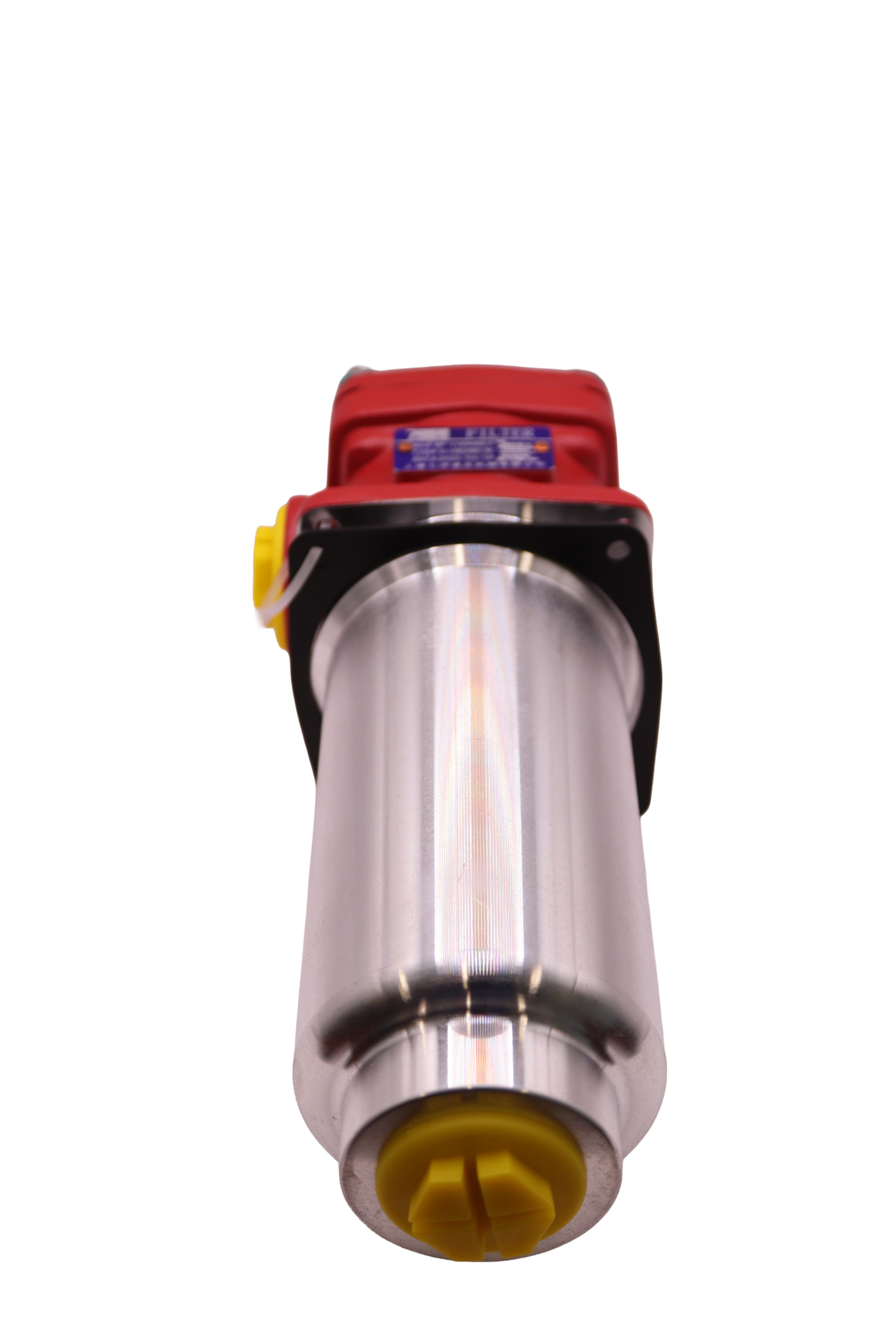

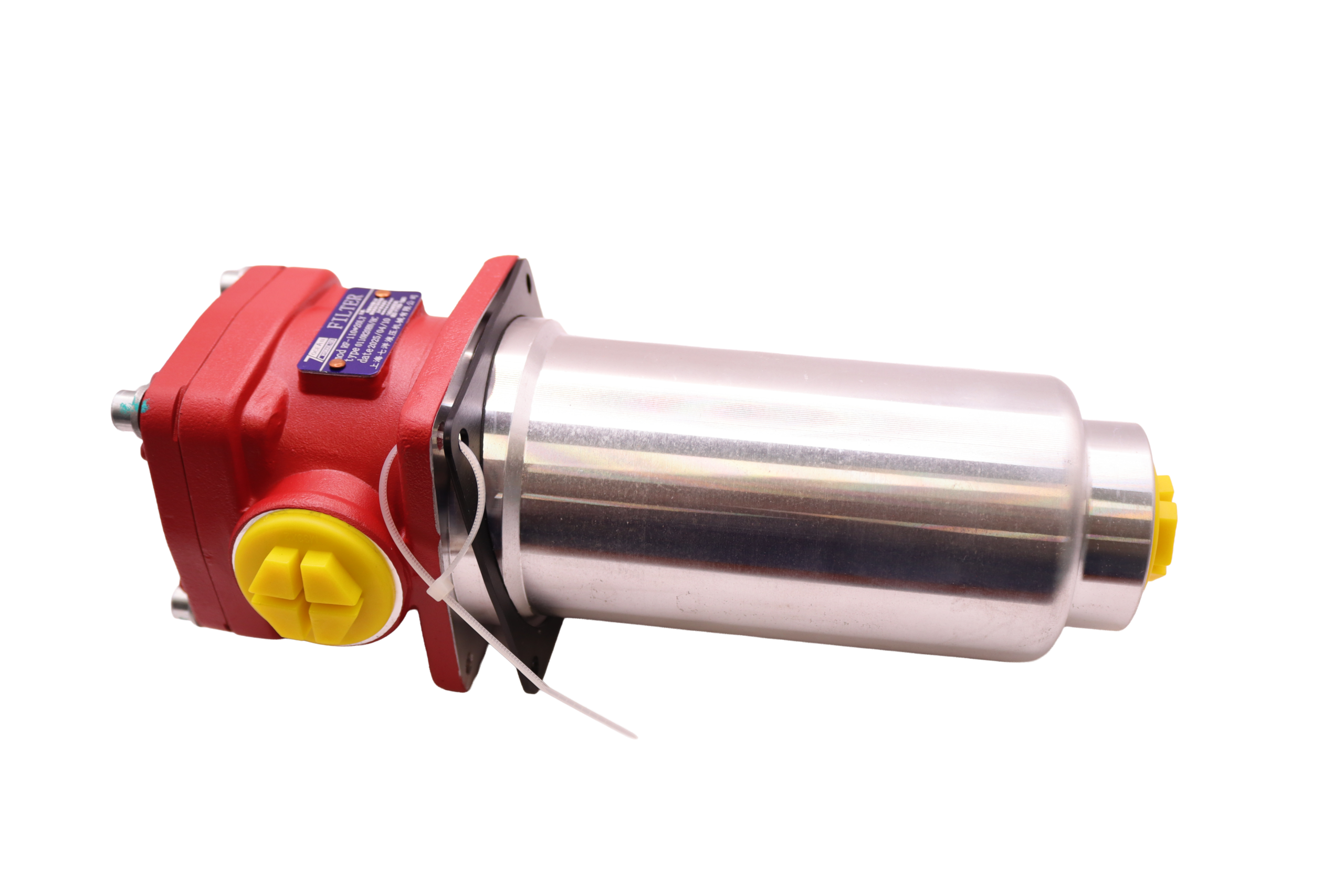

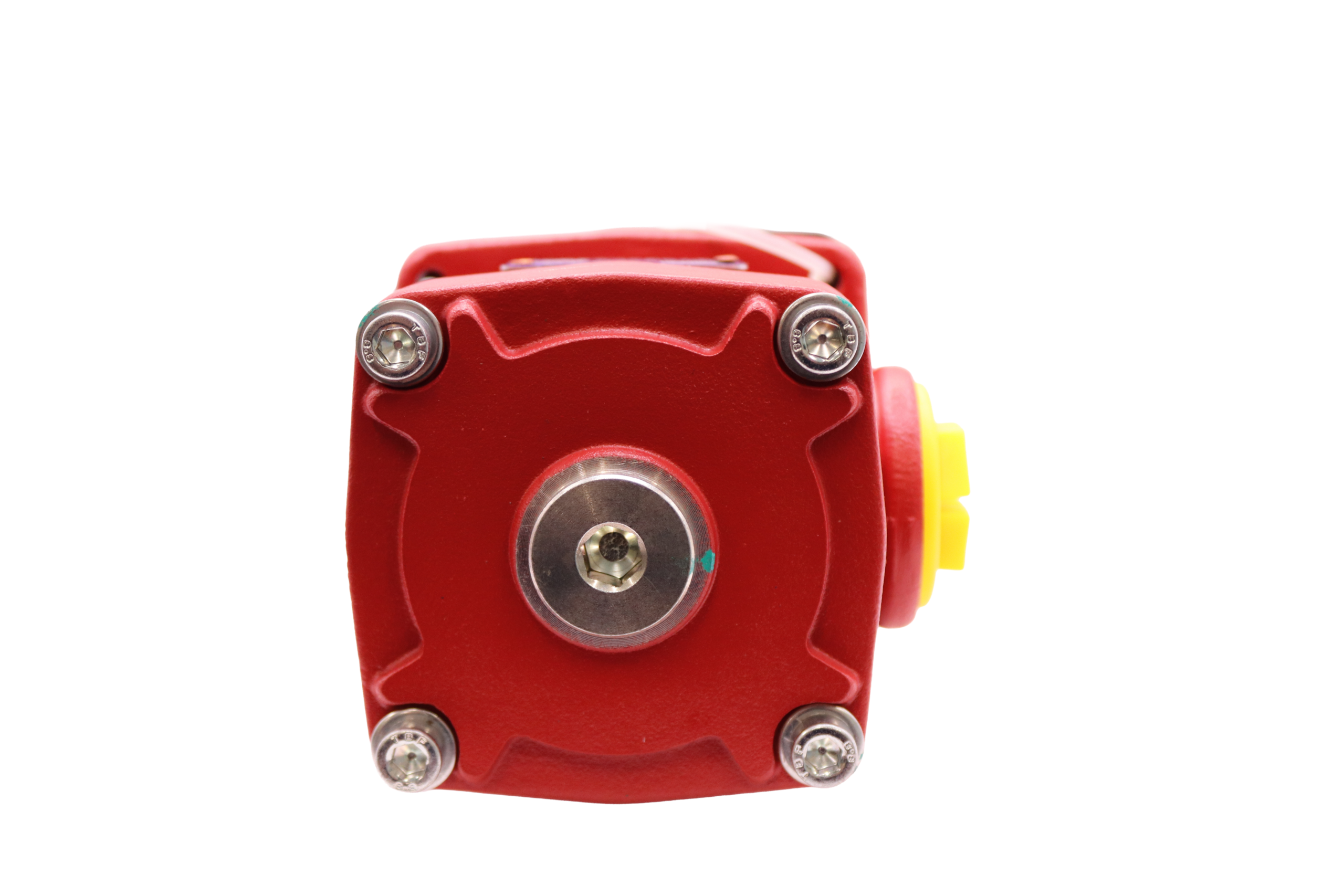

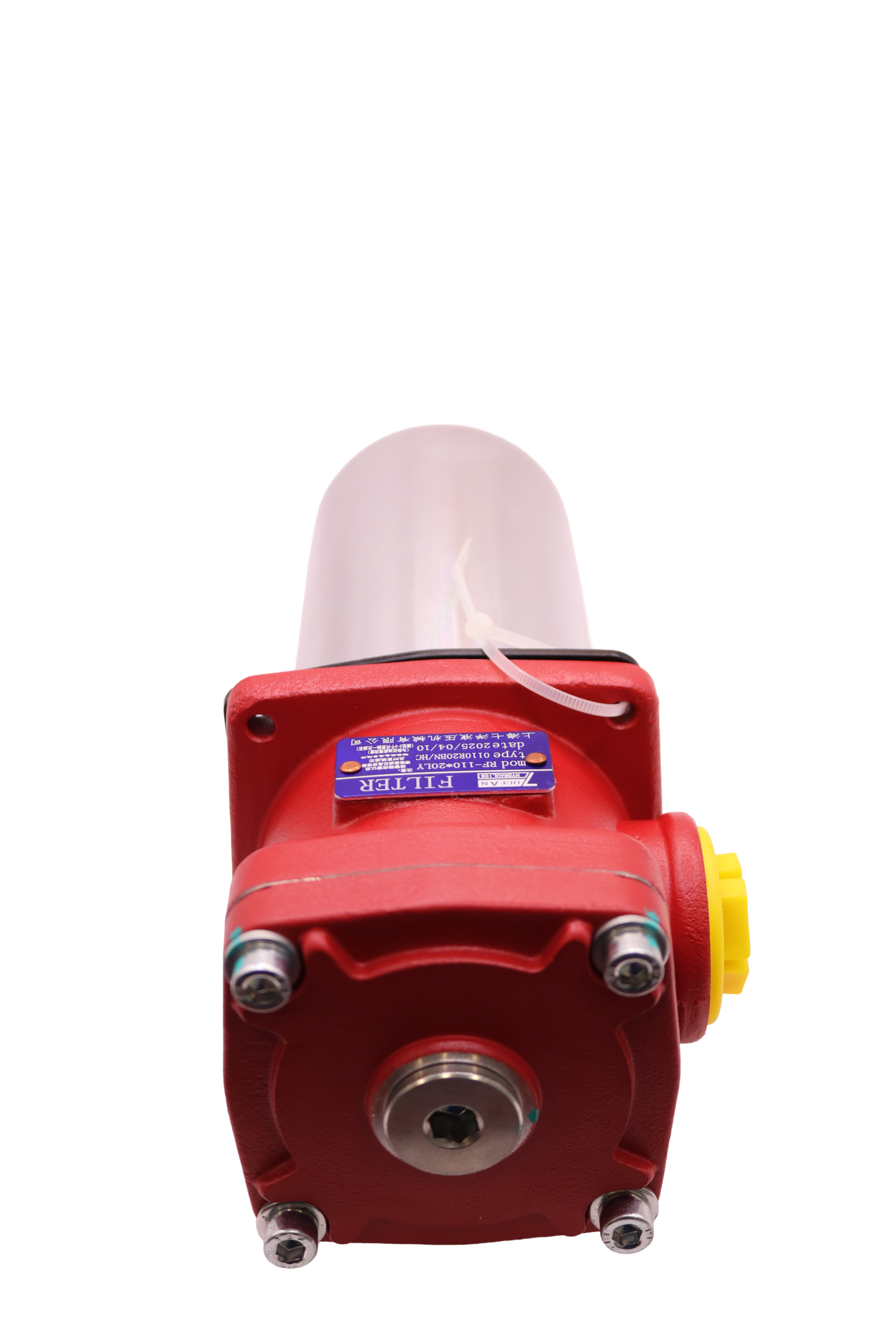

RF-110-20 hydraulic oil filter housing assembly for Virtus Equipment and ZERMA America ZSS, ZHS, and ZCS series shredders manufactured before May 2019. Protects the hydraulic system by filtering contaminants from hydraulic fluid. For machines built after May 2019, order the RF-160-20 Oil Filter (80070920). Replacement filter element only: RF-110×20 Filter Element (80070895).
The Oil Filter RF-110-20 is the complete hydraulic oil filter housing assembly for Virtus Equipment and ZERMA America ZSS, ZHS, and ZCS series shredders manufactured before May 2019. Maintaining clean hydraulic fluid is essential for reliable operation of valves, cylinders, and the hydraulic pump that powers the shredder ram and other actuators. The RF-110-20 is the earlier version of the RF-series filter housing used on these machines prior to the May 2019 production changeover, after which the RF-160-20 (80070920) became the standard. Order this complete housing assembly only when the existing housing is physically damaged or corroded beyond serviceability. For routine scheduled maintenance on pre-May 2019 machines, order only the replacement filter element RF-110×20 (80070895) rather than the complete housing. For ZSS, ZHS, or ZCS machines manufactured after May 2019, order the RF-160-20 Oil Filter (80070920) instead — the two housing assemblies are not interchangeable.
| Weight | 3.8 lbs |
|---|---|
| Dimensions | 4.5 × 11.5 × 4.5 in |
SKU: 80070530
Model: RF-110-20
Type: Complete Hydraulic Oil Filter Housing Assembly
Filter Rating: 20 microns
Flow Capacity: Rated to approximately 110 L/min (29 gpm)
Application: ZSS, ZHS, and ZCS series shredders built before May 2019
Replacement Element: RF-110x20 Filter Element (80070895)
Post-May 2019 Version: RF-160-20 Oil Filter (80070920)
HTS Code: 8421.29.00.10 (consult a licensed customs broker before commercial filing)
Complete Housing Assembly: Order this complete RF-110-20 housing assembly only when the existing housing requires replacement due to physical damage or corrosion. For routine maintenance, order only the replacement filter element (80070895).
20-Micron Filtration: Filters hydraulic fluid to 20 microns, protecting hydraulic valves, cylinders, and the pump from contamination-related wear and failure.
Pre-May 2019 Machines Only: Specified for ZSS, ZHS, and ZCS series shredders manufactured before May 2019. Not interchangeable with the RF-160-20 housing (80070920) used on post-May 2019 machines.
Built-In Bypass Valve: Internal bypass valve maintains hydraulic flow if the filter element becomes clogged, preventing hydraulic system failure during operation.
Used in the hydraulic system of Virtus Equipment and ZERMA America ZSS, ZHS, and ZCS series shredders manufactured before May 2019. For post-May 2019 machines, order RF-160-20 Oil Filter (80070920). For routine maintenance filter element replacement on pre-May 2019 machines, order RF-110x20 Filter Element (80070895).
Compatible Machines: Virtus Equipment and ZERMA America ZSS series, ZHS series, and ZCS series shredders manufactured before May 2019
Replacement Element: RF-110x20 Filter Element (SKU 80070895)
Post-May 2019 Replacement: RF-160-20 Oil Filter (SKU 80070920)
