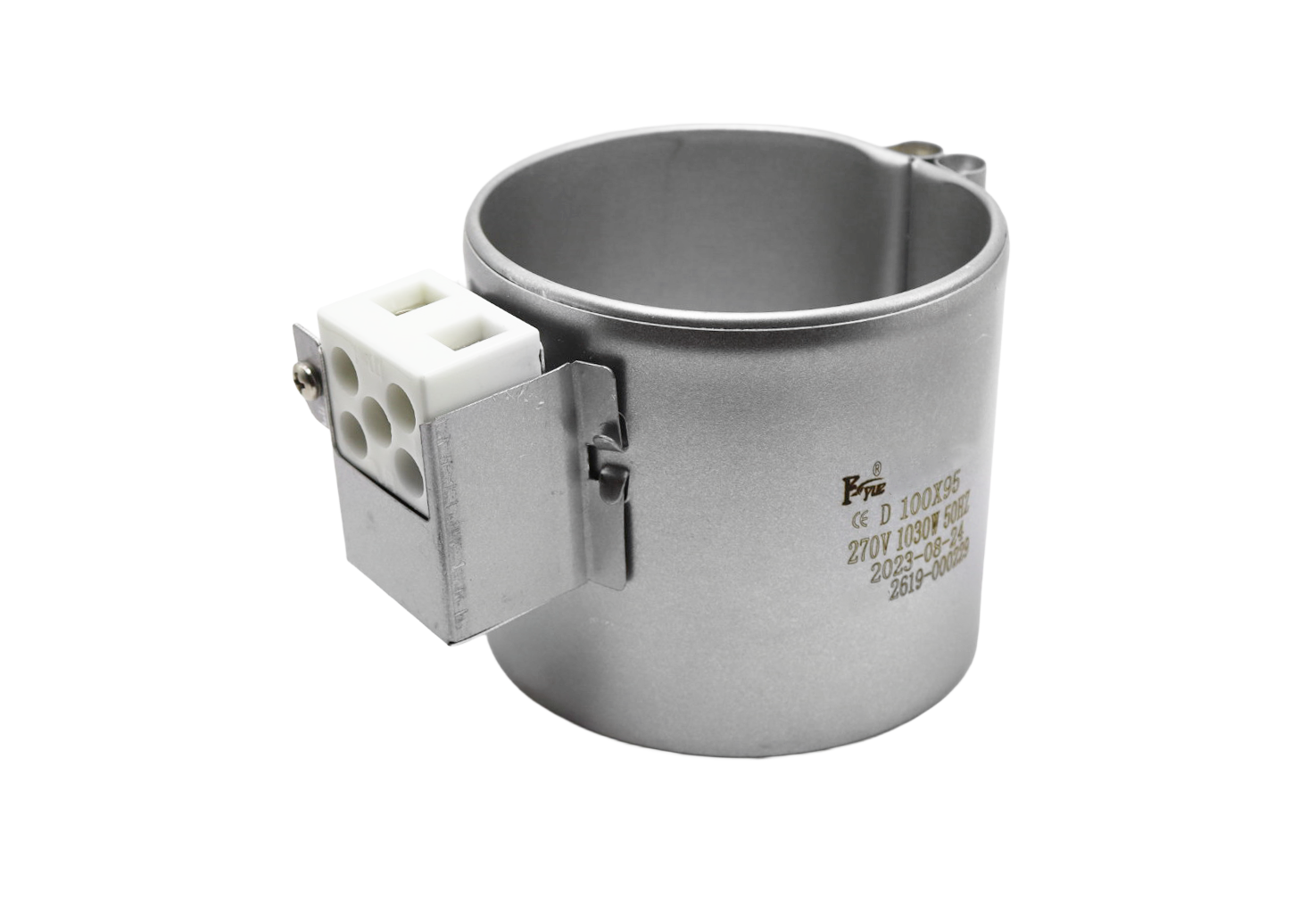

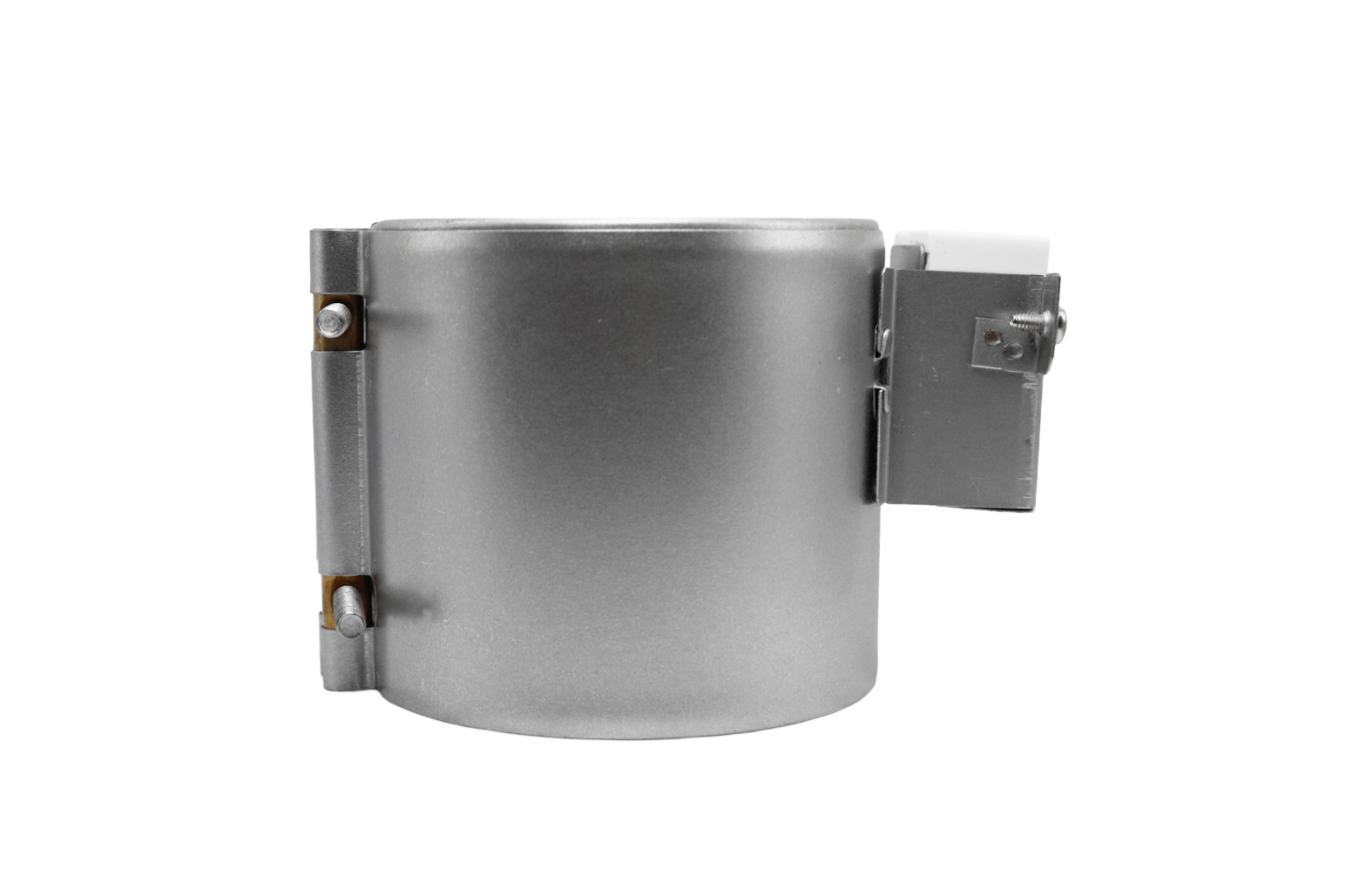

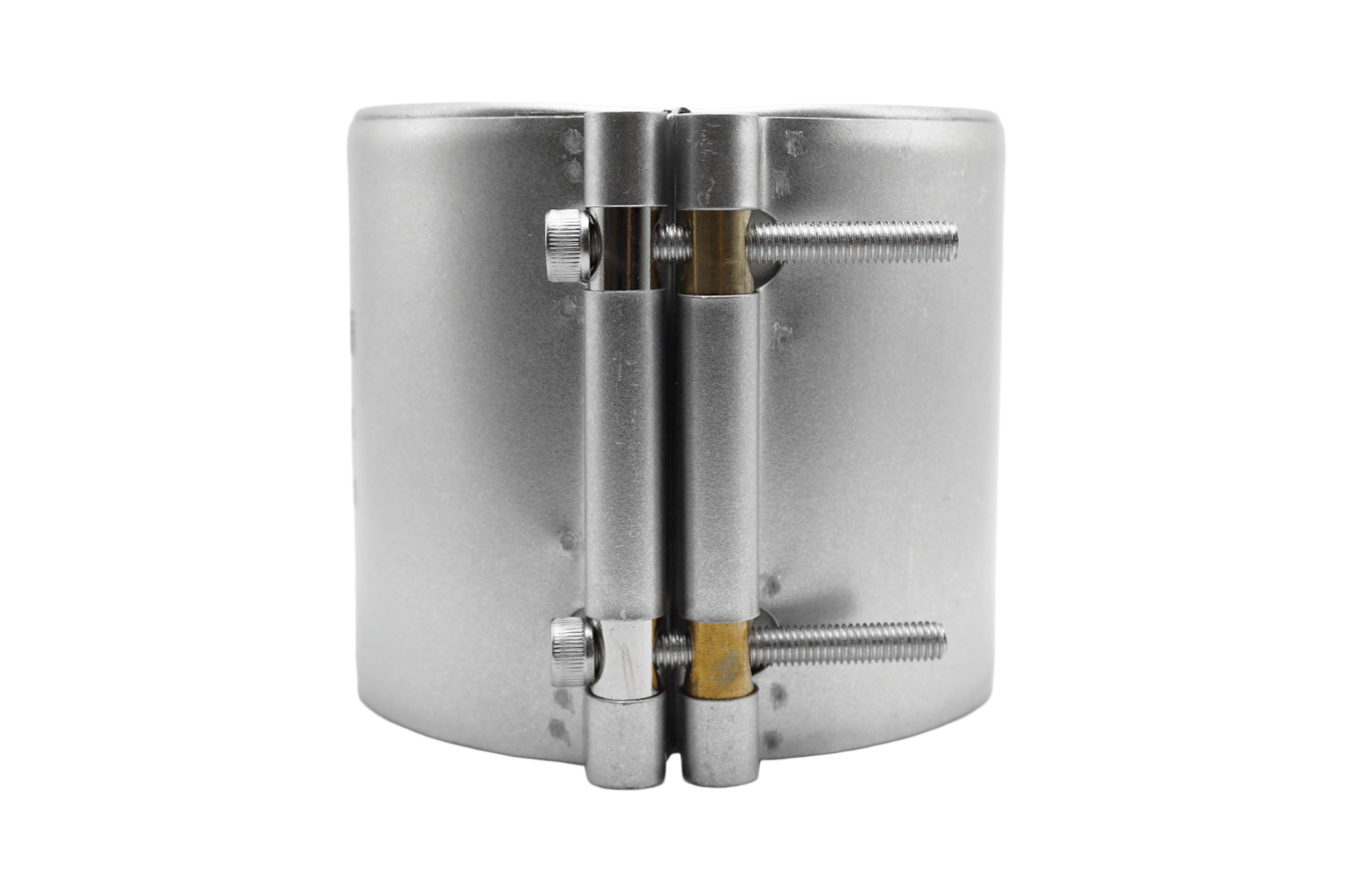

100 x 95 270V 1030W Aluminum Heater Band

Heavy-duty aluminum heater band engineered for LOG injection molding machines with 100mm inner diameter and 95mm height. Provides exceptional 1030-watt heating capacity at 270 volts for superior temperature control and rapid heat recovery. Features robust aluminum construction with high thermal efficiency for demanding injection molding applications.

SKU LOGAHB100X951030W Category Tags , , , , , , , , , , , , , , , , , , ,

Description

The 100 x 95 270V 1030W Aluminum Heater Band is a heavy-duty heating component designed for demanding LOG injection molding applications. This high-capacity heater band features aluminum construction that delivers exceptional thermal conductivity and uniform heat distribution. Engineered with a 100mm inner diameter and substantial 95mm height configuration, this heater band provides powerful 1030-watt heating capacity at 270 volts for superior material processing and rapid temperature recovery in high-production environments.

Additional information

Weight 4 lbs
Dimensions 4 × 4 × 4 in
Technical Specifications:
Dimensions: 100mm ID x 95mm Height
Voltage: 270V
Wattage: 1030W
Material: High-grade aluminum with embedded resistance heating elements
Operating Temperature: Up to 600°F (315°C)
Heat Distribution: Uniform across extended barrel surface
Power Density: Optimized for efficient heating performance
Key Features:
Heavy-Duty Capacity: 1030-watt heating power for demanding production requirements
Extended Height Design: 95mm height provides larger heating surface area for uniform temperature distribution
Aluminum Construction: Superior thermal conductivity ensures efficient heat transfer to barrel
Large Diameter Fitment: 100mm inner diameter accommodates larger barrel sizes
Rapid Temperature Recovery: High wattage delivers fast heat recovery between injection cycles
Industrial Voltage: 270-volt configuration for reliable industrial operation
Applications: Essential for high-capacity barrel heating in injection molding operations requiring superior heating power and rapid temperature recovery. Ideal for processing engineering plastics, high-temperature materials, thick-walled products, and high-volume production applications. Perfect for facilities operating LOG injection molding machines where consistent barrel temperatures, efficient heat transfer, and minimal cycle time are critical for production efficiency and product quality.
Compatibility: LOG 90T, 130T Injection Molding Machines
