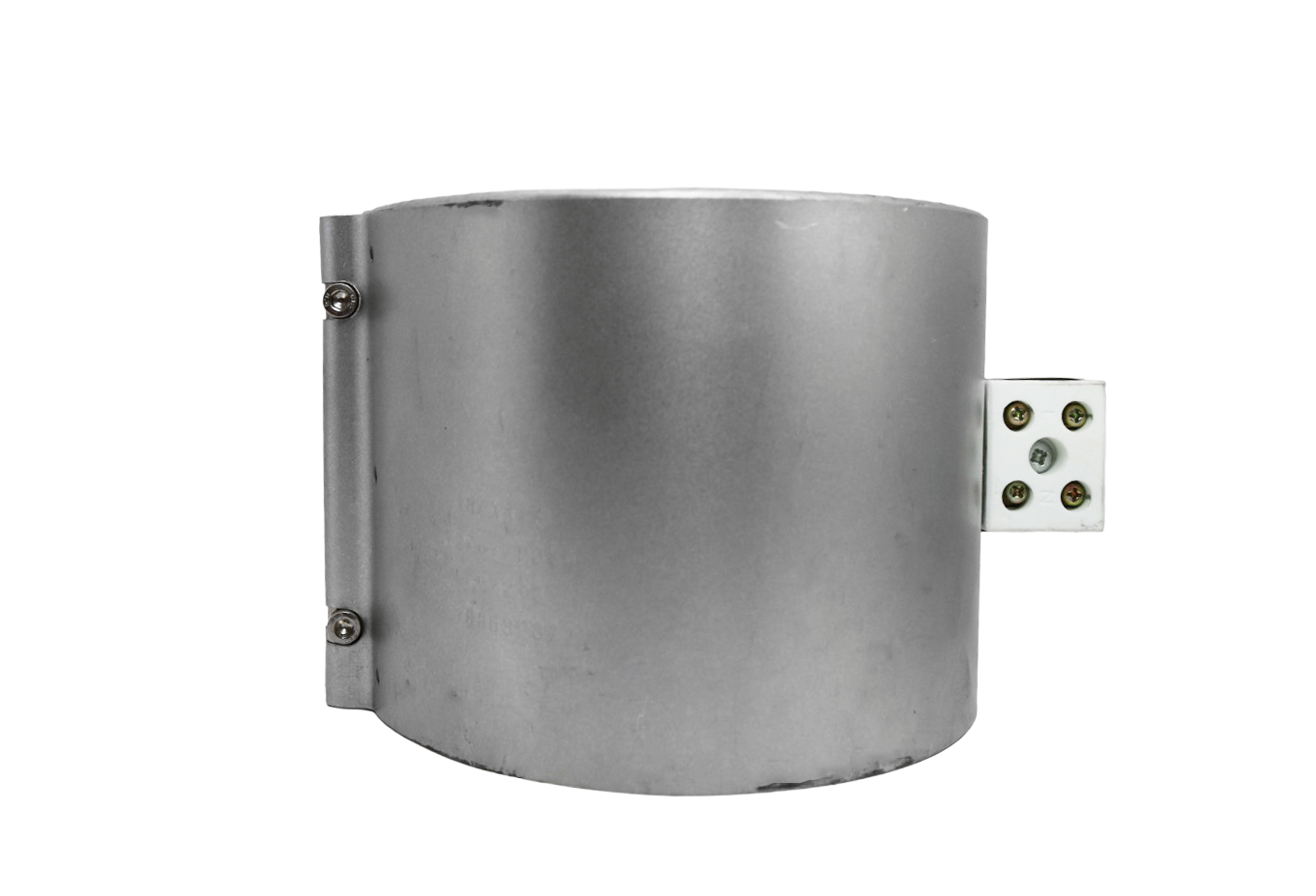

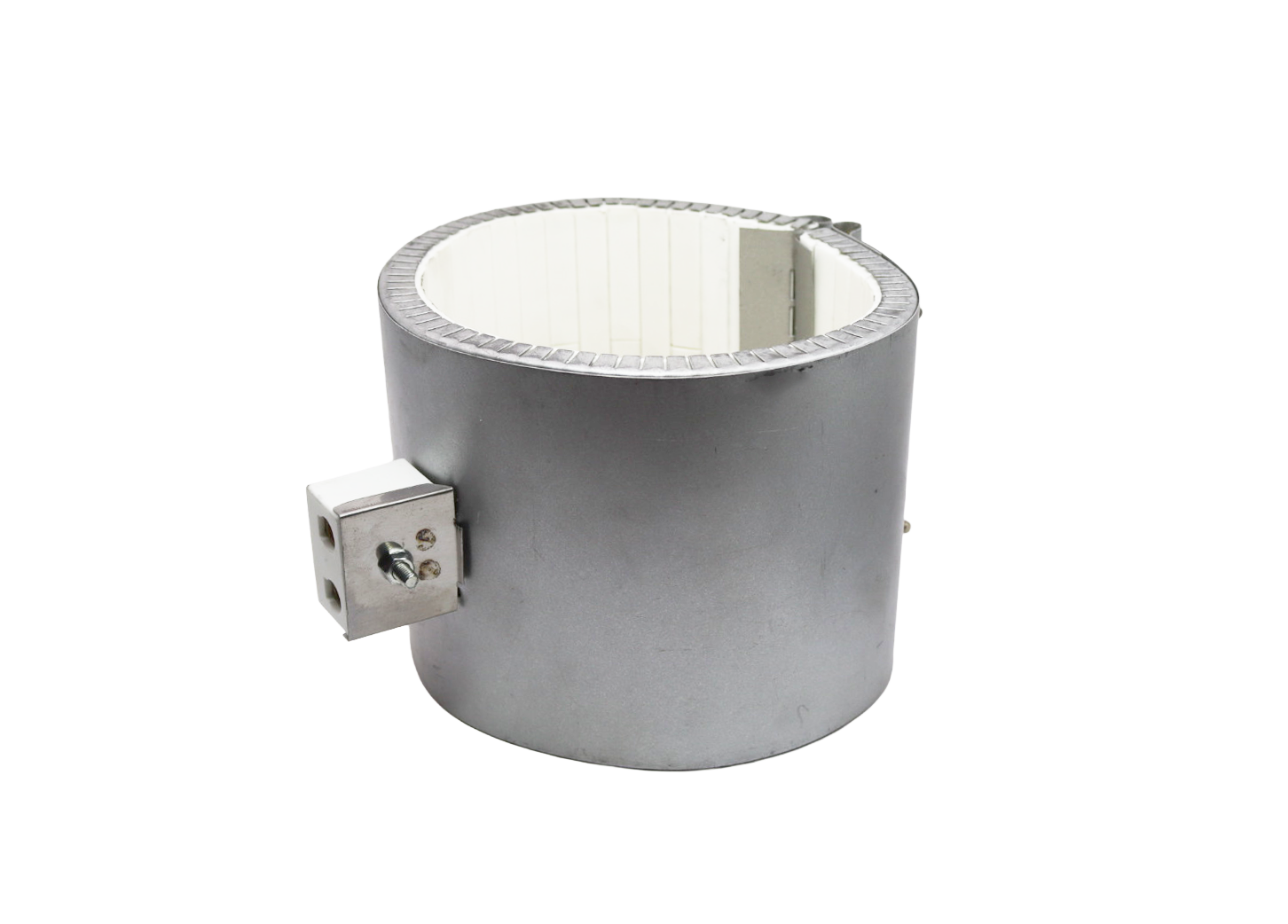

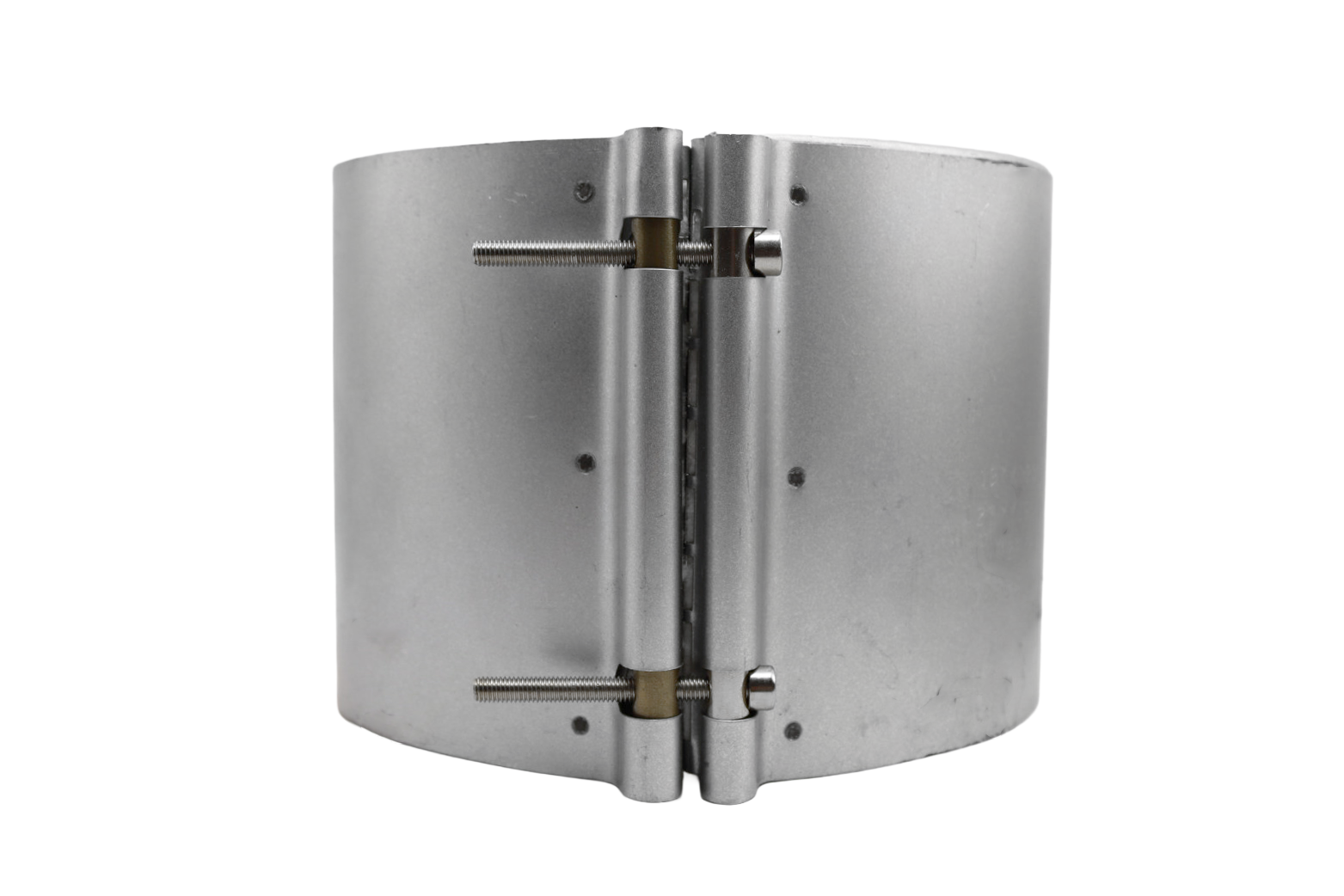

137 x 123 270V 2900W Ceramic Heater Band

Ultra-high-capacity ceramic heater band engineered for new LOG 250S8 injection molding machines. Features 137mm inner diameter and 123mm extended height with exceptional 2900-watt heating capacity at 270 volts. Delivers superior temperature performance with ceramic insulation for demanding high-production injection molding applications.

SKU LOGCHB137X1232900W Category Tags , , , , , , , , , , , , , , , , , , ,

Description

The 137 x 123 270V 2900W Ceramic Heater Band represents the latest in heating technology for LOG’s new 250S8 injection molding machines. This ultra-high-capacity heater band features advanced ceramic insulation that provides exceptional heat retention and enables superior operating temperatures. Engineered with a 137mm inner diameter and extended 123mm height configuration, this ceramic heater band delivers remarkable 2900-watt heating capacity at 270 volts for exceptional material processing, rapid temperature recovery, and consistent performance in the most demanding high-production environments.

Additional information

Weight 4 lbs
Dimensions 6 × 6 × 5 in
Technical Specifications:
Dimensions: 137mm ID x 123mm Height
Voltage: 270V
Wattage: 2900W (ultra-high capacity)
Insulation: Advanced ceramic fiber
Operating Temperature: Up to 1400°F (760°C)
Sheath Material: Stainless steel for superior oxidation resistance
Heat Distribution: Uniform across extended barrel surface
Design: New technology for latest LOG machines
Key Features:
Ultra-High Wattage: 2900-watt capacity provides exceptional heating power for demanding applications
Advanced Ceramic Insulation: Superior heat retention and thermal efficiency for optimal performance
Extended Height Design: 123mm height provides maximum heating surface area for uniform temperature distribution
New Technology: Latest design engineered specifically for LOG's new 250S8 series machines
High-Temperature Capability: Operates up to 1400°F (760°C) for processing high-performance materials
Large Diameter Configuration: 137mm inner diameter accommodates larger barrel sizes
Stainless Steel Sheath: Premium construction for maximum oxidation resistance and service life
Applications: Essential for ultra-high-capacity barrel heating in new LOG 250S8 injection molding operations processing engineering plastics, high-temperature polymers, and specialty materials. Ideal for high-volume production applications requiring maximum heating power, rapid temperature recovery, and extended heater life. Perfect for facilities investing in LOG's latest injection molding technology where exceptional heating capacity, consistent high temperatures, and superior thermal efficiency are critical for maximum production output and product quality.
Compatibility: LOG 250S8 Injection Molding Machines
