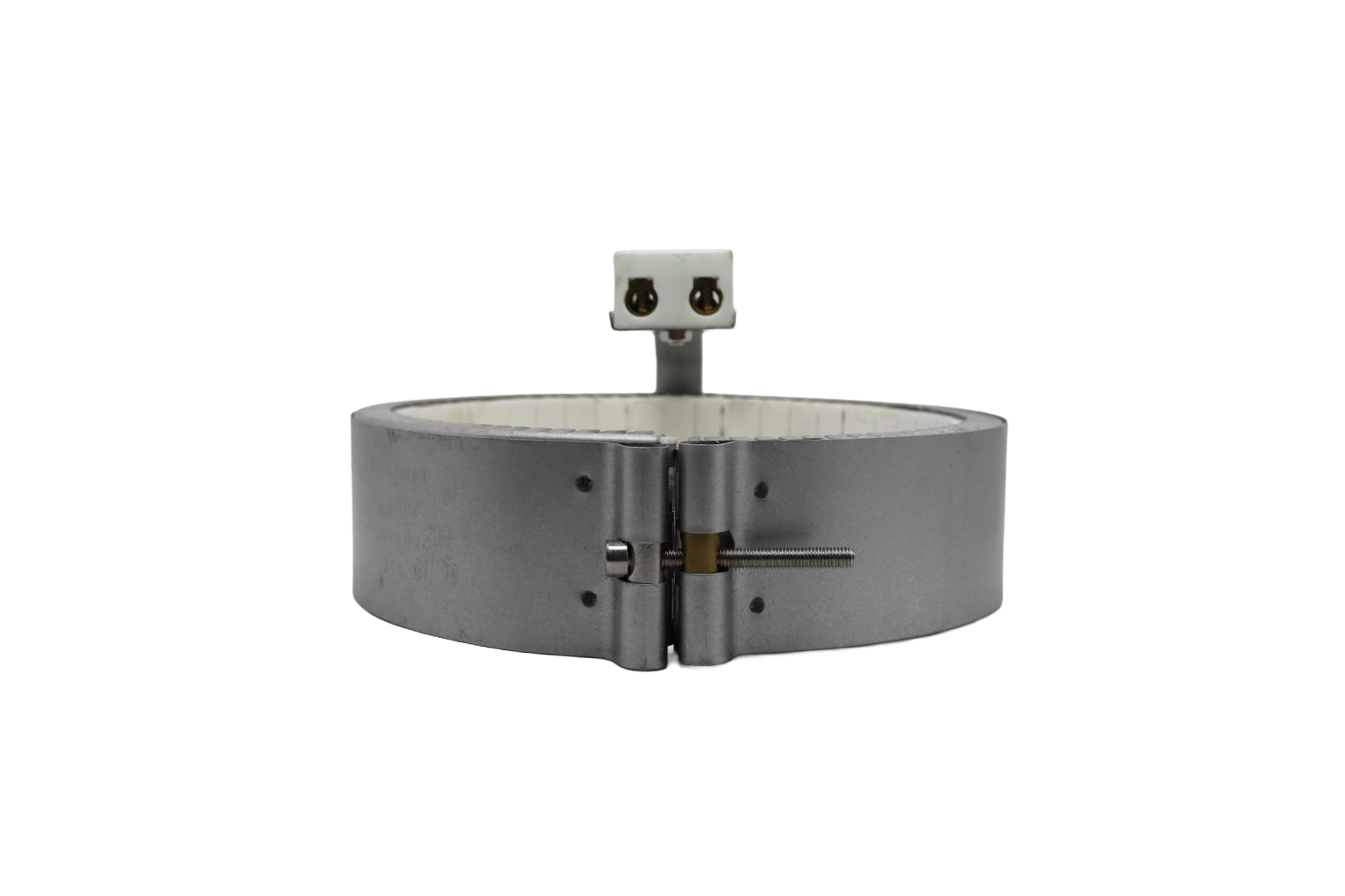

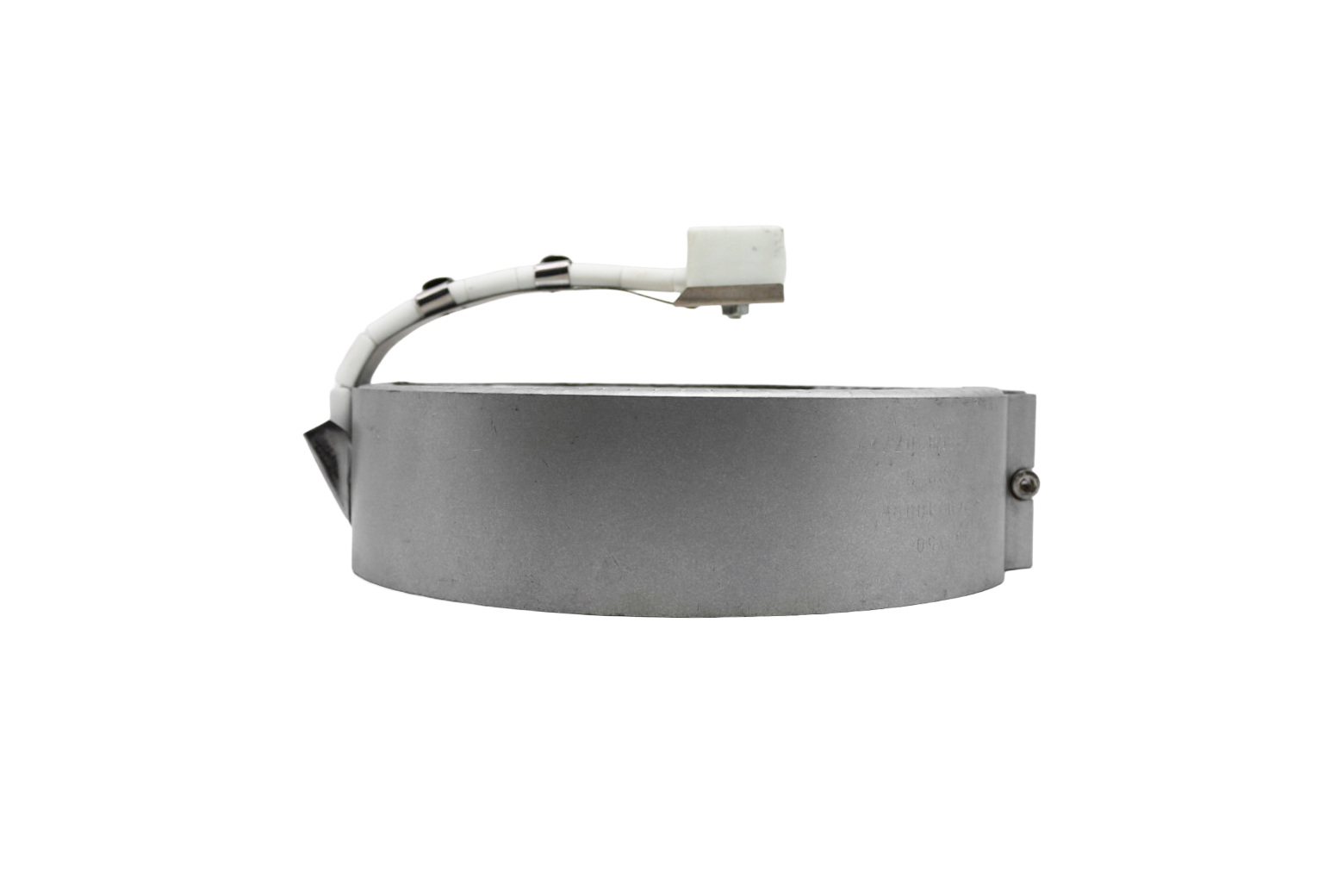

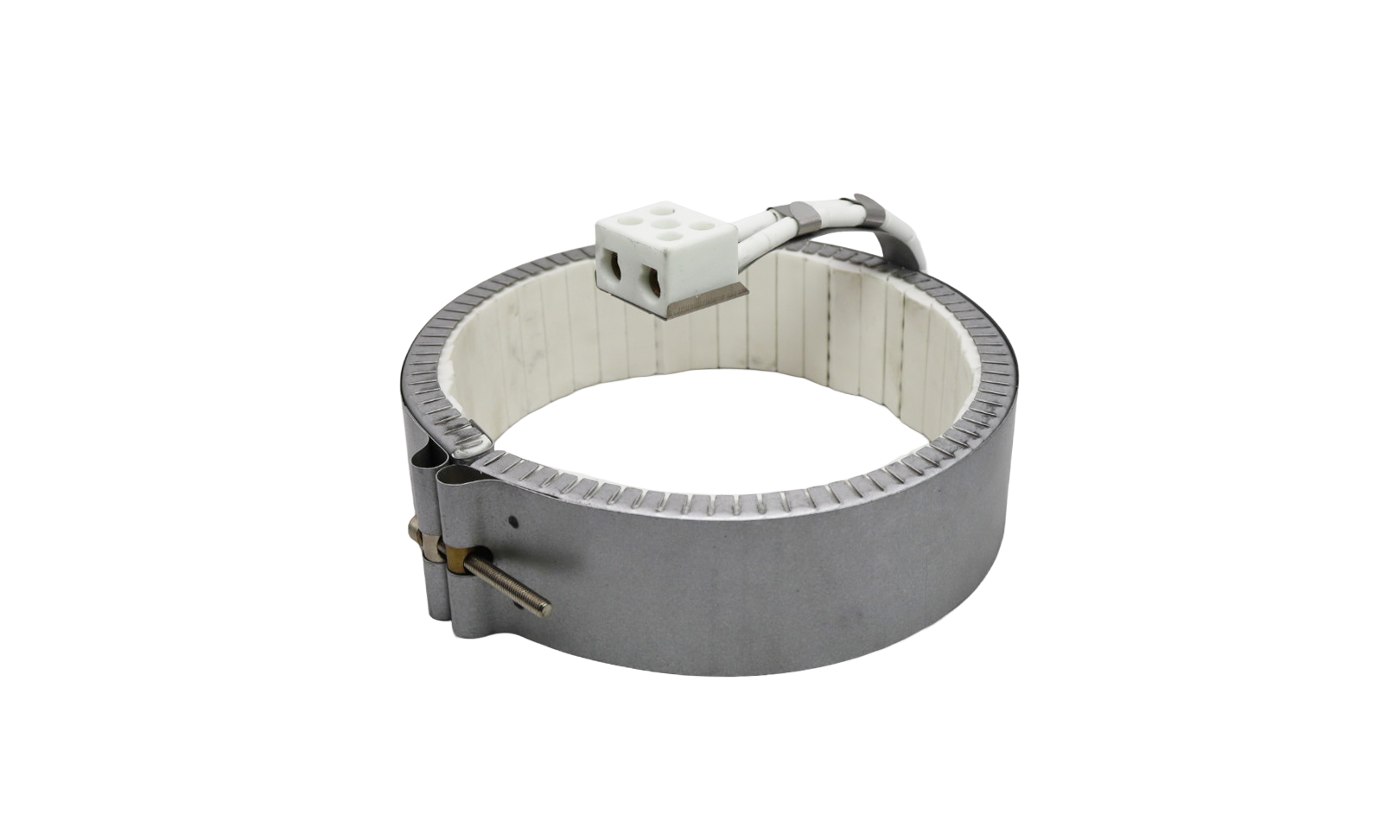

160 x 50 270V 1000W Ceramic Heater Band With Extension Wire

Premium ceramic heater band with extension wire designed for LOG 300T and 320T injection molding machines. Features 160mm inner diameter and 50mm height with 1000-watt heating capacity at 270 volts. Combines ceramic insulation’s superior temperature performance with convenient extension wire for flexible installation and simplified electrical connections.

Description

The 160 x 50 270V 1000W Ceramic Heater Band with Extension Wire is a specialized high-performance heating component engineered for LOG 300T and 320T injection molding machines. This premium heater band features ceramic insulation that provides superior heat retention and higher operating temperatures than traditional mica-insulated alternatives. Designed with a 160mm inner diameter and 50mm height configuration, this ceramic heater band delivers reliable 1000-watt heating capacity at 270 volts. The integrated extension wire provides installation flexibility and simplified electrical connections, making replacement and maintenance more convenient while maintaining the superior performance characteristics of ceramic insulation.

Additional information

Weight 4 lbs
Dimensions 7 × 7 × 2 in
Technical Specifications:
Dimensions: 160mm ID x 50mm Height
Voltage: 270V
Wattage: 1000W
Insulation: High-quality ceramic fiber
Extension Wire: Integrated for flexible installation
Operating Temperature: Up to 1400°F (760°C)
Sheath Material: Stainless steel for oxidation resistance
Heat Distribution: Uniform across entire barrel surface
Key Features:
Ceramic Insulation: High-quality ceramic fiber provides superior heat retention and thermal efficiency
Extension Wire Included: Pre-installed extension wire for flexible installation and simplified electrical connections
High-Temperature Capability: Operates up to 1400°F (760°C) for demanding material processing applications
Large Diameter Design: 160mm inner diameter accommodates larger barrel configurations
Optimal Power Output: 1000-watt capacity provides consistent heating and rapid temperature recovery
Convenient Installation: Extension wire eliminates need for additional wiring modifications
Stainless Steel Sheath: Provides optimal oxidation resistance and extended service life
Applications: Essential for barrel heating in LOG 300T and 320T injection molding operations requiring both superior ceramic heating performance and flexible installation options. Ideal for replacement applications where simplified electrical connections, convenient installation, and high-temperature capability are priorities. Perfect for facilities processing engineering plastics and high-performance materials requiring efficient heat transfer, consistent barrel temperatures, rapid temperature recovery, and minimal downtime during heater band replacement or maintenance procedures.
Compatibility: LOG 300T, 320T Injection Molding Machines
