Description

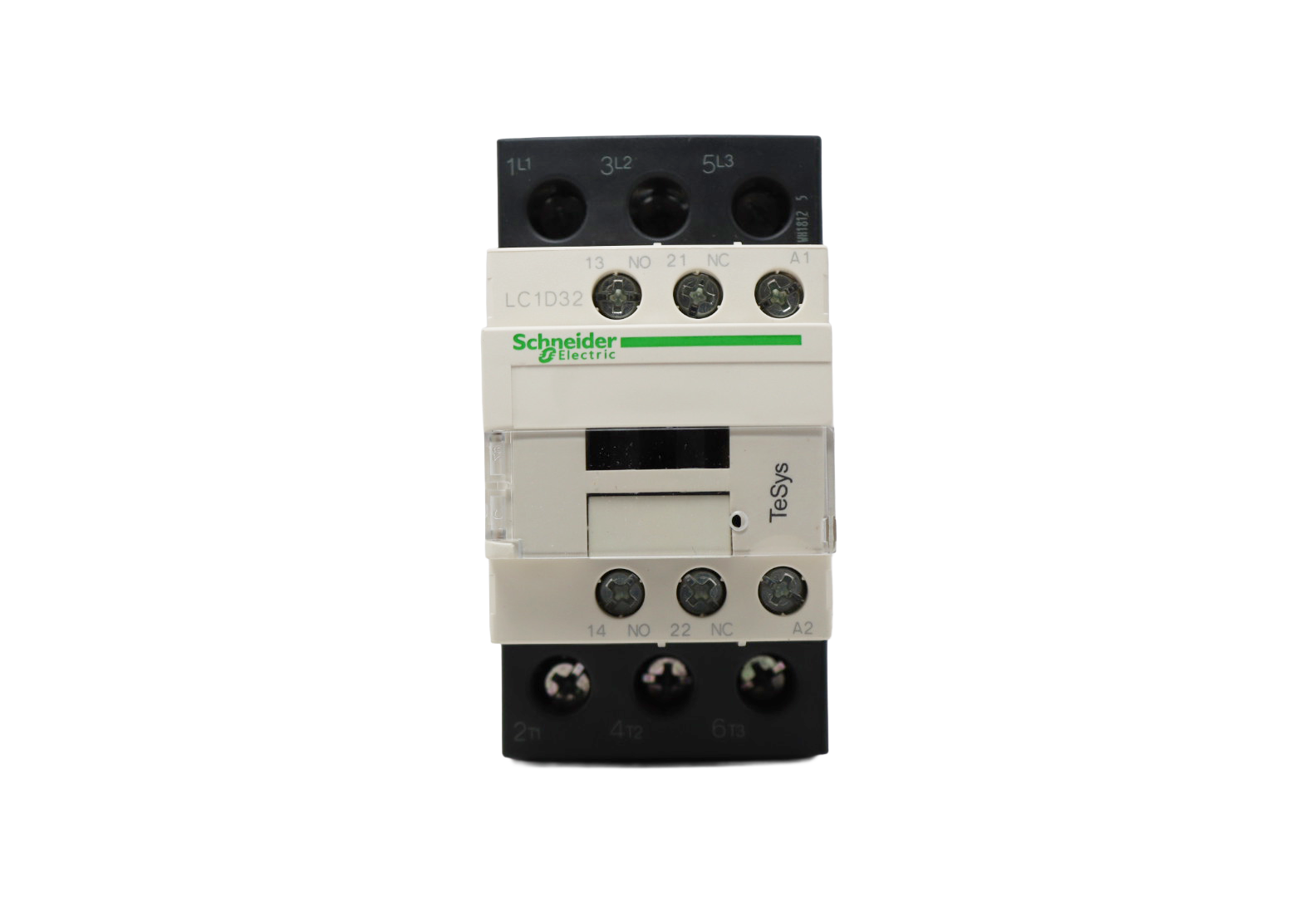

The LC1D32M7C TeSys D Contactor is a robust, industrial-grade 3-pole electromagnetic contactor engineered for higher-power motor control applications in LOG Injection Molding Machine S8 and S9 series servo injection molding machines. Designed to IEC 60947-4-1 and certified to UL 508 and CSA C22.2 No. 14, this contactor delivers dependable switching of three-phase motors, large hydraulic pump motors, high-power cooling fans, and other demanding inductive loads in injection molding machine control panels.
Technical Specifications:
SKU: lc1d32m7c
Model: LC1D32M7C
Series: TeSys D
Type: Non-reversing IEC contactor
Poles: 3
Main Contact Configuration: 3NO
Current Rating AC-3: 32A at 400 to 440VAC
Current Rating AC-1: 50A resistive
Maximum Operating Voltage: 690VAC
Coil Voltage: 220VAC +/- 10%
Coil Frequency: 50/60Hz
Motor Rating: 15HP at 480VAC / 20HP at 600VAC three-phase
Auxiliary Contacts: 1NO+1NC built-in
Rated Impulse Withstand Voltage: 6kV
Mechanical Life: 10 million operations minimum
Electrical Life AC-3: 600,000 operations at rated current
Terminal Type: Screw clamp, IP20 finger-safe
Wire Capacity: 2.5 to 10mm squared (14 to 8 AWG)
Mounting: DIN rail 35mm or panel mount
Operating Temperature: -25 to +60 degrees C
Standards: IEC 60947-4-1, UL 508, CSA C22.2 No. 14
Certifications: CE, UL, CSA
Key Features:
32A AC-3 Current Rating: Supports motors up to 15HP at 480VAC and 20HP at 600VAC
220VAC 50/60Hz Coil: Standard control voltage with dual-frequency operation and surge suppression
3-Pole Configuration: Three normally open main contacts for complete three-phase motor switching
Integrated Auxiliary Contacts: Built-in 1NO+1NC for control logic without additional modules
DIN Rail or Panel Mounting: Flexible installation on 35mm rail or panel surface
IP20 Finger-Safe Terminals: Screw clamp terminals accepting 2.5 to 10mm squared wire
10 Million Operation Mechanical Life: Built for continuous-duty cycling
CE, UL, CSA Certified: Meets IEC 60947-4-1, UL 508, and CSA C22.2 No. 14
Applications: Suitable for controlling main drive motors, large hydraulic pump circuits, high-power cooling fans, and auxiliary motor circuits in LOG Injection Molding Machine S8 and S9 series servo injection molding machine control panels. Used for three-phase motor starting and stopping up to 15HP in injection molding, blow molding, and industrial plastic processing operations. Compatible with LOG S8 series (90 to 650 ton) and S9 series (90 to 650 ton) servo injection molding machine control systems.
Compatibility: LOG S8 Series Servo Injection Molding Machines (90, 130, 160, 210, 250, 320, 400, 500, 650 Ton), LOG S9 Series Servo Injection Molding Machines (90, 140, 170, 220, 270, 320, 400, 530, 650 Ton)
