High-precision bypass oil filter element designed for LOG injection molding machines. This large-format filter element features cellulose and wood pulp construction for ultra-fine filtration of hydraulic and industrial oils with viscosities ranging from 9 to 180cSt. Compatible with LOG IMM hydraulic systems requiring the ME-100-114 or equivalent specification.

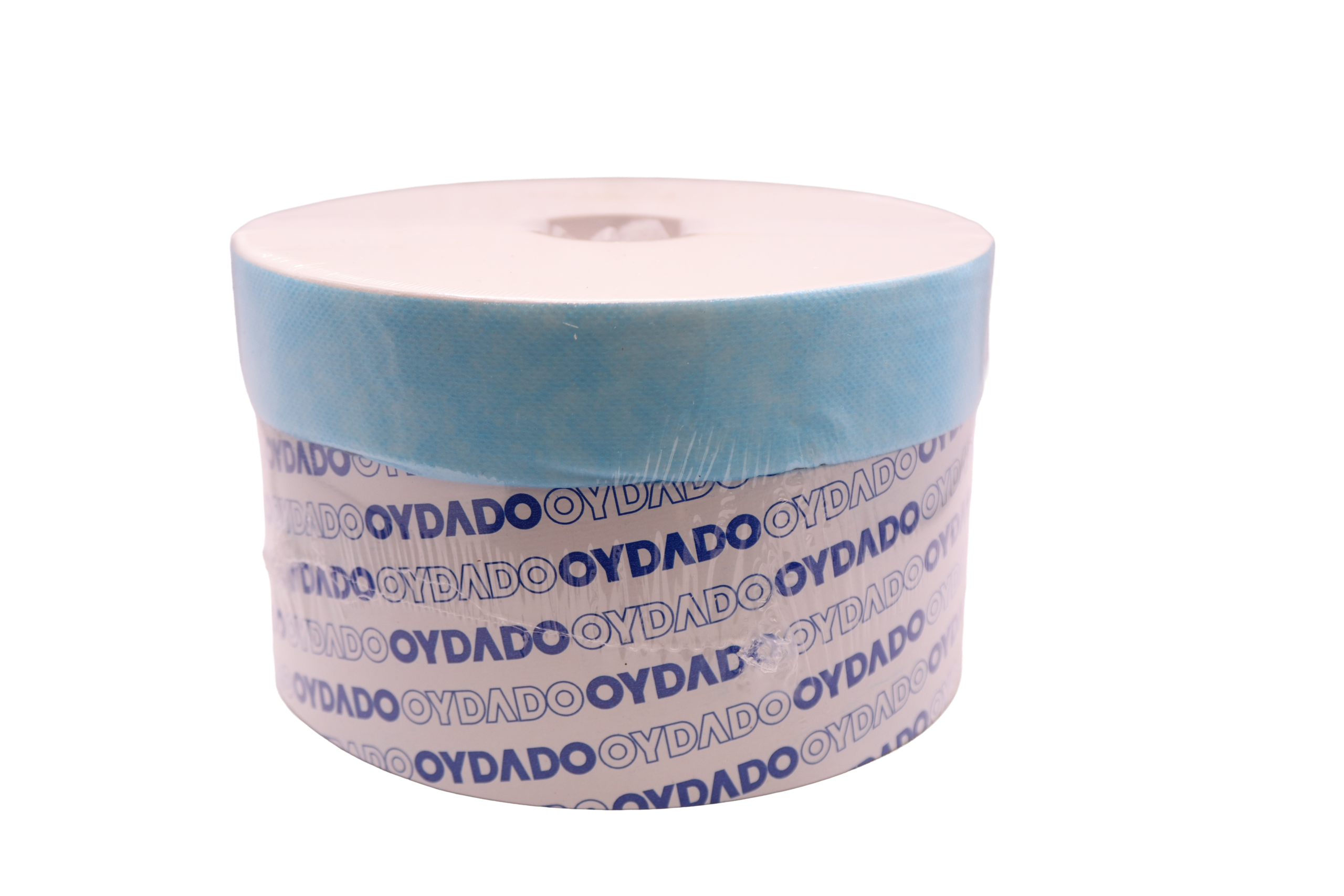

The LOG Precision Oil Filter Element (Large) is a critical maintenance component engineered for the hydraulic systems of LOG injection molding machines. This bypass-style filter element uses a tightly wound, long-fiber wood pulp and cellulose construction to force oil through the entire length of the filter media, capturing extremely fine particles and absorbing moisture that standard spin-on filters cannot address. With an outer diameter of 179mm and a height of 114mm, this large-format element provides high-volume filtration capacity for demanding production environments. Regular replacement of this filter element protects sensitive hydraulic components, maintains oil purity, and extends the operational life of your LOG injection molding equipment.
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 5 in |
Technical Specifications:

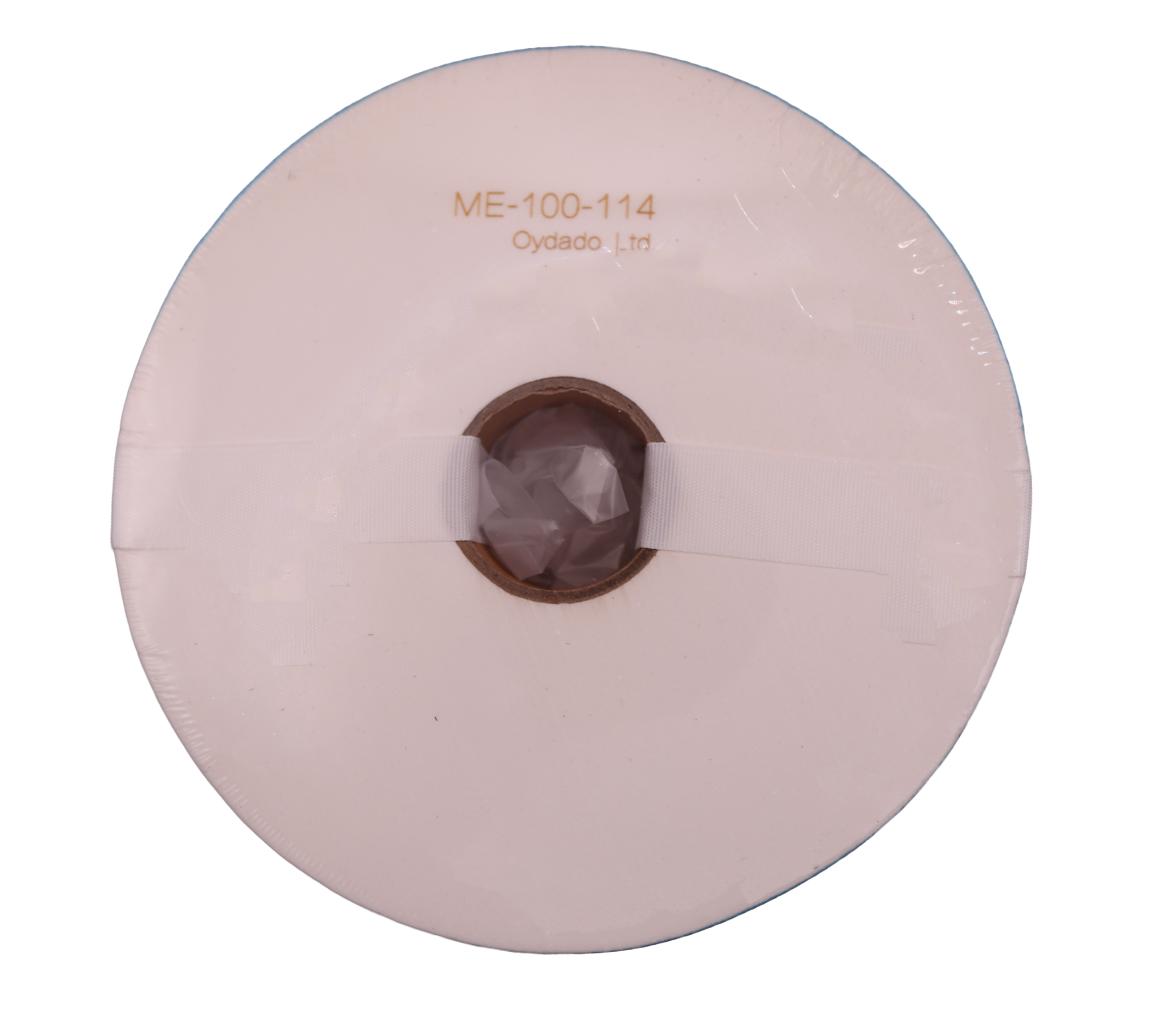

Model: ME-100-114
Outer Diameter: 179mm
Height: 114mm
Filter Media: Wood pulp cellulose with specialized additives
Viscosity Range: 9 to 180cSt
Filtration Rating: 1 to 3 microns
Filter Type: Bypass oil filter element
Key Features:
Ultra-Fine Filtration: Long-fiber wood pulp and cellulose media captures particles down to 1 to 3 microns for superior oil cleanliness
Moisture Absorption: Cellulose construction absorbs water contamination that spin-on filters cannot remove
Bypass Filter Design: Continuously cleans a portion of hydraulic oil without restricting main system flow
Wide Viscosity Compatibility: Suitable for hydraulic and industrial oils with viscosities ranging from 9 to 180cSt
Precision Fit: Engineered to exact dimensions for secure installation in LOG IMM hydraulic filter housings
OEM-Equivalent Specification: Meets ME-100-114 dimensional and performance standards
Applications: Essential for maintaining hydraulic oil cleanliness in LOG injection molding machine hydraulic systems. This bypass filter element continuously cleans a portion of the hydraulic oil at a time, removing microscopic contaminants and moisture that accumulate during production. Recommended for facilities operating LOG IMM machines in high-production or continuous-duty environments where hydraulic system integrity is critical to part quality and machine longevity.
Compatibility: LOG S8 Series Injection Molding Machines (hydraulic systems requiring ME-100-114 or equivalent bypass oil filter element)
