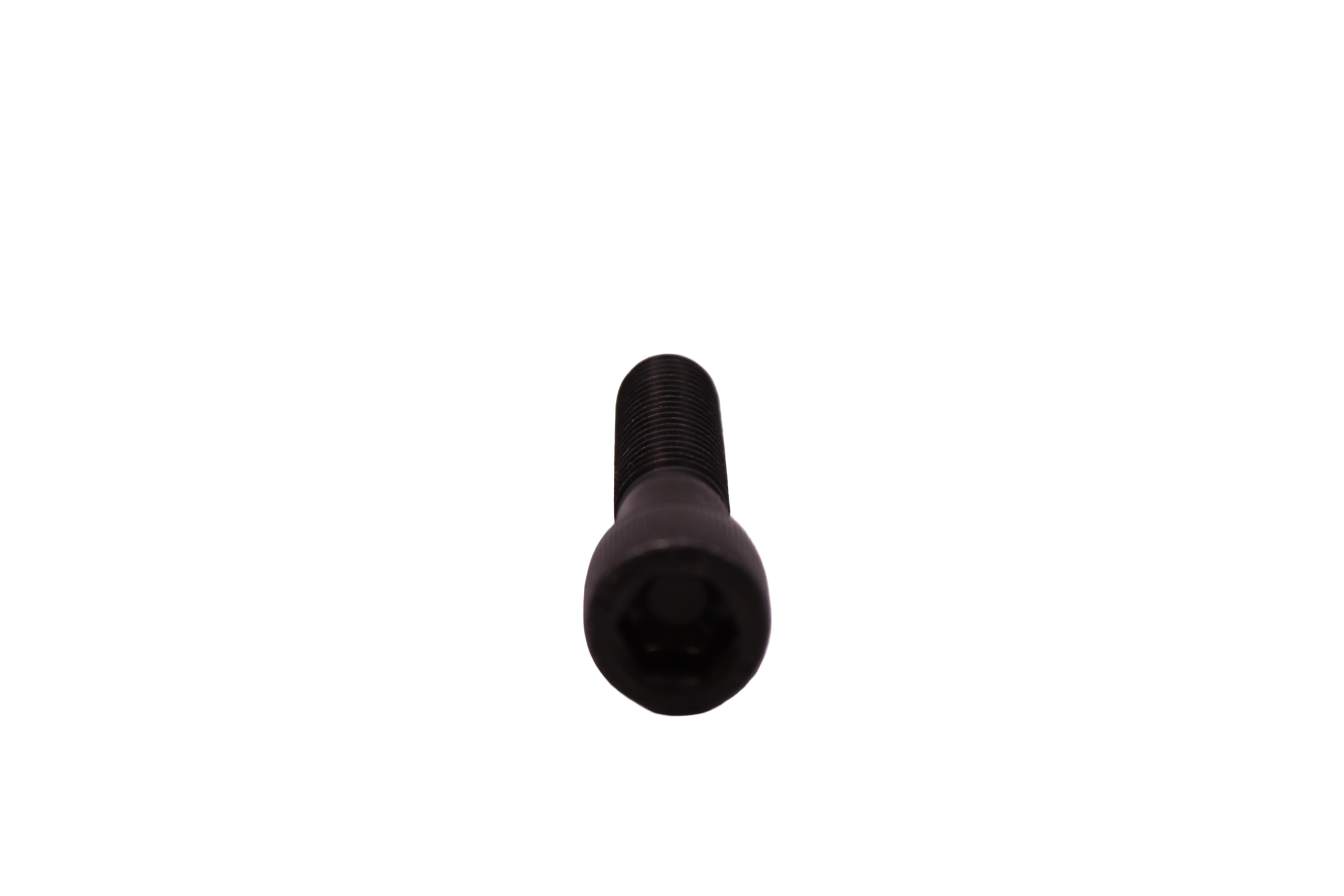

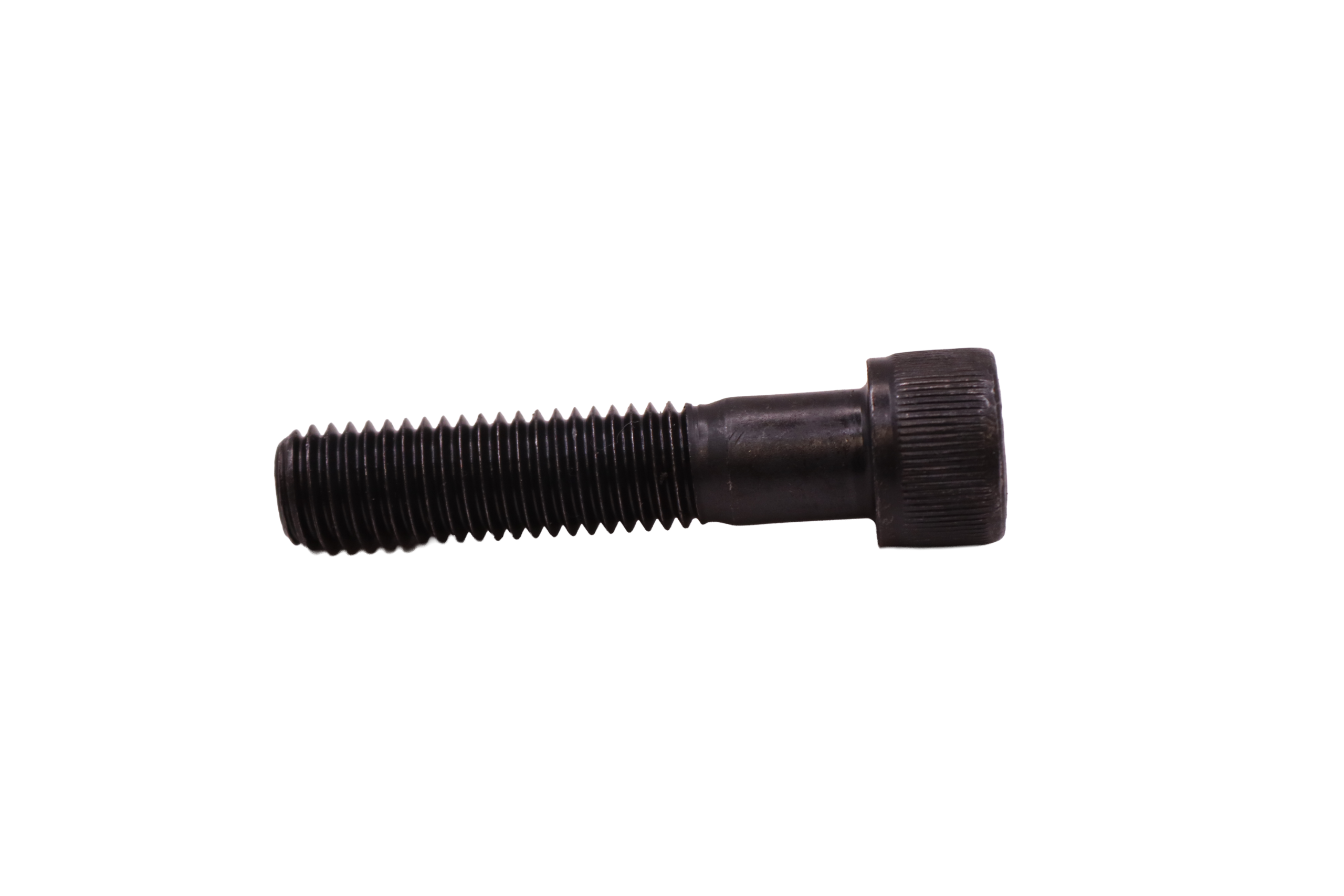

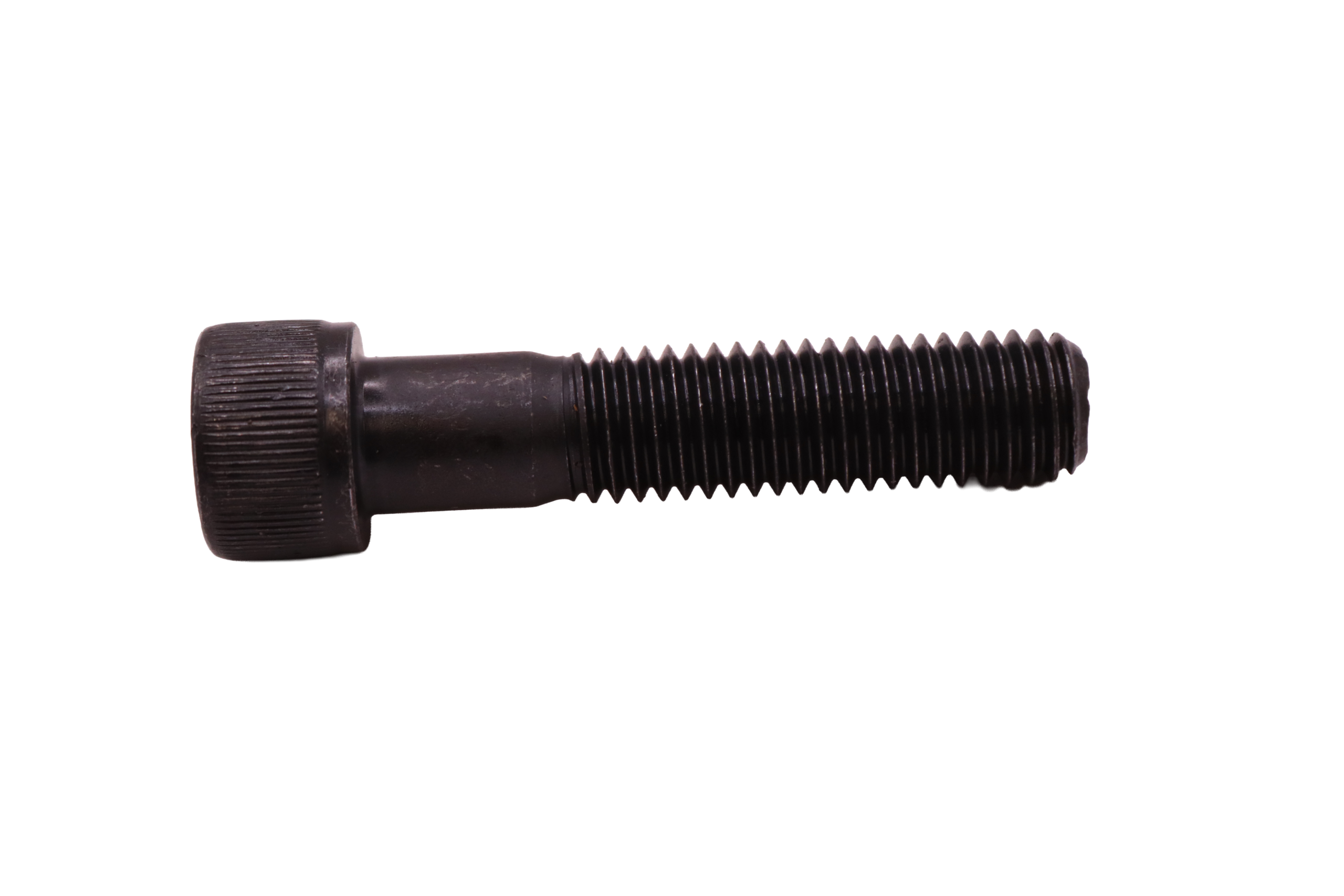

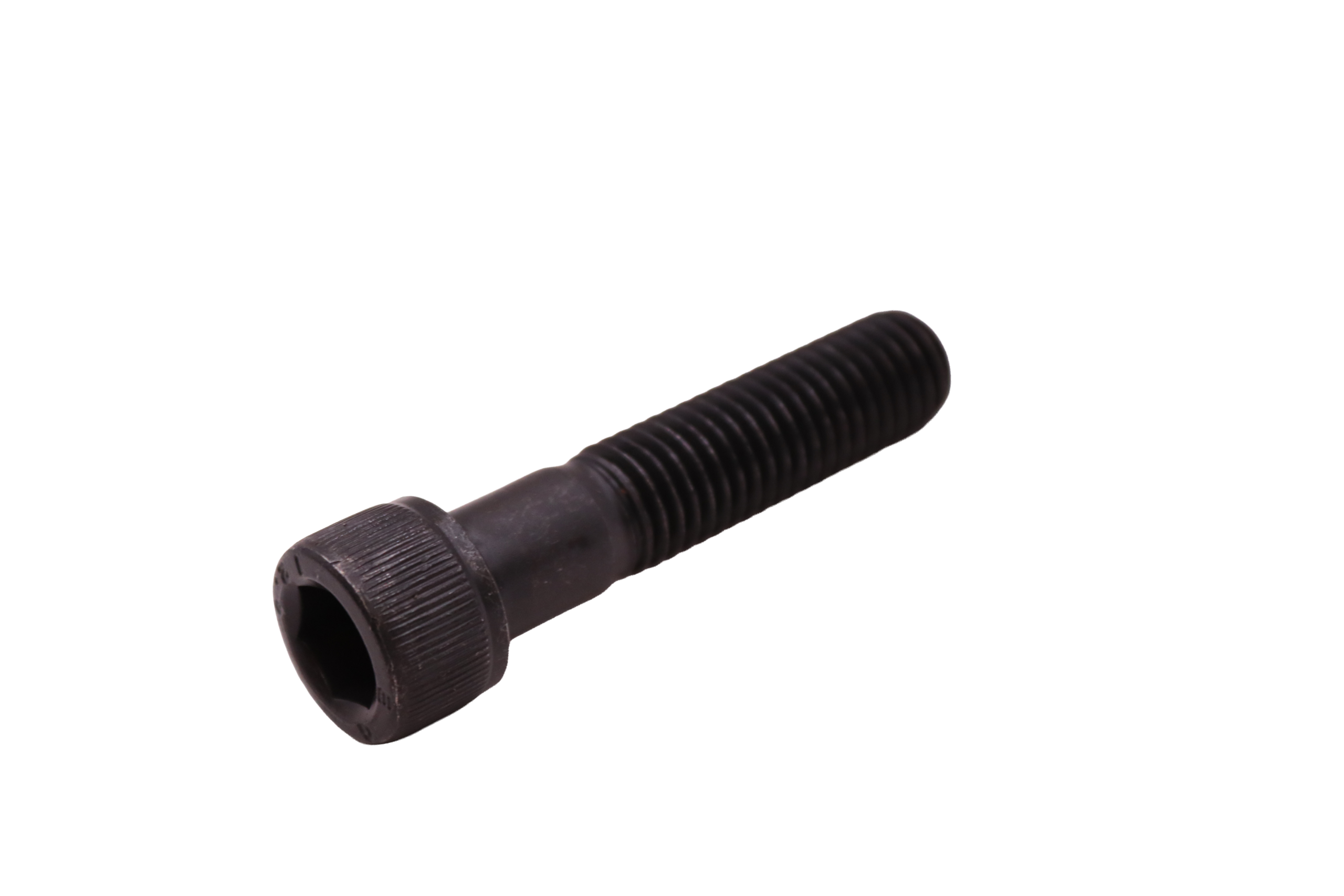

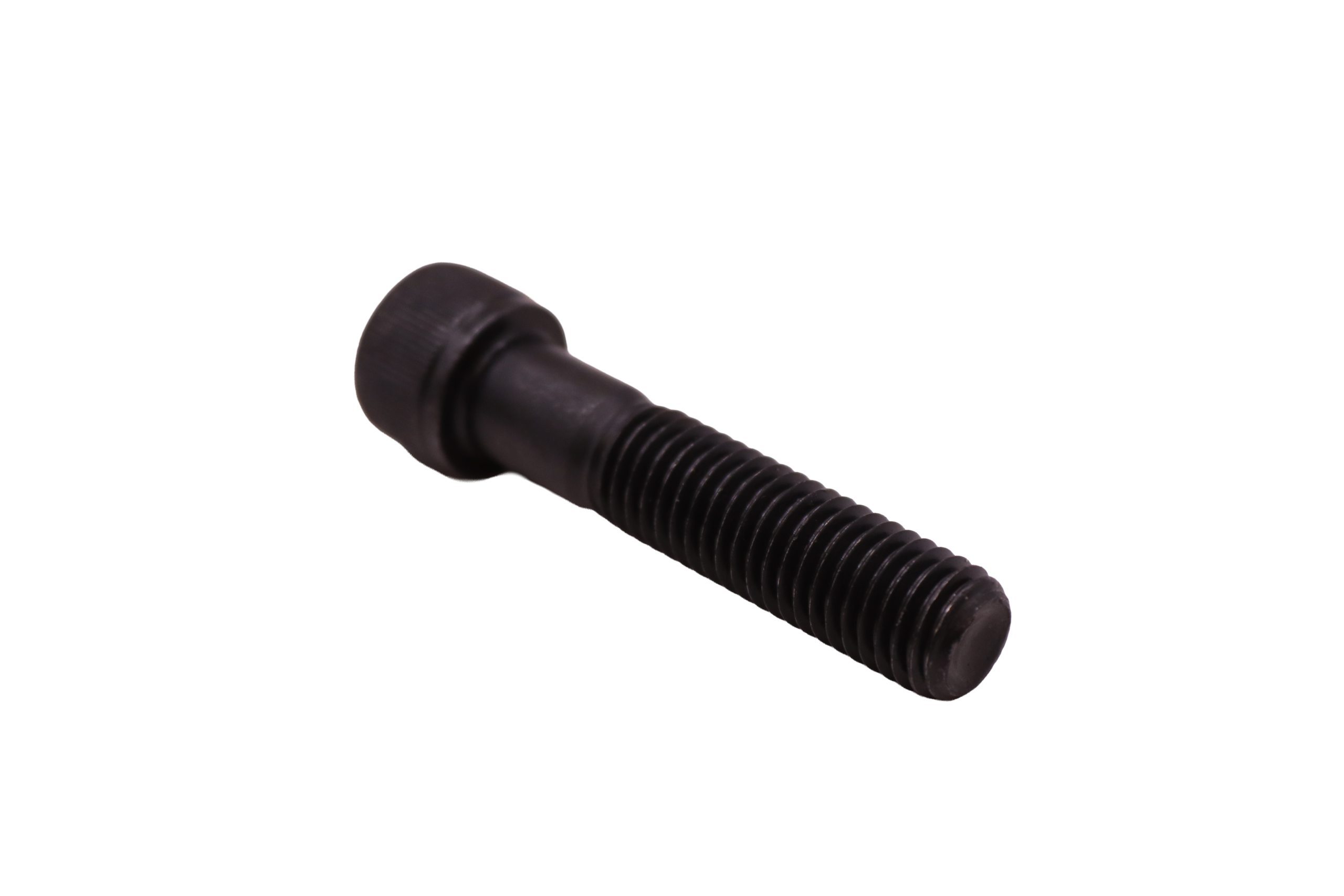

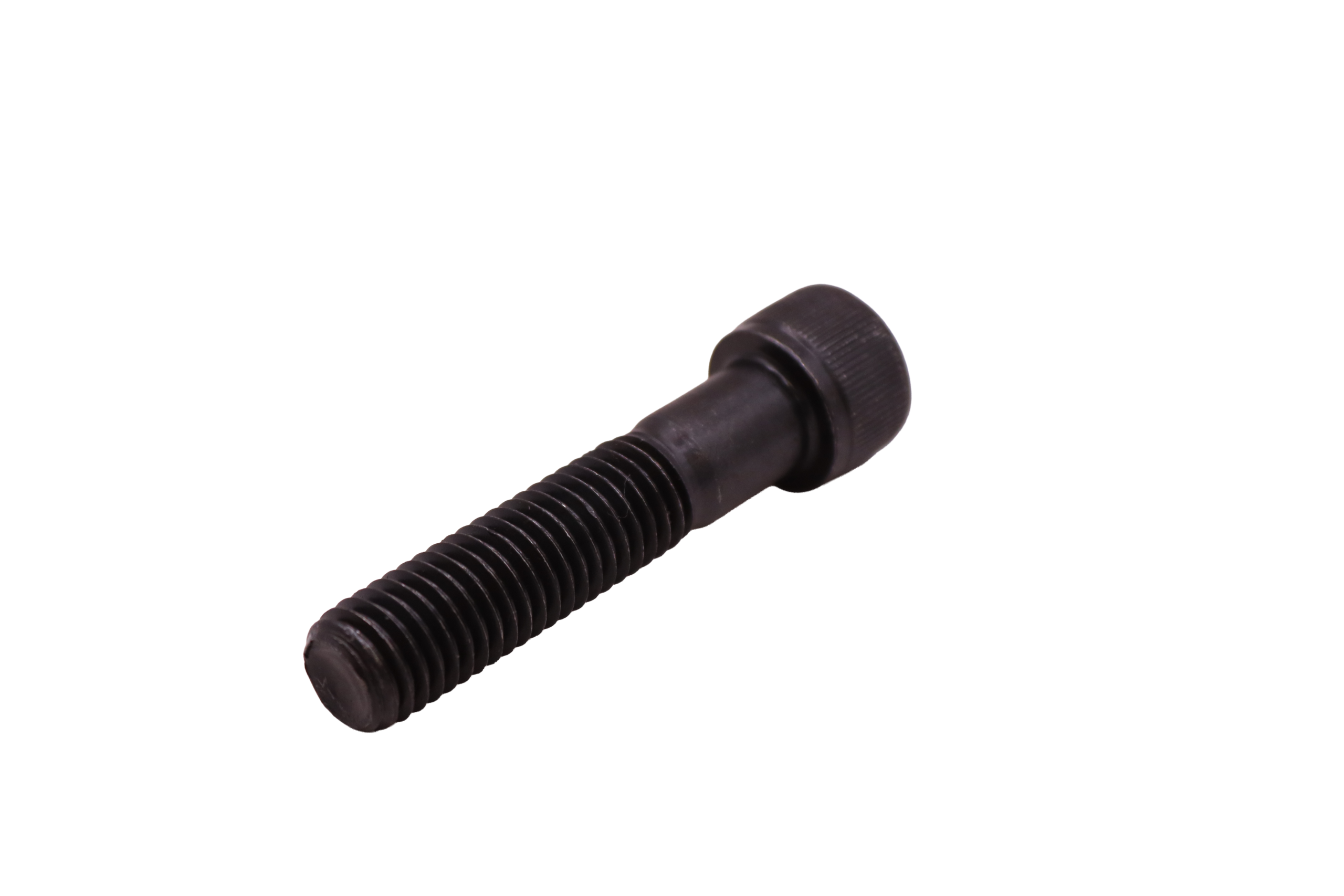

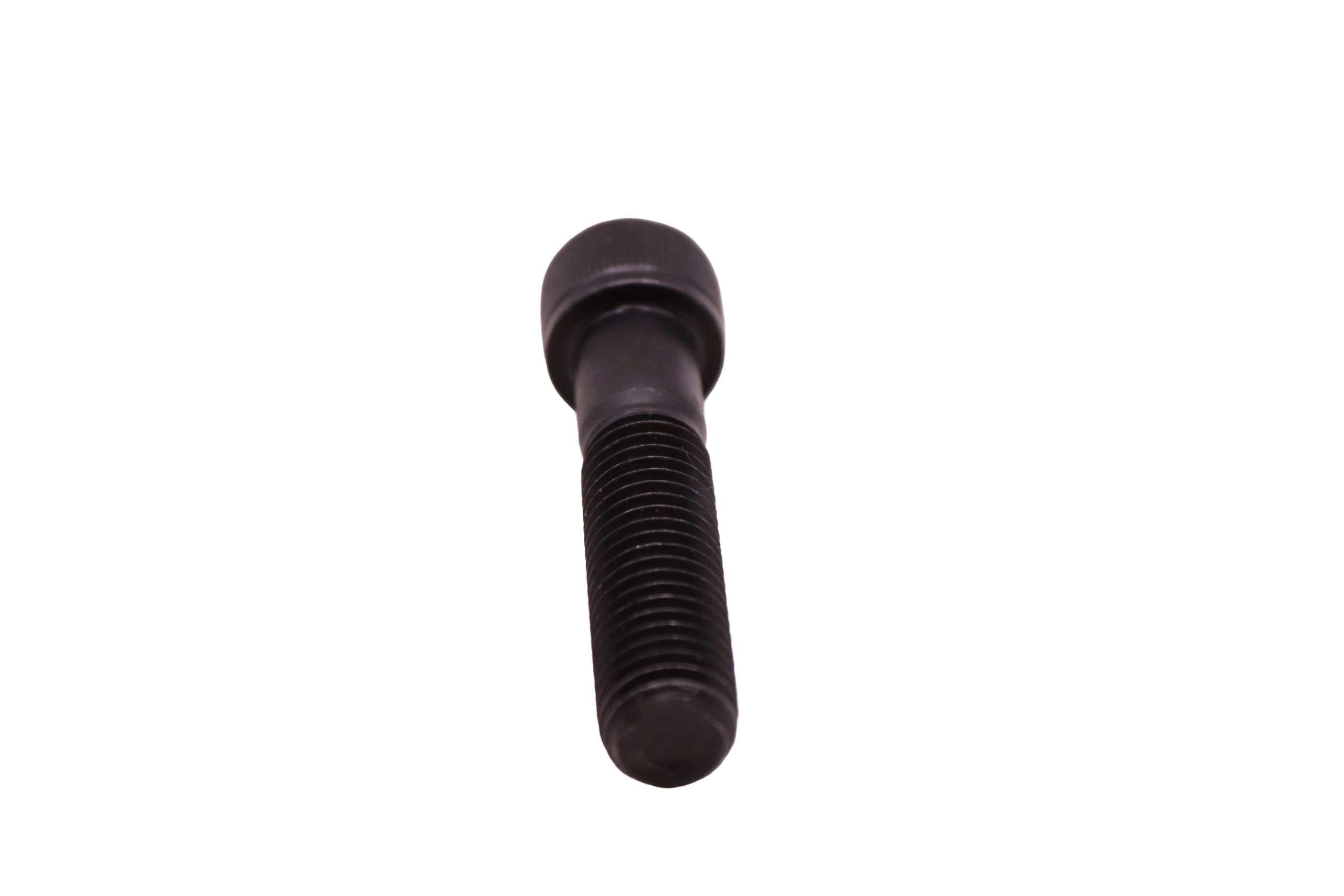

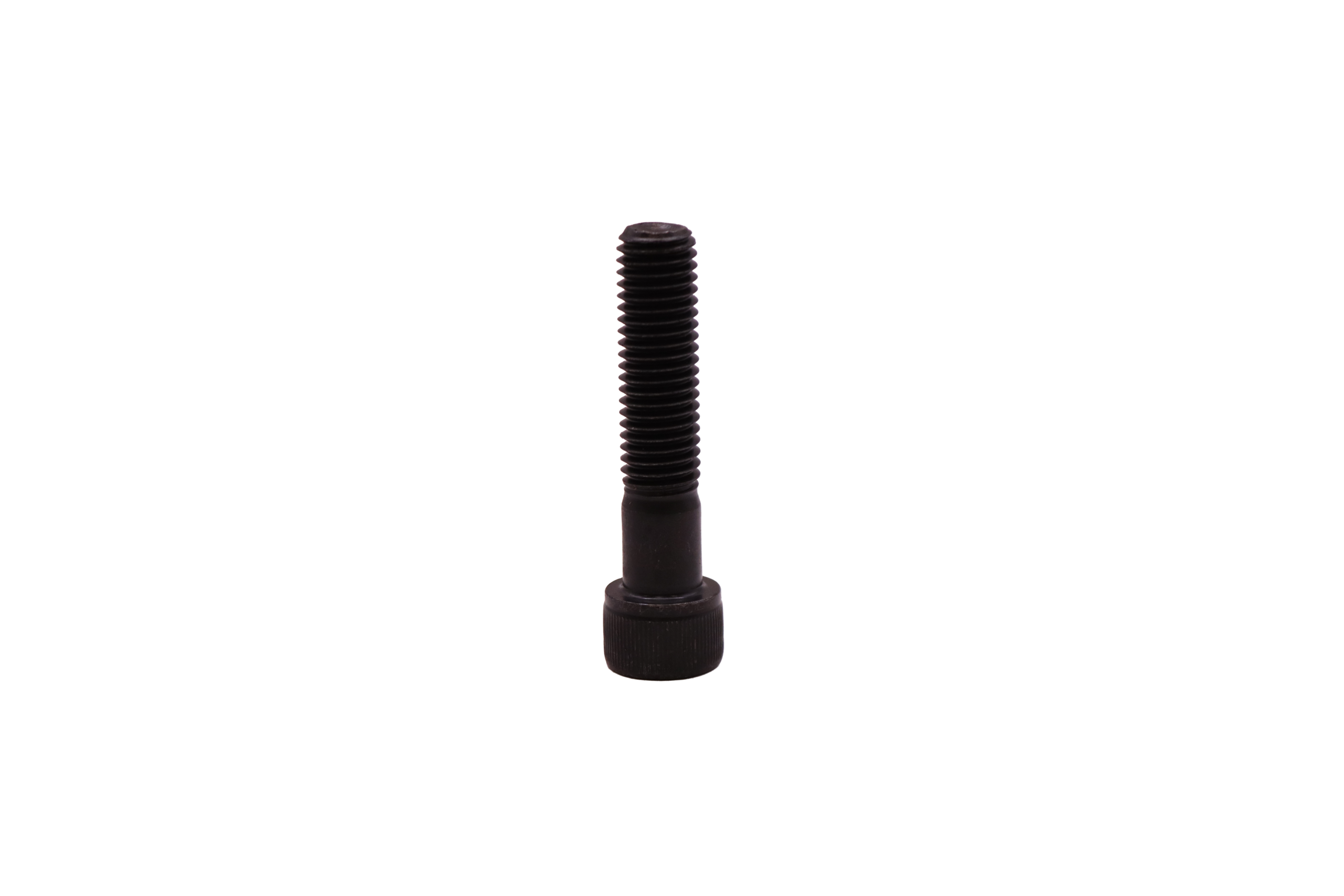

M12 x 55 mm DIN 912 / ISO 4762 socket head cap screw used across Virtus Equipment and ZERMA America ZCS, ZSS, ZHS, and GSL series machines. Grade 12.9. Used in shredder housing and stator knife cover plate positions across multiple machine series. Confirm quantity from machine documentation. Sold individually.
The Fixing Bolt DIN 912 M12 x 55 12.9 is a socket head cap screw conforming to DIN 912 / ISO 4762 used across a wide range of Virtus Equipment and ZERMA America machines. This bolt appears in ZCS 600, ZCS 1000, and ZCS 1400 Shredder Granulator Combinations; ZSS 850, ZSS 850+, ZSS 1200, ZSS 1500, and ZSS 2000 General Purpose Shredders; ZHS 1500, ZHS 2000, and ZHS 2600 Horizontal Shredders; and GSL 300-800 Slow Speed Granulators. It is used in shredder housing, stator knife cover plate, and other structural fastening positions across these machine families. The 55 mm length provides the correct thread engagement depth for the specific mounting positions in which this bolt is specified. Grade 12.9 construction delivers a minimum tensile strength of 1,220 N/mm². The internal 10 mm hex (Allen) drive and low-profile cylindrical cap head allow installation in recessed positions with limited clearance. Consult your machine’s parts documentation to confirm the exact quantity required for your specific machine before ordering. Sold individually.
| Weight | 1 lbs |
|---|---|
| Dimensions | 2.75 × 0.75 × 0.75 in |
SKU: 80011260
Standard: DIN 912 / ISO 4762
Thread Size: M12 x 1.75 mm (coarse pitch)
Length: 55 mm
Head Type: Socket Head Cap Screw (cap head)
Hex Key Size: 10 mm
Property Class: 12.9
Tensile Strength: 1,220 N/mm² minimum
Sold As: Individual bolt
Grade 12.9 High-Strength Construction: Provides 1,220 N/mm² minimum tensile strength for reliable performance in structural fastening positions across ZCS, ZSS, ZHS, and GSL series machines.
DIN 912 / ISO 4762 Socket Head Cap Screw: Internal 10 mm hex (Allen) drive with low-profile cylindrical head allows installation in recessed positions with limited wrench clearance.
Wide Machine Compatibility: Used across ZCS 600, ZCS 1000, ZCS 1400, ZSS 850, ZSS 850+, ZSS 1200, ZSS 1500, ZSS 2000, ZHS 1500, ZHS 2000, ZHS 2600, and GSL 300-800 -- confirm position and quantity from your machine’s parts documentation.
Used in shredder housing, stator knife cover plate, and structural fastening positions across multiple machine families. Consult your machine’s parts documentation to confirm the correct position and quantity for your specific machine model.
Compatible Machines: Virtus Equipment and ZERMA America ZCS 600, ZCS 1000, ZCS 1400 Shredder Granulator Combinations; ZSS 850, ZSS 850+, ZSS 1200, ZSS 1500, ZSS 2000 General Purpose Shredders; ZHS 1500, ZHS 2000, ZHS 2600 Horizontal Shredders; GSL 300-800 Slow Speed Granulators
