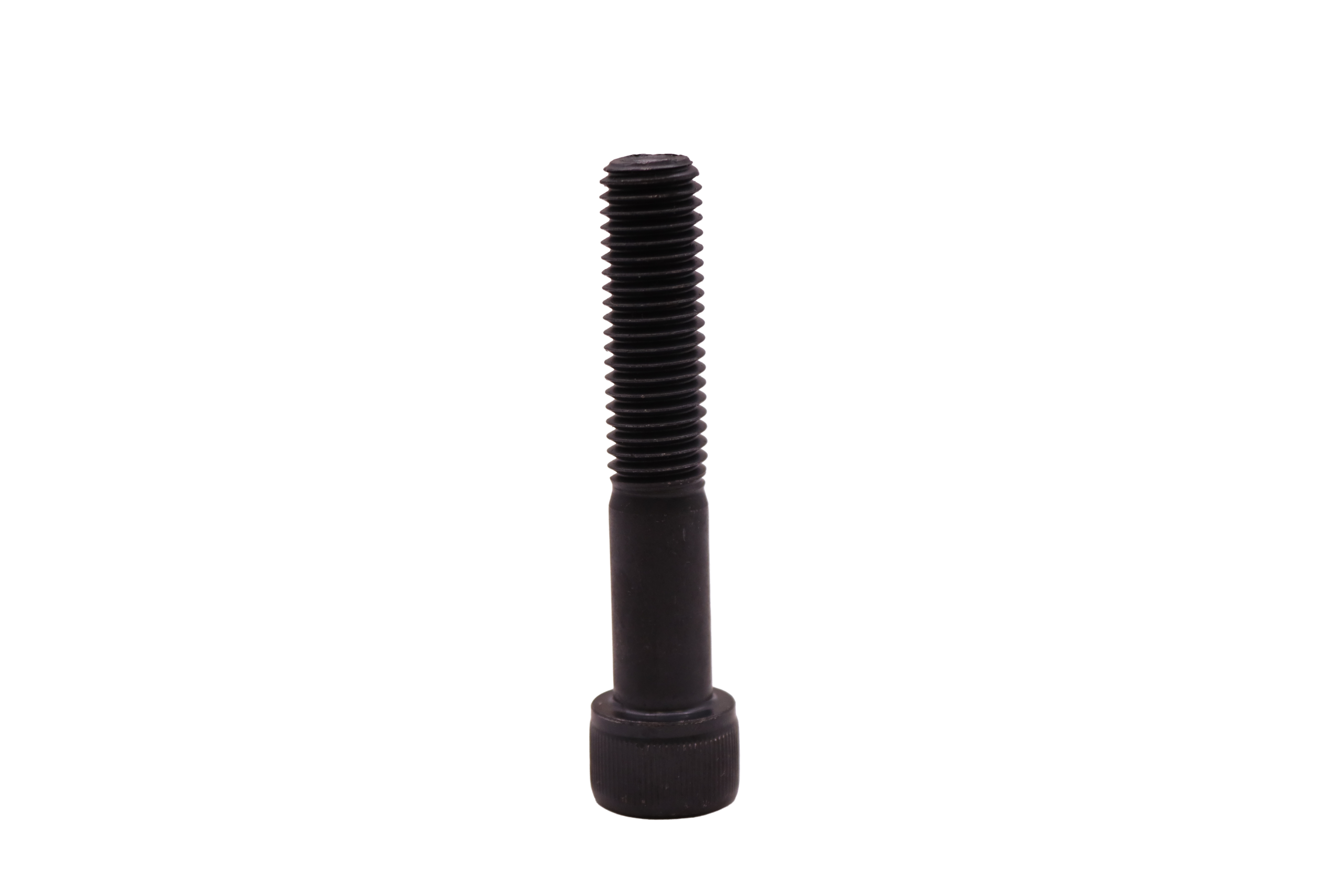

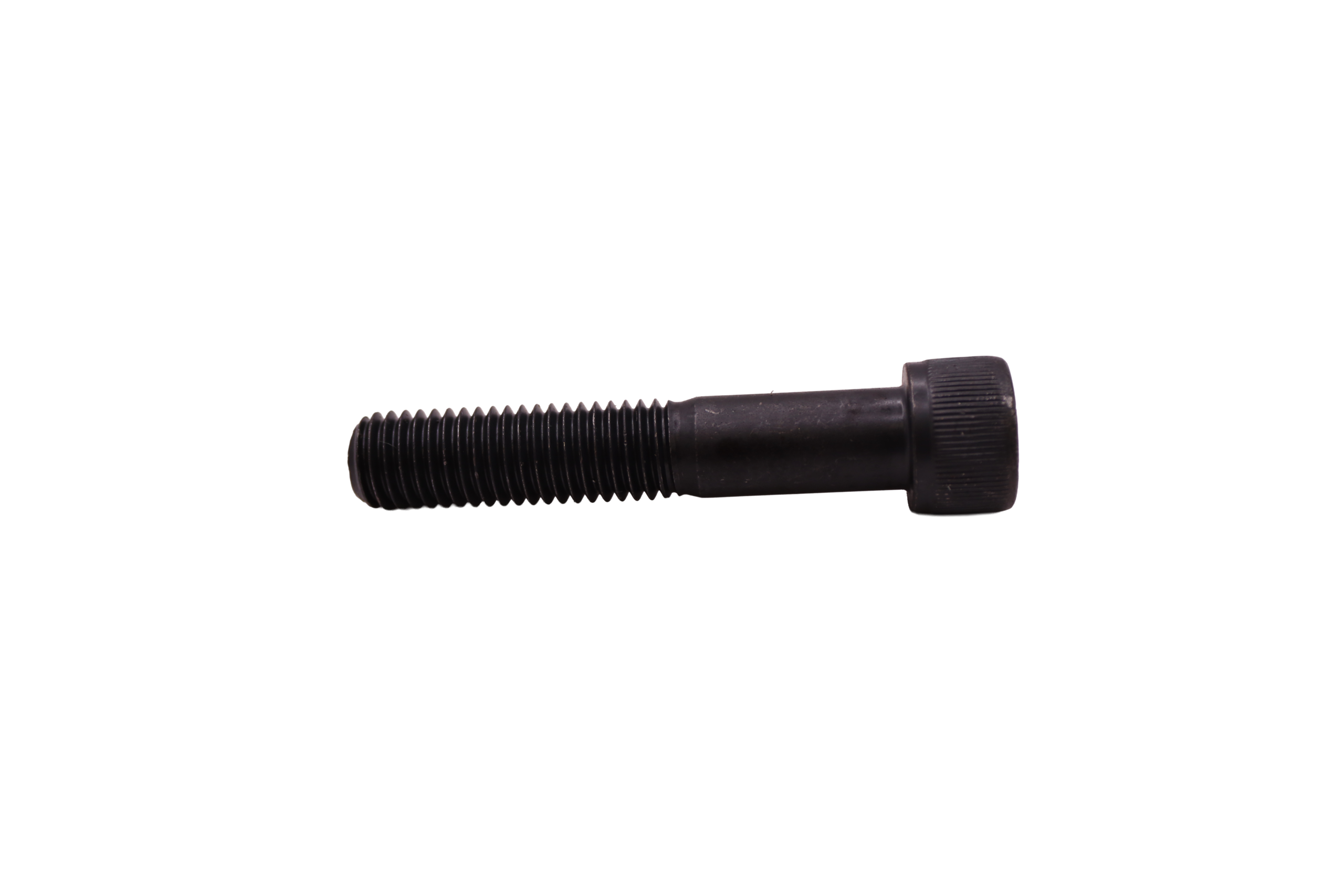

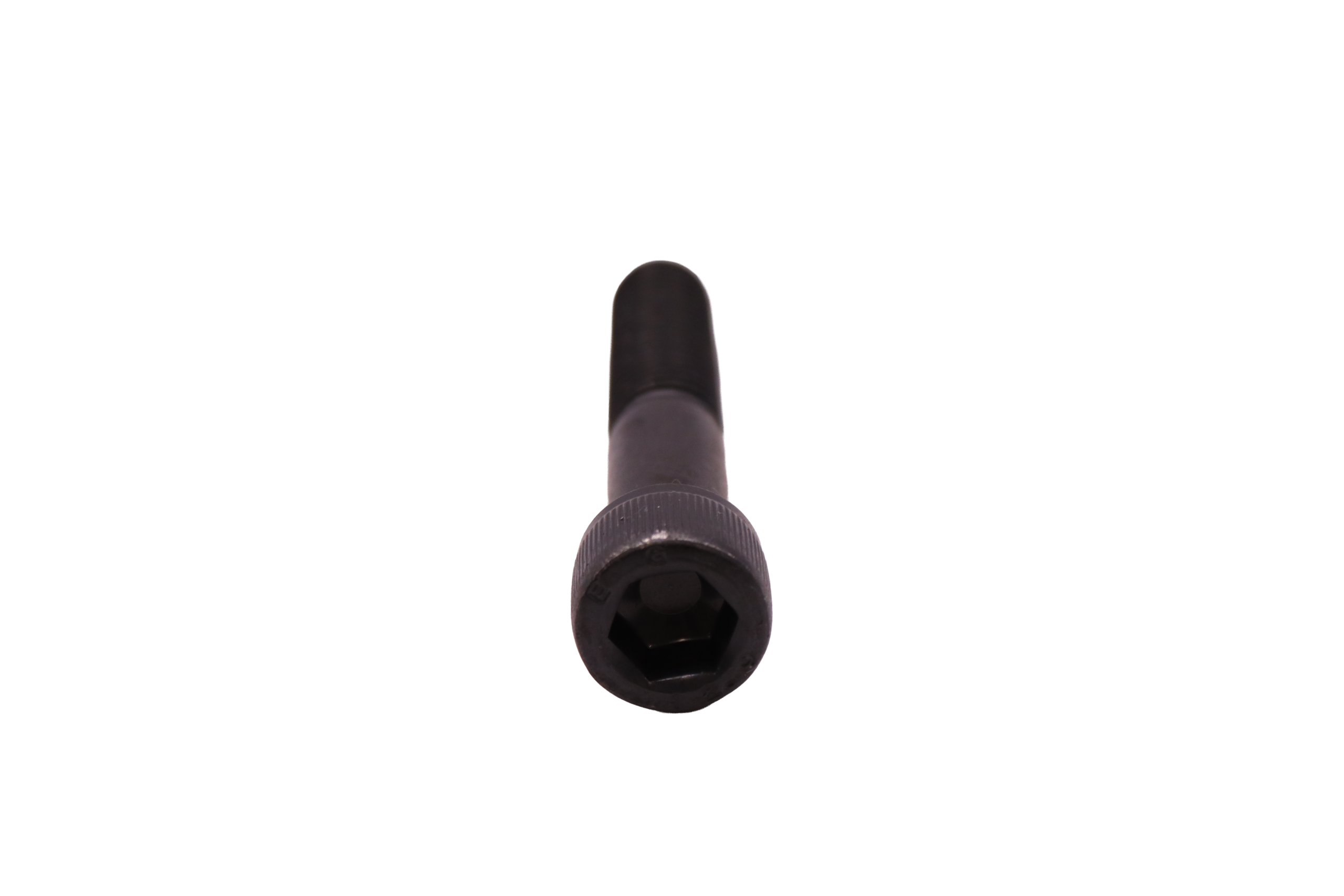

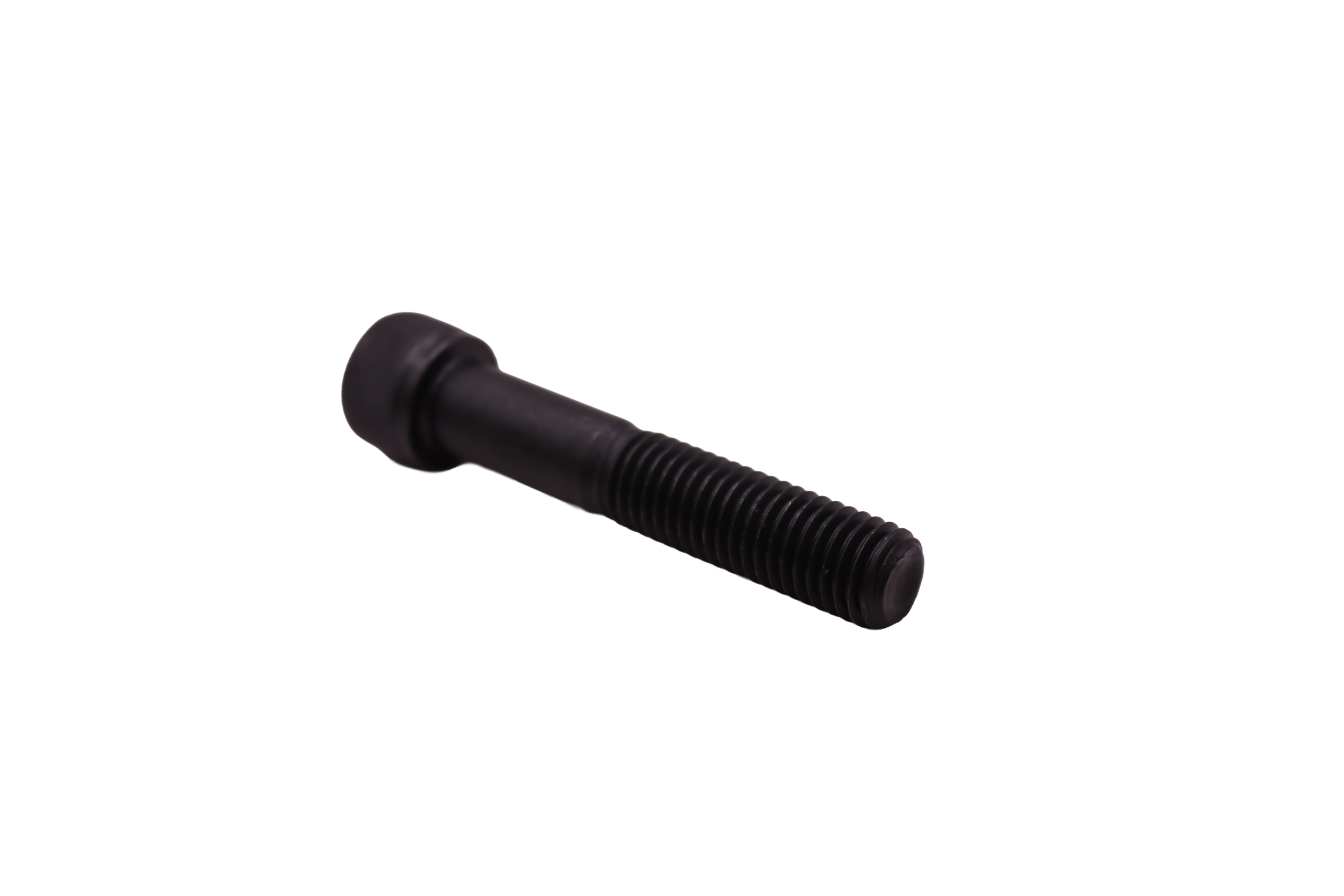

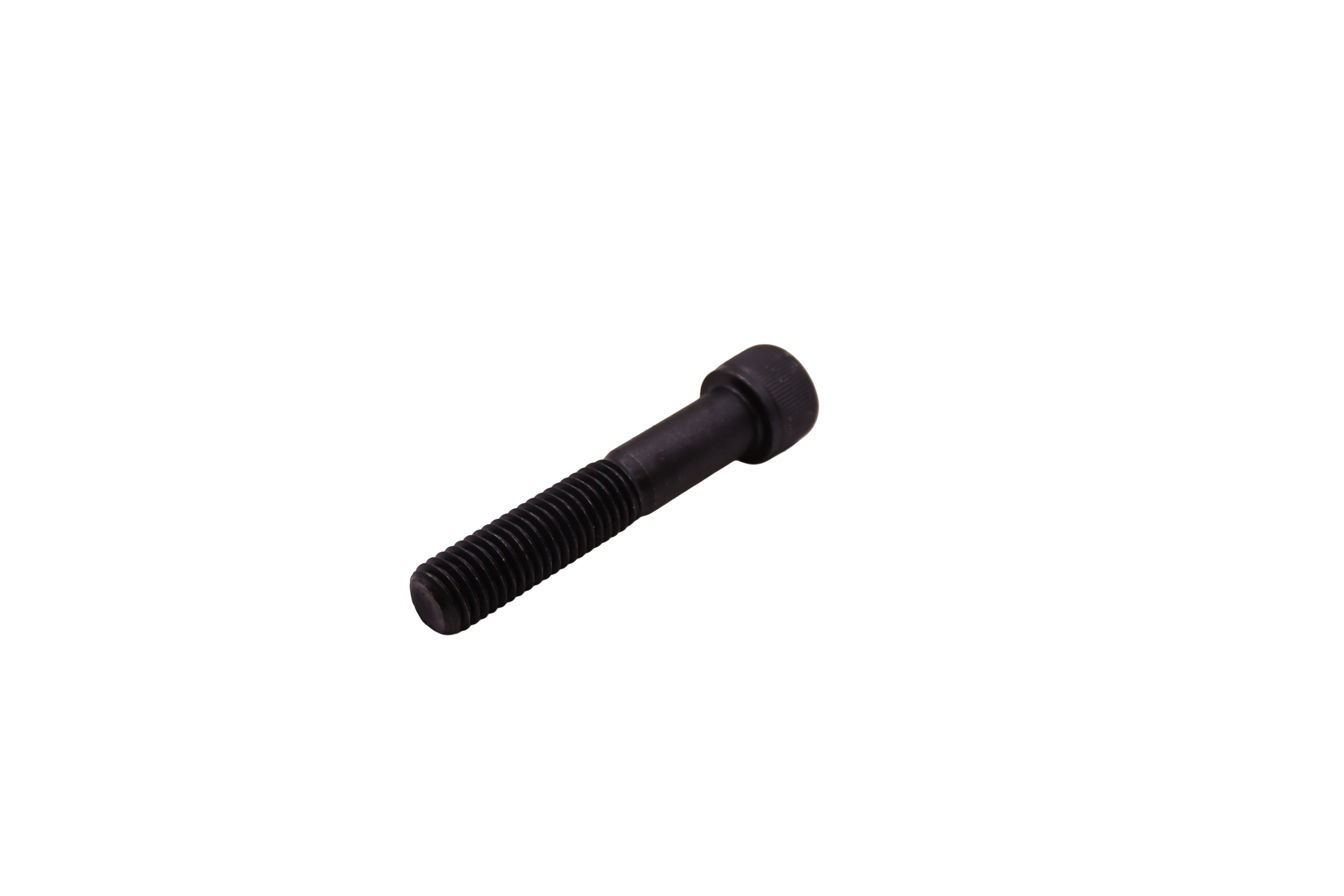

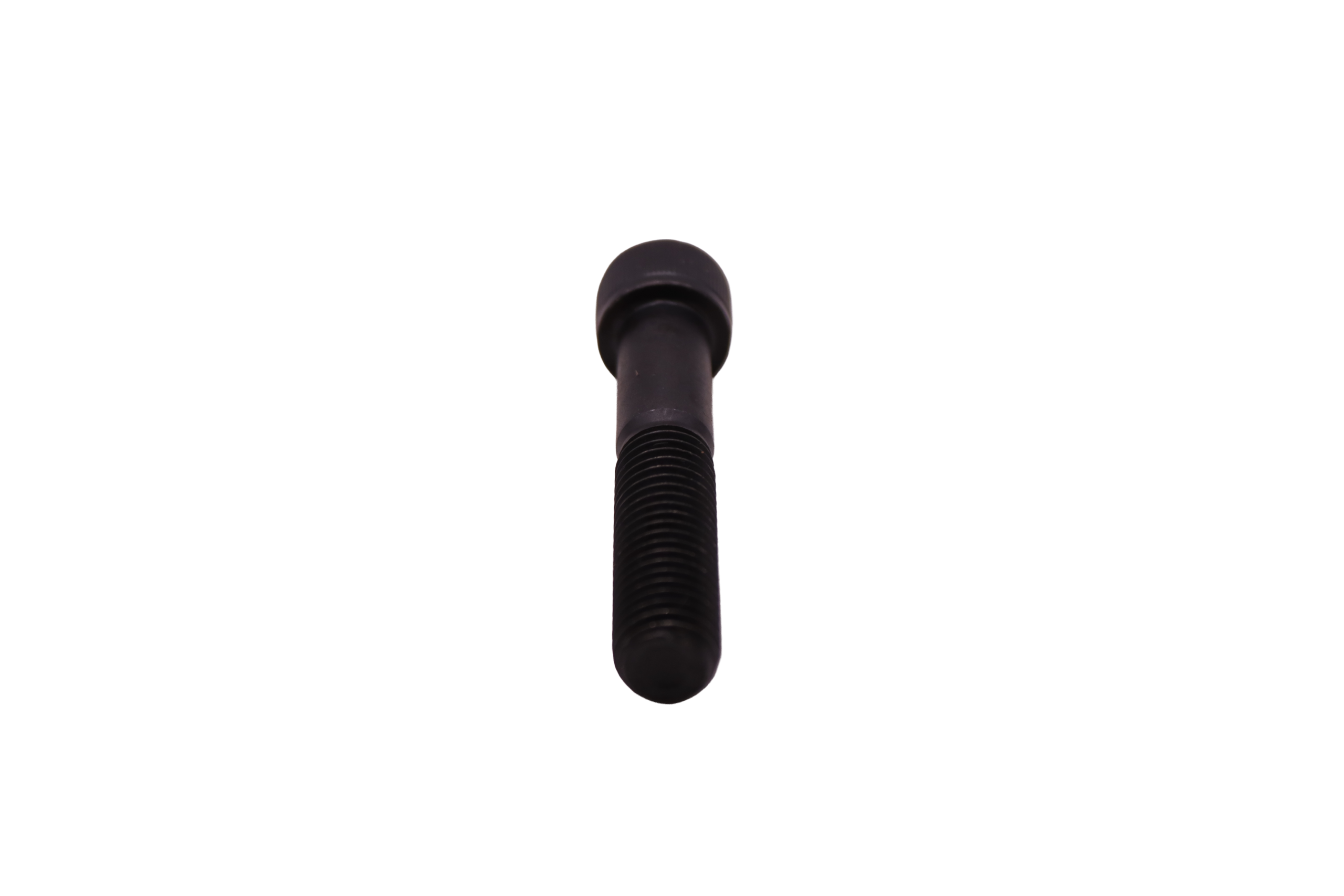

M12 x 65 mm DIN 912 / ISO 4762 socket head cap screw (cap head bolt) used in Virtus Equipment and ZERMA America ZRS 1000 and ZRS 1500 Pipe and Profile Shredders. Grade 12.9 high-strength steel with 1,220 N/mm² minimum tensile strength. Low-profile cylindrical head with internal 10 mm hex (Allen) drive allows installation in recessed or space-constrained positions. Consult your machine’s parts documentation to confirm the correct quantity for your specific machine. Sold individually.
The Fixing Bolt DIN 912 M12 x 65 12.9 is a socket head cap screw conforming to DIN 912 / ISO 4762 used in the Virtus Equipment and ZERMA America ZRS 1000 and ZRS 1500 Pipe and Profile Shredders. The 65 mm length provides the correct thread engagement depth for the specific mounting positions in which this bolt is specified. The internal hex (Allen) drive and low-profile cylindrical head allow installation with a standard hex key in positions where clearance around the fastener is limited. Grade 12.9 construction delivers a minimum tensile strength of 1,220 N/mm² — the highest standard property class for metric steel fasteners — ensuring the bolt can withstand the clamping and impact loads of continuous shredder operation without yielding or loosening. This bolt features partial threading, meaning there is a smooth unthreaded shank section below the head before the threads begin. Consult your machine’s parts documentation to confirm the correct quantity before ordering. Sold individually.
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 3 × 0.75 × 0.75 in |
SKU: 80011270
Standard: DIN 912 / ISO 4762
Thread Size: M12 x 1.75 mm (coarse pitch)
Length: 65 mm
Head Type: Socket Head Cap Screw (cap head)
Hex Key Size: 10 mm
Property Class: 12.9
Tensile Strength: 1,220 N/mm² minimum
Threading: Partial thread (unthreaded shank below head)
Sold As: Individual bolt
Grade 12.9 High-Strength Construction: Minimum tensile strength of 1,220 N/mm² -- the highest standard property class for metric fasteners -- ensures the bolt withstands the clamping and impact loads of continuous shredder operation without yielding or loosening.
DIN 912 / ISO 4762 Socket Head Cap Screw: Low-profile cylindrical head with internal 10 mm hex (Allen) drive allows installation in recessed and space-constrained positions where a standard hex wrench cannot fit.
Partial Thread Design: Smooth unthreaded shank section below the head before threads begin, providing a precision grip length for the specific mounting positions in which this bolt is specified.
OEM-Specification Dimensions: M12 x 65 mm dimensions meet the original fastener specification for the ZRS 1000 and ZRS 1500, ensuring direct replacement without modification.
Used in the stator knife assembly of the Virtus Equipment and ZERMA America ZRS 1000 and ZRS 1500 Pipe and Profile Shredders. Consult your machine’s parts documentation to confirm the correct quantity and position for your specific machine configuration.
Compatible Machines: Virtus Equipment P Series and ZERMA America ZRS 1000, ZRS 1500 Pipe and Profile Shredders
