Description

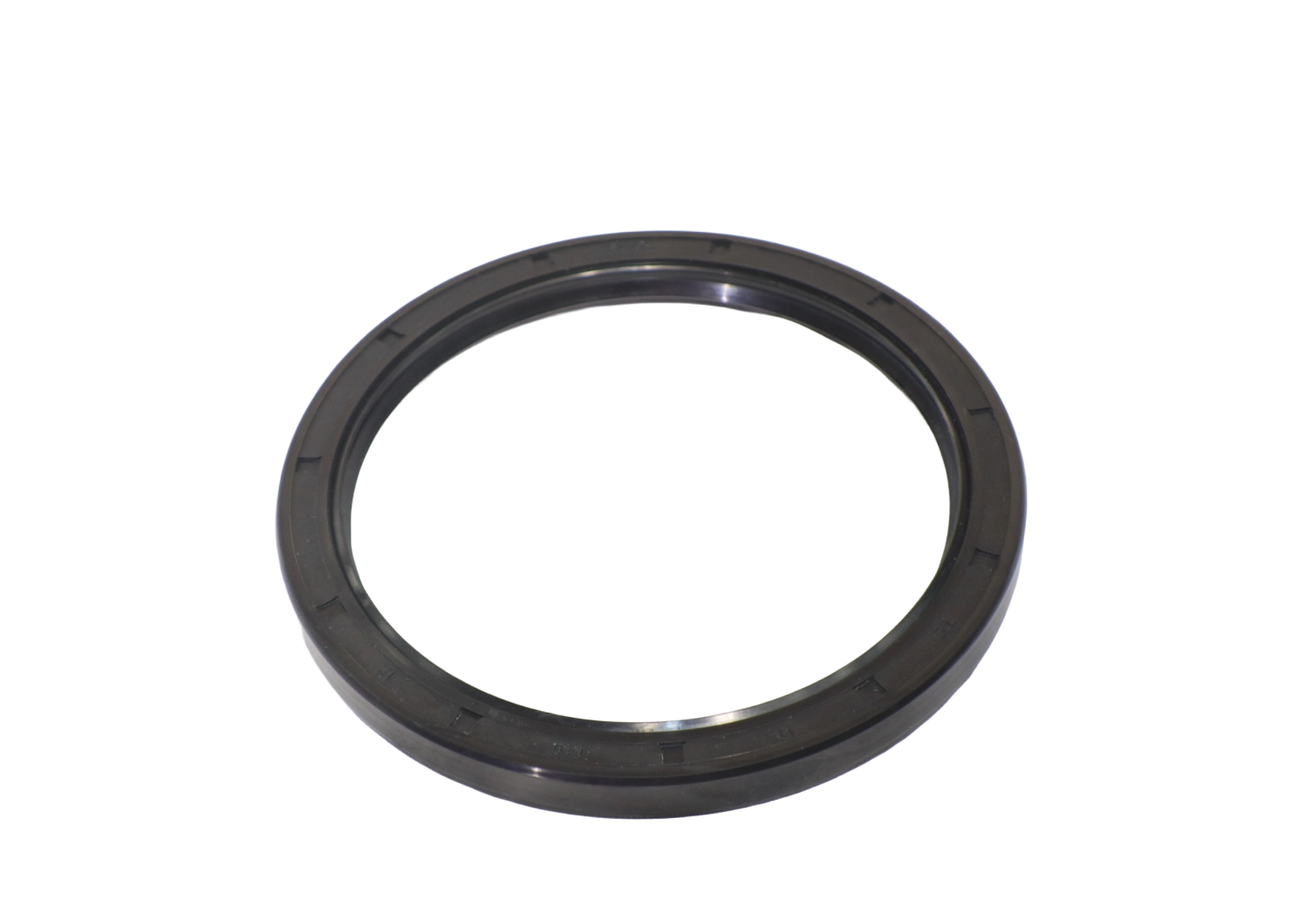

The Seal (D115 x 140 x 12) is a precision-engineered double lip rotary shaft seal specifically designed for Virtus Equipment and ZERMA America granulators, shredders, and material processing equipment. This high-performance oil seal provides critical protection for rotating shafts and bearings while preventing lubricant leakage and contamination in demanding industrial applications.
Technical Specifications:
SKU: 80004030
Seal Type: TC (Double Lip with Garter Spring)
Inner Diameter (Shaft): 115mm (4.528 inches)
Outer Diameter (Bore): 140mm (5.512 inches)
Width: 12mm (0.472 inches)
Material: NBR (Nitrile Butadiene Rubber)
Spring Type: Garter spring for constant radial load
Case Material: Carbon steel with corrosion-resistant coating
Operating Temperature: -30°C to +120°C (-22°F to 248°F)
Design: Rubber covered metal case with embedded reinforcement
Seal Configuration: Double lip with dust exclusion
Pressure Rating: Suitable for standard industrial applications
Key Features:
Double Lip Design: Primary sealing lip with secondary dust lip prevents contamination from both internal and external sources
Premium NBR Construction: Nitrile Rubber (Buna-N) material offers excellent resistance to oils, greases, and hydrocarbons
Garter Spring Technology: Integrated spring maintains consistent lip pressure ensuring reliable sealing throughout service life
Metal Case Construction: Robust metal outer case provides structural integrity and precise bore fitment
Wide Temperature Range: Operates effectively from -30°C to +120°C (-22°F to 248°F)
Superior Contamination Protection: Prevents dust, dirt, moisture, and abrasives from entering bearing assemblies
Direct OEM Replacement: Manufactured to exact specifications for perfect fitment
Material Properties - NBR (Nitrile Rubber):
Excellent Resistance To: Mineral oils, hydraulic fluids, greases, aliphatic hydrocarbons, vegetable oils, water (limited exposure)
Good Resistance To: Dilute acids, dilute alkalis, gasoline, diesel fuel
Temperature Range: -30°C to +120°C continuous operation
Hardness: Optimized for sealing applications
Note: Not recommended for brake fluids, aromatic hydrocarbons, strong acids, ketones, or high-temperature applications above 120°C
Quality Assurance:
All seals are manufactured to stringent quality standards ensuring consistent performance and reliability. Each seal undergoes dimensional verification and material testing before shipment. Our commitment to quality ensures long service life and dependable operation in demanding industrial environments.
Applications:
Essential for sealing rotating shafts in granulators, shredders, and material processing equipment where lubricant retention and contamination prevention are critical. Ideal applications include:
• Rotor shaft seals in granulators and shredders
• Drive shaft sealing in material processing equipment
• Bearing housing seals protecting against contaminants
• Gearbox and transmission shaft sealing
• Motor shaft seals in industrial environments
• Recycling equipment operating in dusty or contaminated conditions
Installation Guidelines:
Preparation: Clean shaft and bore thoroughly, removing all debris and old seal residue
Lubrication: Apply thin film of compatible lubricant to seal lips and shaft surface
Orientation: Install with spring-loaded lip facing the fluid/lubricant side
Installation Method: Use proper seal installation tool or press; avoid hammering directly on seal
Shaft Condition: Ensure shaft surface is smooth and free from burrs or damage
Alignment: Install squarely to prevent cocking or damage to sealing lip
Maintenance & Service Life:
Inspection: Regularly check for leakage or deterioration during scheduled maintenance
Replacement Indicators: Visible lubricant leakage, hardening or cracking of rubber, visible wear on sealing lip
Service Life: Varies based on operating conditions, typically several thousand hours in normal industrial service
Storage: Store in cool, dry location away from direct sunlight and ozone sources
Shelf Life: Use within 5 years of manufacture for optimal performance
Why Choose This Seal:
Prevents Costly Downtime: Reliable sealing prevents lubricant loss and bearing contamination
Extended Equipment Life: Protects critical bearing and shaft components from premature wear
Cost-Effective Solution: Quality construction provides excellent value versus frequent replacement
Proven Performance: NBR material tested and proven in industrial granulator and shredder applications
Direct Replacement: Exact OEM specifications eliminate fitment concerns
Compatibility:
This seal is designed as a direct replacement for Virtus Equipment and ZERMA America granulators and shredders. Suitable for models requiring 115mm shaft diameter sealing applications. Verify dimensions before ordering to ensure proper fitment for your specific equipment model.
