High-capacity stator knife engineered for 300/600 low speed granulators and central granulators requiring maximum cutting coverage and performance. Features compact D2 tool steel construction with enhanced thickness for superior durability. Provides the critical stationary cutting edge for efficient material processing with rotor knives. Compatible with both Virtus Equipment and ZERMA America 300/600 granulators, delivering exceptional cutting performance and extended operational life in demanding industrial environments with multiple knife configuration.

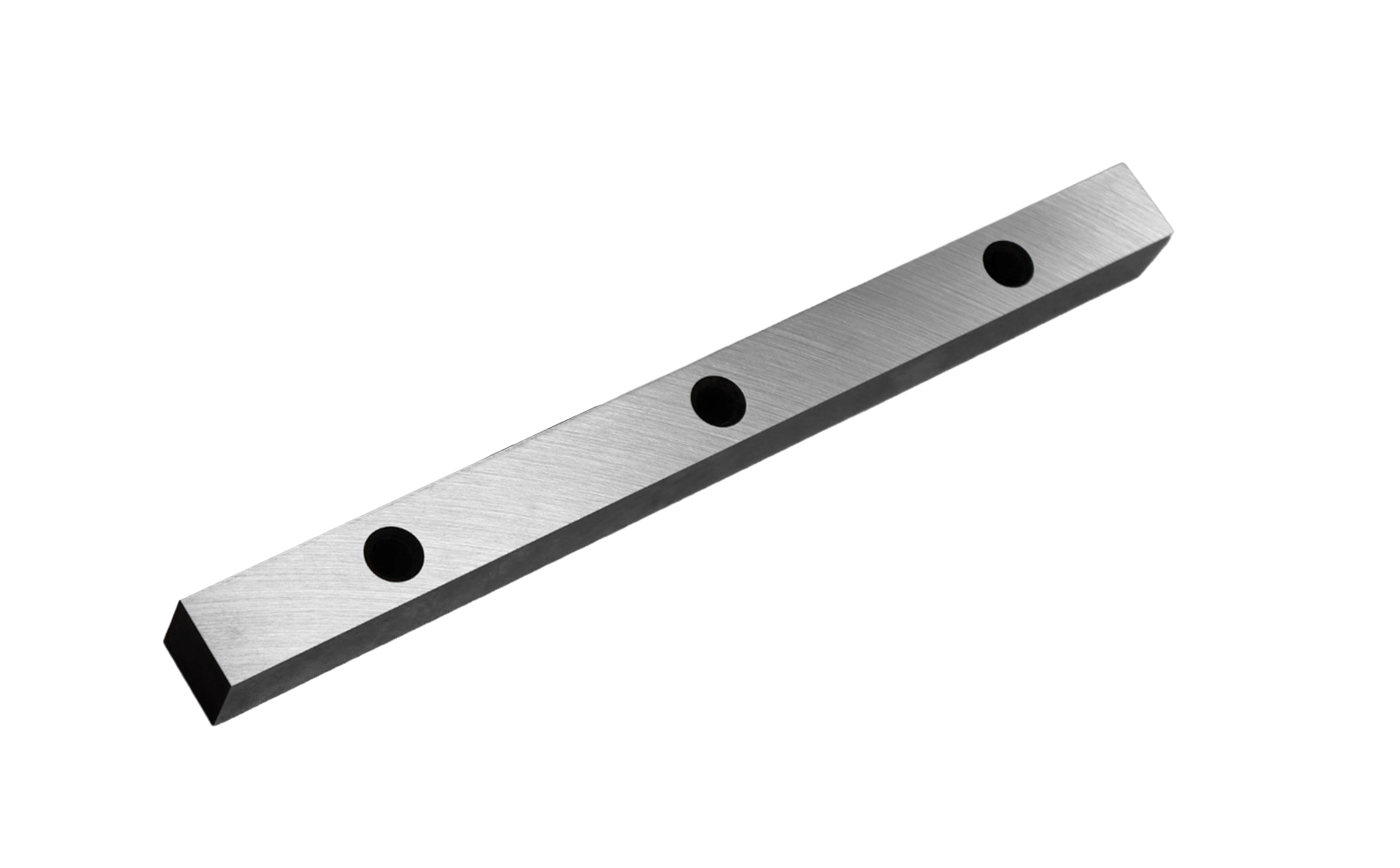

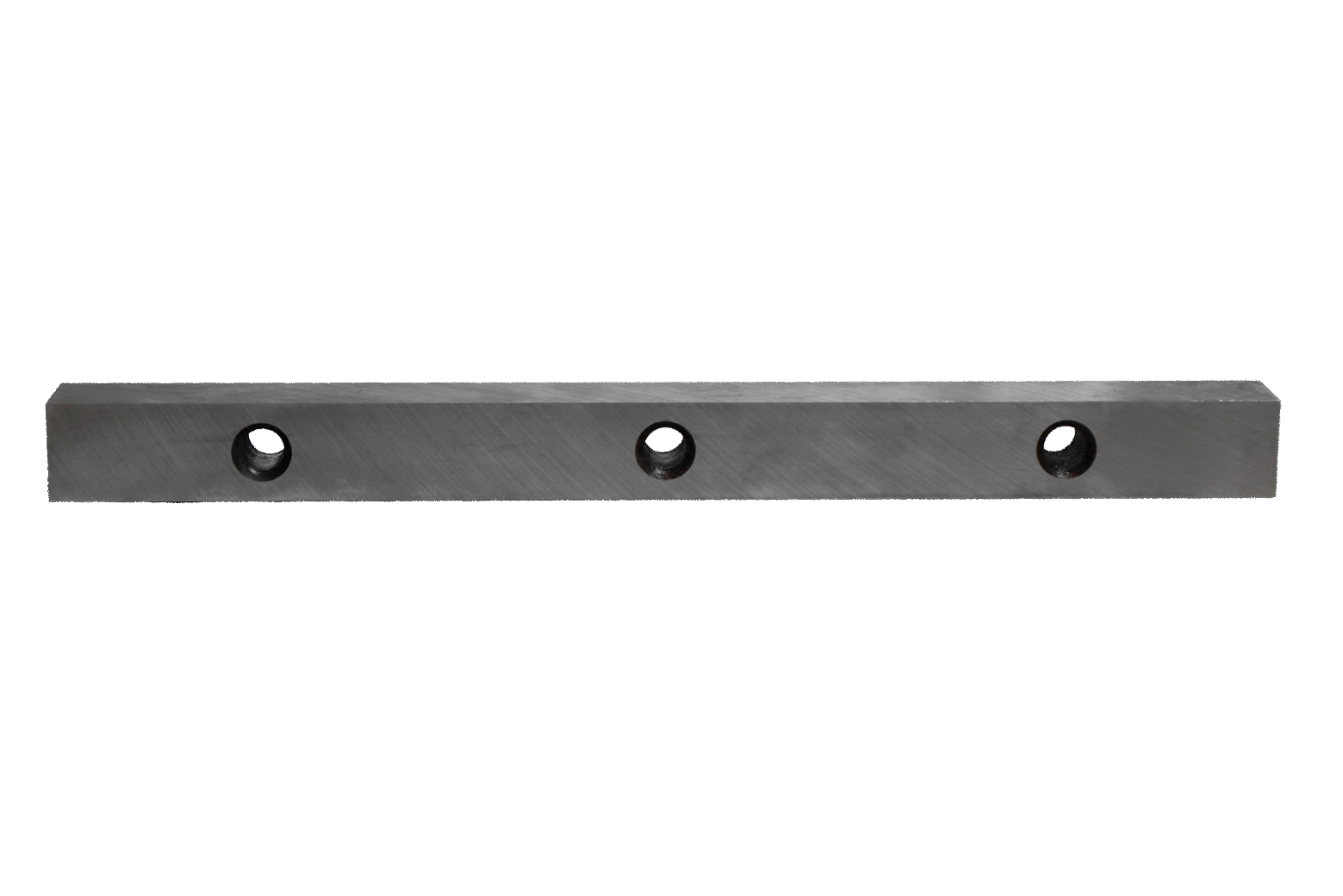

The 306 x 25 x 25 Stator Knife is specifically designed for high-capacity 300 series low speed granulator and central granulator applications from both Virtus Equipment and ZERMA America, featuring a unique compact design with multiple knife configuration for optimal cutting coverage. This precision-engineered component ensures superior performance across the full chamber width while maintaining the durability required for continuous industrial operation.
| Weight | 4 lbs |
|---|---|
| Dimensions | 13 × 1 × 1 in |
Technical Specifications:
SKU: 80001301
Material: D2 Tool Steel with specialized heat treatment
Hardness: 58-62 HRC for optimal cutting performance
Dimensions: 306 x 25 x 25 mm
Dimensional Tolerance: ±0.1mm for precise fitment
Quantity per machine: 4 stator knives
Surface Finish: Precision ground and polished for maximum efficiency
Key Features:
Multiple Knife Configuration: Four-knife system provides comprehensive cutting coverage for 600mm chamber
Compact Design: 306mm length optimized for efficient material flow and cutting performance
Enhanced Thickness: 25mm thickness delivers superior cutting stability and extended life
Premium D2 Steel Construction: High-grade tool steel with exceptional wear resistance
Optimized Cutting Geometry: Advanced edge design ensures consistent particle size reduction
Industrial Durability: Built for continuous operation in high-volume processing environments
Applications: Excellent for high-capacity processing of plastics, polymer materials, and industrial materials. Ideal for large-scale recycling facilities, high-throughput manufacturing operations, and industrial waste processing systems requiring reliable, consistent size reduction with enhanced cutting coverage and durability.
Compatibility: GSL 300/600 Low Speed Granulators/Central Granulators (ZERMA America), A30 Series Low Speed Granulators/Central Granulators (Virtus Equipment)
