Description

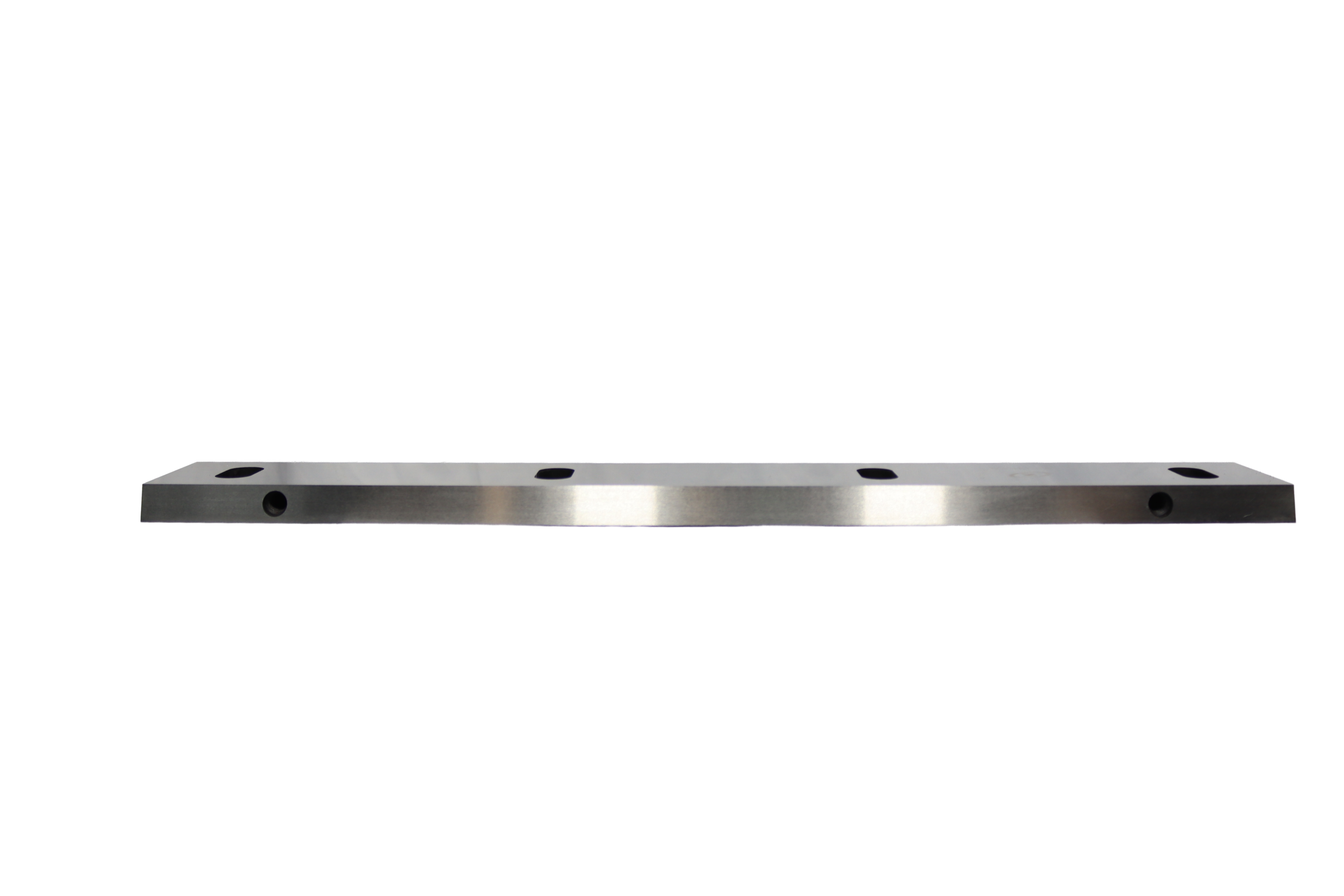

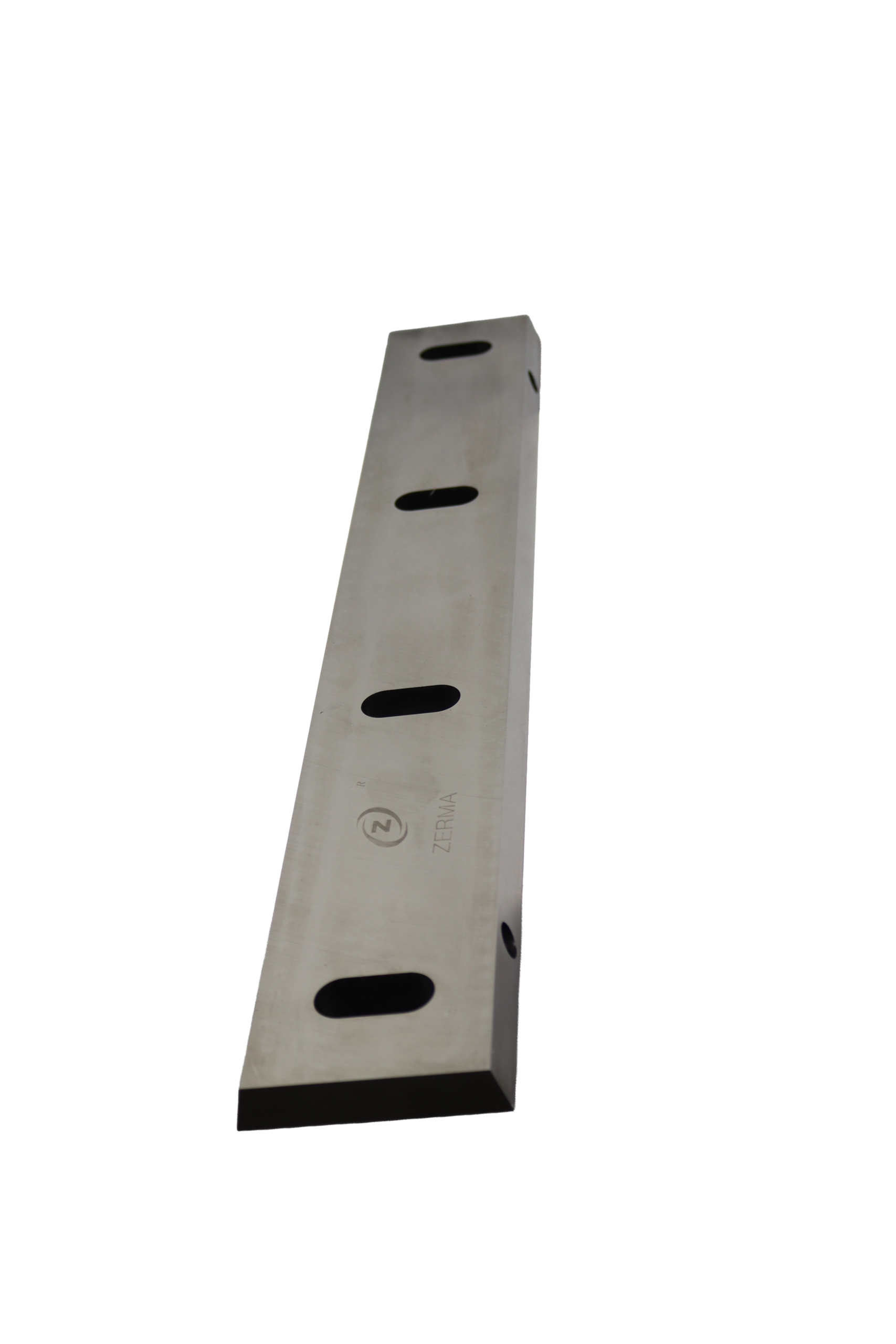

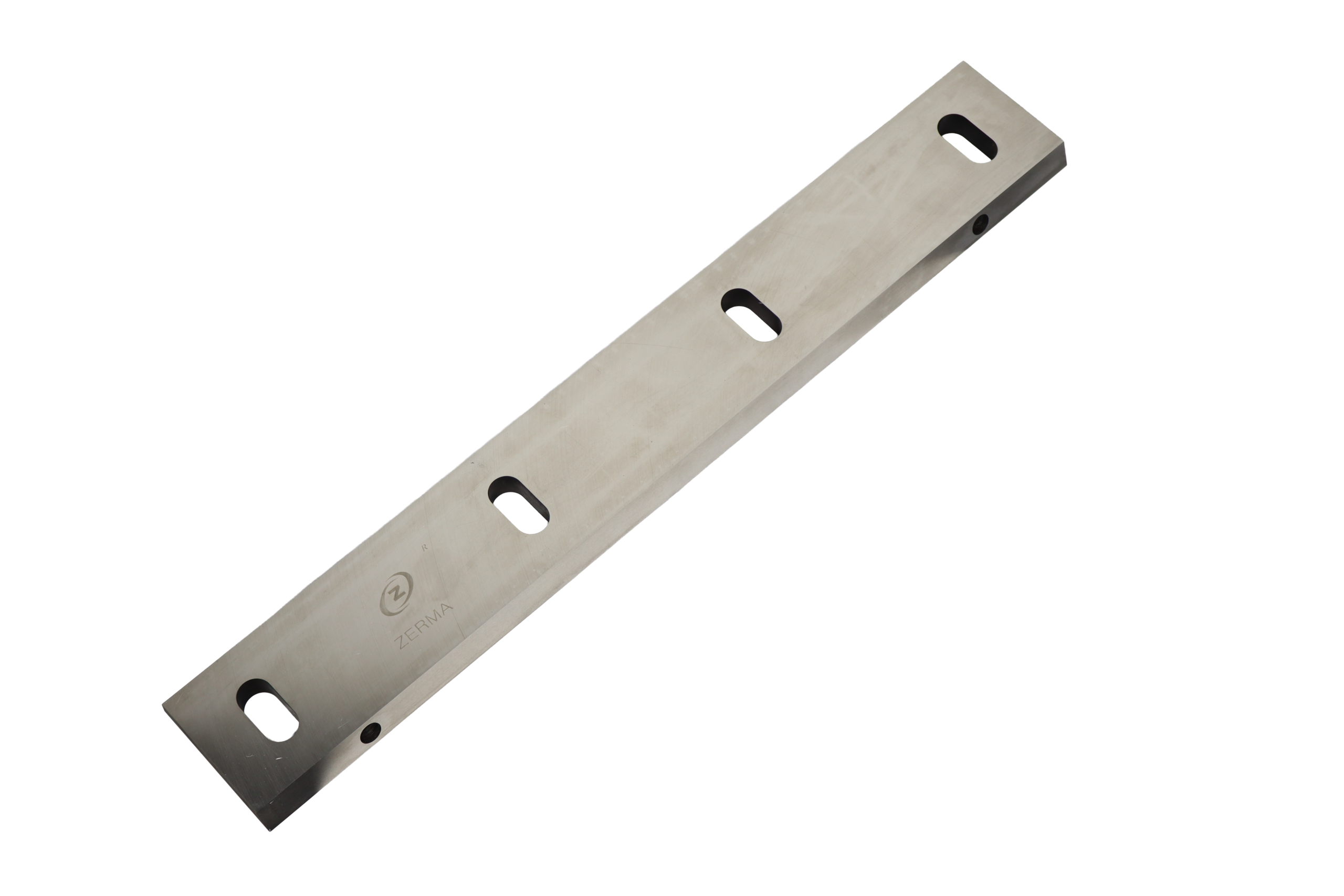

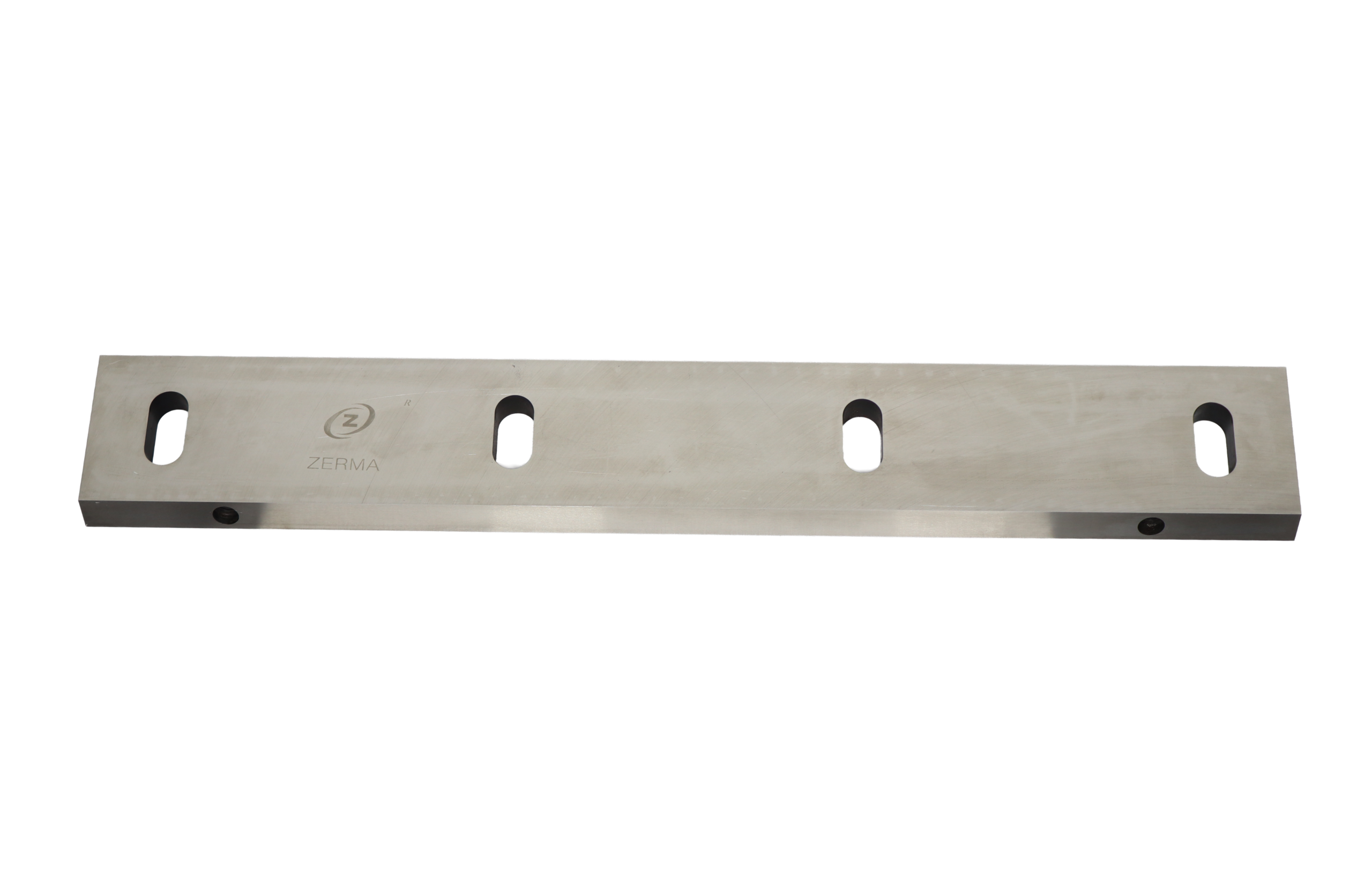

The 552 x 85 x 18 Stator Knife is a precision-ground stationary cutting component for the granulator section of Virtus Equipment and ZERMA America shredder granulator combination systems. The stator knife provides the fixed cutting edge that works in precise scissor-like opposition with the rotating rotor knives to shear plastic material down to the target particle size determined by the screen hole diameter. Accurate cutting gap maintenance between the stator and rotor knives is the single most critical factor in granulator performance, affecting output particle quality, fines generation, power consumption, and knife service life.
Technical Specifications
SKU: 80053741
Dimensions: 552 x 85 x 18 mm
Knife Type: Stator Knife
Material: D2 Tool Steel (1.2379)
Hardness: 58 to 62 HRC
Cross-Section Profile: 85 x 18 mm
Applications: Granulation of plastics, production scrap recycling, and inline granulation
Key Features
Precision-Ground Cutting Edge: Ground to exact dimensional tolerances for proper cutting gap alignment with rotor knives, essential for consistent output particle size and minimal fines generation.
ZCS 600 and SG 600 Specific Profile: The 85 x 18 mm cross-section is the standard knife profile for the granulator cutting chamber of the ZCS 600 Shredder Granulator Combination (ZERMA America) and SG 600 Shredder Granulator Combination (Virtus Equipment).
D2 Tool Steel Construction: Manufactured from premium 1.2379 high-carbon tool steel heat treated to 58 to 62 HRC for outstanding wear resistance, edge retention, and extended service intervals.
50+ Years of Manufacturing Expertise: Produced by a manufacturer with over 50 years of combined steel production and knife manufacturing experience for unmatched consistency and quality.
Direct OEM Replacement: Precision machined to original equipment specifications. Consult your machine’s parts documentation to confirm correct fitment before ordering.
The 85 x 18 mm cross-section is the standard knife profile for the granulator section of the ZCS 600 and SG 600 combination systems. At 552 mm, this stator knife provides the specific cutting width coverage required for the ZCS 600 granulator cutting chamber configuration.
All Virtus Equipment Direct knives are manufactured from premium D2 tool steel (DIN 1.2379) with specialized heat treatment to 58 to 62 HRC, delivering outstanding wear and abrasion resistance in continuous industrial granulation environments. Our knives are produced by a manufacturer with over 50 years of combined steel production and knife manufacturing experience, ensuring consistent metallurgical quality and reliable performance across every knife we supply.
Compatibility: ZCS 600 Shredder Granulator Combination (ZERMA America), SG 600 Shredder Granulator Combination (Virtus Equipment)
