Description

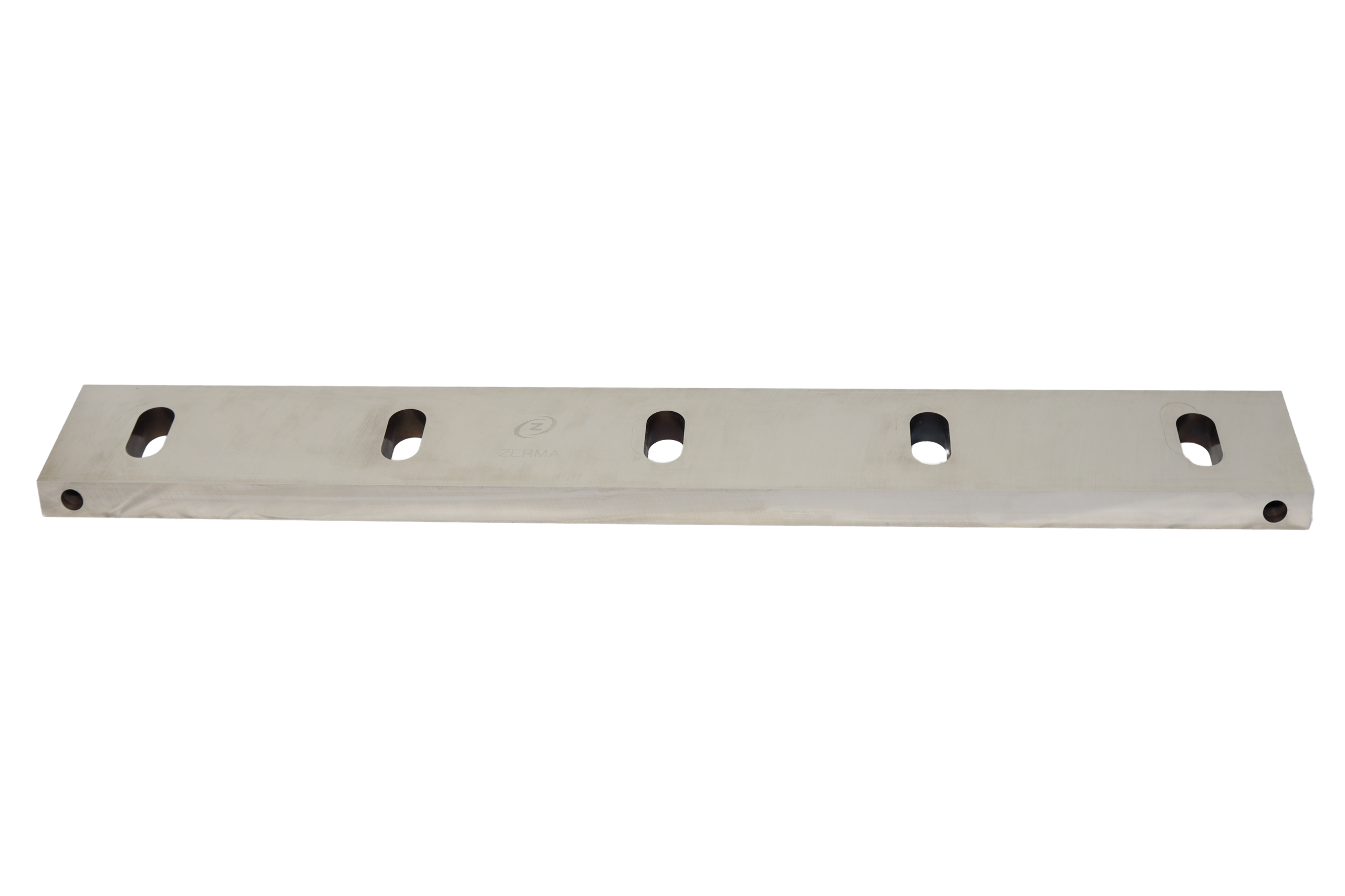

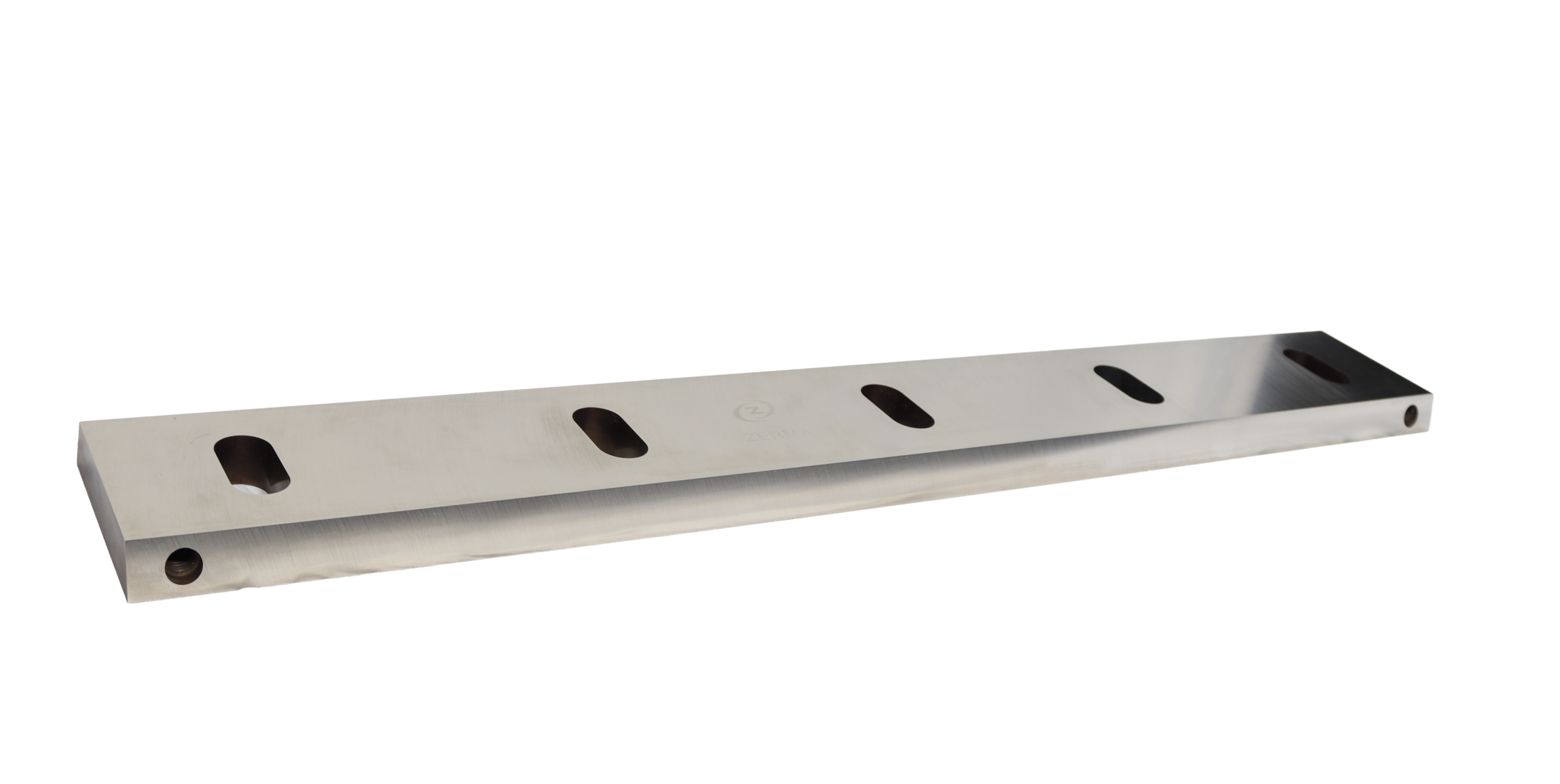

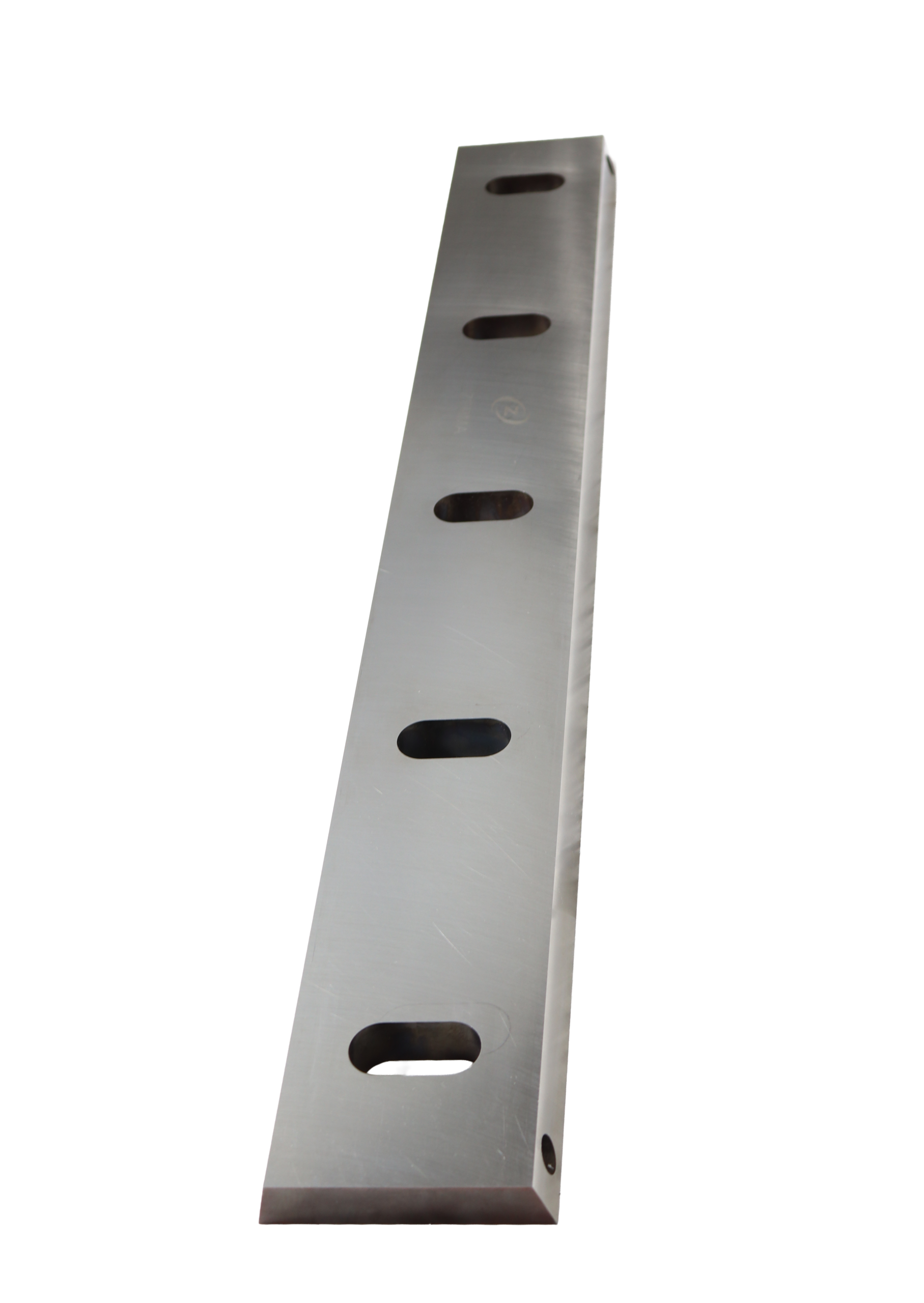

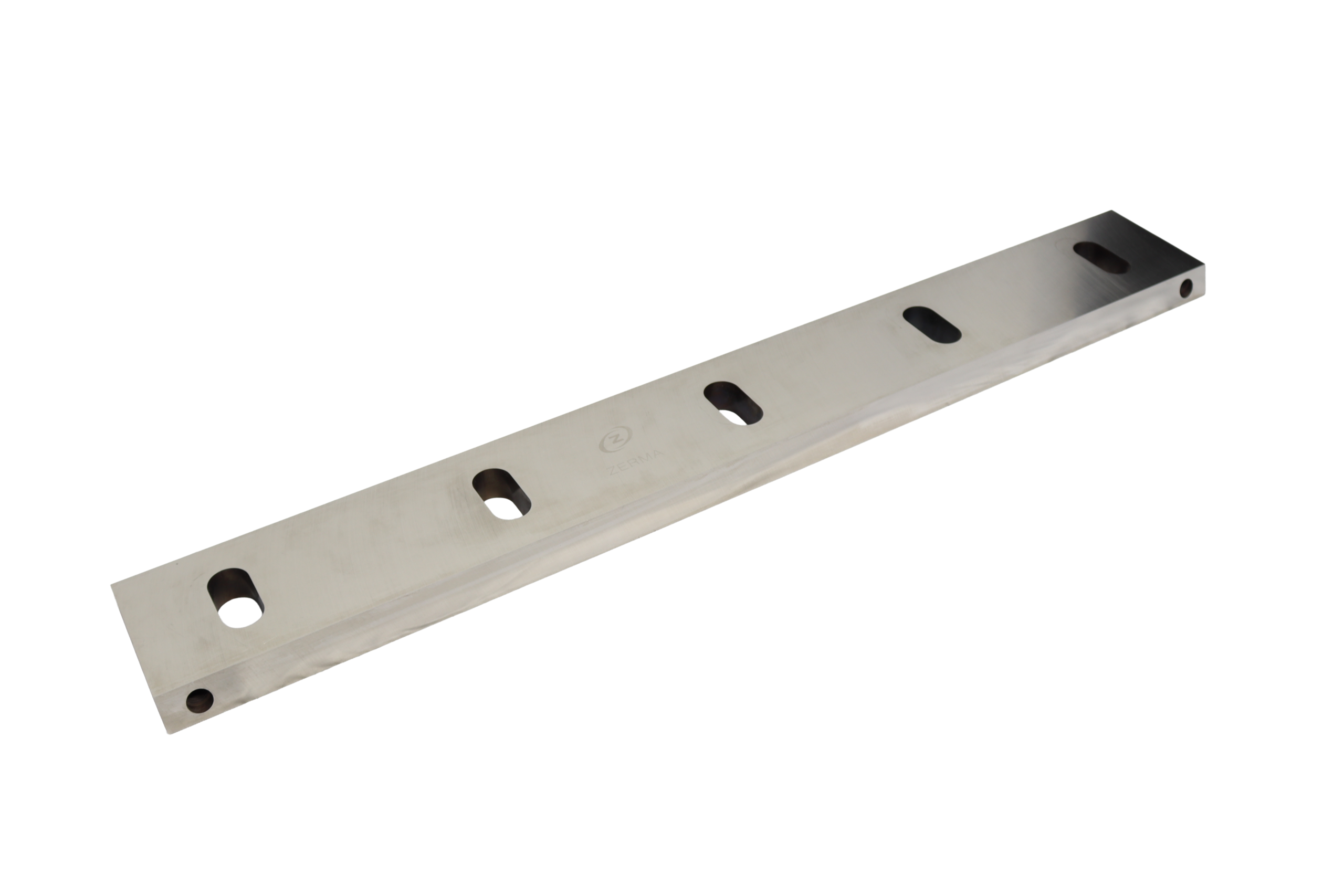

709 × 100 × 22 Stator Knife is a precision-ground, stationary cutting component for Virtus Equipment and ZERMA America granulators requiring this specific 709 mm cutting width. The stator knife provides the fixed cutting edge that works in precise scissor-like opposition with the rotating rotor knives to shear plastic material down to the target particle size determined by the screen hole diameter. Accurate cutting gap maintenance between the stator and rotor knives is the single most critical factor in granulator performance — affecting output particle quality, fines generation, power consumption, and knife service life.
Technical Specifications:
SKU: 80053717
Dimensions: 709 × 100 × 22 mm
Knife Type: Stator Knife
Material: D2 Tool Steel (1.2379)
Hardness: 58–62 HRC
Cross-Section Profile: 100 × 22 mm (standard GSH/GSC/GSE heavy-duty profile)
Applications: Central granulation of thick-walled plastics, profiles, pipes, and production waste
Related Parts: 726 × 100 × 22 Stator Knife — SKU: 80001080 | 795 × 100 × 22 Stator Knife — SKU: 80001070
Key Features:
Precision-Ground Cutting Edge: Ground to exact dimensional tolerances for proper cutting gap alignment with rotor knives — essential for consistent output particle size and minimal fines generation.
Heavy-Duty 100 × 22 mm Profile: Standard cross-section used across the GSH, GSC, and GSE granulator series provides the structural rigidity required for high-load central granulation applications.
Stationary Cutting Design: Mounts securely in the cutting chamber as the fixed cutting component, working in precise opposition with the rotor knives during high-speed granulation operation.
D2 Tool Steel Construction: Manufactured from premium 1.2379 high-carbon tool steel heat-treated to 58–62 HRC for outstanding wear resistance, edge retention, and extended service intervals.
50+ Years of Manufacturing Expertise: Produced by a manufacturer with over 50 years of combined steel production and knife manufacturing experience for unmatched consistency and quality.
Specific Width Configuration: The 709 mm cutting length is engineered for the specific machine model and cutting chamber width for which this knife is specified — consult your machine’s parts documentation to confirm correct fitment before ordering.
Direct OEM Replacement: Precision-machined to original equipment specifications for guaranteed fitment and performance.
The 100 × 22 mm cross-section is the standard heavy-duty profile used across the GSH, GSC, and GSE granulator series from Virtus Equipment and ZERMA America, delivering the structural rigidity required to withstand the cutting forces generated in central granulation of thick-walled plastic parts, profiles, pipes, and production waste.
All Virtus Equipment Direct knives are manufactured from premium D2 tool steel (DIN 1.2379) with specialized heat treatment to 58–62 HRC, delivering outstanding wear and abrasion resistance in continuous industrial granulation environments. Our knives are produced by a manufacturer with over 50 years of combined steel production and knife manufacturing experience, ensuring consistent metallurgical quality and reliable performance across every knife we supply.
Compatibility: Virtus Equipment and ZERMA America granulators requiring 709 mm cutting width — consult machine parts documentation to confirm correct fitment
