Replacement granulator screen for Virtus Equipment and ZERMA America GSC 700/1400 granulators. Available in various hole sizes — select your required configuration using the dropdown menu to ensure the correct particle size output for your application. Precision-manufactured to OEM specifications for guaranteed fitment and consistent regrind quality. Regular screen inspection and replacement are essential to maintaining granulator output quality.

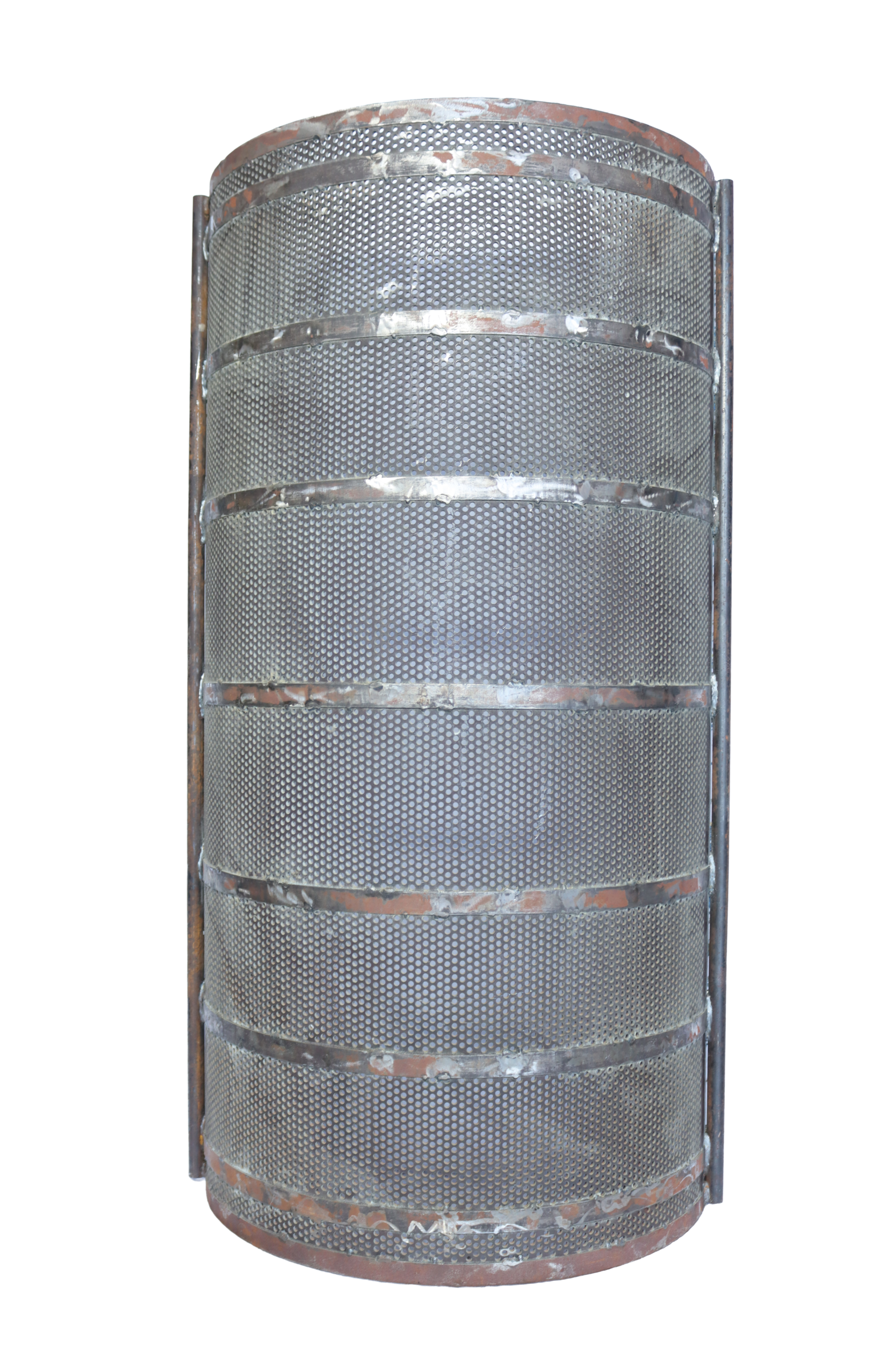

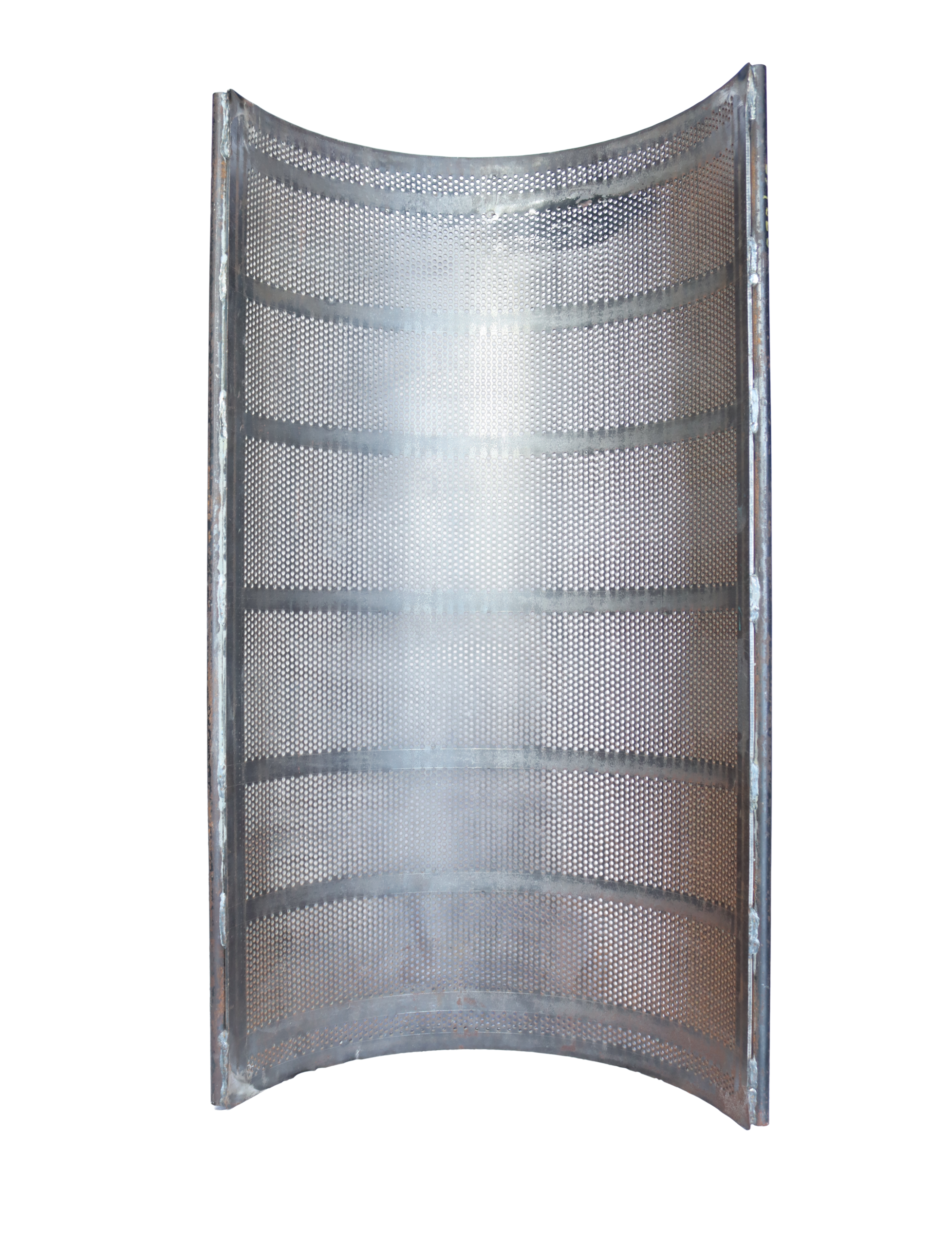

The GSC 700/1400 Granulator Screen is an OEM-specification replacement screen for Virtus Equipment and ZERMA America GSC 700/1400 granulators. The granulator screen is the component that determines the final output particle size of the regrind material — plastic material continues to circulate in the cutting chamber until it is small enough to pass through the screen perforations, ensuring consistent, uniform particle size in every granulation cycle.
| Weight | 140 lbs |
|---|---|
| Dimensions | 58 × 31 × 12 in |
SKU: CS7001400S
Machine Compatibility: GSC 700/1400 — Virtus Equipment & ZERMA America
Screen Type: Granulator screen — perforated steel with rod reinforcement
Function: Output particle size control — material circulates until passing through screen perforations
Applications: Central granulation of plastic parts, production scrap, and recycling material

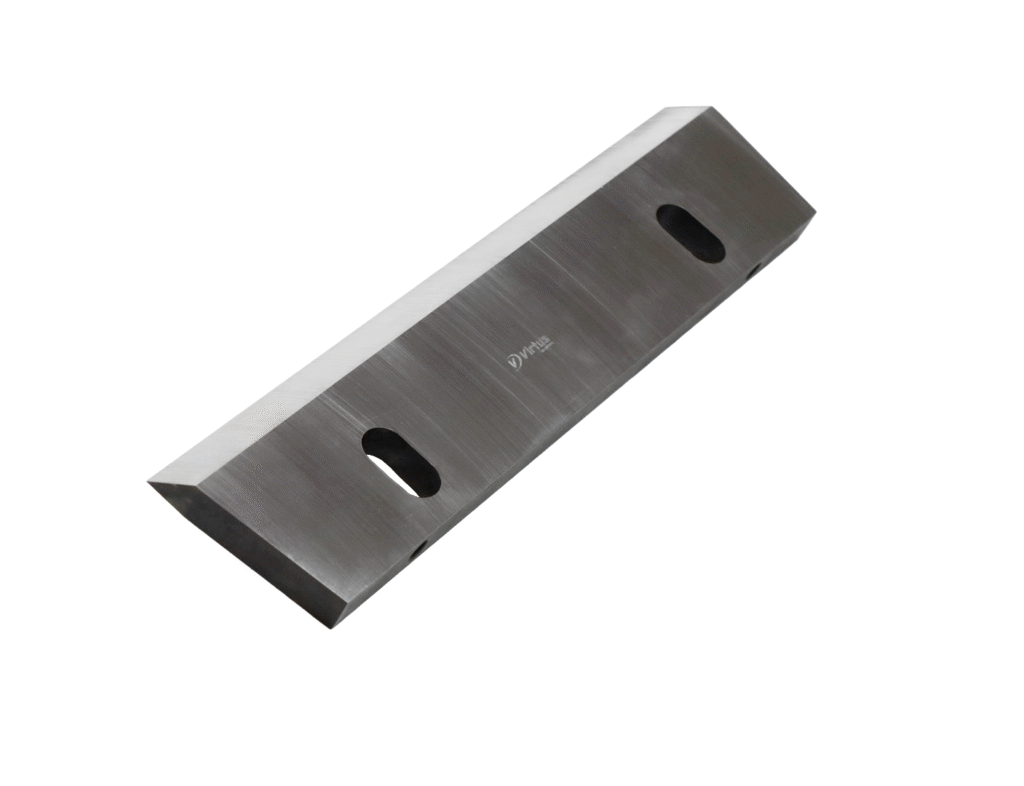

Related Parts: GSC 700/700 Granulator Screen | 350 × 100 × 22 Rotor Knife — SKU: 80000930 | 726 × 100 × 22 Stator Knife — SKU: 80001080
Three Hole Size Options: Select from the dropdown menu to match your target particle size and application requirements.
GSC 700/1400 Specific Fitment: Manufactured to the exact dimensions and perforation pattern required for the GSC 700/1400 cutting chamber — guaranteed OEM-specification fitment.
Wide Cutting Chamber Coverage: Designed for the 1400 mm cutting width of the GSC 700/1400 — providing full-width screen coverage for consistent particle size control across the entire cutting chamber.
Particle Size Control: Screen hole diameter directly determines maximum output particle size — select based on your downstream processing requirements and target regrind specification.
Rod-Reinforced Construction: Heavy-duty perforated steel construction with rod reinforcement provides the structural rigidity required for continuous high-throughput central granulation operation.
Direct OEM Replacement: Precision-manufactured to original equipment specifications for guaranteed fitment and consistent regrind quality performance.
The GSC 700/1400 is one of the wider cutting chamber configurations in the GSC series, designed for high-throughput central granulation of plastic parts, production scrap, and recycling material across a 1400 mm cutting width. This screen is available in various hole size configurations to accommodate a range of output particle size requirements and downstream processing specifications.
Screens are high-wear components that require regular inspection. A worn, cracked, or blinded screen reduces output quality, increases fines generation, raises energy consumption, and can cause material buildup in the cutting chamber. Replace screens at the first signs of wear or damage to maintain optimal granulator performance.
