Description

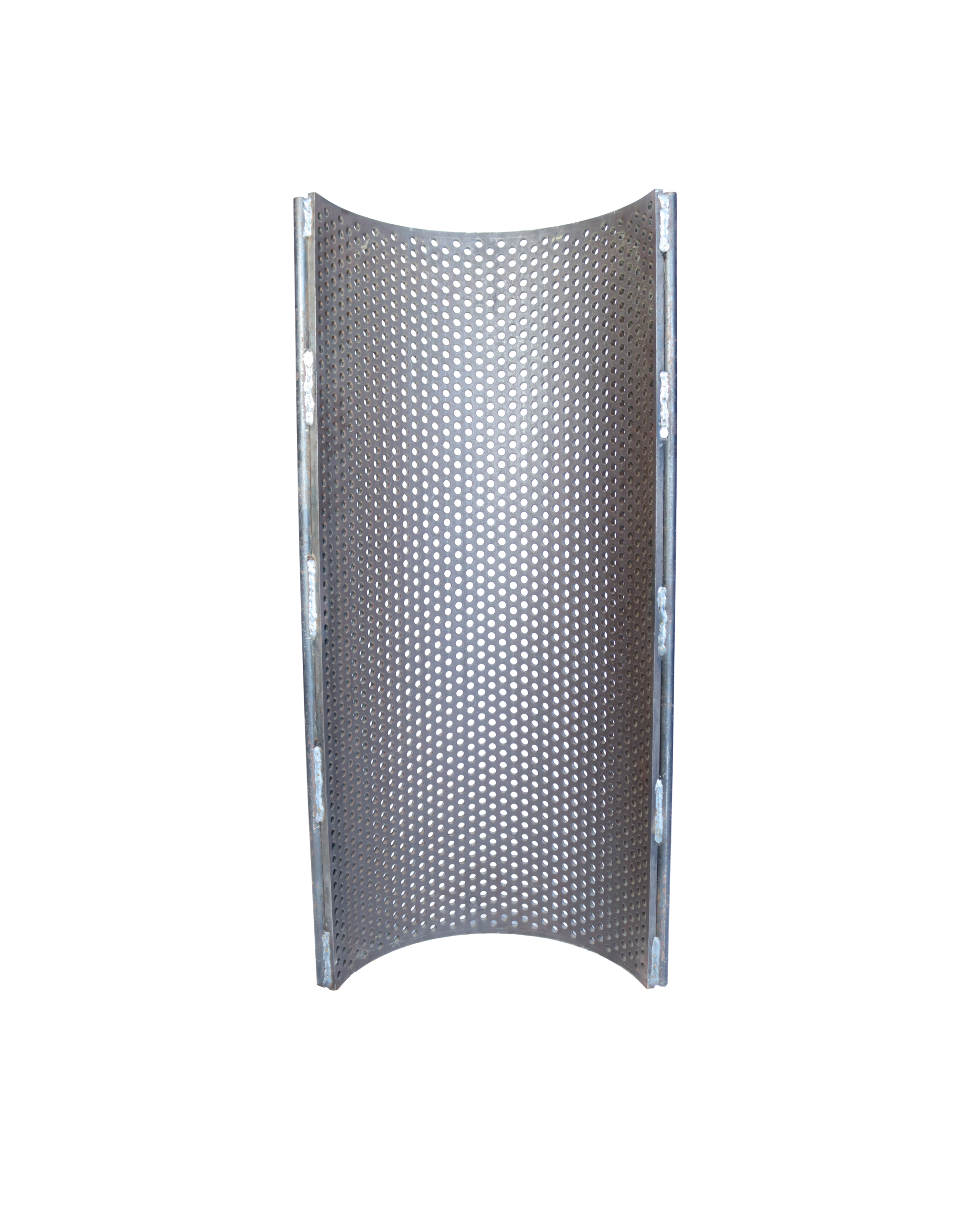

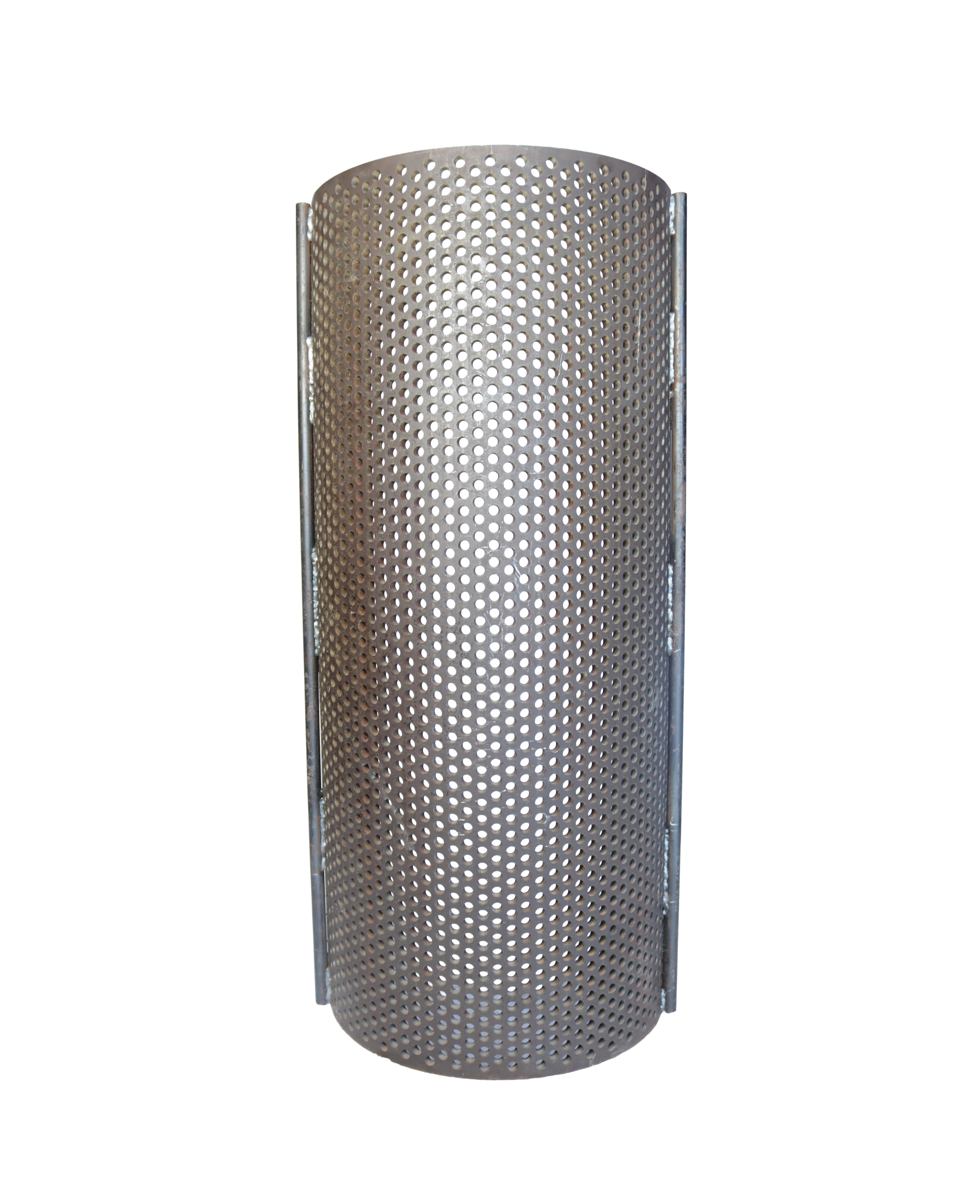

The ZSS 850 / G Series Shredder Screen is an OEM-specification replacement screen for ZSS 850 General Purpose Single-Shaft Shredder and G Series General Purpose Single-Shaft Shredder. The shredder screen controls the maximum output particle size. Material continues to circulate through the cutting chamber until it is small enough to pass through the screen perforations, ensuring consistent, controlled output for downstream processing or further size reduction.
The ZSS 850 / G Series is a general purpose single-shaft shredder equipped with a 457 mm diameter E-type rotor at 850 mm width. Driven by an oversized gearbox, it operates at low speed with high torque and features a two-speed hydraulic swing ram design. The hydraulic power pack is integrated into the machine housing to save space and simplify maintenance. This machine is suited for a wide range of in-house and general recycling applications including plastics, wood, paper, and e-waste.
Screens are high-wear components requiring regular inspection. A damaged or blinded screen reduces throughput, increases energy consumption, and causes output size inconsistency. Replace at the first signs of wear, cracking, or perforation damage.
Technical Specifications:
Machine Compatibility: ZSS 850 (ZERMA America) | G Series (Virtus Equipment)
Screen Type: General purpose single-shaft shredder screen
Rotor Diameter: 457 mm
Rotor Width: 850 mm
Key Features:
ZSS 850 / G Series Specific Fitment: Manufactured to the exact dimensions required for the ZSS 850 / G Series cutting chamber for guaranteed OEM-specification fitment.
Output Size Control: Screen hole size directly determines maximum output particle size. Select the correct hole size for your downstream processing or granulation requirements.
Multiple Hole Sizes Available: Select your required hole size from the dropdown menu to ensure you receive the correct screen for your application.
Heavy-Duty Construction: Engineered to withstand the high cutting forces and material loading of the ZSS 850 / G Series low-speed, high-torque E-type rotor shredder.
Direct OEM Replacement: Precision-manufactured to original equipment specifications for guaranteed fitment and consistent shredder output quality.
Applications: In-house and general plastics recycling, production scrap reduction, industrial waste processing, and pre-shredding before granulation.
Compatibility: ZSS 850 General Purpose Single-Shaft Shredder (ZERMA America) and G Series General Purpose Single-Shaft Shredder (Virtus Equipment)
