Robust shredder for first pass size reduction of plastic.

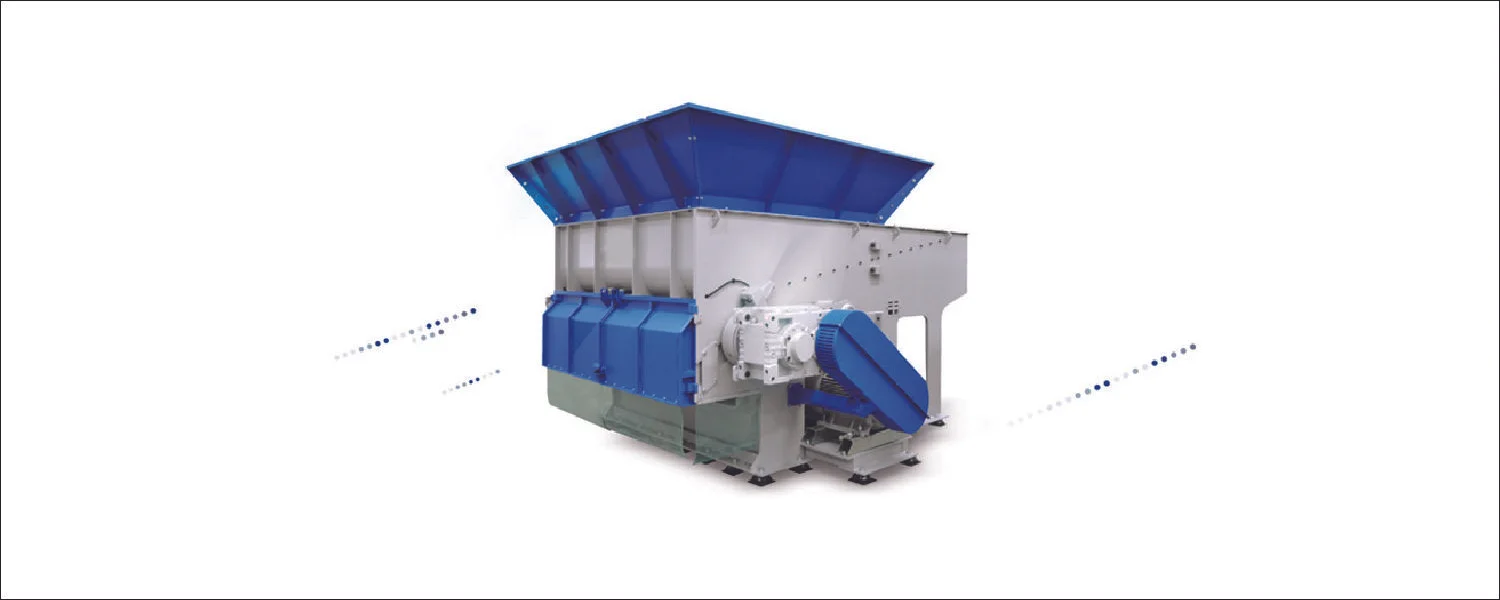

The Virtus Equipment VHS-series of industrial horizontal shredders are a single-shaft shredder featuring an angled hydraulic ram suitable for a wide range of material shapes and sizes. It is equipped with a 600 mm diameter E-type rotor and knife holder fixing system and is available in widths from 1500 mm to 2600 mm. The final material size is determined by the screen which can easily be changed based on requirements. The VHS- series shredder can be tailored to fit your recycling requirements, this includes different drive powers, knife configurations as well as discharge options.
The VHS-series shredders provide an economical solution for recycling of plastics, wood, paper, and general waste streams. The industrial horizonthla shredders have been engineered for strength and reliability in daily operation. These shredders can easily be integrated into complete lines with other Virtus products and accessories such as conveyors, granulators, etc.
Angled Hydraulic Pusher
Large Feeding Hopper
E-type Rotor
| VHS Series | VHS1500 | VHS2000 | VHS2600 | |
|---|---|---|---|---|
| lbs/hr | ||||
| Rotor Diameter | mm | 600 | 600 | 600 |
| Rotor Width | mm | 1400 | 1960 | 2520 |
| Rotor Speed | rpm | 104 | 104 | 104 |
| Drive Capacity | kW | 90 or 110 | 110 or 2 x 75 | 2 x 90 or 2 x 110 |
| Rotor Knives (34 x 34) | pcs | 68 or 102 | 96 or 144 | 124 or 186 |
| Rotor Knives (50 x 50) | pcs | 35 or 57 | 54 or 81 | 70 or 105 |
| Stator blades | pcs | 5 | 7 | 9 |
| Ram Feeder Drive | kW | 5.5 | 5.5 | 5.5 |
| Cutting chamber volume | m3 | 1.4 | 2 | 2.6 |
| Screen Size | mm | >40 | >40 | >40 |
| Effective Working Area | mm x mm | 1320 x 1340 | 1880 x 1500 | 2440 x 1500 |
| Weight (approx.) | kg | 12000 | 14000 | 16000 |
| Dimensions | ||||
| A | mm | 4420 | 4650 | 4650 |
| B | mm | 455 | 455 | 595 |
| C | mm | 2700 | 2740 | 2740 |
| D | mm | 1855 | 2050 | 2040 |
| E | mm | 1420 | 1980 | 2540 |
| F | mm | 2830 | 3890 | 4425 |
