Constructed for large diameter PVC plastic reclaimed pipes or bundles of smaller plastic pipes and profiles.

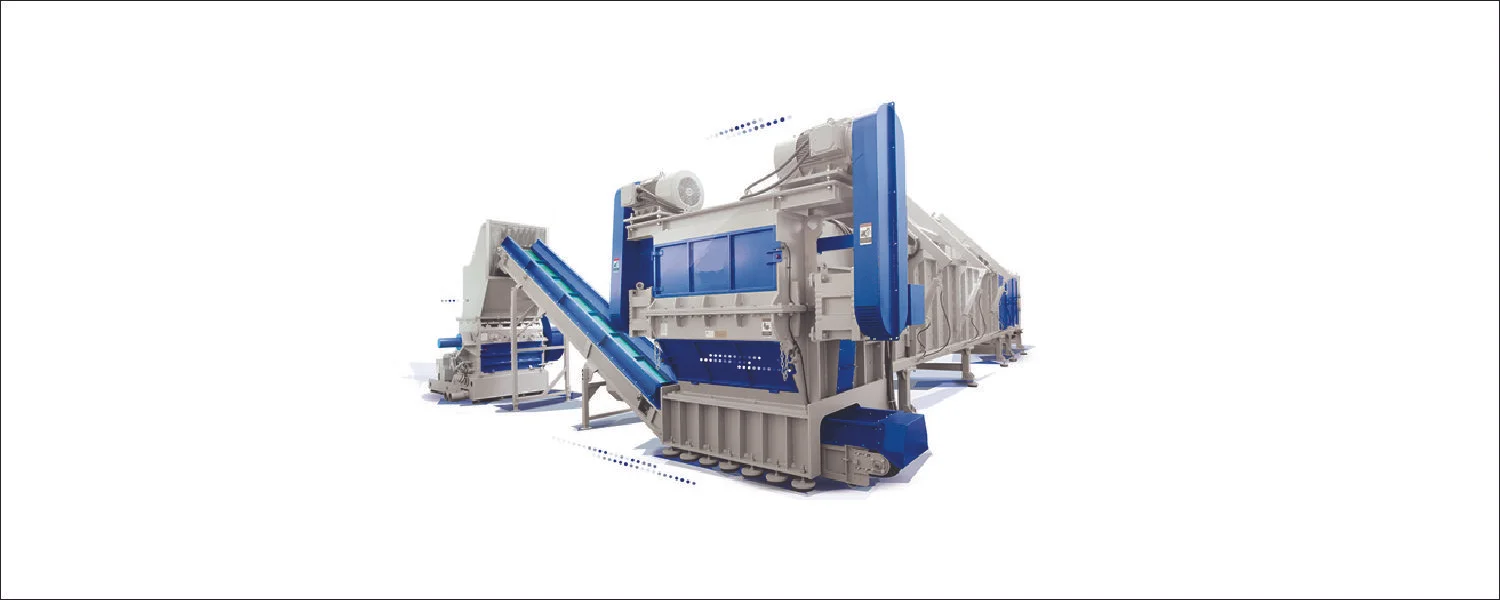

Virtus Equipment's P-Series plastics pipe profile industrial shredder is the world’s first single-shaft shredder capable of handling large diameter pipes up to 1200 mm without the need for pre-cutting. It is available in rotor diameters and widths from 800 mm up to 1500 mm, and the standard hopper accepts pipe lengths up to 6 meters. The combination of advanced controls, low rotor speed, and smooth hydraulics create a reliable and easy-to-use system.
Since its introduction, the P-Series pipe profile industrial shredder has become the per se standard for shredding pipe profiles and is used by leading pipe manufacturers worldwide. The more than 200 installations demonstrate our technological leadership in this industry and ongoing innovation is based on market demands and customer feedback.
The P-series plastics pipe profile industrial shredder’s mainly shreds large diameter pipes or bundles of smaller pipes and profiles made of HDPE, PP, and PVC. The shredders also can be used for recycling other plastic materials like large lumps, stacked wheelie bins, and pallets. In combination with Virtus Equipment’s other size-reduction equipment such as granulators and pulverizers, we are able to provide a complete turn-key recycling solution.
Rotor Knife
E-type Rotor
Heavy-duty Swing Arm Ram
| P Series | P 800 | P 1000 | P 1500 | |
|---|---|---|---|---|
| lbs/hr | ||||
| Rotor Diameter | mm | 800 | 1000 | 1500 |
| Rotor Width | mm | 850 | 1050 | 1450 |
| Rotor Speed | rpm | 40 | 36 | 23 |
| Drive Capacity | kW | 2 x 37 | 2 x 45 | 2 x 55 |
| Rotor Knives | pcs | 60 | 81 | 136 |
| Stator Knives | rows | 1 or 2 | 1 or 2 | 1 or 2 |
| Ram Feeder Drive | kW | 11 | 15 | 15 |
| Feeding Trough Volume | m3 | 2.7 | 6.7 | 12.6 |
| Biggest Pipe | mm x mm | 3500 x Ø630 | 6500 x Ø850 | 6500 x Ø120 |
| Weight (approx.) | kg | 12800 | 17500 | 24000 |
| Dimensions | ||||
| A | mm | 11840 | 11940 | 12180 |
| B | mm | 1420 | 1580 | 1820 |
| C | mm | 1830 | 1965 | 2320 |
| D | mm | 3860 | 6720 | 6720 |
| E | mm | 975 | 1080 | 1080 |
| F | mm | 2545 | 2965 | 3250 |
| G | mm | 590 | 590 | 590 |
| H | mm | 2565 | 2975 | 3160 |
An Industrial Plastic Pipe & Profile Shredder is designed to efficiently process and recycle large plastic pipes, profiles, and bundles without the need for pre-cutting. Virtus Equipment’s P-Series Shredders handle pipes up to 1200 mm in diameter, offering a reliable and high-throughput solution for plastic recycling.
Virtus Equipment’s Industrial Pipe & Profile Shredder can process HDPE, PP, and PVC pipes and profiles, as well as lumps, pallets, and stacked bins. Its robust construction and high torque design make it ideal for recycling both large and bulky plastic components.
Yes. The P-Series Shredders are specifically designed to feed and process bundles or nested pipes directly into the hopper. This feature saves time, eliminates manual pre-cutting, and significantly increases throughput efficiency.
Key advantages include:
For a custom quote or to get technical support for the Plastic Pipe & Profile Shredder, submit an inquiry through the online contact form or reach out to Virtus Equipment’s sales engineers. Our support team will provide detailed performance data, configuration options, and pricing information — and can also assist with capacity planning and system integration to ensure optimal performance.
