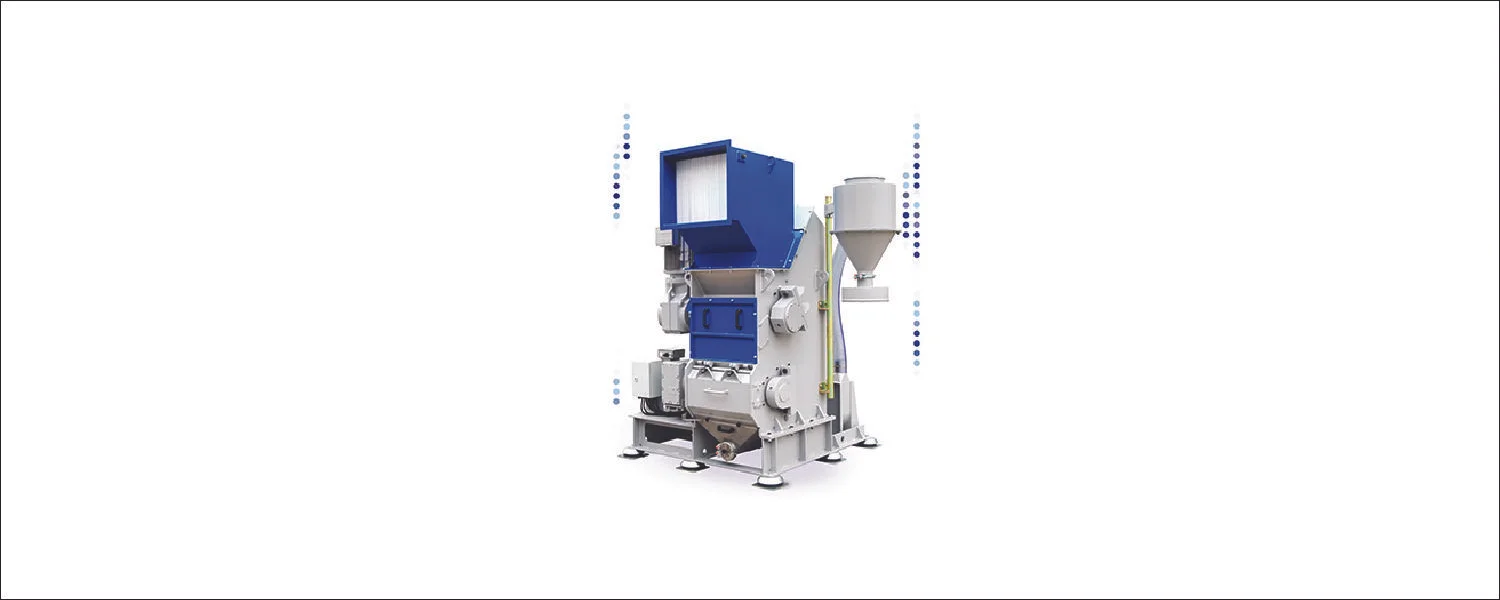

Space-saving system for the processing of plastics production waste.
The SG-Series Shredder Granulator Combination combines a shredder with a granulator in a single-spacing, size reduction system for the processing of plastic production waste. The shredder segment is equipped with a 400 mm diameter E-type rotor using Virtus Equipment's proven knife and knife holder design. It is driven by a high-torque gear drive which, in comparison to a direct drive, also handles tougher input materials well. The large material hopper and the powerful horizontal pusher allow the processing of voluminous as well as heavier parts. The lower system segment consists of a 3-blade granulator rotor based on the C-series. The shredder and granulator are matched to work together ideally and in conjunction with an advanced control system ensuring smooth reliable operation.
The SG shredder granulator combination has been designed mainly for in-house use in plastics blow and injection molding applications, yet it can be adopted in other fields too. The small footprint allows the system to be integrated into existing factory workshops easily. Being a closed system also reduces the risk of contamination compared to using a conveyor belt in a traditional two-stage recycling system. The system is well-suited for large volume parts and thicker materials such as flush or purging.

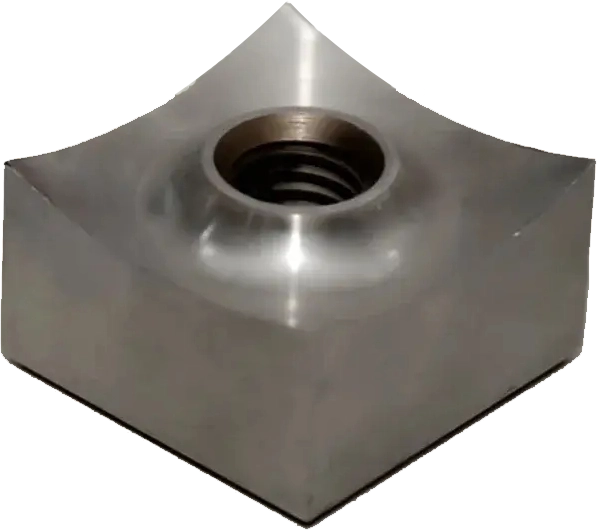

Concave Rotor Knife

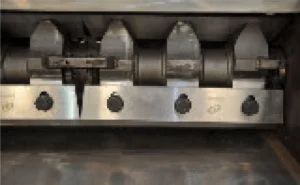

V-cut Rotor Technology

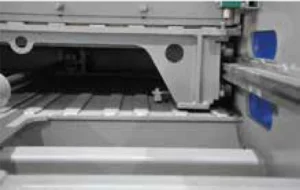

Guided Drawer-type Ram
| SG Series | SG 600 | SG 1000 | SG 1400 | |
|---|---|---|---|---|
| lbs/hr | ||||
| Feed Opening | mm x mm | 570 x 490 | 1500 x 600 | 1880 x 1000 |
| Rotor Width | mm | 570 | 1000 | 1400 |
| Rotor Diameter (Shredder) | mm | 310 | 400 | 400 |
| Drive Capacity (Shredder) | kW | 11 | 30 | 45 |
| Hydraulic Drive Capacity (Shredder) | kW | 0.75 | 3.75 | 3.75 |
| Rotor Knives (Shredder) | rows | 26 | 27 | 34 |
| Stator Knives (Shredder) | rows | 1 | 1 | 1 |
| Screen Size | mm | ≥6 | ≥6 | ≥6 |
| Rotor Diameter (Granulator) | mm | 300 | 300 | 350 |
| Motor Capacity (Granulator) | kW | 7.5 | 15 | 22 |
| Rotor Knives (Granulator) | rows | 3 | 3 | 3 |
| Stator Knives (Granulator) | rows | 2 | 2 | 2 |
| Effective Working Area | mm x mm | 250 x 300 | 250 x 450 | 250 x 600 |
| Weight (approx.) | kg | 2060 | 5470 | 8210 |
| Dimensions | ||||
| A | mm | 1960 | 3348 | 4250 |
| B | mm | 2370 | 2750 | 3410 |
| C | mm | 1840 | 2080 | 2355 |
| D | mm | 570 | 1538 | 1880 |
| E | mm | 490 | 600 | 1000 |
| F | mm | 1550-2540 | 1900 | 2550 |
