Ideal for injection molding – beside the press granulator – minimized dust and reduced noise.

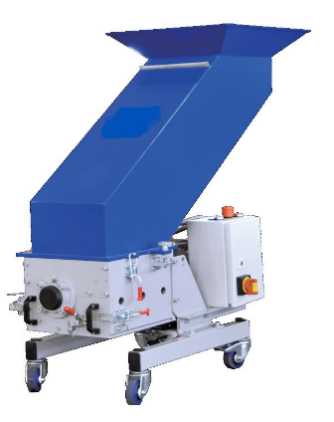

Virtus Equipment's LS 18 low-speed plastics granulators feature a staggered 180 mm diameter rotor in widths from 180 to 430 mm; concurrently, the LS 30 series has a 300 mm diameter rotor in widths from 400 to 800 mm. A geared motor directly drives the rotor. As well as, its low speed reduces our grinder’s noise level and creates less dust while grinding. The LS-series’s specially-designed knives can be sharpened easily and don’t require adjustment afterward.
Depending on the application, the LS-series low-speed plastics granulators can be fitted with a wide variety of sound-absorbing feed hoppers and base frames, and a built-in blower system with matching suction bins or bag-filling adapters, allowing integration with most types of injection molding machines and robots.
Virtus Equipment's low-speed plastics granulators are mainly used beside the press machines to grind plastic runners and sprues in injection and blow molding processes. The resulting granules are then immediately reintroduced into the production process. In addition, our beside-the-press granulators can be used for rejected products in the in-line recycling process as well.Our LS 30 series’ rugged design allows it to be used for stronger and thicker materials while offering the same advantages of minimized dust and reduced noise at a low speed as the smaller LS 18 series. Furthermore, these adaptable grinders can also be used as low-noise central granulators for small throughput requirements as well.We are here to help with all your plastic size reduction needs. LOG Injection Molding Machine will cover your entire spectrum of plastic injection molding machinery.
Specially-profiled Rotor Knife
Staggered Rotor Blades
Quick Snap Fastening System
| LS 18 Series | LS 18-18 | LS 18-30 | LS 18-43 | |
|---|---|---|---|---|
| lbs/hr | ||||
| Rotor Diameter | mm | 180 | 180 | 180 |
| Rotor Width | mm | 180 | 300 | 430 |
| Rotor Speed | rpm | 150 | 150 | 150 |
| Rotor Knives | pcs | 18 | 30 | 45 |
| Stator Knives | rows | 2 | 2 | 2 |
| Screen Size | mm | >5 | >5 | >5 |
| Drive Capacity | kW | 3 | 4 | 4 |

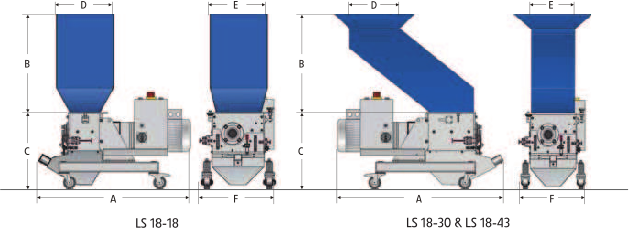

| Dimensions | ||||
| A | mm | 890 | 1095 | 1240 |
| B | mm | 610 | 610 | 910 |
| C | mm | 460 | 460 | 550 |
| D | mm | 345 | 345 | 430 |
| E | mm | 345 | 345 | 345 |
| F | mm | 455 | 455 | 615 |
| LS 30 Series | LS 30-40 | LS 30-60 | LS 30-80 | |
|---|---|---|---|---|
| lbs/hr | ||||
| Rotor Diameter | mm | 300 | 300 | 300 |
| Rotor Width | mm | 400 | 600 | 800 |
| Rotor Speed | rpm | 150 | 150 | 150 |
| Stator Knives | rows | 2 | 2 | 2 |
| Rotor Knives | pcs | 33 | 48 | 66 |
| Screen Size | mm | >5 | >5 | >5 |
| Drive Capacity | kW | 7.5 | 18.5 | 18.5 |
| Dimensions | ||||
| A | mm | 1125 | 1125 | 1135 |
| B | mm | 400 | 400 | 400 |
| C | mm | 1335 | 1335 | 1340 |
| D | mm | 405 | 600 | 830 |
| E | mm | 1300 | 1600 | 1900 |
